ASV50L-JETSKC (2011)

Toyota Camry/Hybrid (China)

Production Dec 2011 - Jan 2015
Engine 5ARFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1501)

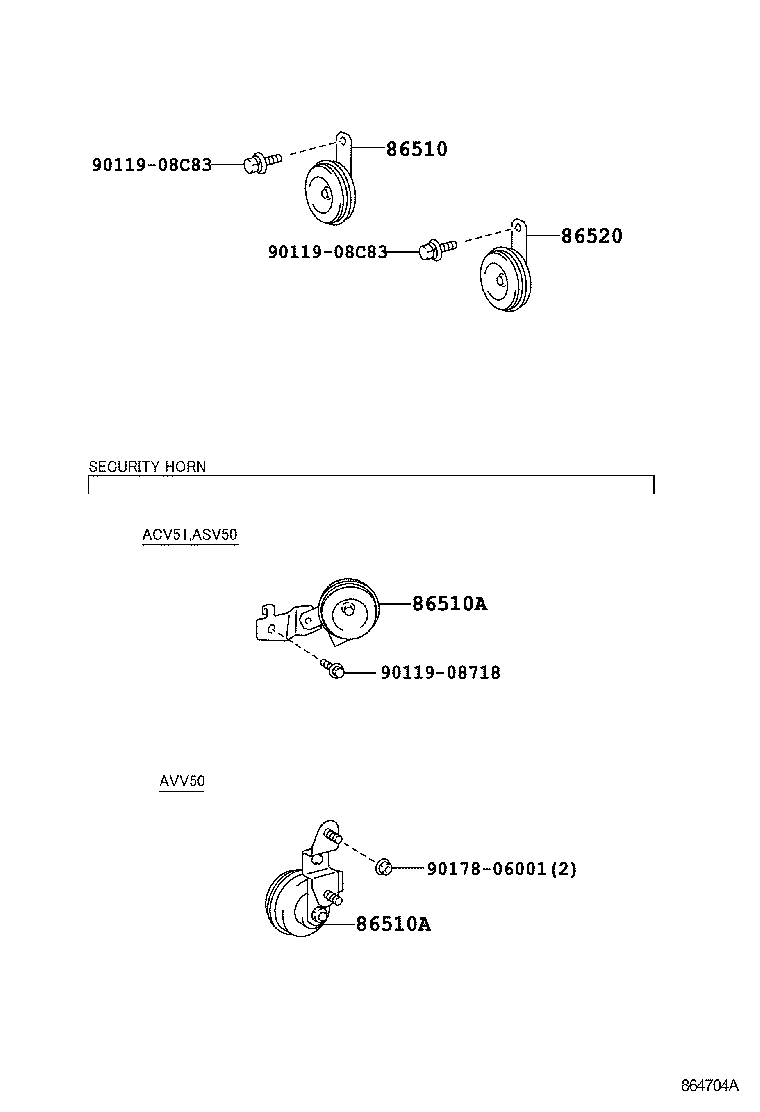

Click highlighted areas on diagram

diagram 86510 86510A 86510A 86520 9011908718 9011908C83 9011908C83 9017806001
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-06180

ACV51,ASV50,AVV50

 1
86510-06150

ACV51,ASV50,AVV50

 1
86510A - HORN ASSY, SECURITY
86560-06080

ACV51,ASV50

 1
86510A - HORN ASSY, SECURITY
86560-06080

ACV51,ASV50

 1
86520 - HORN ASSY, LOW PITCHED
86520-06140

ACV51,ASV50,AVV50

 1
86520-06170

ACV51,ASV50,AVV50

 1
Common parts
90119-08718
90119-08C83
90178-06001
