ASV50L-JETSKC (2011)

Toyota Camry/Hybrid (China)

Production Dec 2011 - Jan 2015
Engine 5ARFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

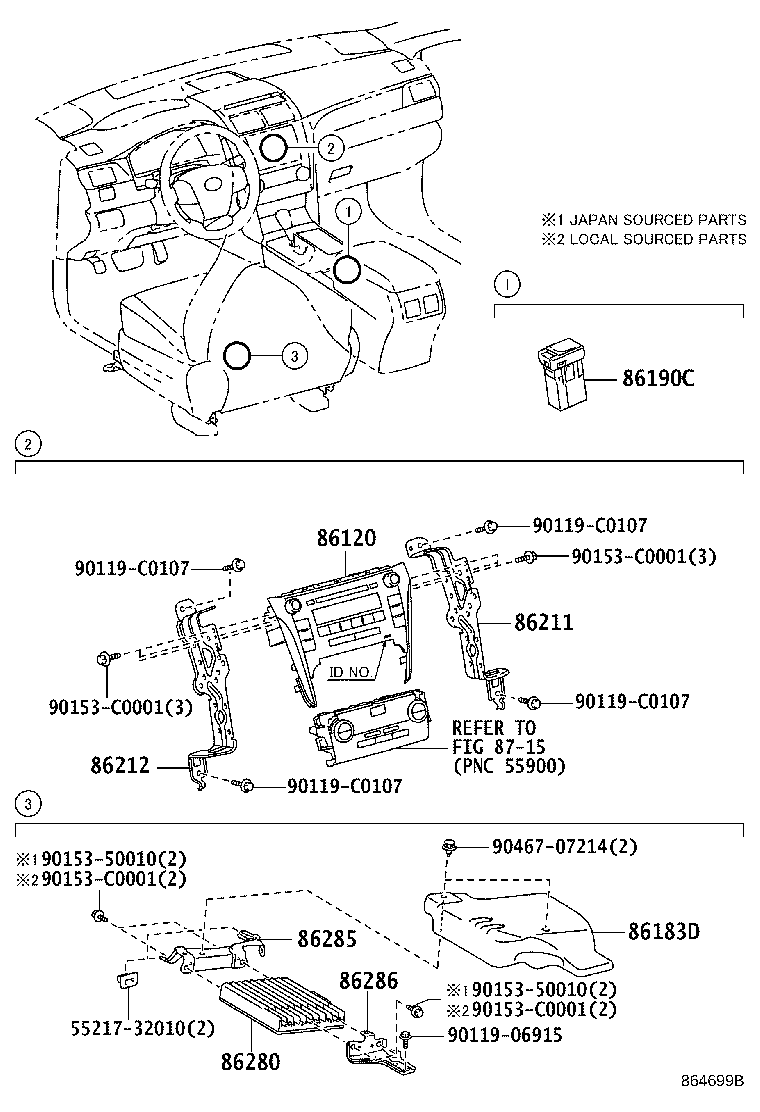

ILLUST NO. 1 OF 2(1112-1501)

Click highlighted areas on diagram

RECEIVER & AMPLIFIER

diagram 5521732010 86120 86183D 86190C 86211 86212 86280 86285 86286 8715 9011906915 90119C0107 90119C0107 90119C0107 90119C0107 9015350010 9015350010 90153C0001 90153C0001 90153C0001 90153C0001 9046707214
Part # Description Qty Price
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-33040

ACV51,ASV50,AVV50

 1
86190-06040

ACV51,ASV50,AVV50

 1
86211 - BRACKET, RADIO, NO.1
86211-06120

ACV51,ASV50,AVV50..20S,25G,25S,HBD,STD

 1
86211-06130

ACV51,ASV50..25G,25S,STD

AUDIO-AVN & 6SPEAKER

 1
86212 - BRACKET, RADIO, NO.2
86212-06120

ACV51,ASV50,AVV50..20S,25G,25S,HBD,STD

 1
86212-06130

ACV51,ASV50..25G,25S,STD

AUDIO-AVN & 6SPEAKER

 1
Common parts
55217-32010
90119-06915
90119-C0107
90153-50010
90153-C0001
90467-07214
Linked diagrams
8715

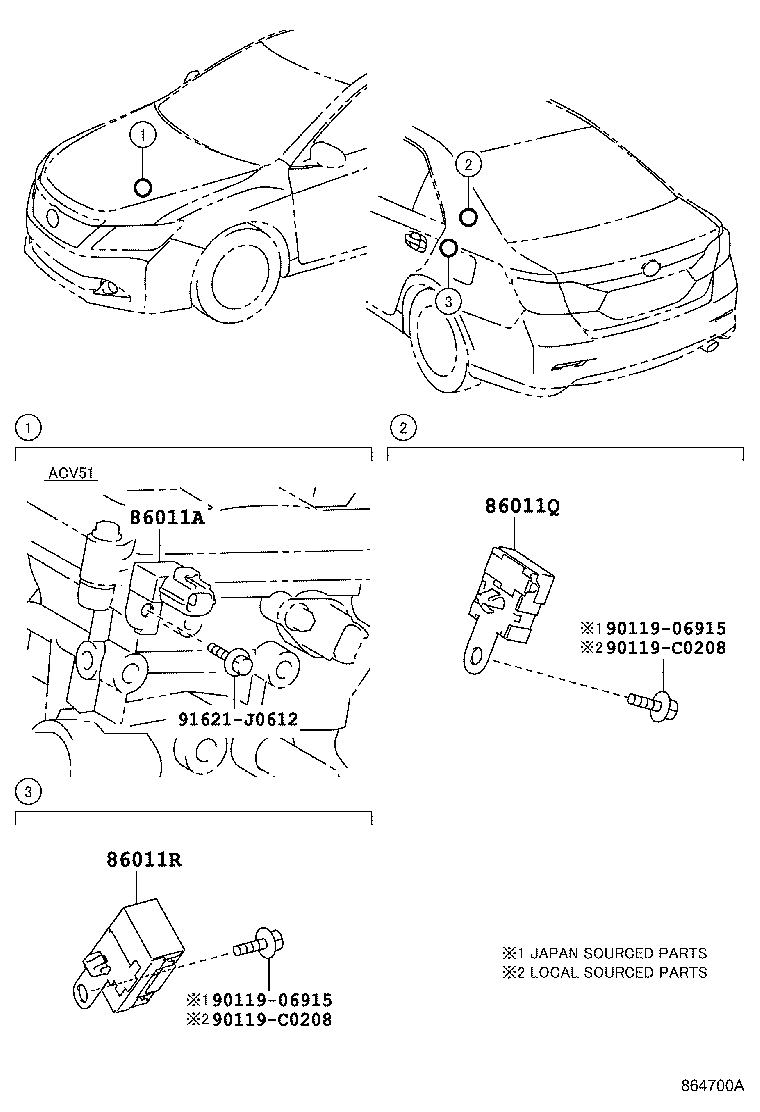

ILLUST NO. 2 OF 2(1112- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011Q 86011R 9011906915 9011906915 90119C0208 90119C0208 91621J0612
Part # Description Qty Price
86011Q - CONDENSER, RADIO SETTING
90980-04189

ACV51,ASV50,AVV50

 1
86011R - CONDENSER, RADIO SETTING
90980-04204

ACV51,ASV50,AVV50

 1
Common parts
90119-06915
90119-C0208
91621-J0612
