ASV50L-JETSKC (2011)

Toyota Camry/Hybrid (China)

Production Dec 2011 - Jan 2015
Engine 5ARFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

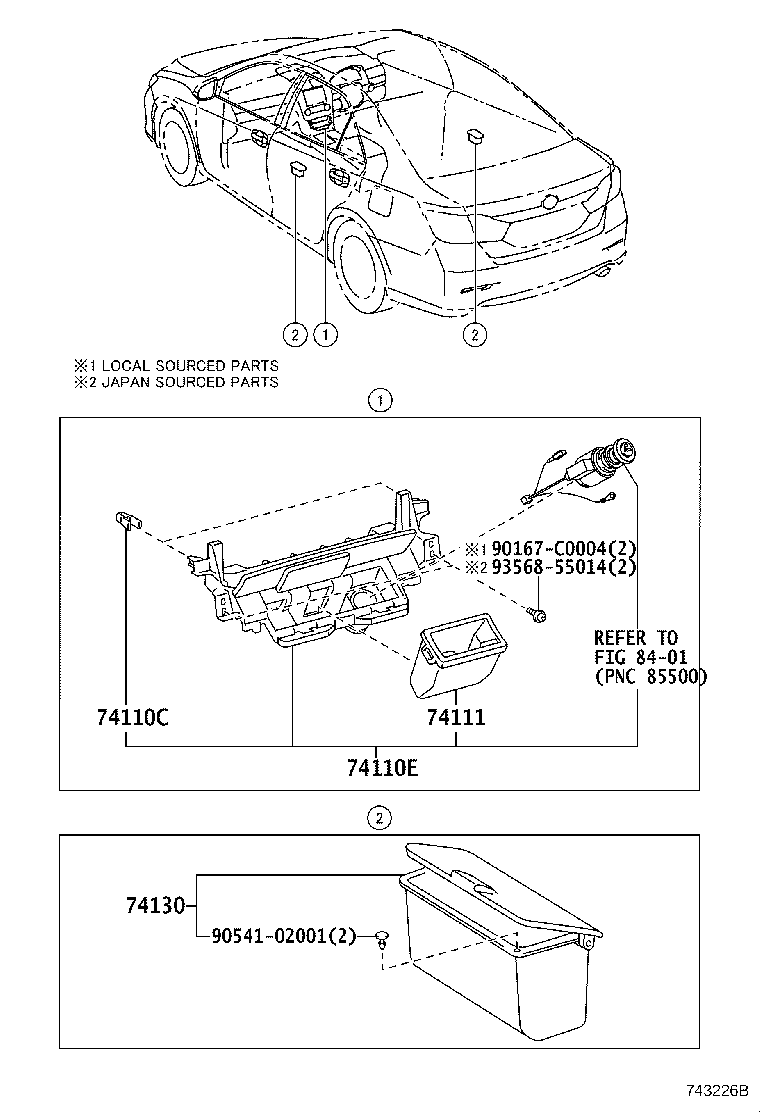

Click highlighted areas on diagram

diagram 74110C 74110E 74111 74130 8401 90167C0004 9054102001 9356855014
Part # Description Qty Price
74110C - CLIP, FRONT ASH RECEPTACLE, INNER
90467-10203

ACV51,ASV50,AVV50

 2
74110E - RECEPTACLE ASSY, FRONT ASH
74110-06300B0

ACV51,ASV50..20S,25S

BLACK,TRIM0#,2#

 1
74111 - BOX, FRONT ASH RECEPTACLE
74111-06040

ACV51,ASV50,AVV50

 1
74130 - RECEPTACLE ASSY, REAR ASH
74130-06240B0

ACV51,ASV50..20S,25S

BLACK,TRIM0#,2#

 2
Common parts
90167-C0004
90541-02001
93568-55014
Linked diagrams
8401
