ASV50L-JETSKC (2011)

Toyota Camry/Hybrid (China)

Production Dec 2011 - Jan 2015
Engine 5ARFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

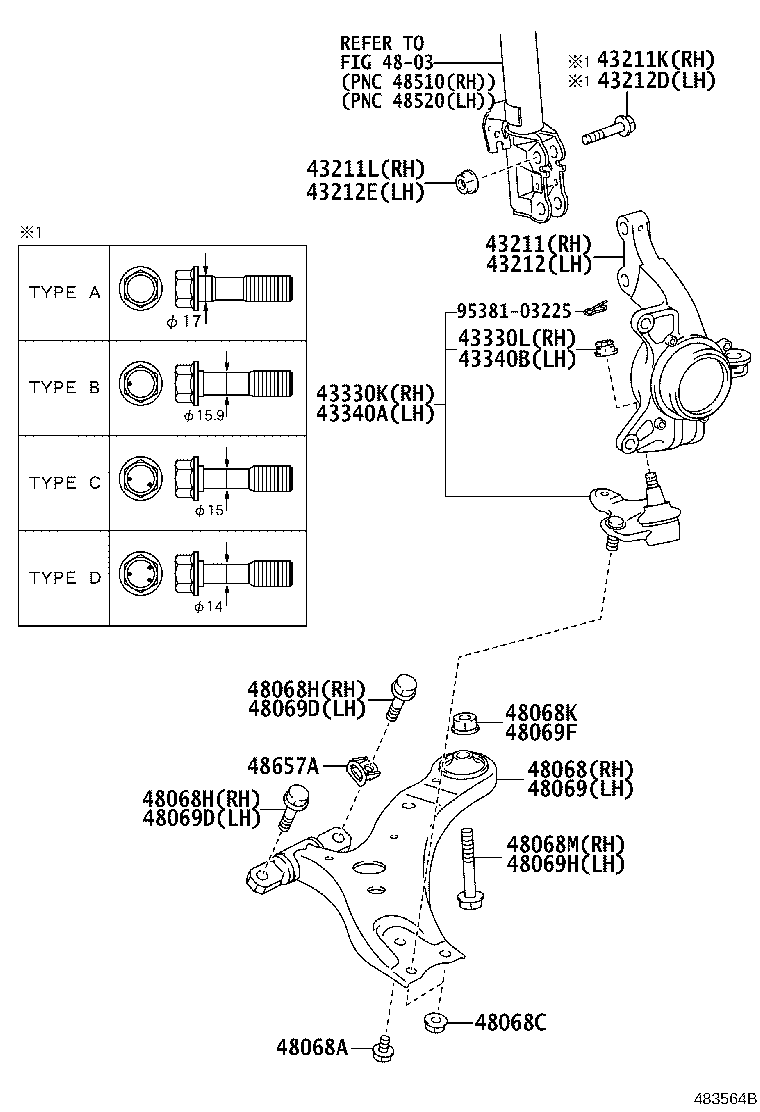

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43340A 43340B 4803 48068 48068A 48068C 48068H 48068H 48068K 48068M 48069 48069D 48069D 48069F 48069H 48657A 9538103225
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-06230

ACV51,ASV50,AVV50

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17014

ACV51,ASV50,AVV50

OD=15,TYPE C:REFER ILLUST.

 1
90105-17015

ACV51,ASV50,AVV50

OD=14,TYPE D:REFER ILLUST.

 1
90105-17013

ACV51,ASV50,AVV50

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17012

ACV51,ASV50,AVV50

OD=17,TYPE A:REFER ILLUST.

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17002

ACV51,ASV50,AVV50

(J)

 2
90178-17002

ACV51,ASV50,AVV50

 2
90178-C0084

ACV51,ASV50,AVV50

(L)

 2
43212 - KNUCKLE, STEERING, LH
43212-06230

ACV51,ASV50,AVV50

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17012

ACV51,ASV50,AVV50

OD=17,TYPE A:REFER ILLUST.

 2
90105-17015

ACV51,ASV50,AVV50

OD=14,TYPE D:REFER ILLUST.

 1
90105-17013

ACV51,ASV50,AVV50

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17014

ACV51,ASV50,AVV50

OD=15,TYPE C:REFER ILLUST.

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17002

ACV51,ASV50,AVV50

 2
90178-17002

ACV51,ASV50,AVV50

(J)

 2
90178-C0084

ACV51,ASV50,AVV50

(L)

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-09710

ACV51,ASV50,AVV50

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14003

ACV51,ASV50,AVV50

 1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43340-09130

ACV51,ASV50,AVV50

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14003

ACV51,ASV50,AVV50

 1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-06180

ACV51,ASV50,AVV50

 1
48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM)
90105-C0023

ACV51,ASV50,AVV50

 2
48068C - NUT(FOR FRONT SUSPENSION LOWER ARM)
90178-C0003

ACV51,ASV50,AVV50

 4
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-C0024

ACV51,ASV50,AVV50

 2
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-C0024

ACV51,ASV50,AVV50

 2
48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90178-C0030

ACV51,ASV50,AVV50

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90119-C0198

ACV51,ASV50,AVV50

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-06180

ACV51,ASV50,AVV50

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90105-C0024

ACV51,ASV50,AVV50

 2
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90105-C0024

ACV51,ASV50,AVV50

 2
48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90178-C0030

ACV51,ASV50,AVV50

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90119-C0198

ACV51,ASV50,AVV50

 1
48657A - STOPPER, FRONT LOWER ARM BUSH
48657-28010

ACV51,ASV50,AVV50

 2
Common parts
95381-03225
Linked diagrams
4803
