ASV50L-JETSKC (2011)

Toyota Camry/Hybrid (China)

Production Dec 2011 - Jan 2015
Engine 5ARFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

Click highlighted areas on diagram

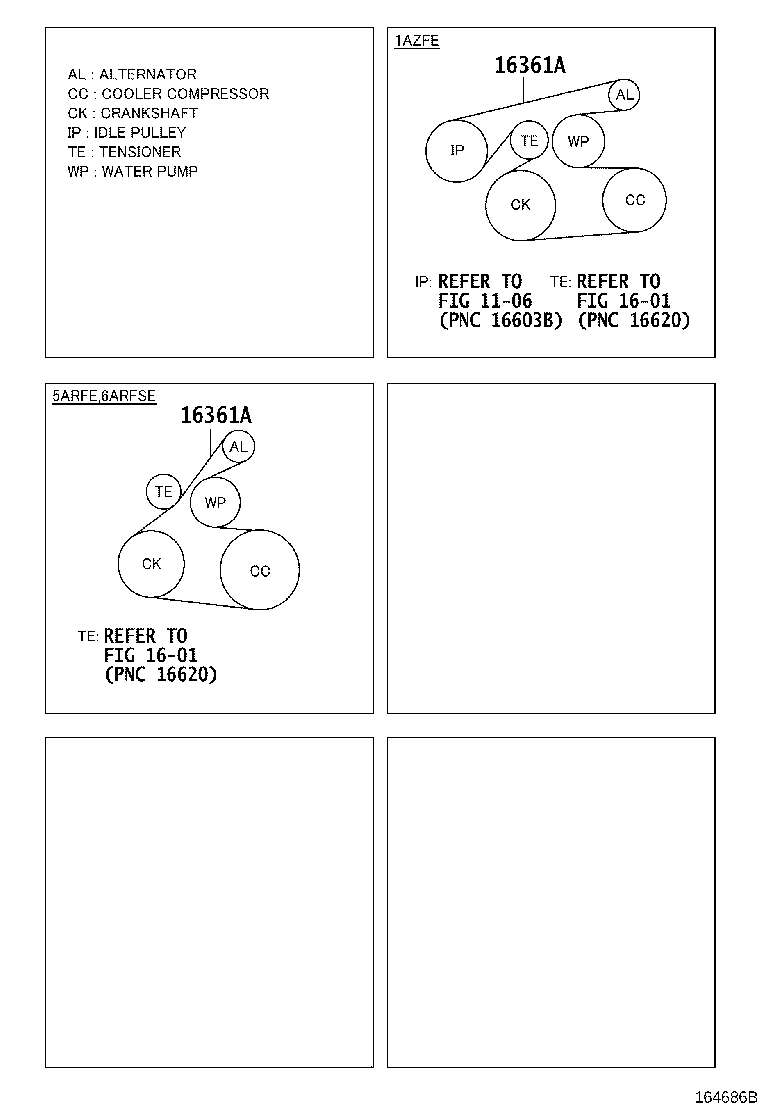

diagram 1106 1601 1601 16361A 16361A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02667

5ARFE..ASV50

BANDO

 1
90916-C2005

5ARFE..ASV50

MITSUBOSHI

 1
90916-02668

5ARFE..ASV50

MITSUBOSHI

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02667

5ARFE..ASV50

BANDO

 1
90916-C2005

5ARFE..ASV50

MITSUBOSHI

 1
90916-02668

5ARFE..ASV50

MITSUBOSHI

 1
Linked diagrams
1106
1601
