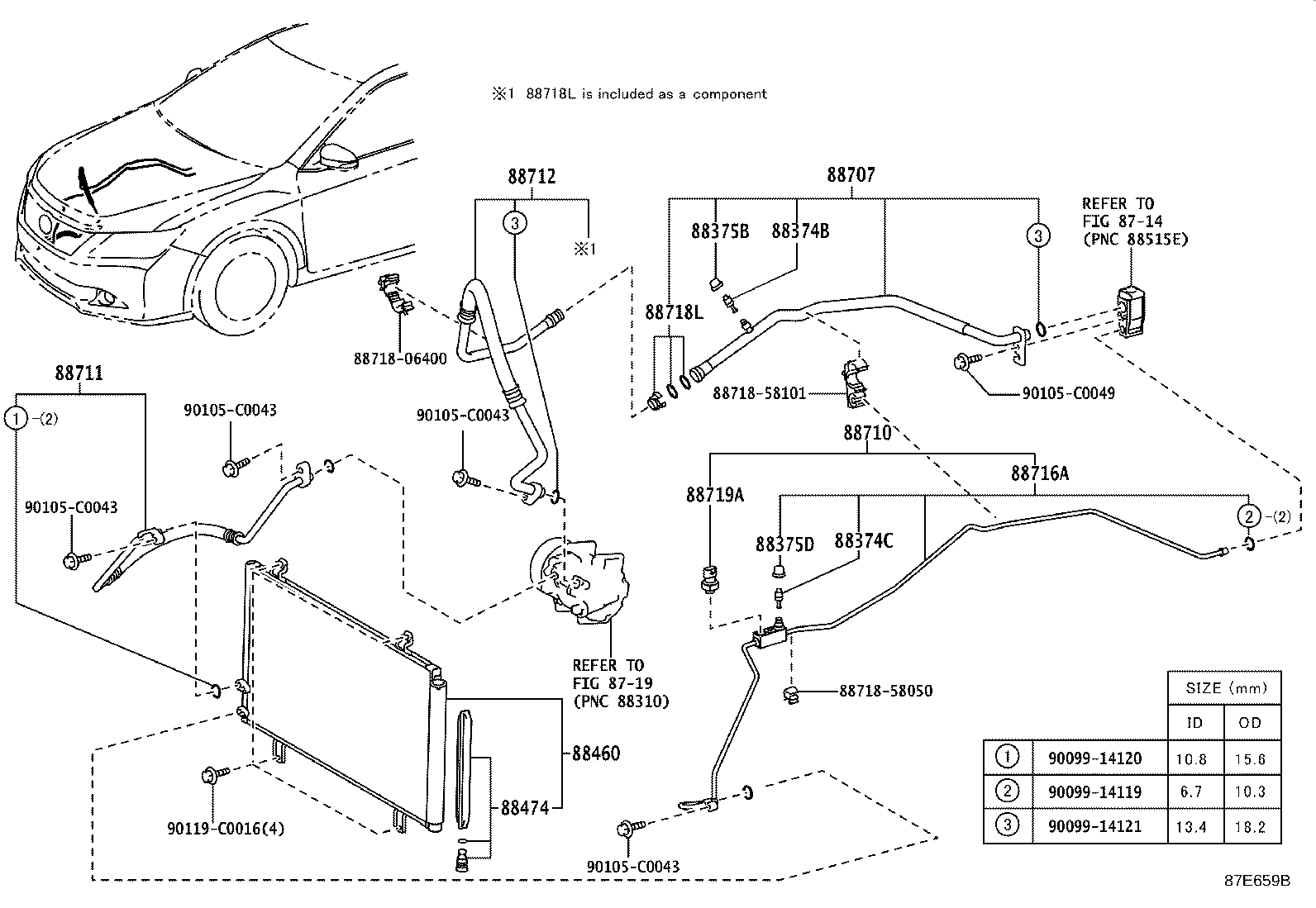

Toyota Camry/hybrid (china) ASV50 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
88374C - VALVE, SERVICE, NO.2
88374-30010	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
88460 - CONDENSER ASSY, COOLER
88460-06250	ACV51,ASV50	12/2011 - 01/2015	1
88474 - DRYER, COOLER
88474-17010	ACV51,ASV50	12/2011 - 01/2015	1
88707 - PIPE SUB-ASSY, SUCTION
88707-06140	ACV51,ASV50	12/2011 - 01/2015	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-06380	ACV51,ASV50	12/2011 - 01/2015	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-06480	ASV50	12/2011 - 01/2015	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-06280	ASV50	12/2011 - 01/2015	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-06510	ACV51,ASV50	12/2011 - 01/2015	1
88718L - CLAMP, PIPING
88718-52280	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
Common parts
88718-06400
88718-58050
88718-58101
90099-14119
90099-14120
90099-14121
90105-C0043
90105-C0049
90119-C0016
Linked diagrams
8714
8719

ASV50L-JETGKC (2011)
