ASV50L-JETGKC (2011)
Toyota Camry/Hybrid (China)
(1112-1501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

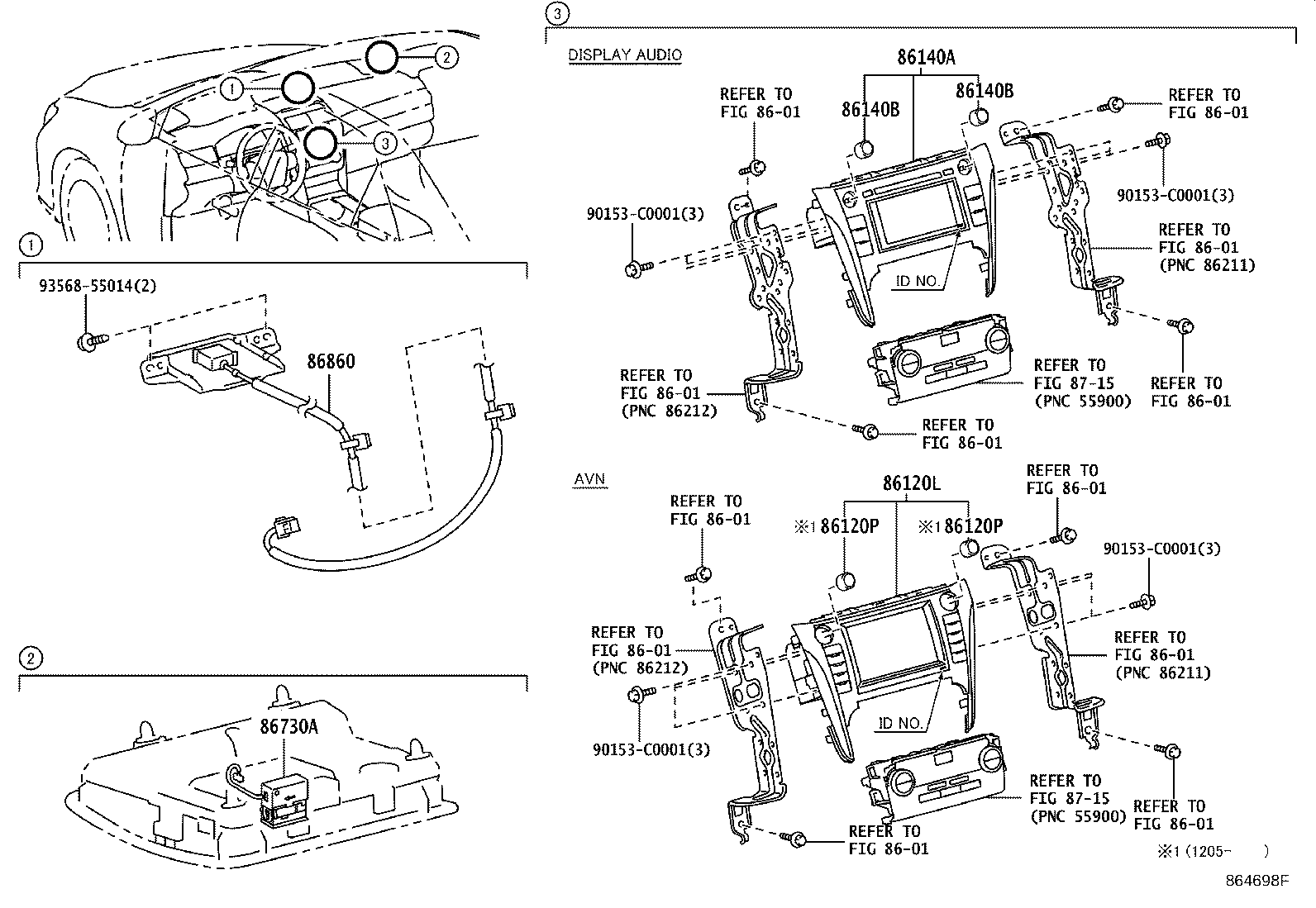

| 86120L - RECEIVER ASSY, NAVIGATION | ||||
| 86100-06294 |
ACV51,ASV50..25G,25S,STD DENSO,ID=E8042,AUDIO-AVN & 6SPEAKER |
1 | ||
| 86100-06293 |
ACV51,ASV50..25G,25S,STD DENSO,ID=E8042,AUDIO-AVN & 6SPEAKER |
1 | ||
| 86100-06295 |
ACV51,ASV50..25G,25S,STD DENSO,ID=E8042,AUDIO-AVN & 6SPEAKER |
1 | ||
| 86100-06291 |
ACV51,ASV50..25G,25S,STD DENSO,ID=E8042,AUDIO-AVN & 6SPEAKER |
1 | ||
| 86100-06292 |
ACV51,ASV50..25G,25S,STD DENSO,ID=E8042,AUDIO-AVN & 6SPEAKER |
1 | ||
| 86100-06290 |
ACV51,ASV50..25G,25S,STD DENSO,ID=E8042,AUDIO-AVN & 6SPEAKER |
1 | ||
| 86100-06296 |
ACV51,ASV50..25G,25S,STD DENSO,ID=E8042,AUDIO-AVN & 6SPEAKER |
1 | ||
| 86120P - KNOB, NAVIGATION RECEIVER SWITCH | ||||
| 90011-25209 |
ACV51,ASV50..25G,25S,STD AUDIO-AVN & 6SPEAKER |
2 | ||
| 90011-25209 |
ACV51,ASV50..25G,25S,STD AUDIO-AVN & 6SPEAKER |
2 | ||
| 86120P - KNOB, NAVIGATION RECEIVER SWITCH | ||||
| 90011-25209 |
ACV51,ASV50..25G,25S,STD AUDIO-AVN & 6SPEAKER |
2 | ||
| 90011-25209 |
ACV51,ASV50..25G,25S,STD AUDIO-AVN & 6SPEAKER |
2 | ||
| 86140A - RECEIVER ASSY, RADIO & DISPLAY | ||||
| 86140-06100 |
ASV50,AVV50..25G,25S,HBD PANASONIC,ID=59009 |
1 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90010-24153 |
ASV50,AVV50..25G,25S,HBD |
2 | ||
| 86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH | ||||
| 90010-24153 |
ASV50,AVV50..25G,25S,HBD |
2 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-20050 |
ASV50,AVV50 |
1 | ||
| 86730-06020 |
ASV50,AVV50 |
1 | ||
| 86730-20050 |
ASV50..25G AUDIO-CD & 6SPEAKER |
1 | ||
| 86730-06020 |
ASV50..25G AUDIO-CD & 6SPEAKER |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-06050 |
ACV51,ASV50..25G,25S,STD AUDIO-AVN & 6SPEAKER |
1 | ||
| Common parts | ||||
| 90153-C0001 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8601 | ||||
| 8715 | ||||
