ASV50L-JETGKC (2011)

Toyota Camry/Hybrid (China)

Production Dec 2011 - Jan 2015
Engine 5ARFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )ACV51,ASV5#

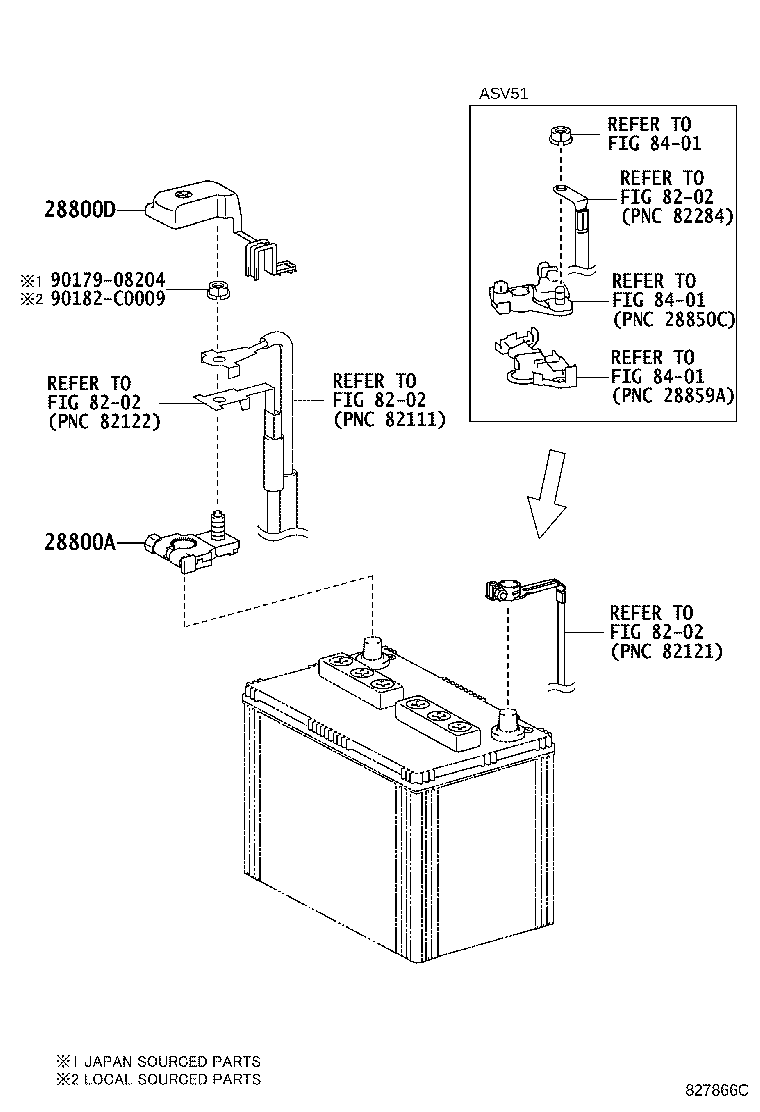

Click highlighted areas on diagram

diagram 28800A 28800D 8202 8202 8202 8202 8401 8401 8401 9017908204 90182C0009
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05061

1AZFE,4ARFXE,5ARFE..ACV51,ASV50,AVV50

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-33350

1AZFE,5ARFE..ACV51,ASV50

 1
Common parts
90179-08204
90182-C0009
Linked diagrams
8202
8401
