ASV50L-JETGKC (2011)
Toyota Camry/Hybrid (China)
(1112- )ACV51,ASV5#

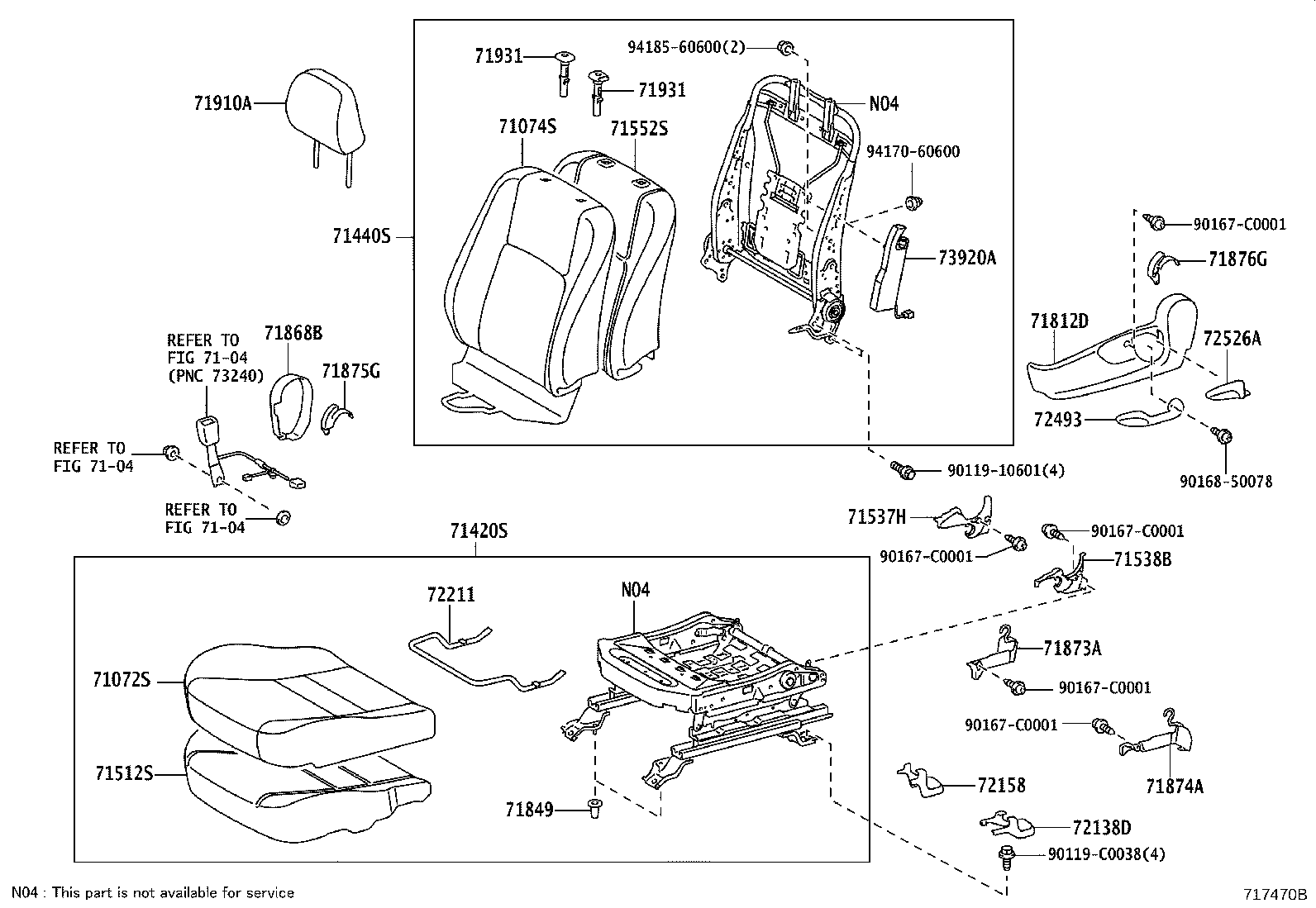

DRIVER SEAT(MANUAL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-06S70A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71072-06F90A4 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71072-06S70C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71072-06F90C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-06J20A5 |
ASV50..25G,25V SHELL,TRIM0# |
1 | ||
| 71074-06J21A5 |
ASV50..25G,25V SHELL,TRIM0# |
1 | ||
| 71074-06V80C0 |
ASV50..25G,25V BLACK,TRIM2# |
1 | ||
| 71074-06V80A0 |
ASV50..25G,25V SHELL,TRIM0# |
1 | ||
| 71074-06J21C0 |
ASV50..25G,25V BLACK,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-06D90A4 |
ASV50..25G SHELL,TRIM0# |
1 | ||
| 71420-06D90C0 |
ASV50..25G BLACK,TRIM2# |
1 | ||
| 71420-06R00A0 |
ASV50..25G SHELL,TRIM0# |
1 | ||
| 71420-06R00C0 |
ASV50..25G BLACK,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-06C80C0 |
ASV50..25G BLACK,TRIM2# |
1 | ||
| 71440-06C80A4 |
ASV50..25G SHELL,TRIM0# |
1 | ||
| 71440-06S00C0 |
ASV50..25G BLACK,TRIM2# |
1 | ||
| 71440-06S00A0 |
ASV50..25G SHELL,TRIM0# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-06480 |
ASV50,AVV50..25G,25V,HBD |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-0P030A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD SHELL,TRIM0# |
1 | ||
| 71537-0P030C0 |
ACV51,ASV50,AVV50..20S,25G,25S,25V,HBD BLACK,TRIM2# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-0P030A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD SHELL,TRIM0# |
1 | ||
| 71538-0P030C0 |
ACV51,ASV50,AVV50..20S,25G,25S,25V,HBD BLACK,TRIM2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-06360 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-06330C0 |
ASV50..25G,25S BLACK,TRIM2# |
1 | ||
| 71812-06330A0 |
ASV50..25G SHELL,TRIM0# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-47010 |
ACV51,ASV50,AVV50 |
2 | ||
| 71868B - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71862-06240C0 |
ACV51,ASV50,AVV50..20S,25G,25S,25V,HBD BLACK,TRIM2# |
1 | ||
| 71862-06240A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD SHELL,TRIM0# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-06450 |
ASV50,AVV50 |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06430 |
ASV50,AVV50 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-0P070A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71875-0P070C0 |
ASV50,AVV50 BLACK,TRIM2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-0P070C0 |
ASV50,AVV50 BLACK,TRIM2# |
1 | ||
| 71876-0P070A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-06B90C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
2 | ||
| 71910-06B90A1 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
2 | ||
| 71910-06K70A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
2 | ||
| 71910-06K70C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
ACV51,ASV50,AVV50 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD W(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-47020A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-47020C0 |
ACV51,ASV50,AVV50 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
ACV51,ASV50,AVV50 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD W(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-47020A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-47020C0 |
ACV51,ASV50,AVV50 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72138D - COVER, SEAT TRACK, OUTER, LH | ||||
| 72138-06160C0 |
ACV51,ASV50,AVV50 BLACK,TRIM2# |
1 | ||
| 72138-06160A0 |
ACV51,ASV50,AVV50 SHELL,TRIM0# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-06150C0 |
ACV51,ASV50,AVV50 BLACK,TRIM2# |
1 | ||
| 72158-06150A0 |
ACV51,ASV50,AVV50 SHELL,TRIM0# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-06130 |
ACV51,ASV50,AVV50 |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-C0038 | ||||
| 90167-C0001 | ||||
| 90168-50078 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1112- )ACV51,ASV5#

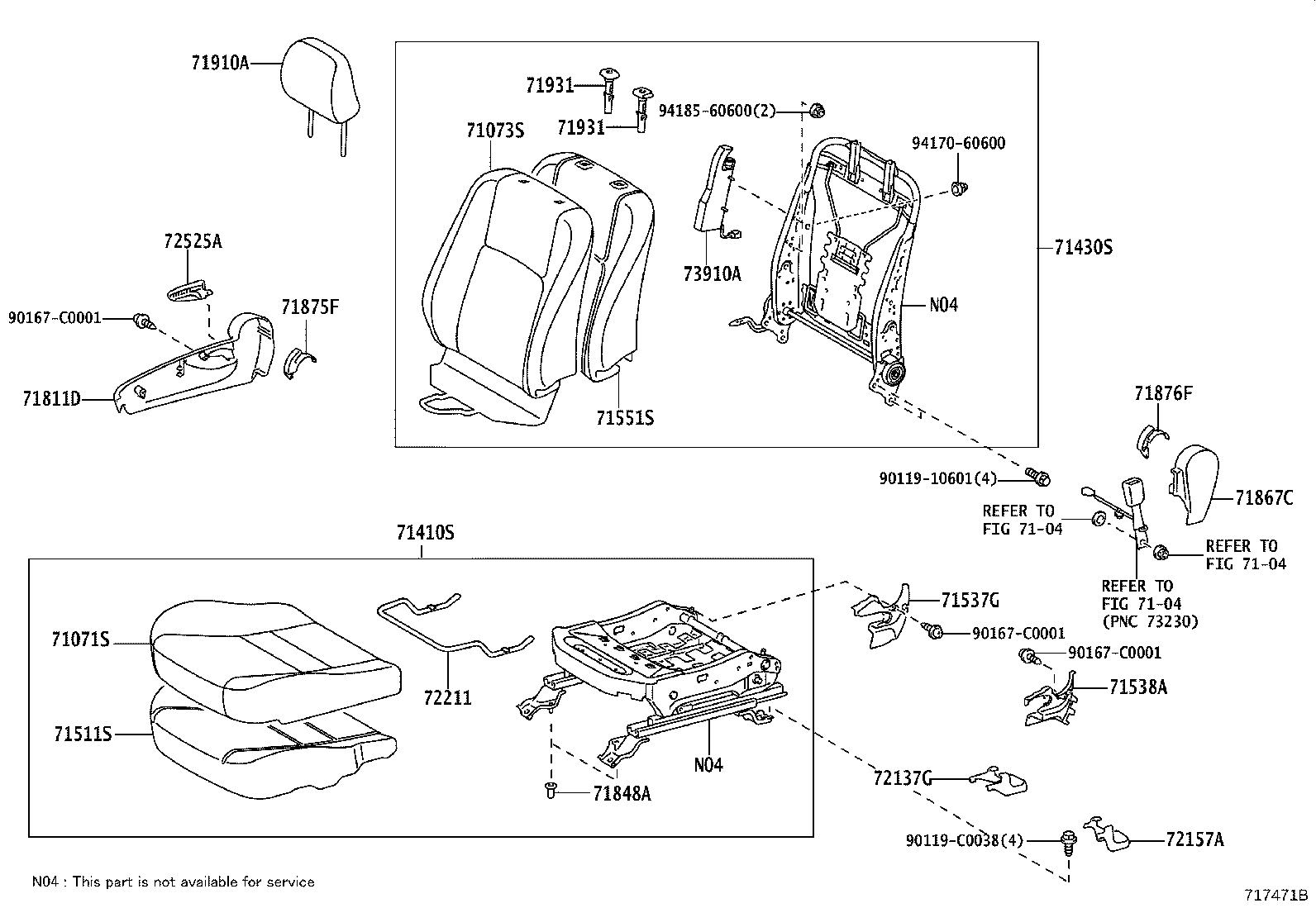

PASSENGER SEAT(MANUAL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-06J90A3 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71071-06J90C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71071-06S70C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71071-06S70A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-06K40A5 |
ASV50..25G,25V SHELL,TRIM0# |
1 | ||
| 71073-06K41A5 |
ASV50..25G,25V SHELL,TRIM0# |
1 | ||
| 71073-06Z20A0 |
ASV50..25G,25V SHELL,TRIM0# |
1 | ||
| 71073-06K41C0 |
ASV50..25G,25V BLACK,TRIM2# |
1 | ||
| 71073-06Z20C0 |
ASV50..25G,25V BLACK,TRIM2# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-06F60C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71410-06F60A3 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71410-06P80C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71410-06P80A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-06D40A5 |
ASV50..25G,25V SHELL,TRIM0# |
1 | ||
| 71430-06T00C0 |
ASV50..25G,25V BLACK,TRIM2# |
1 | ||
| 71430-06D40C0 |
ASV50..25G,25V BLACK,TRIM2# |
1 | ||
| 71430-06T00A0 |
ASV50..25G,25V SHELL,TRIM0# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-06181 |
ASV50,AVV50..25G,25V,HBD |
1 | ||
| 71501-06180 |
ASV50,AVV50..25G,25V,HBD |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-06090A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD SHELL,TRIM0# |
1 | ||
| 71537-06090C0 |
ACV51,ASV50,AVV50..20S,25G,25S,25V,HBD BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-06080A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD SHELL,TRIM0# |
1 | ||
| 71538-06080C0 |
ACV51,ASV50,AVV50..20S,25G,25S,25V,HBD BLACK,TRIM2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-06450 |
ASV50,AVV50..25G,25V,HBD |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-06430C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71811-06430A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47010 |
ACV51,ASV50,AVV50 |
2 | ||
| 71867C - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71861-06220C0 |
ACV51,ASV50,AVV50..20S,25G,25S,25V,HBD BLACK,TRIM2# |
1 | ||
| 71861-06220A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD SHELL,TRIM0# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-0P070A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71875-0P070C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-0P070C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71876-0P070A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-06B90C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
2 | ||
| 71910-06B90A1 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
2 | ||
| 71910-06K70A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
2 | ||
| 71910-06K70C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
ACV51,ASV50,AVV50 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD W(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-47020A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-47020C0 |
ACV51,ASV50,AVV50 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
ACV51,ASV50,AVV50 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD W(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-47020A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-47020C0 |
ACV51,ASV50,AVV50 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 72137G - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-06200A0 |
ACV51,ASV50,AVV50 SHELL,TRIM0# |
1 | ||
| 72137-06200C0 |
ACV51,ASV50,AVV50 BLACK,TRIM2# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-06150C0 |
ACV51,ASV50,AVV50 BLACK,TRIM2# |
1 | ||
| 72157-06150A0 |
ACV51,ASV50,AVV50 SHELL,TRIM0# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-06120 |
ACV51,ASV50,AVV50 |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-C0038 | ||||
| 90167-C0001 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

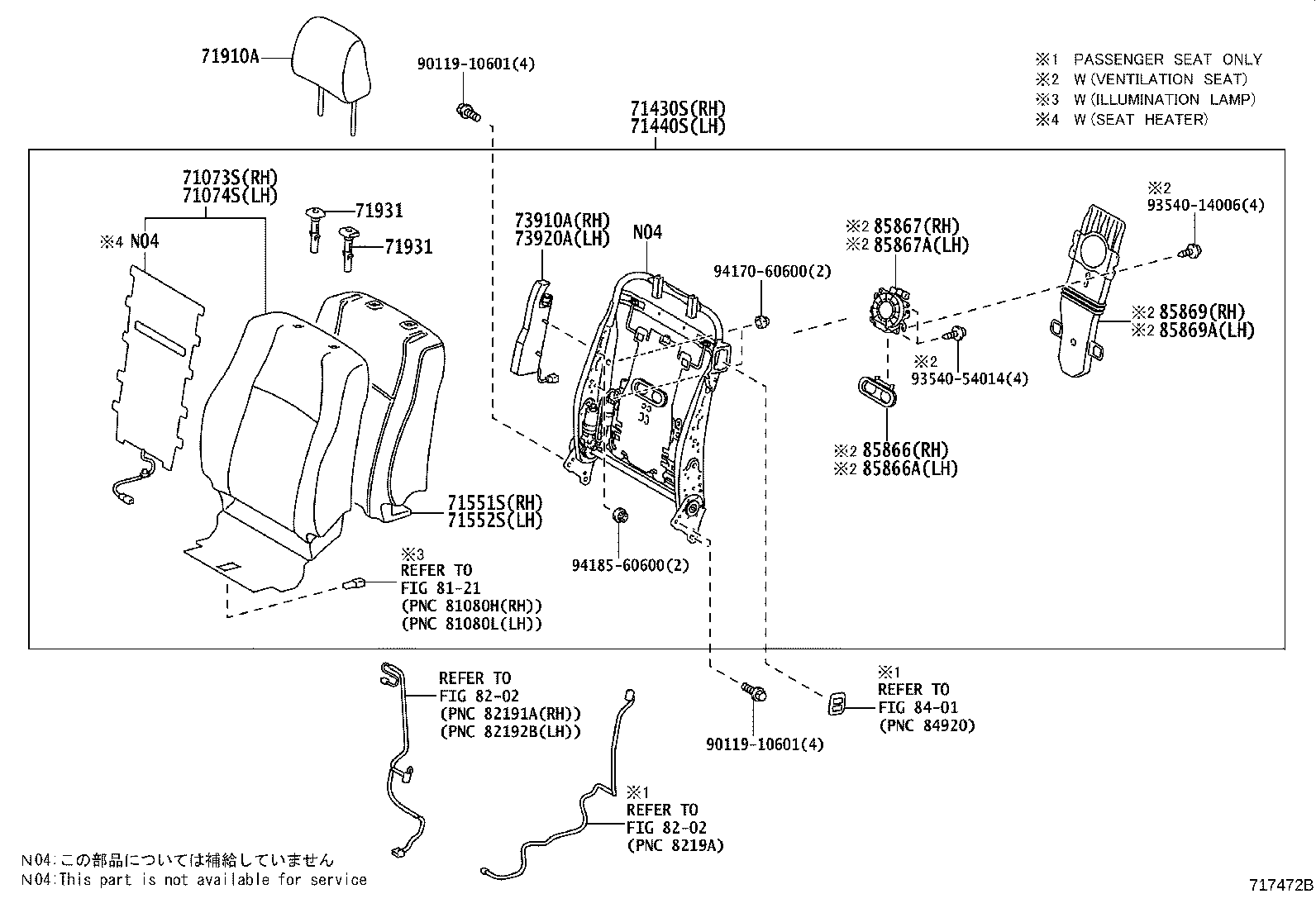

ILLUST NO. 1 OF 2(1112- )
POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-06K40A5 |
ASV50..25G,25V SHELL,TRIM0# |
1 | ||
| 71073-06K41A5 |
ASV50..25G,25V SHELL,TRIM0# |
1 | ||
| 71073-06Z20A0 |
ASV50..25G,25V SHELL,TRIM0# |
1 | ||
| 71073-06K41C0 |
ASV50..25G,25V BLACK,TRIM2# |
1 | ||
| 71073-06Z20C0 |
ASV50..25G,25V BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-06J20A5 |
ASV50..25G,25V SHELL,TRIM0# |
1 | ||
| 71074-06J21A5 |
ASV50..25G,25V SHELL,TRIM0# |
1 | ||
| 71074-06V80C0 |
ASV50..25G,25V BLACK,TRIM2# |
1 | ||
| 71074-06V80A0 |
ASV50..25G,25V SHELL,TRIM0# |
1 | ||
| 71074-06J21C0 |
ASV50..25G,25V BLACK,TRIM2# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-06D40A5 |
ASV50..25G,25V SHELL,TRIM0# |
1 | ||
| 71430-06T00C0 |
ASV50..25G,25V BLACK,TRIM2# |
1 | ||
| 71430-06D40C0 |
ASV50..25G,25V BLACK,TRIM2# |
1 | ||
| 71430-06T00A0 |
ASV50..25G,25V SHELL,TRIM0# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-06C80C0 |
ASV50..25G BLACK,TRIM2# |
1 | ||
| 71440-06C80A4 |
ASV50..25G SHELL,TRIM0# |
1 | ||
| 71440-06S00C0 |
ASV50..25G BLACK,TRIM2# |
1 | ||
| 71440-06S00A0 |
ASV50..25G SHELL,TRIM0# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-06450 |
ASV50,AVV50..25G,25V,HBD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-06360 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-06B90C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
2 | ||
| 71910-06B90A1 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
2 | ||
| 71910-06K70A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
2 | ||
| 71910-06K70C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
ACV51,ASV50,AVV50 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD W(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-47020A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-47020C0 |
ACV51,ASV50,AVV50 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
ACV51,ASV50,AVV50 W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD W(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-47020A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD W/O(LOCK),SHELL,TRIM0# |
2 | ||
| 71931-47020C0 |
ACV51,ASV50,AVV50 W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-06120 |
ACV51,ASV50,AVV50 |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-06130 |
ACV51,ASV50,AVV50 |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 93540-14006 | ||||
| 93540-54014 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1112- )

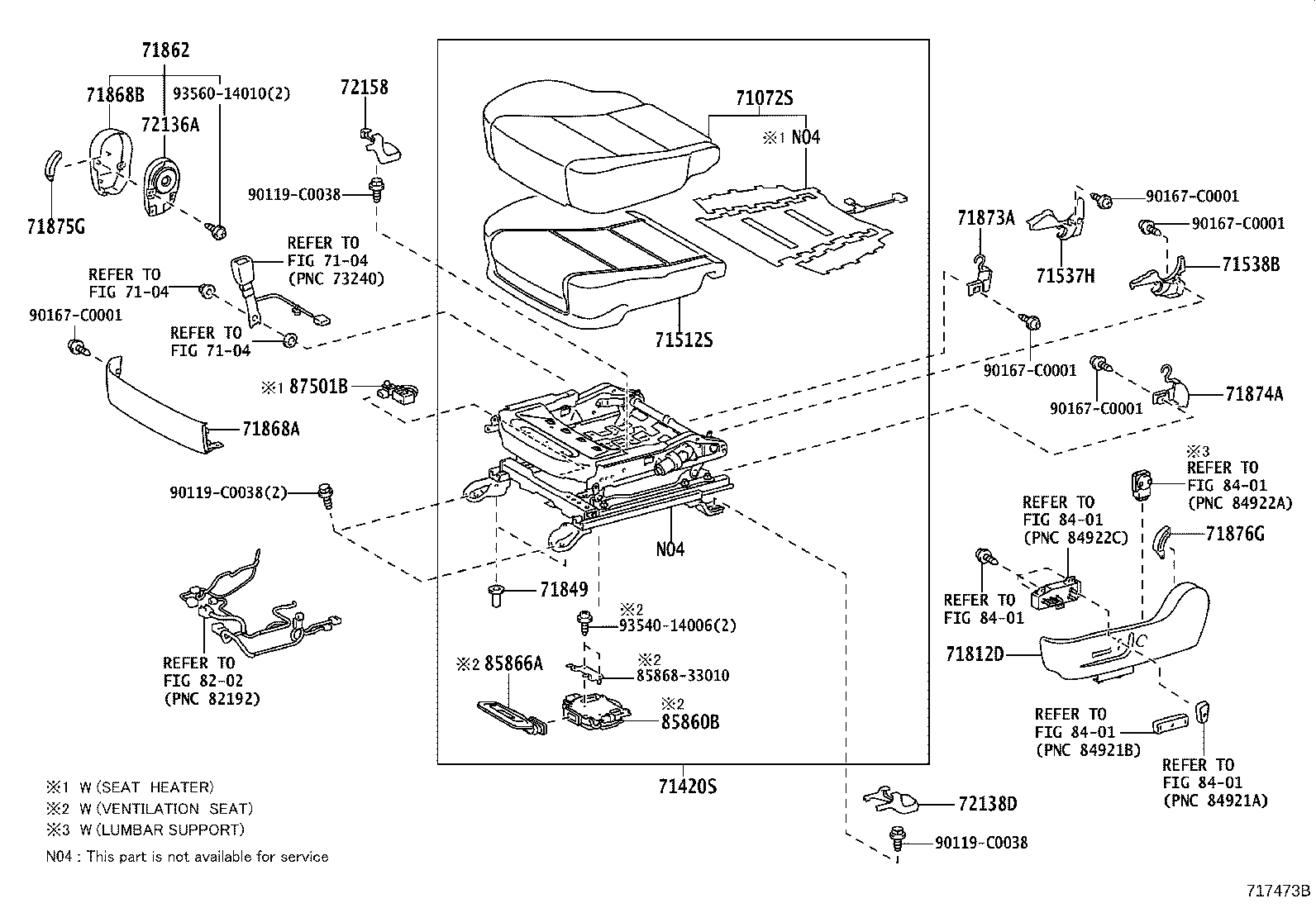

POWER SEAT(DRIVER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-06S70A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71072-06F90A4 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71072-06S70C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71072-06F90C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-06D90A4 |
ASV50..25G SHELL,TRIM0# |
1 | ||
| 71420-06D90C0 |
ASV50..25G BLACK,TRIM2# |
1 | ||
| 71420-06R00A0 |
ASV50..25G SHELL,TRIM0# |
1 | ||
| 71420-06R00C0 |
ASV50..25G BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-06480 |
ASV50,AVV50..25G,25V,HBD |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-0P030A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD SHELL,TRIM0# |
1 | ||
| 71537-0P030C0 |
ACV51,ASV50,AVV50..20S,25G,25S,25V,HBD BLACK,TRIM2# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-0P030A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD SHELL,TRIM0# |
1 | ||
| 71538-0P030C0 |
ACV51,ASV50,AVV50..20S,25G,25S,25V,HBD BLACK,TRIM2# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-06330C0 |
ASV50..25G,25S BLACK,TRIM2# |
1 | ||
| 71812-06330A0 |
ASV50..25G SHELL,TRIM0# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-47010 |
ACV51,ASV50,AVV50 |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-06280A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71862-06280C0 |
ASV50,AVV50 BLACK,TRIM2# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-0P020A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71868-0P020C0 |
ASV50,AVV50 BLACK,TRIM2# |
1 | ||
| 71868B - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71862-06240C0 |
ACV51,ASV50,AVV50..20S,25G,25S,25V,HBD BLACK,TRIM2# |
1 | ||
| 71862-06240A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD SHELL,TRIM0# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-06450 |
ASV50,AVV50 |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06430 |
ASV50,AVV50 |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-0P070A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71875-0P070C0 |
ASV50,AVV50 BLACK,TRIM2# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-0P070C0 |
ASV50,AVV50 BLACK,TRIM2# |
1 | ||
| 71876-0P070A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 72136A - SPACER, SEAT TRACK, LOWER NO.2 | ||||
| 72136-06350 |
ASV50,AVV50 |
1 | ||
| 72138D - COVER, SEAT TRACK, OUTER, LH | ||||
| 72138-06160C0 |
ACV51,ASV50,AVV50 BLACK,TRIM2# |
1 | ||
| 72138-06160A0 |
ACV51,ASV50,AVV50 SHELL,TRIM0# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-06150C0 |
ACV51,ASV50,AVV50 BLACK,TRIM2# |
1 | ||
| 72158-06150A0 |
ACV51,ASV50,AVV50 SHELL,TRIM0# |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-0G011 |
ASV50,AVV50..25G,25V,HBD |
1 | ||
| 87501-0G030 |
ASV50,AVV50..25G,25V,HBD |
1 | ||
| 87501-0G010 |
ASV50..25G,25V |
1 | ||
| Common parts | ||||
| 85868-33010 | ||||
| 90119-C0038 | ||||
| 90167-C0001 | ||||
| 93540-14006 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1112- )

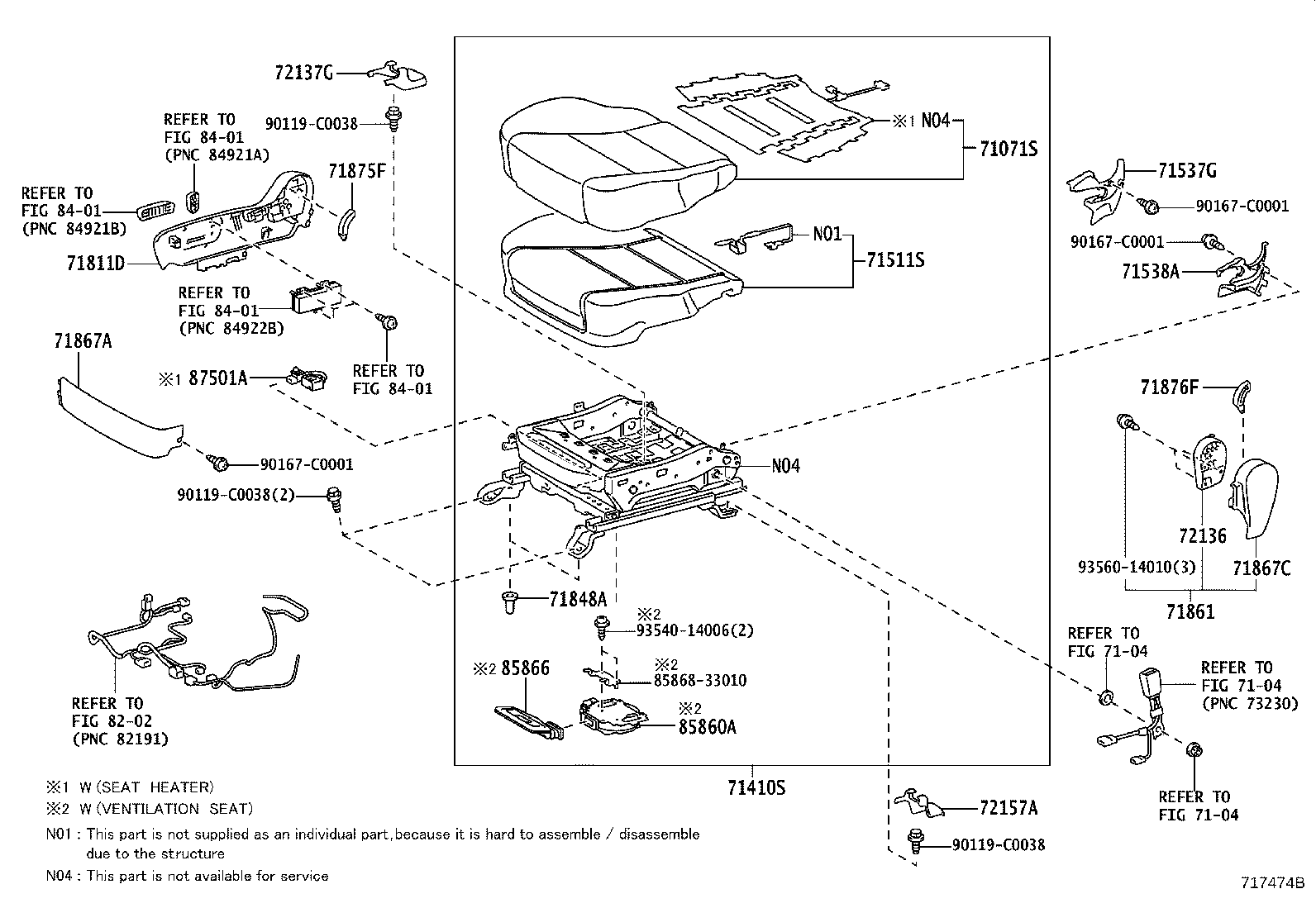

POWER SEAT(PASSENGER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-06J90A3 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71071-06J90C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71071-06S70C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71071-06S70A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-06F60C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71410-06F60A3 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71410-06P80C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71410-06P80A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-06181 |
ASV50,AVV50..25G,25V,HBD |
1 | ||
| 71501-06180 |
ASV50,AVV50..25G,25V,HBD |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-06090A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD SHELL,TRIM0# |
1 | ||
| 71537-06090C0 |
ACV51,ASV50,AVV50..20S,25G,25S,25V,HBD BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-06080A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD SHELL,TRIM0# |
1 | ||
| 71538-06080C0 |
ACV51,ASV50,AVV50..20S,25G,25S,25V,HBD BLACK,TRIM2# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-06430C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71811-06430A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47010 |
ACV51,ASV50,AVV50 |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-06280A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71861-06280C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-0P020C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71867-0P020A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71867C - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71861-06220C0 |
ACV51,ASV50,AVV50..20S,25G,25S,25V,HBD BLACK,TRIM2# |
1 | ||
| 71861-06220A0 |
ACV51,ASV50,AVV50..25G,25V,HBD,STD SHELL,TRIM0# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-0P070A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 71875-0P070C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71876-0P070C0 |
ASV50,AVV50..25G,25V,HBD BLACK,TRIM2# |
1 | ||
| 71876-0P070A0 |
ASV50,AVV50..25G,25V,HBD SHELL,TRIM0# |
1 | ||
| 72136 - SPACER, SEAT TRACK, LOWER NO.1 | ||||
| 72136-06340 |
ASV50,AVV50..25G,25V,HBD |
1 | ||
| 72137G - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-06200A0 |
ACV51,ASV50,AVV50 SHELL,TRIM0# |
1 | ||
| 72137-06200C0 |
ACV51,ASV50,AVV50 BLACK,TRIM2# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-06150C0 |
ACV51,ASV50,AVV50 BLACK,TRIM2# |
1 | ||
| 72157-06150A0 |
ACV51,ASV50,AVV50 SHELL,TRIM0# |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-0G030 |
ASV50,AVV50..25G,25V,HBD |
1 | ||
| 87501-0G010 |
ASV50..25G,25V |
1 | ||
| 87501-0G011 |
ASV50,AVV50..25G,25V,HBD |
1 | ||
| Common parts | ||||
| 85868-33010 | ||||
| 90119-C0038 | ||||
| 90167-C0001 | ||||
| 93540-14006 | ||||
| 93560-14010 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
