ASV50L-JETGKC (2011)
Toyota Camry/Hybrid (China)
Production
Dec 2011
-
Jan 2015
Engine
5ARFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1112- )5ARFE

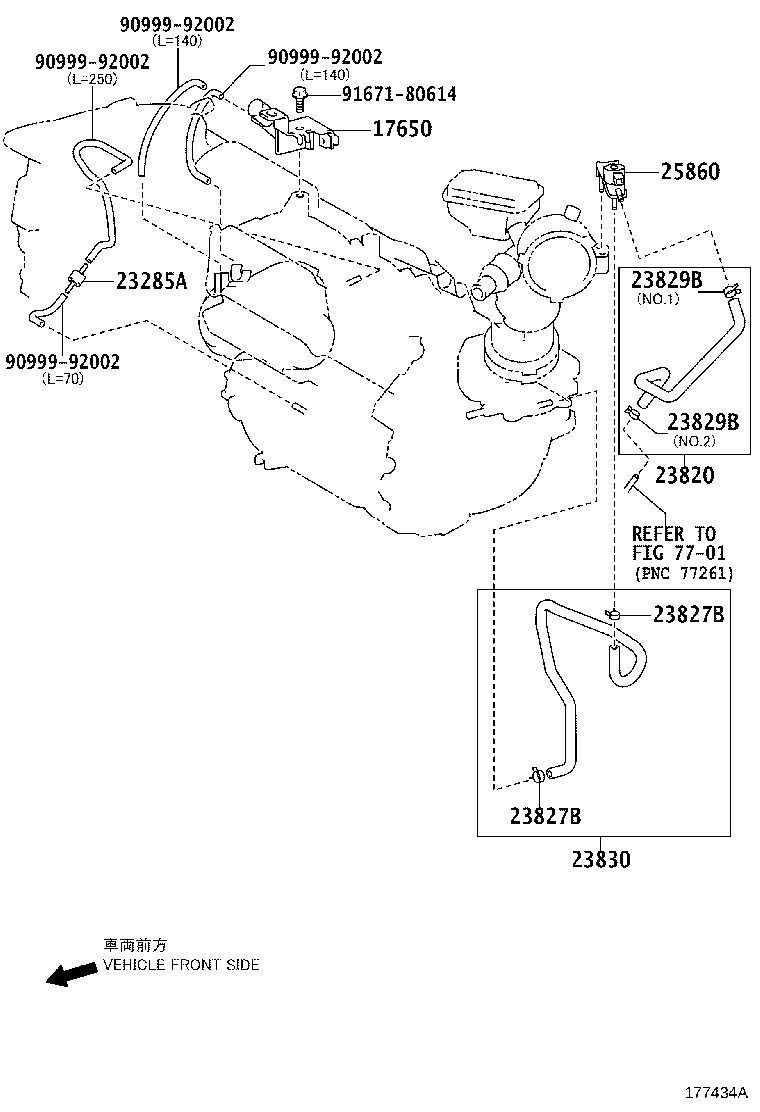

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-36010 |
5ARFE..ASV50 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10065 |
5ARFE..ASV50 |
1 | ||
| 23820 - HOSE ASSY, FUEL VAPOR FEED | ||||
| 23820-0V120 |
5ARFE..ASV50 |
1 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 90466-13004 |
5ARFE..ASV50 |
2 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 90466-13004 |
5ARFE..ASV50 |
2 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90466-13004 |
1AZFE,5ARFE..ACV51,ASV50 NO.2 |
1 | ||
| 90466-11003 |
1AZFE,5ARFE..ACV51,ASV50 NO.1 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 90466-13004 |
1AZFE,5ARFE..ACV51,ASV50 NO.2 |
1 | ||
| 90466-11003 |
1AZFE,5ARFE..ACV51,ASV50 NO.1 |
1 | ||
| 23830 - HOSE ASSY, FUEL VAPOR FEED, NO.2 | ||||
| 23830-0V080 |
5ARFE..ASV50 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-0H130 |
1AZFE,5ARFE..ACV51,ASV50 |
1 | ||
| Common parts | ||||
| 90999-92002 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 7701 | ||||
