Toyota Camry/hybrid (china) ACV51 WINDSHIELD WASHER

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85381-33080	ACV51,ASV50,AVV50 ANGLE 0	12/2011 - 01/2015	2
85381-30150	ACV51,ASV50,AVV50 ANGLE +2,ANGLE +2	12/2011 - 01/2015	2
85381-30160	ACV51,ASV50,AVV50 ANGLE -2,ANGLE -2	12/2011 - 01/2015	2
85035 - NOZZLE SUB-ASSY, WASHER
85381-33080	ACV51,ASV50,AVV50 ANGLE 0	12/2011 - 01/2015	2
85381-30150	ACV51,ASV50,AVV50 ANGLE +2,ANGLE +2	12/2011 - 01/2015	2
85381-30160	ACV51,ASV50,AVV50 ANGLE -2,ANGLE -2	12/2011 - 01/2015	2
85035 - NOZZLE SUB-ASSY, WASHER
85381-33080	ACV51,ASV50,AVV50 ANGLE 0	12/2011 - 01/2015	2
85381-30150	ACV51,ASV50,AVV50 ANGLE +2,ANGLE +2	12/2011 - 01/2015	2
85381-30160	ACV51,ASV50,AVV50 ANGLE -2,ANGLE -2	12/2011 - 01/2015	2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-06060	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-06260	ACV51,ASV50..20S,25S,STD	12/2011 - 01/2015	1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-60300	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
85332 - CAP, WINDSHIELD WASHER JAR
85316-06120	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
85336G - GAGE, WATER LEVEL
85312-06030	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90068-33114	ACV51,ASV50,AVV50 L=2350	12/2011 - 01/2015	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33162	ACV51,ASV50,AVV50 L=465	12/2011 - 01/2015	2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90068-33162	ACV51,ASV50,AVV50 L=465	12/2011 - 01/2015	2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-1E340	ACV51,ASV50,AVV50	12/2011 - 05/2013	2
82711-06130	ACV51,ASV50,AVV50 (L)	05/2013 - 01/2015	2
82711-1E340	ACV51,ASV50,AVV50 (J)	05/2013 - 01/2015	2
85387A - CLAMP, WASHER, NO.2
85371-33010	ACV51,ASV50,AVV50	12/2011 - 01/2015	1
Common parts
90119-C0186
90178-C0011
90469-07011

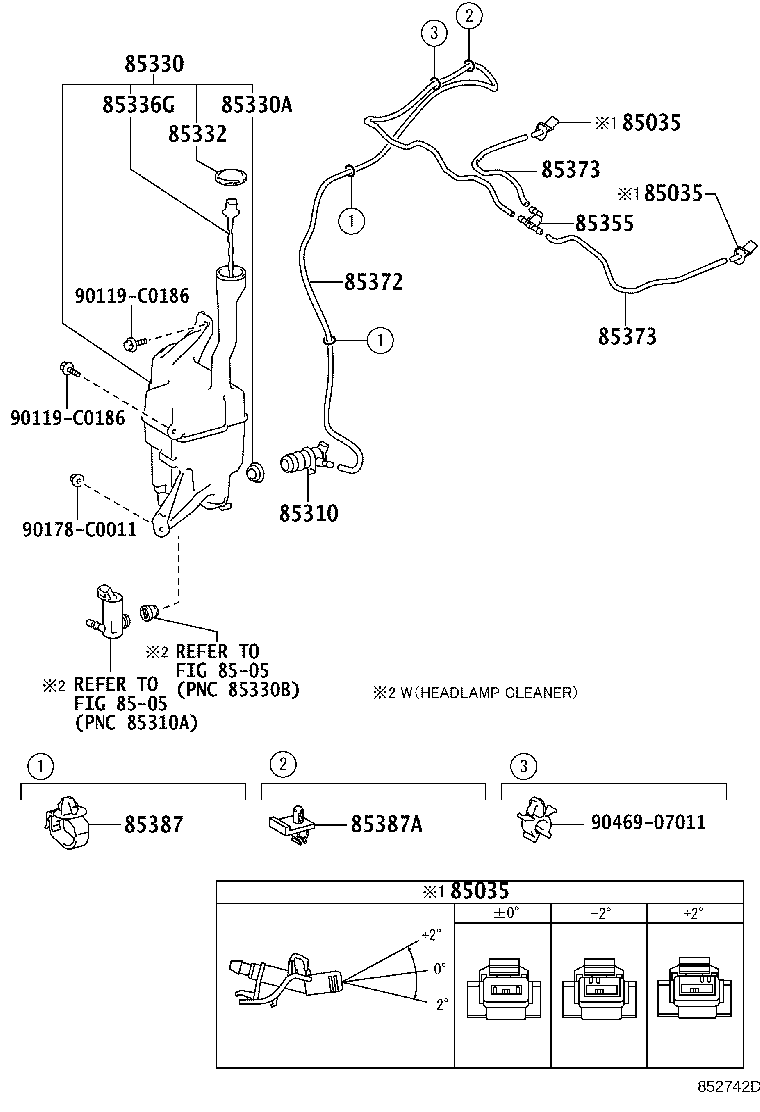

Linked diagrams
8505

ACV51L-JEPSKC (2011)

(1112- )
