ACV51L-JEPSKC (2011)
Toyota Camry/Hybrid (China)

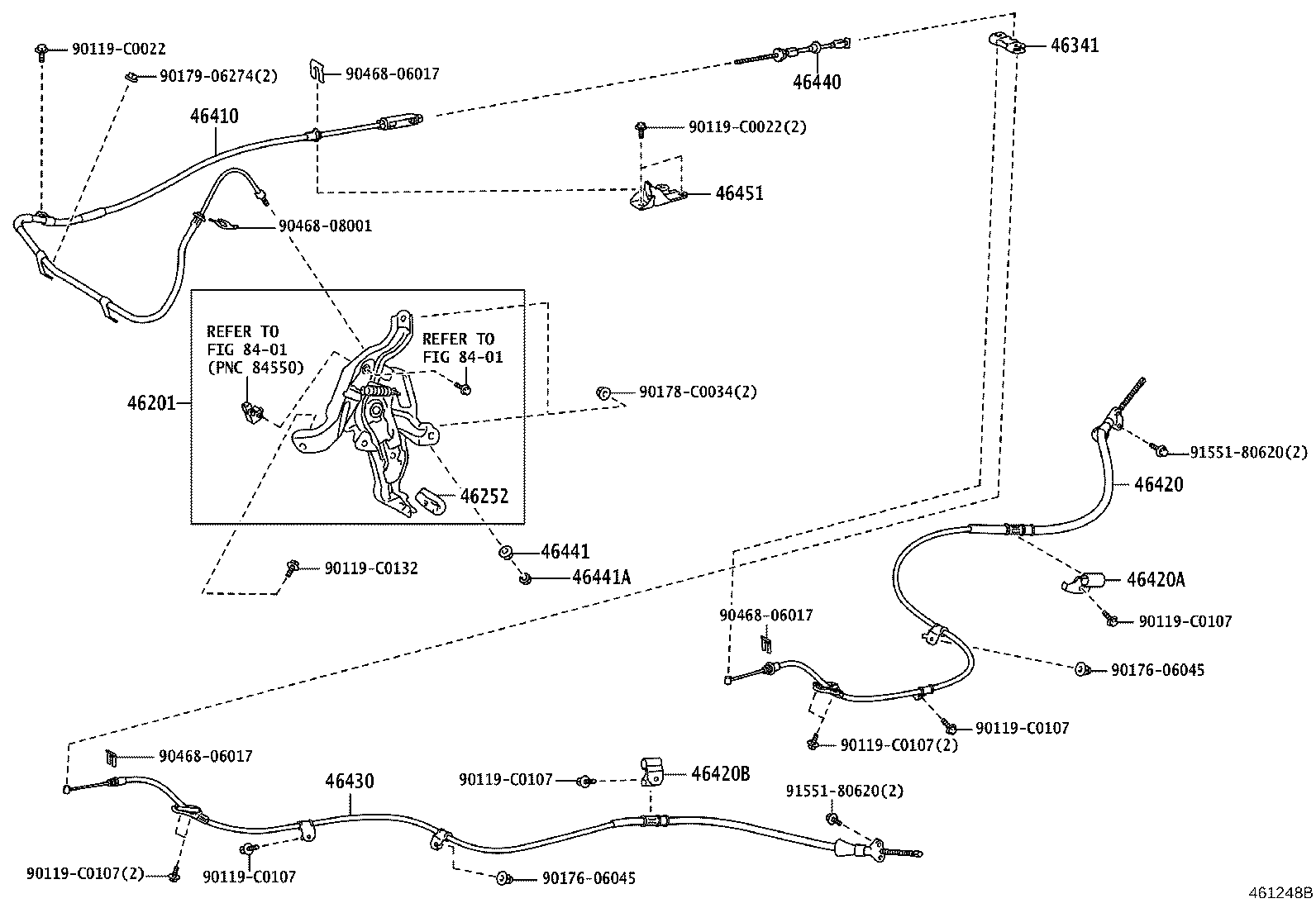

ILLUST NO. 1 OF 2(1112- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201 - PEDAL SUB-ASSY, PARKING BRAKE | ||||
| 46201-06210 |
ACV51,ASV50,AVV50 |
1 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-06040 |
ACV51,ASV50,AVV50 |
1 | ||
| 46341 - EQUALIZER, PARKING BRAKE | ||||
| 46341-06050 |
ACV51,ASV50,AVV50 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-06180 |
ACV51,ASV50,AVV50 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-06141 |
ACV51,ASV50 |
1 | ||
| 46420-06140 |
ACV51,ASV50 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01C61 |
ACV51,ASV50,AVV50 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01C62 |
ACV51,ASV50,AVV50 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-06141 |
ACV51,ASV50 |
1 | ||
| 46430-06140 |
ACV51,ASV50 |
1 | ||
| 46440 - CABLE ASSY, PARKING BRAKE, NO.4 | ||||
| 46440-06110 |
ACV51,ASV50,AVV50 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 90182-06008 |
ACV51,ASV50,AVV50 |
1 | ||
| 46441A - NUT, WIRE ADJUSTING, NO.2 | ||||
| 90179-06299 |
ACV51,ASV50,AVV50 |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-33100 |
ACV51,ASV50,AVV50 |
1 | ||
| Common parts | ||||
| 90119-C0022 | ||||
| 90119-C0107 | ||||
| 90119-C0132 | ||||
| 90176-06045 | ||||
| 90178-C0034 | ||||
| 90179-06274 | ||||
| 90468-06017 | ||||
| 90468-08001 | ||||
| 91551-80620 | ||||
| Linked diagrams | ||||
| 8401 | ||||

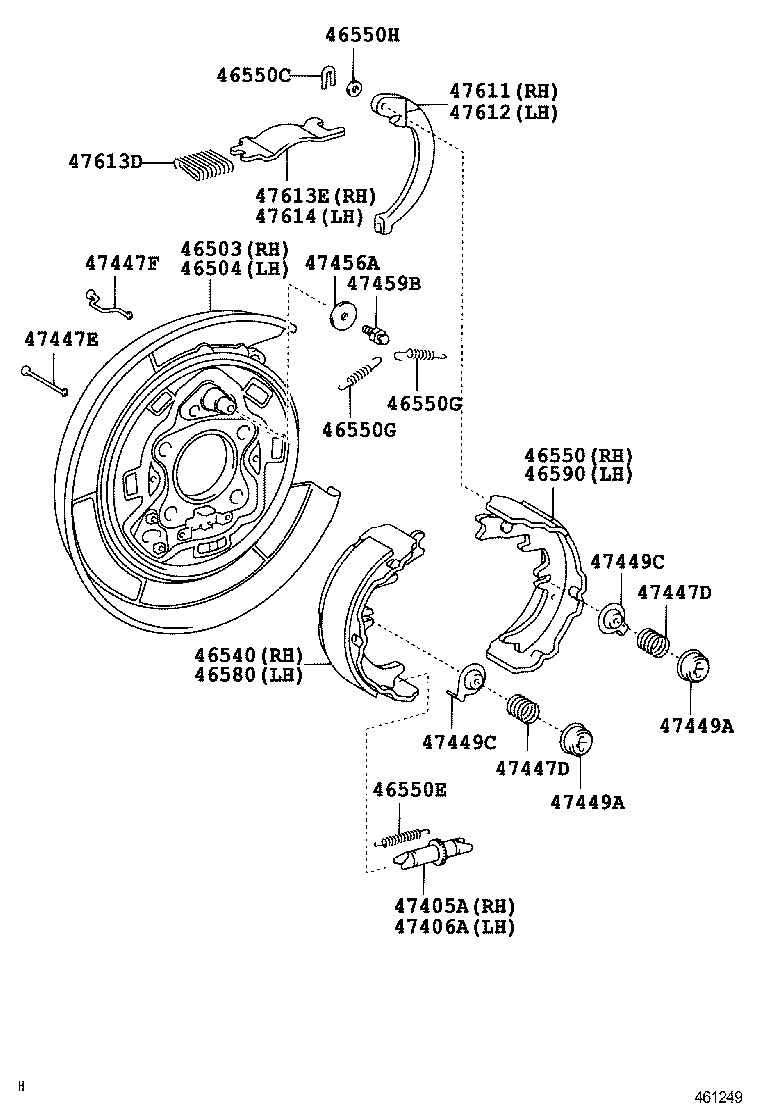

ILLUST NO. 2 OF 2(1112- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-06070 |
ACV51,ASV50,AVV50 |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-06070 |
ACV51,ASV50,AVV50 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-06050 |
ACV51,ASV50,AVV50 |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-06060 |
ACV51,ASV50,AVV50 |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90016-AD502 |
ACV51,ASV50,AVV50 |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90016-AY116 |
ACV51,ASV50,AVV50 |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90016-AY115 |
ACV51,ASV50,AVV50 |
4 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90016-AY115 |
ACV51,ASV50,AVV50 |
4 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90016-AX108 |
ACV51,ASV50,AVV50 T=0.6 |
2 | ||
| 90016-AX107 |
ACV51,ASV50,AVV50 T=0.3 |
2 | ||
| 90016-AX109 |
ACV51,ASV50,AVV50 T=0.9 |
2 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-06050 |
ACV51,ASV50,AVV50 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-06030 |
ACV51,ASV50,AVV50 |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 46605-06070 |
ACV51,ASV50,AVV50 |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 46606-06070 |
ACV51,ASV50,AVV50 |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90016-AY012 |
ACV51,ASV50,AVV50 |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90016-AY012 |
ACV51,ASV50,AVV50 |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 46556-06070 |
ACV51,ASV50,AVV50 |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 46559-06070 |
ACV51,ASV50,AVV50 |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 46557-06070 |
ACV51,ASV50,AVV50 |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 46557-06070 |
ACV51,ASV50,AVV50 |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 46519-06070 |
ACV51,ASV50,AVV50 |
4 | ||
| 47449C - CUP, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 46519-06070 |
ACV51,ASV50,AVV50 |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 46553-06070 |
ACV51,ASV50,AVV50 |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-06070 |
ACV51,ASV50,AVV50 |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 46611-06070 |
ACV51,ASV50,AVV50 |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 46621-06070 |
ACV51,ASV50,AVV50 |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90016-AY011 |
ACV51,ASV50,AVV50 |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 46612-06070 |
ACV51,ASV50,AVV50 |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 46622-06070 |
ACV51,ASV50,AVV50 |
1 | ||
