Toyota Camry/hybrid (china) ACV51 VALVE BODY & OIL STRAINER (ATM)

Part #	Description	Period	Qty
35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1
35210-33050	ACV51	12/2011 - 01/2015	1
35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2
35220-33030	ACV51	12/2011 - 01/2015	2
35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2
35220-33030	ACV51	12/2011 - 01/2015	2
35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2
35230-33030	ACV51	12/2011 - 01/2015	1
35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35240-21010	ACV51	12/2011 - 01/2015	1
35251 - BODY, CHECK BALL
35251-30020	ACV51	12/2011 - 01/2015	1
35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY)
90501-03005	ACV51	12/2011 - 01/2015	1
35285 - PLATE, SOLENOID LOCK
35285-33060	ACV51	12/2011 - 01/2015	1
35295 - PLATE, SOLENOID LOCK, NO.2
35295-33040	ACV51	12/2011 - 01/2015	1
35296 - PLATE, SOLENOID LOCK, NO.3
35296-33040	ACV51	12/2011 - 01/2015	1
35330 - STRAINER ASSY, VALVE BODY OIL
35330-06010	ACV51	12/2011 - 01/2015	1
35339 - GASKET, OIL STRAINER
90301-32015	ACV51	07/2013 - 01/2015	1
90301-32010	ACV51	12/2011 - 07/2013	1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-33190	ACV51	12/2011 - 01/2015	1
35418 - VALVE, MANUAL
35418-21011	ACV51	12/2011 - 01/2015	1
35424C - PISTON, C-1 ACCUMULATOR
35424-21010	ACV51	12/2011 - 01/2015	1
35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
90501-22039	ACV51	12/2011 - 01/2015	1
35424E - RING, O (FOR C-1 ACCUMULATOR PISTON)
90301-30007	ACV51 LOWER	12/2011 - 01/2015	1
90301-27008	ACV51 UPPER	12/2011 - 01/2015	1
35424E - RING, O (FOR C-1 ACCUMULATOR PISTON)
90301-30007	ACV51 LOWER	12/2011 - 01/2015	1
90301-27008	ACV51 UPPER	12/2011 - 01/2015	1
35426D - PISTON, C-3 ACCUMULATOR
35406-21010	ACV51	12/2011 - 01/2015	1
35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
90905-01035	ACV51	12/2011 - 01/2015	1
35426F - RING, O (FOR C-3 ACCUMULATOR PISTON)
90301-30007	ACV51	12/2011 - 01/2015	1
35427K - PISTON, B-3 ACCUMULATOR
35427-21010	ACV51	12/2011 - 01/2015	1
35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)
90501-25053	ACV51 OUTER	12/2011 - 01/2015	1
90501-22038	ACV51 INNER	12/2011 - 01/2015	1
35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)
90501-25053	ACV51 OUTER	12/2011 - 01/2015	1
90501-22038	ACV51 INNER	12/2011 - 01/2015	1
35427M - RING, O (FOR B-3 ACCUMULATOR PISTON)
90301-28008	ACV51	12/2011 - 01/2015	1
Common parts
90105-05023
90105-06028
90105-06070
90105-06071
91511-C0625

Part #	Description	Period	Qty
35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1
35195-21010	ACV51	12/2011 - 01/2015	1
35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2
35196-21010	ACV51	12/2011 - 01/2015	1
35409 - SPRING SUB-ASSY, MANUAL DETENT
35409-21010	ACV51	12/2011 - 01/2015	1
35599 - COVER, MANUAL DETENT SPRING
35599-21010	ACV51	12/2011 - 01/2015	1
35666D - TUBE, BRAKE APPLY
35666-32010	ACV51	12/2011 - 01/2015	1
35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY
35882-32020	ACV51	12/2011 - 01/2015	1
35895 - TUBE, FRONT CLUTCH APPLY
35895-21010	ACV51	12/2011 - 01/2015	1
82125J - WIRE, TRANSMISSION
82125-33110	ACV51	12/2011 - 01/2015	1
82125L - RING, O(FOR TRANSMISSION WIRE)
90301-21009	ACV51	12/2011 - 01/2015	1
Common parts
35482-21020
90105-05023
90105-06079
91511-80614
91611-60620
91611-B0616

ACV51L-JEPSKC (2011)

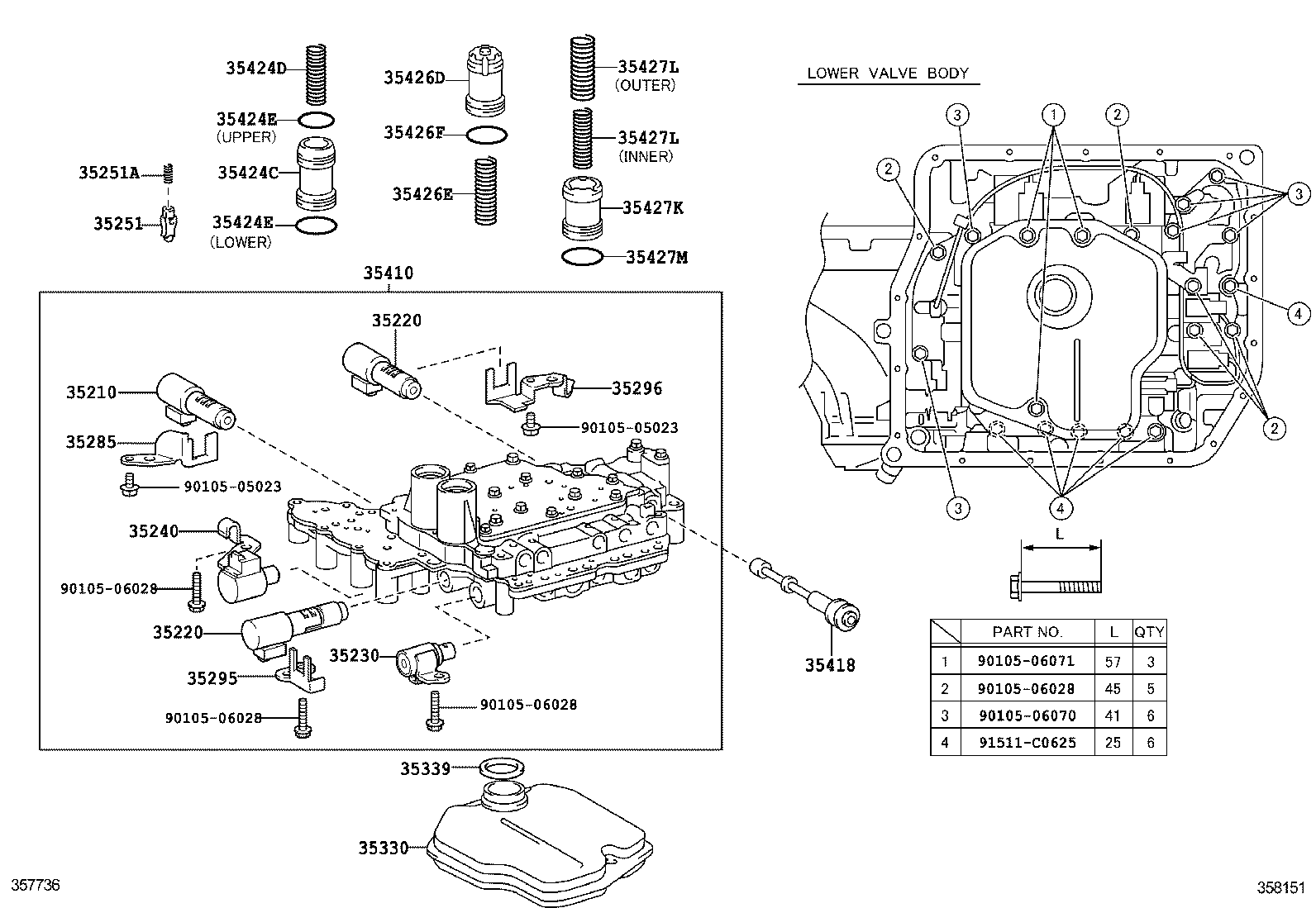

ILLUST NO. 1 OF 2(1112- )ACV51

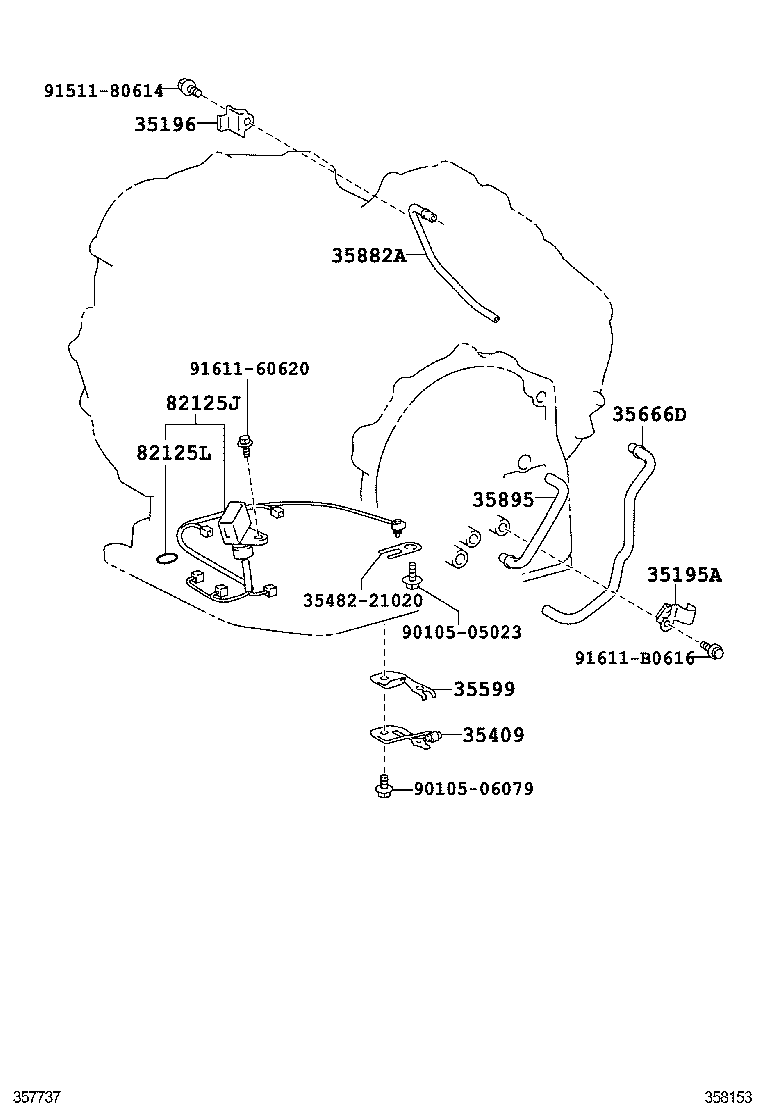

ILLUST NO. 2 OF 2(1112- )ACV51
