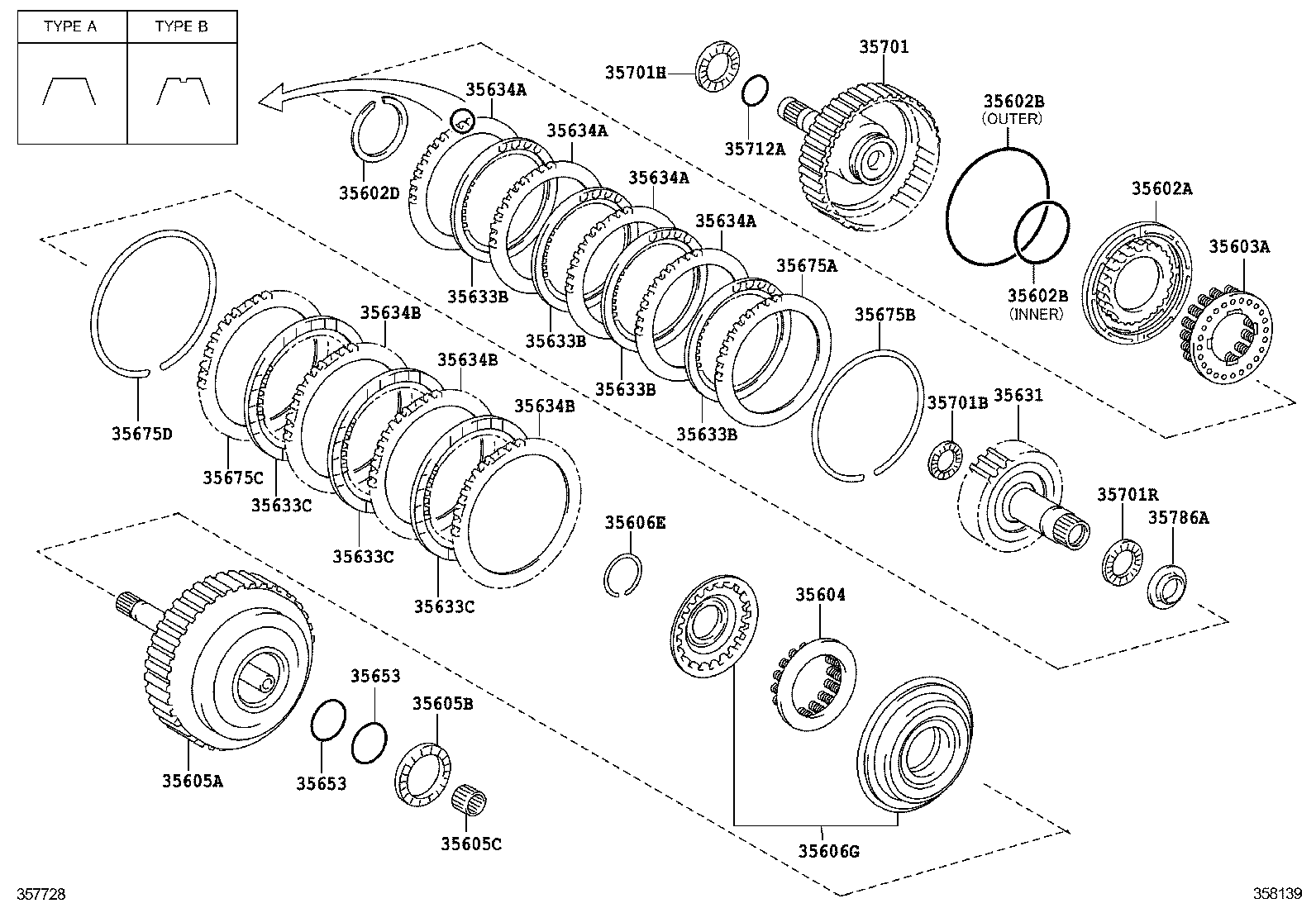

Toyota Camry/hybrid (china) ACV51 BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

Part #	Description	Period	Qty
35602A - PISTON SUB-ASSY, FORWARD CLUTCH
35602-21010	ACV51	12/2011 - 01/2015	1
35602B - RING, O (FOR FORWARD CLUTCH PISTON)
90301-99104	ACV51 OUTER	12/2011 - 01/2015	1
90301-64008	ACV51 INNER	12/2011 - 01/2015	1
35602B - RING, O (FOR FORWARD CLUTCH PISTON)
90301-99104	ACV51 OUTER	12/2011 - 01/2015	1
90301-64008	ACV51 INNER	12/2011 - 01/2015	1
35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN
90520-54004	ACV51	12/2011 - 01/2015	1
35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN
35603-21010	ACV51	12/2011 - 01/2015	1
35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35604-21010	ACV51	12/2011 - 01/2015	1
35605A - DRUM SUB-ASSY, DIRECT CLUTCH
35605-48010	ACV51	12/2011 - 01/2015	1
35605B - BEARING, THRUST NEEDLE ROLLER
90374-53001	ACV51 BROWN	12/2011 - 07/2012	1
90374-53002	ACV51 BLACK	12/2011 - 01/2015	1
90374-53006	ACV51 BROWN	07/2012 - 01/2015	1
35605C - BEARING, NEEDLE ROLLER
90364-18010	ACV51	12/2011 - 01/2015	1
35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN
90520-38019	ACV51	12/2011 - 01/2015	1
35606G - PISTON SET, DIRECT CLUTCH
35606-21010	ACV51	12/2011 - 01/2015	1
35631 - HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35061-33010	ACV51	12/2011 - 01/2015	1
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-21010	ACV51	12/2011 - 01/2015	4
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-21010	ACV51	12/2011 - 01/2015	4
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-21010	ACV51	12/2011 - 01/2015	4
35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-21010	ACV51	12/2011 - 01/2015	4
35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35667-28030	ACV51	12/2011 - 01/2015	3
35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35667-28030	ACV51	12/2011 - 01/2015	3
35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35667-28030	ACV51	12/2011 - 01/2015	3
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-33071	ACV51 T=1.8,TYPE B:REFER ILLUST.	12/2011 - 01/2015	4
35634-21010	ACV51 T=1.8,TYPE A:REFER ILLUST.	12/2011 - 01/2015	4
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-33071	ACV51 T=1.8,TYPE B:REFER ILLUST.	12/2011 - 01/2015	4
35634-21010	ACV51 T=1.8,TYPE A:REFER ILLUST.	12/2011 - 01/2015	4
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-33071	ACV51 T=1.8,TYPE B:REFER ILLUST.	12/2011 - 01/2015	4
35634-21010	ACV51 T=1.8,TYPE A:REFER ILLUST.	12/2011 - 01/2015	4
35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634-33071	ACV51 T=1.8,TYPE B:REFER ILLUST.	12/2011 - 01/2015	4
35634-21010	ACV51 T=1.8,TYPE A:REFER ILLUST.	12/2011 - 01/2015	4
35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-21010	ACV51 T=3.0	12/2011 - 01/2015	3
35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-21010	ACV51 T=3.0	12/2011 - 01/2015	3
35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)
35647-21010	ACV51 T=3.0	12/2011 - 01/2015	3
35653 - RING, REAR CLUTCH OIL SEAL, OUTER
35653-33010	ACV51	12/2011 - 01/2015	2
35653 - RING, REAR CLUTCH OIL SEAL, OUTER
35653-33010	ACV51	12/2011 - 01/2015	2
35675A - FLANGE, FORWARD CLUTCH
35635-21050	ACV51 T=3.60	12/2011 - 01/2015	1
35635-21060	ACV51 T=3.75	12/2011 - 01/2015	1
35635-21040	ACV51 T=3.45	12/2011 - 01/2015	1
35635-21010	ACV51 T=3.00	12/2011 - 01/2015	1
35635-21030	ACV51 T=3.30	12/2011 - 01/2015	1
35635-21020	ACV51 T=3.15	12/2011 - 01/2015	1
35635-21070	ACV51 T=2.85	12/2011 - 01/2015	1
35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
90520-99025	ACV51	12/2011 - 01/2015	1
35675C - FLANGE, DIRECT CLUTCH
35675-21010	ACV51 T=3.0	12/2011 - 01/2015	1
35675-21020	ACV51 T=3.1	12/2011 - 01/2015	1
35675-21040	ACV51 T=3.3	12/2011 - 01/2015	1
35675-21050	ACV51 T=3.4	12/2011 - 01/2015	1
35675-21080	ACV51 T=2.9	12/2011 - 01/2015	1
35675-33060	ACV51 T=3.6	12/2011 - 01/2015	1
35675-21030	ACV51 T=3.2	12/2011 - 01/2015	1
35675-21060	ACV51 T=3.5	12/2011 - 01/2015	1
35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
90520-99028	ACV51	12/2011 - 01/2015	1
35701 - SHAFT SUB-ASSY, INPUT
35701-48010	ACV51	12/2011 - 01/2015	1
35701B - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)
90374-23002	ACV51	12/2011 - 01/2015	1
35701H - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)
90374-34005	ACV51 OD=52.2	12/2011 - 01/2015	1
35701R - BEARING, THRUST NEEDLE ROLLER
90374-37005	ACV51	12/2011 - 01/2015	1
35712A - RING, INPUT SHAFT OIL SEAL
35712-21010	ACV51	12/2011 - 01/2015	1
35786A - RACE, THRUST BEARING, NO.1
35786-21010	ACV51	12/2011 - 01/2015	1

ACV51L-JEPSKC (2011)

(1112- )ACV51
