ACV51L-JEPEKC (2011)
Toyota Camry/Hybrid (China)
(1112-1501)STD

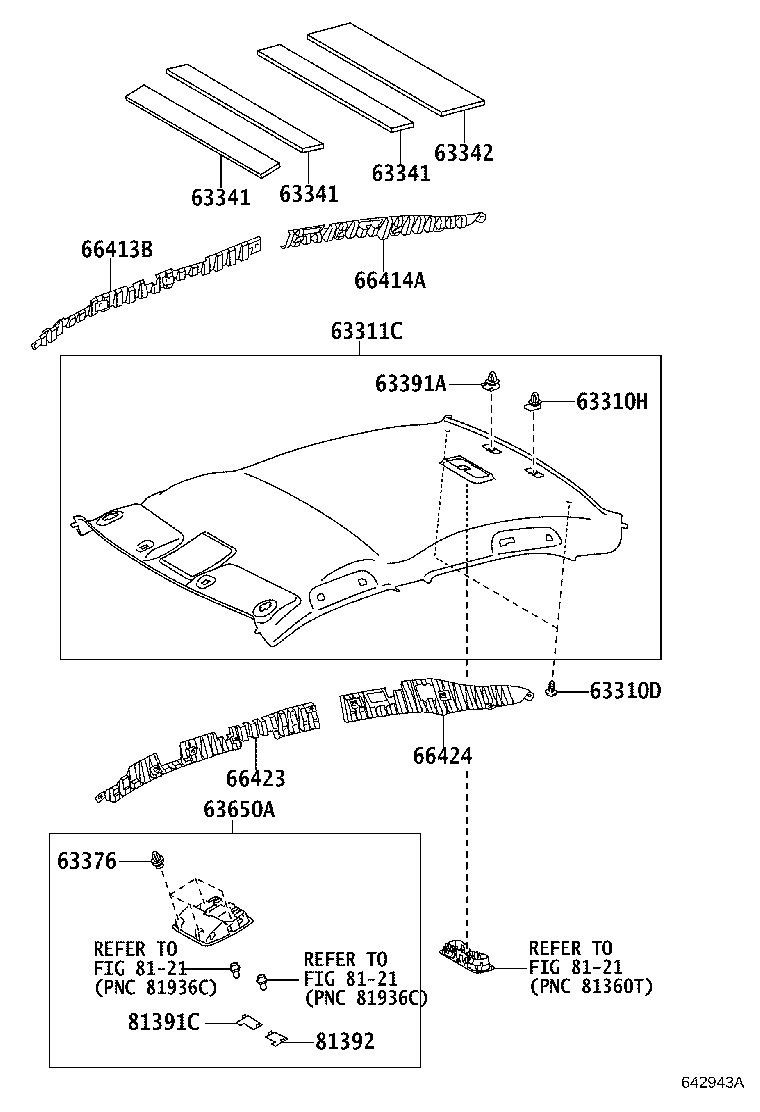

NORMAL ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05164B6 |
ACV51..STD CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER,GRAY,TRIM2# |
2 | ||
| 90467-05164B6 |
ACV51..STD CHINA G GRADE&AUDIO-AVN & 6SPEAKER,GRAY,TRIM2# |
2 | ||
| 90467-05164B6 |
ACV51..STD CHINA G GRADE,GRAY,TRIM2# |
2 | ||
| 90467-05164A4 |
ACV51,ASV50,AVV50 SHELL,TRIM0# |
2 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-09126 |
ACV51,ASV50,AVV50 |
1 | ||
| 63311C - HEADLINING, ROOF | ||||
| 63311-06050A1 |
ACV51..STD SHELL,TRIM0# |
1 | ||
| 63311-06060A1 |
ACV51..STD CHINA G GRADE,SHELL,TRIM0# |
1 | ||
| 63311-06060B1 |
ACV51..STD CHINA G GRADE,GRAY,TRIM2# |
1 | ||
| 63311-06060B1 |
ACV51..STD CHINA G GRADE&AUDIO-AVN & 6SPEAKER,GRAY,TRIM2# |
1 | ||
| 63311-06060A1 |
ACV51..STD CHINA G GRADE&AUDIO-AVN & 6SPEAKER,SHELL,TRIM0# |
1 | ||
| 63311-06060B1 |
ACV51..STD CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER,GRAY,TRIM2# |
1 | ||
| 63311-06060A1 |
ACV51..STD CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER,SHELL,TRIM0# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-06170 |
ACV51..STD |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-06170 |
ACV51..STD |
3 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-06170 |
ACV51..STD |
3 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-06140 |
ACV51..STD |
1 | ||
| 63376 - CLIP, HEADLINING | ||||
| 90467-10167 |
ACV51..STD CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER |
2 | ||
| 90467-10167 |
ACV51..STD CHINA G GRADE |
2 | ||
| 90467-10167 |
ACV51..STD |
4 | ||
| 90467-10167 |
ACV51..STD CHINA G GRADE&AUDIO-AVN & 6SPEAKER |
2 | ||
| 63391A - CLIP(FOR ROOF HEADLINING TRIM) | ||||
| 90467-10181 |
ACV51,ASV50,AVV50 |
1 | ||
| 63650A - BOX ASSY, ROOF CONSOLE | ||||
| 63650-06530A0 |
ACV51..STD SHELL,TRIM0# |
1 | ||
| 63650-06540A0 |
ACV51..STD CHINA G GRADE,SHELL,TRIM0# |
1 | ||
| 63650-06550A0 |
ACV51..STD CHINA G GRADE&AUDIO-AVN & 6SPEAKER,SHELL,TRIM0# |
1 | ||
| 63650-06540B0 |
ACV51..STD CHINA G GRADE,GRAY,TRIM2# |
1 | ||
| 63650-06550A0 |
ACV51..STD CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER,SHELL,TRIM0# |
1 | ||
| 63650-06550B0 |
ACV51..STD CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER,GRAY,TRIM2# |
1 | ||
| 63650-06550B0 |
ACV51..STD CHINA G GRADE&AUDIO-AVN & 6SPEAKER,GRAY,TRIM2# |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-06150 |
ACV51,ASV50..20S,25S,STD |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-06080 |
ACV51,ASV50..20S,25S,STD |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-06140 |
ACV51,ASV50..20S,25S,STD |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-06080 |
ACV51,ASV50..20S,25S,STD |
1 | ||
| 81391C - HOLDER, LENS, FRONT RH | ||||
| 81391-06060 |
ACV51..STD CHINA G GRADE&AUDIO-AVN & 6SPEAKER |
1 | ||
| 81391-06060 |
ACV51..STD CHINA G GRADE |
1 | ||
| 81391-06060 |
ACV51..STD CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER |
1 | ||
| 81391-06050 |
ACV51..STD |
1 | ||
| 81392 - HOLDER, LENS, FRONT LH | ||||
| 81392-06040 |
ACV51..STD CHINA G GRADE |
1 | ||
| 81392-06030 |
ACV51..STD |
1 | ||
| 81392-06040 |
ACV51..STD CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER |
1 | ||
| 81392-06040 |
ACV51..STD CHINA G GRADE&AUDIO-AVN & 6SPEAKER |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
(1112- )20E,20S,25S,STD

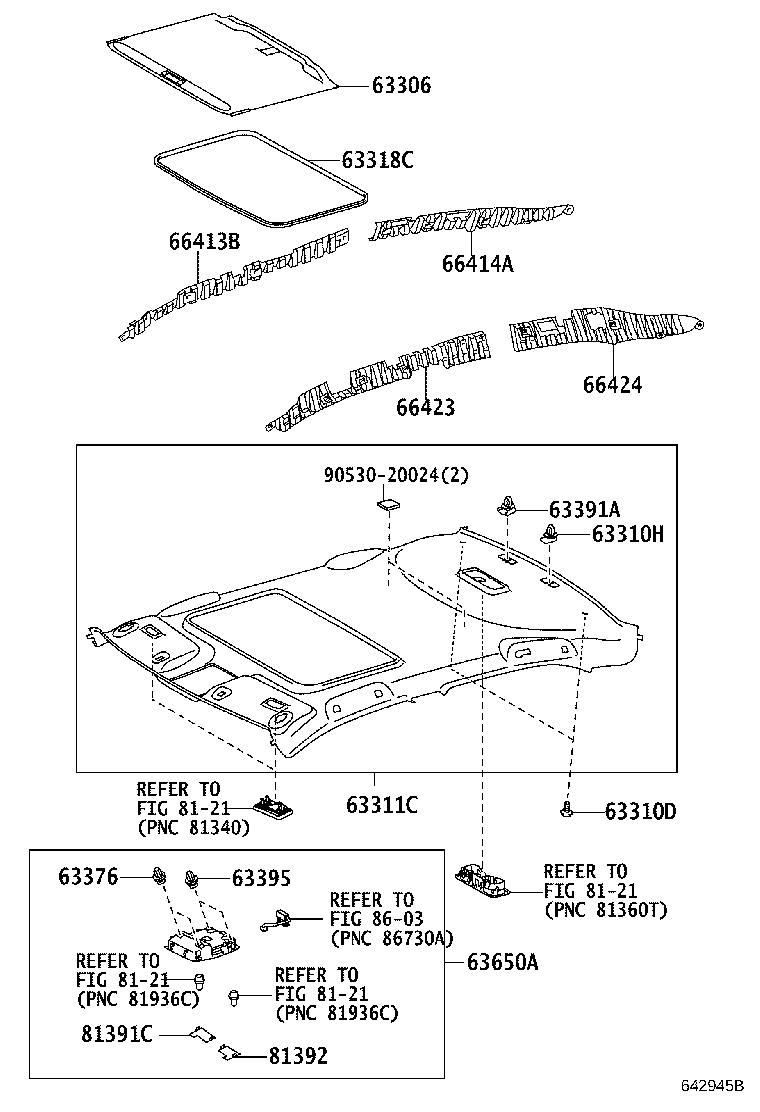

MOON ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-06090B0 |
ACV51..STD CHINA G GRADE,GRAY,TRIM2# |
1 | ||
| 63306-06090A0 |
ACV51..STD CHINA G GRADE,SHELL,TRIM0# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-05164B6 |
ACV51..STD CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER,GRAY,TRIM2# |
2 | ||
| 90467-05164B6 |
ACV51..STD CHINA G GRADE&AUDIO-AVN & 6SPEAKER,GRAY,TRIM2# |
2 | ||
| 90467-05164B6 |
ACV51..STD CHINA G GRADE,GRAY,TRIM2# |
2 | ||
| 90467-05164A4 |
ACV51,ASV50,AVV50 SHELL,TRIM0# |
2 | ||
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-09126 |
ACV51,ASV50,AVV50 |
1 | ||
| 63311C - HEADLINING, ROOF | ||||
| 63311-06050A1 |
ACV51..STD SHELL,TRIM0# |
1 | ||
| 63311-06060A1 |
ACV51..STD CHINA G GRADE,SHELL,TRIM0# |
1 | ||
| 63311-06060B1 |
ACV51..STD CHINA G GRADE,GRAY,TRIM2# |
1 | ||
| 63311-06060B1 |
ACV51..STD CHINA G GRADE&AUDIO-AVN & 6SPEAKER,GRAY,TRIM2# |
1 | ||
| 63311-06060A1 |
ACV51..STD CHINA G GRADE&AUDIO-AVN & 6SPEAKER,SHELL,TRIM0# |
1 | ||
| 63311-06060B1 |
ACV51..STD CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER,GRAY,TRIM2# |
1 | ||
| 63311-06060A1 |
ACV51..STD CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER,SHELL,TRIM0# |
1 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-06120A3 |
ACV51..STD L=2365,CHINA G GRADE&AUDIO-AVN & 6SPEAKER,SHELL,TRIM0# |
1 | ||
| 63318-06120B2 |
ACV51..STD L=2365,CHINA G GRADE&AUDIO-AVN & 6SPEAKER,GRAY,TRIM2# |
1 | ||
| 63318-06120A3 |
ACV51..STD L=2365,CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER,SHELL,TRIM0# |
1 | ||
| 63318-06120A3 |
ACV51..STD L=2365,CHINA G GRADE,SHELL,TRIM0# |
1 | ||
| 63318-06120B2 |
ACV51..STD L=2365,CHINA G GRADE,GRAY,TRIM2# |
1 | ||
| 63318-06120B2 |
ACV51..STD L=2365,CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER,GRAY,TRIM2# |
1 | ||
| 63376 - CLIP, HEADLINING | ||||
| 90467-10167 |
ACV51..STD CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER |
2 | ||
| 90467-10167 |
ACV51..STD CHINA G GRADE |
2 | ||
| 90467-10167 |
ACV51..STD |
4 | ||
| 90467-10167 |
ACV51..STD CHINA G GRADE&AUDIO-AVN & 6SPEAKER |
2 | ||
| 63391A - CLIP(FOR ROOF HEADLINING TRIM) | ||||
| 90467-10181 |
ACV51,ASV50,AVV50 |
1 | ||
| 63395 - CLIP, ROOF HEADLINING TRIM | ||||
| 63395-12150 |
ACV51..STD CHINA G GRADE |
2 | ||
| 63395-12150 |
ACV51..STD CHINA G GRADE&AUDIO-AVN & 6SPEAKER |
2 | ||
| 63395-12150 |
ACV51..STD CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER |
2 | ||
| 63650A - BOX ASSY, ROOF CONSOLE | ||||
| 63650-06530A0 |
ACV51..STD SHELL,TRIM0# |
1 | ||
| 63650-06540A0 |
ACV51..STD CHINA G GRADE,SHELL,TRIM0# |
1 | ||
| 63650-06550A0 |
ACV51..STD CHINA G GRADE&AUDIO-AVN & 6SPEAKER,SHELL,TRIM0# |
1 | ||
| 63650-06540B0 |
ACV51..STD CHINA G GRADE,GRAY,TRIM2# |
1 | ||
| 63650-06550A0 |
ACV51..STD CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER,SHELL,TRIM0# |
1 | ||
| 63650-06550B0 |
ACV51..STD CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER,GRAY,TRIM2# |
1 | ||
| 63650-06550B0 |
ACV51..STD CHINA G GRADE&AUDIO-AVN & 6SPEAKER,GRAY,TRIM2# |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-06150 |
ACV51,ASV50..20S,25S,STD |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-06080 |
ACV51,ASV50..20S,25S,STD |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-06140 |
ACV51,ASV50..20S,25S,STD |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-06080 |
ACV51,ASV50..20S,25S,STD |
1 | ||
| 81391C - HOLDER, LENS, FRONT RH | ||||
| 81391-06060 |
ACV51..STD CHINA G GRADE&AUDIO-AVN & 6SPEAKER |
1 | ||
| 81391-06060 |
ACV51..STD CHINA G GRADE |
1 | ||
| 81391-06060 |
ACV51..STD CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER |
1 | ||
| 81391-06050 |
ACV51..STD |
1 | ||
| 81392 - HOLDER, LENS, FRONT LH | ||||
| 81392-06040 |
ACV51..STD CHINA G GRADE |
1 | ||
| 81392-06030 |
ACV51..STD |
1 | ||
| 81392-06040 |
ACV51..STD CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER |
1 | ||
| 81392-06040 |
ACV51..STD CHINA G GRADE&AUDIO-AVN & 6SPEAKER |
1 | ||
| Common parts | ||||
| 90530-20024 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8603 | ||||
