MXVA71L-AEXDBR (2021)
Toyota Camry/Hybrid
ILLUST NO. 1 OF10(2102- )MXVA71

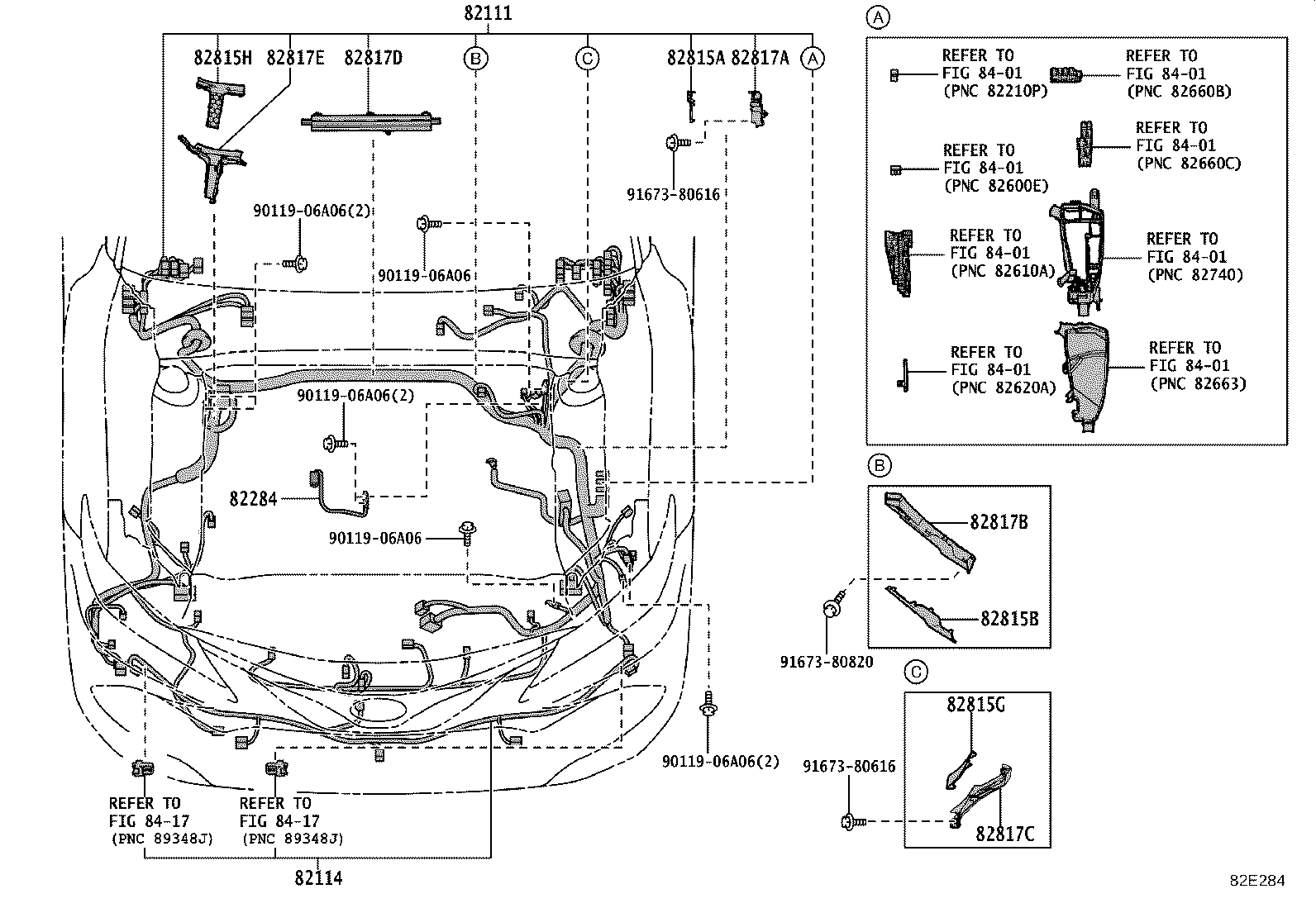

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3TE20 |
MXVA71 |
1 | ||
| 82111-3TE10 |
MXVA71 TW 2.0 G |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-33200 |
MXVA71 TW 2.0 G |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-33140 |
AXVA70,GSV70,MXVA71 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-33E00 |
AXVA70,GSV70,MXVA71 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-33E10 |
AXVA70,GSV70,MXVA71..LHD |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-33E20 |
AXVA70,GSV70,MXVA71..LHD |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-33K50 |
AXVH70;AXVA70,AXVH71,GSV70,MXVA71..LHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-33N30 |
AXVA70,GSV70,MXVA71 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-33N40 |
AXVA70,GSV70,MXVA71..LHD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-33N60 |
AXVA70,GSV70,MXVA71..LHD |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-33Y20 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-33Y30 |
AXVH70;AXVA70,AXVH71,GSV70,MXVA71..LHD |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||
ILLUST NO. 2 OF10(2102- )MXVA71

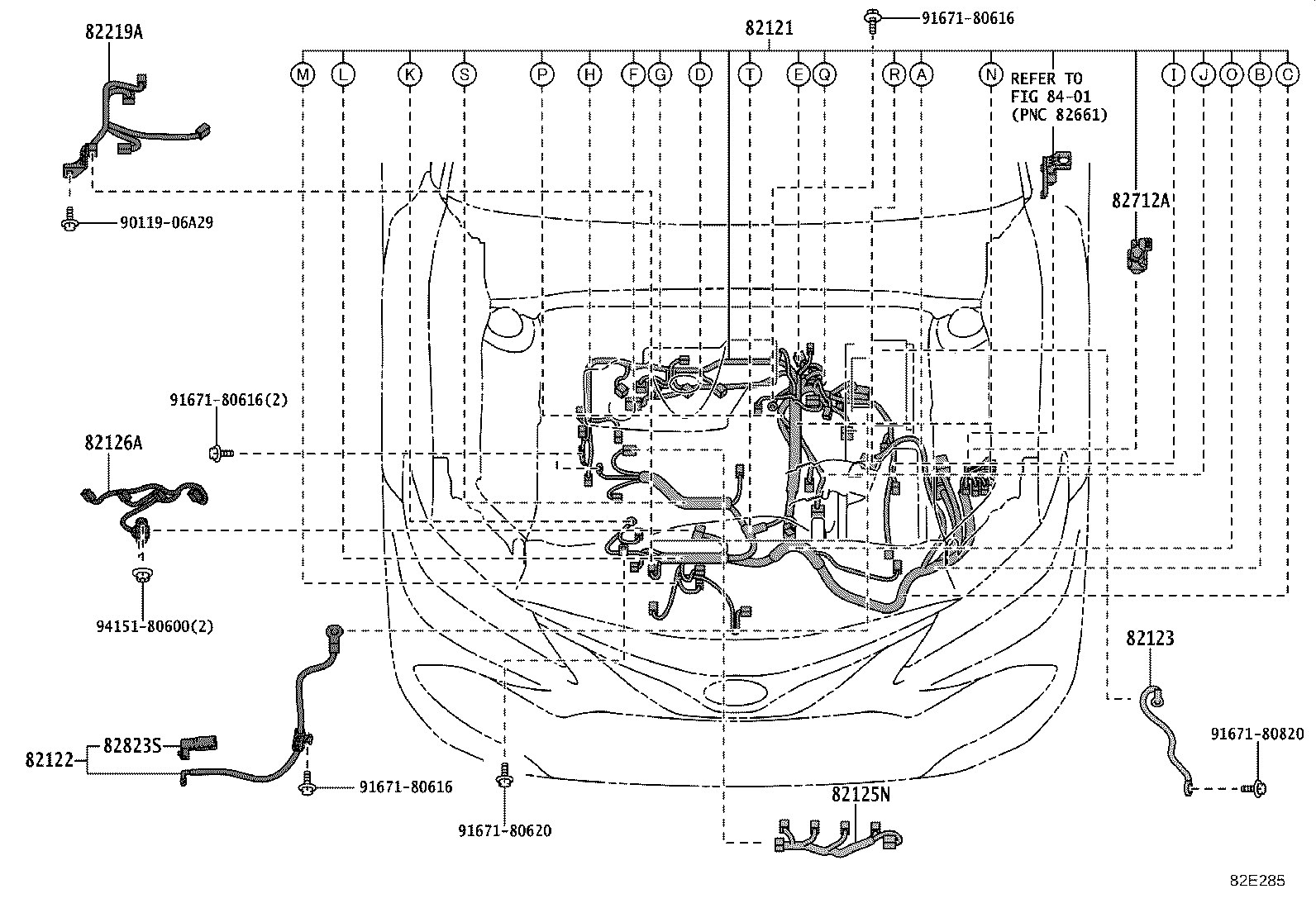

ENGINE 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-33L00 |
MXVA71 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-33130 |
MXVA71 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-33110 |
MXVA71 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-12660 |
MXVA71 |
1 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-12010 |
MXVA71 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-12140 |
MXVA71 (L) |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-33160 |
AXVA70,AXVH70,GSV70,MXVA71 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-33070 |
AXVA70,MXVA71 |
1 | ||
| Common parts | ||||
| 90119-06A29 | ||||
| 91671-80616 | ||||
| 91671-80620 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 8 OF10(2102- )MXVA71

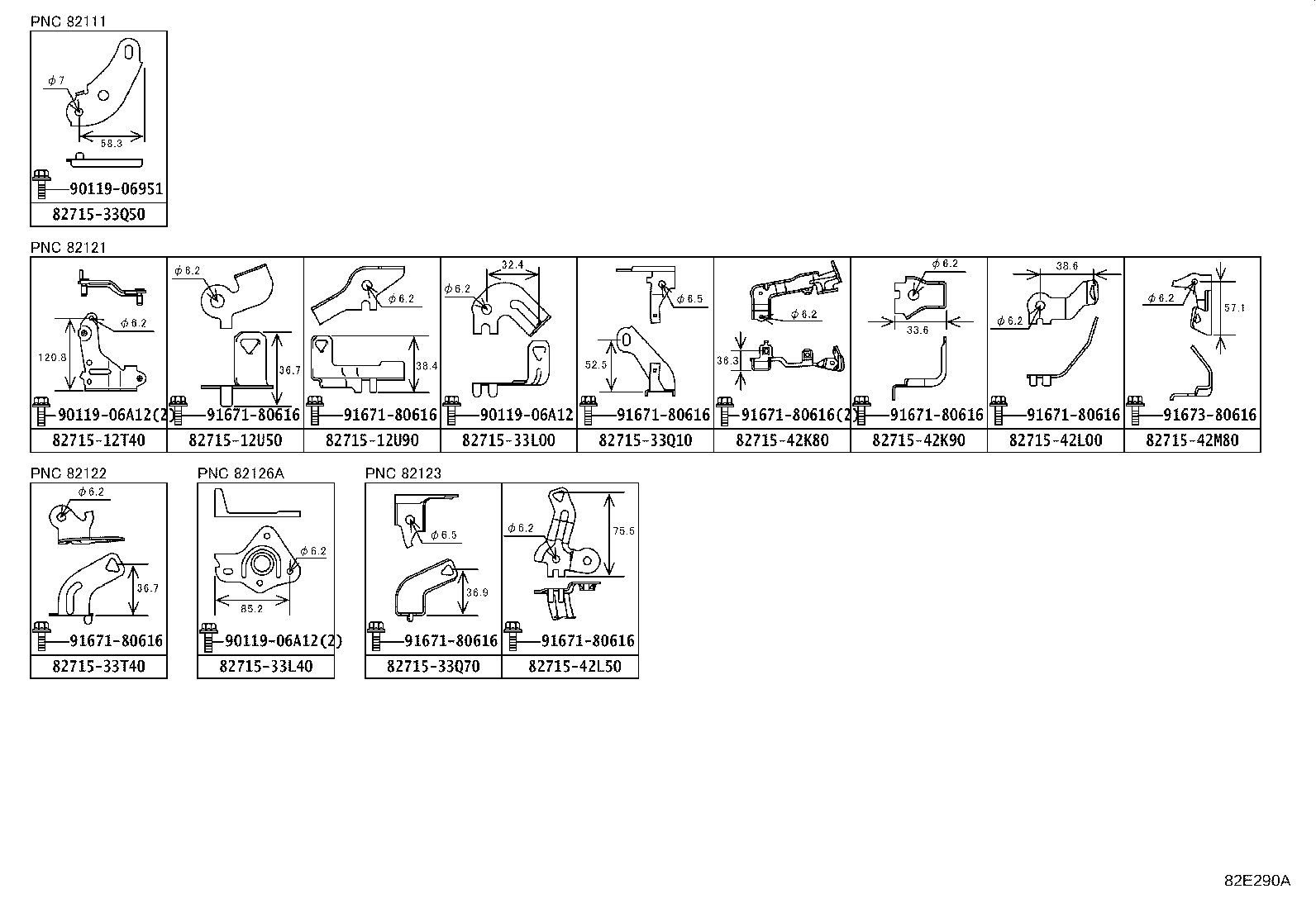

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-12T40 | ||||
| 82715-12U50 | ||||
| 82715-12U90 | ||||
| 82715-33L00 | ||||
| 82715-33L40 | ||||
| 82715-33Q10 | ||||
| 82715-33Q50 | ||||
| 82715-33Q70 | ||||
| 82715-33T40 | ||||
| 82715-42K80 | ||||
| 82715-42K90 | ||||
| 82715-42L00 | ||||
| 82715-42L50 | ||||
| 82715-42M80 | ||||
| 90119-06951 | ||||
| 90119-06A12 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
ILLUST NO. 2 OF10(2102- )MXVA71

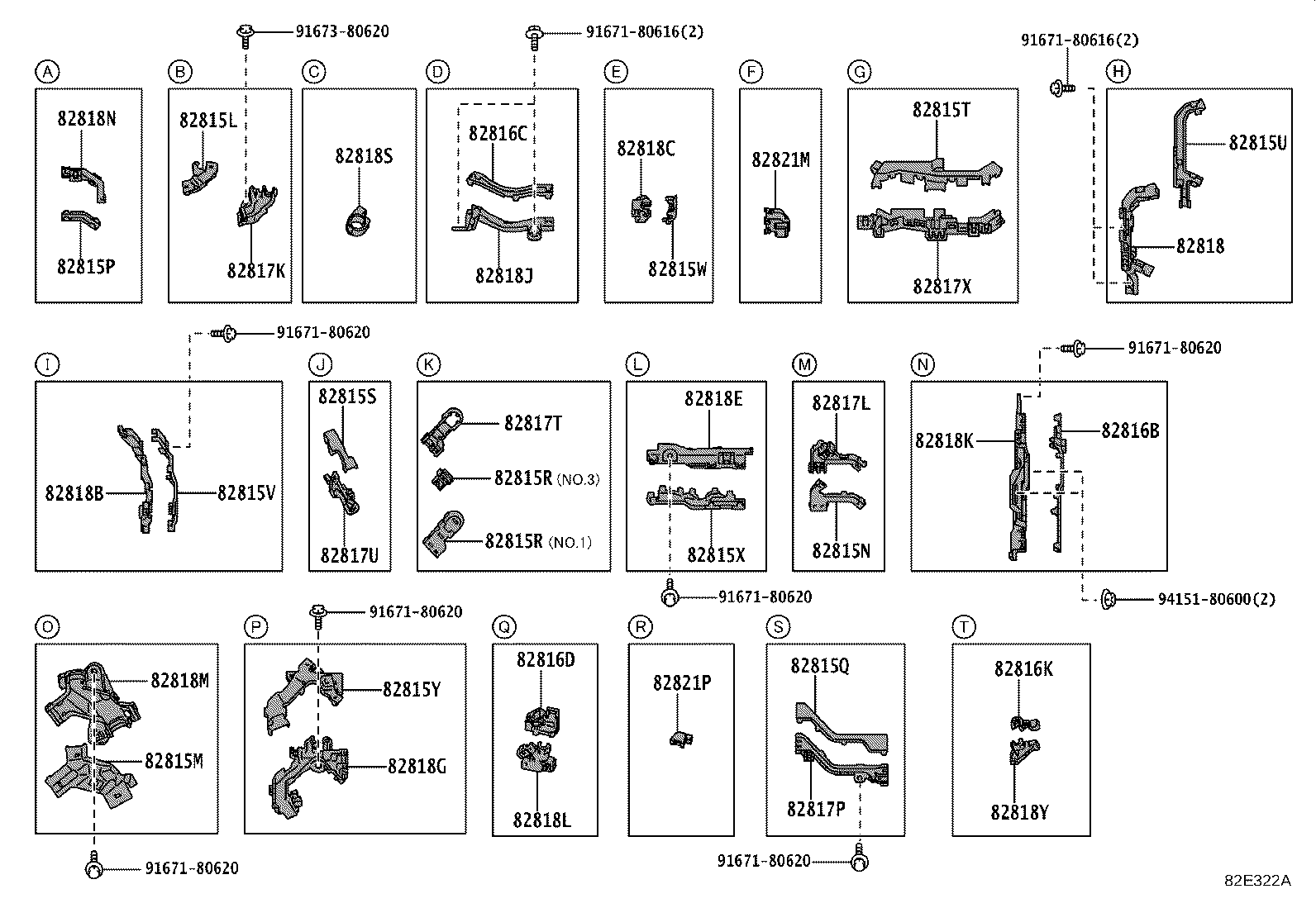

ENGINE 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-0R190 |
MXVA71 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-42770 |
MXVA71 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-0R160 |
MXVA71 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-33N00 |
AXVA70,GSV70,MXVA71 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-12D80 |
MXVA71 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-33L00 |
AXVA70,MXVA71 NO.3 |
1 | ||
| 82815-33J10 |
AXVA70,MXVA71 NO.1 |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-33L00 |
AXVA70,MXVA71 NO.3 |
1 | ||
| 82815-33J10 |
AXVA70,MXVA71 NO.1 |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-F4520 |
MXVA71 |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-F4550 |
MXVA71 |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-12B00 |
MXVA71 |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-12E50 |
MXVA71 |
1 | ||
| 82815W - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-0R200 |
MXVA71 |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-0R130 |
MXVA71 |
1 | ||
| 82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-42C70 |
MXVA71 |
1 | ||
| 82816B - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-0R180 |
MXVA71 |
1 | ||
| 82816C - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-33E80 |
AXVA70,AXVH71,GSV70,MXVA71..LHD |
1 | ||
| 82816D - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-0R210 |
MXVA71 |
1 | ||
| 82816K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-12E80 |
MXVA71 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-0R660 |
MXVA71 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-0R630 |
MXVA71 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-12R80 |
MXVA71 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-33S70 |
AXVA70,MXVA71 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-F4740 |
MXVA71 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-F4770 |
MXVA71 |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12V00 |
MXVA71 |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-12S50 |
MXVA71 |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-0R670 |
MXVA71 |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-0R610 |
MXVA71 |
1 | ||
| 82818G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-42J50 |
MXVA71 |
1 | ||
| 82818J - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-33X40 |
AXVA70,AXVH71,GSV70,MXVA71..LHD |
1 | ||
| 82818K - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-0R650 |
MXVA71 |
1 | ||
| 82818L - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-0R680 |
MXVA71 |
1 | ||
| 82818M - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-42J40 |
MXVA71 |
1 | ||
| 82818N - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-3T250 |
AXVA70,GSV70,MXVA71 |
1 | ||
| 82818S - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-42J70 |
MXVA71 |
1 | ||
| 82818Y - PROTECTOR, WIRING HARNESS, NO.21 | ||||
| 82817-12S80 |
MXVA71 |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-33460 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 82821P - COVER, CONNECTOR | ||||
| 82821-33690 |
AXVA70,GSV70,MXVA71 |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
| 91671-80620 | ||||
| 91673-80620 | ||||
| 94151-80600 | ||||
