GSV70L-AEZSBV (2021)

Toyota Camry/Hybrid

Production Feb 2021 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

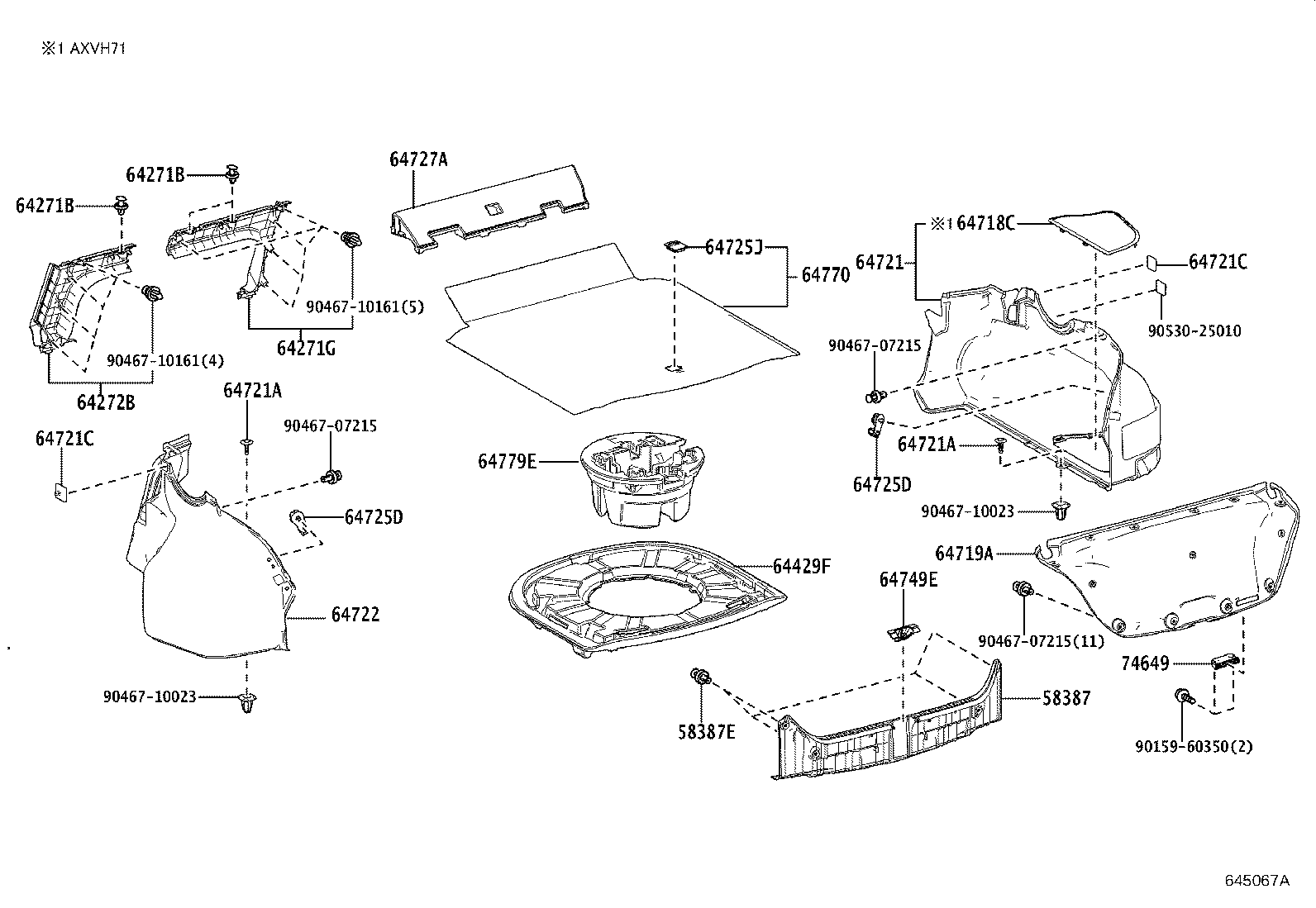

ILLUST NO. 2 OF 2(2102- )GCC

Click highlighted areas on diagram

diagram 58387 58387E 64271B 64271B 64271G 64272B 64429F 64718C 64719A 64721 64721A 64721A 64721C 64721C 64722 64725D 64725D 64725J 64727A 64749E 64770 64779E 74649 9015960350 9046707215 9046707215 9046707215 9046710023 9046710023 9046710161 9046710161 9053025010
Part # Description Qty Price
58387 - PLATE, REAR FLOOR FINISH
58387-33140C0

GSV70..SE

BLACK,TRIM1#,2#,3#

 1
58387E - CLIP(FOR REAR FLOOR FINISH PLATE)
90467-07215

AXVA70,AXVH7#,GSV70,MXVA71

 4
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-07220

AXVA70,AXVH7#,GSV70,MXVA71

 3
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-07220

AXVA70,AXVH7#,GSV70,MXVA71

 3
64271G - BOARD, ROOM PARTITION, RH
64271-33120C0

GSV70..SE

BLACK,TRIM1#,2#,3#

 1
64272B - BOARD, ROOM PARTITION, LH
64272-33060C0

GSV70..SE

BLACK,TRIM1#,2#,3#

 1
64429F - BOX, LUGGAGE COMPARTMENT TRIM
64429-33020

AXVA70,AXVH71,GSV70..GCC

 1
64719A - COVER, LUGGAGE COMPARTMENT DOOR
64719-33180C1

GSV70..SE

BLACK,TRIM1#,2#,3#

 1
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-33190C1

GSV70..SE

BLACK,TRIM1#,2#,3#

 1
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-08222C1

AXVA70,AXVH7#,GSV70,MXVA71

BLACK

 2
64721A - CLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
90467-08222C1

AXVA70,AXVH7#,GSV70,MXVA71

BLACK

 2
64721C - CLIP(LUGGAGE COMPARTMENT)
90530-25010

AXVA70,AXVH7#,GSV70,MXVA71

 2
64721C - CLIP(LUGGAGE COMPARTMENT)
90530-25010

AXVA70,AXVH7#,GSV70,MXVA71

 2
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-33200C2

GSV70..SE

BLACK,TRIM1#,2#,3#

 1
64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-33090C2

GSV70..SE

BLACK,TRIM1#,2#,3#

 2
64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-33090C2

GSV70..SE

BLACK,TRIM1#,2#,3#

 2
64725J - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-33100

AXVA70,AXVH7#,GSV70,MXVA71

 1
64727A - PAD, LUGGAGE COMPARTMENT TRIM, INNER
64727-33060

AXVA70,AXVH7#,GSV70,MXVA71

 1
64749E - COVER, LUGGAGE COMPARTMENT DOOR STRIKER
64749-33030C0

GSV70..SE

BLACK,TRIM1#,2#,3#

 1
64770 - COVER ASSY, SPARE WHEEL
64770-33160C1

GSV70..SE

BLACK,TRIM1#,2#,3#

 1
64779E - TRAY, SPARE WHEEL COVER
64779-33250

AXVA70,AXVH71,GSV70..GCC

 1
74649 - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
74649-51010C3

GSV70..SE

BLACK,TRIM1#,2#,3#

 1
Common parts
90159-60350
90467-07215
90467-10023
90467-10161
90530-25010
