GSV70L-AEZSBV (2017)

Toyota Camry/Hybrid

Production Dec 2017 - Feb 2021
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1712-2102)GSV70..GCC ; (2102- )GSV70

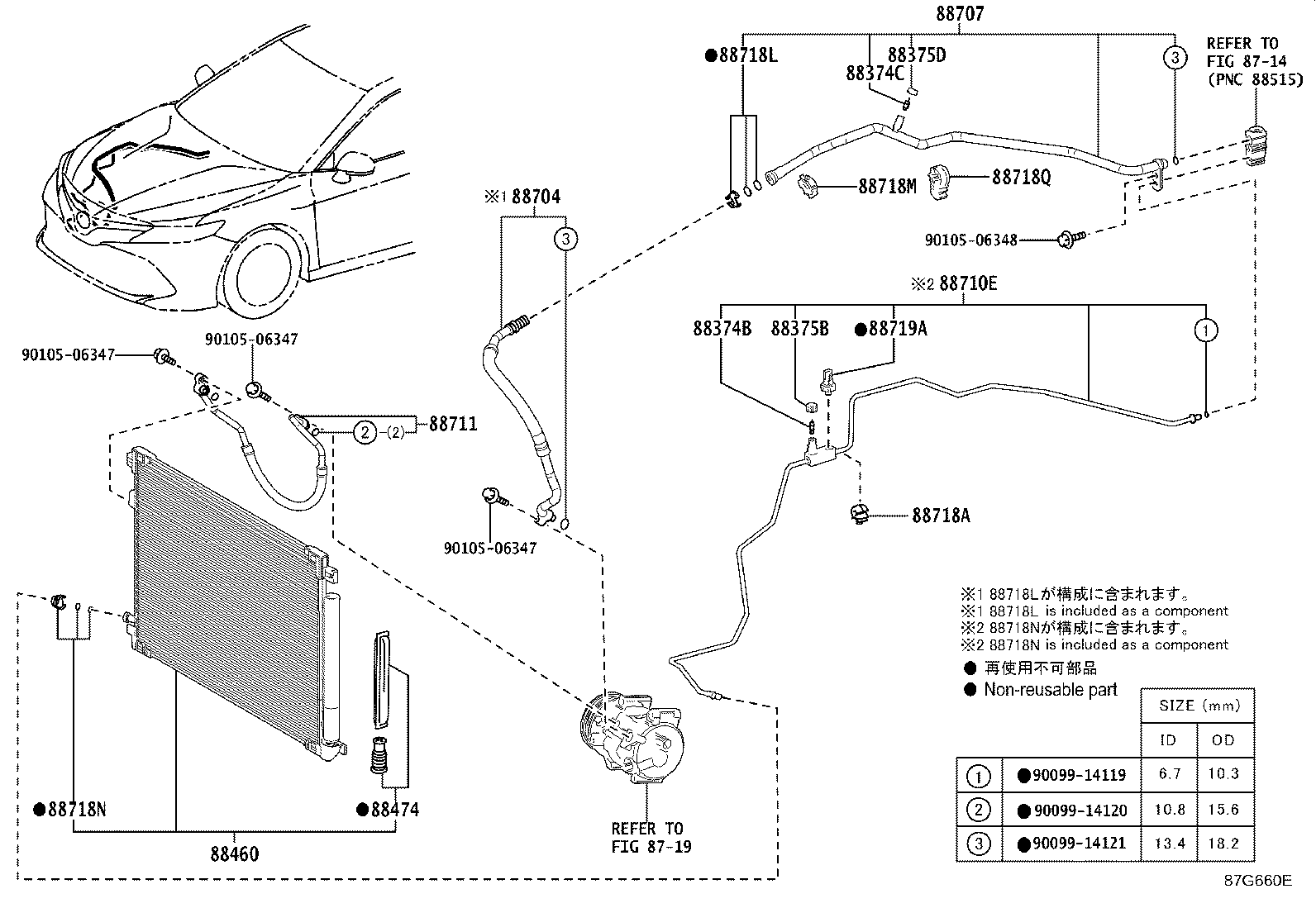

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88704 88707 88710E 88711 88718A 88718L 88718M 88718N 88718Q 88719A 9009914119 9009914120 9009914121 9010506347 9010506347 9010506347 9010506348
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ASV70,AXVA70,AXVH7#,GSV70

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

ASV70,AXVA70,AXVH7#,GSV70

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

ASV70,AXVA70,AXVH7#,GSV70

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
88460 - CONDENSER ASSY, COOLER
884A0-33010

ASV70,AXVA70,GSV70

 1
88474 - DRYER, COOLER
88474-12020

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-33600

GSV70

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-33130

ASV70,AXVA70,GSV70..LHD

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-33450

ASV70,AXVA70,GSV70..LHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-33310

GSV70

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-58050

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
88718L - CLAMP, PIPING
88718-52280

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
88718M - CLAMP, PIPING
88718-33520

ASV70,AXVA70,GSV70

 1
88718-42110

ASV70,AXVA70,GSV70

 1
88718N - CLAMP, PIPING
88718-1E150

ASV70,AXVA70,AXVH7#,GSV70

 1
88718Q - CLAMP, PIPING
88718-33490

ASV70,AXVA70,GSV70

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
Common parts
90099-14119
90099-14120
90099-14121
90105-06347
90105-06348
Linked diagrams
8714
8719
