GSV70L-AEZSBV (2017)

Toyota Camry/Hybrid

Production Dec 2017 - Feb 2021
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1712-2102)GSV70 ; (2102- )GSV70

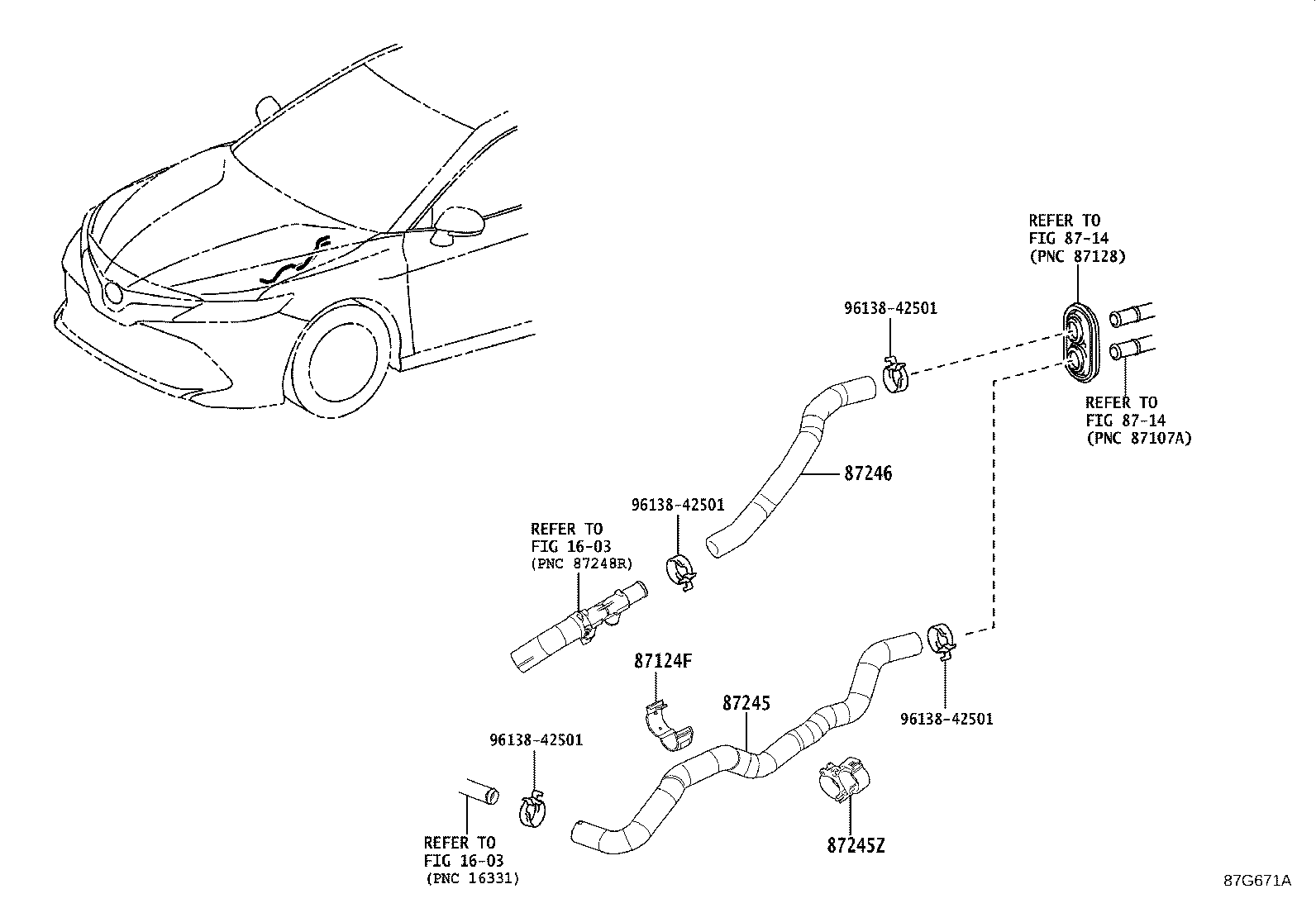

Click highlighted areas on diagram

diagram 1603 1603 87124F 8714 8714 87245 87245Z 87246 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
87124F - CLAMP, HEATER HOSE, NO.1
88718-33480

ASV70,GSV70

 1
87245 - HOSE, HEATER WATER, INLET
87245-33830

GSV70

 1
87245Z - CLIP OR CLAMP (FOR HEATER WATER HOSE)
88718-48270

GSV70

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-33820

GSV70

 1
Common parts
96138-42501
Linked diagrams
1603
8714
