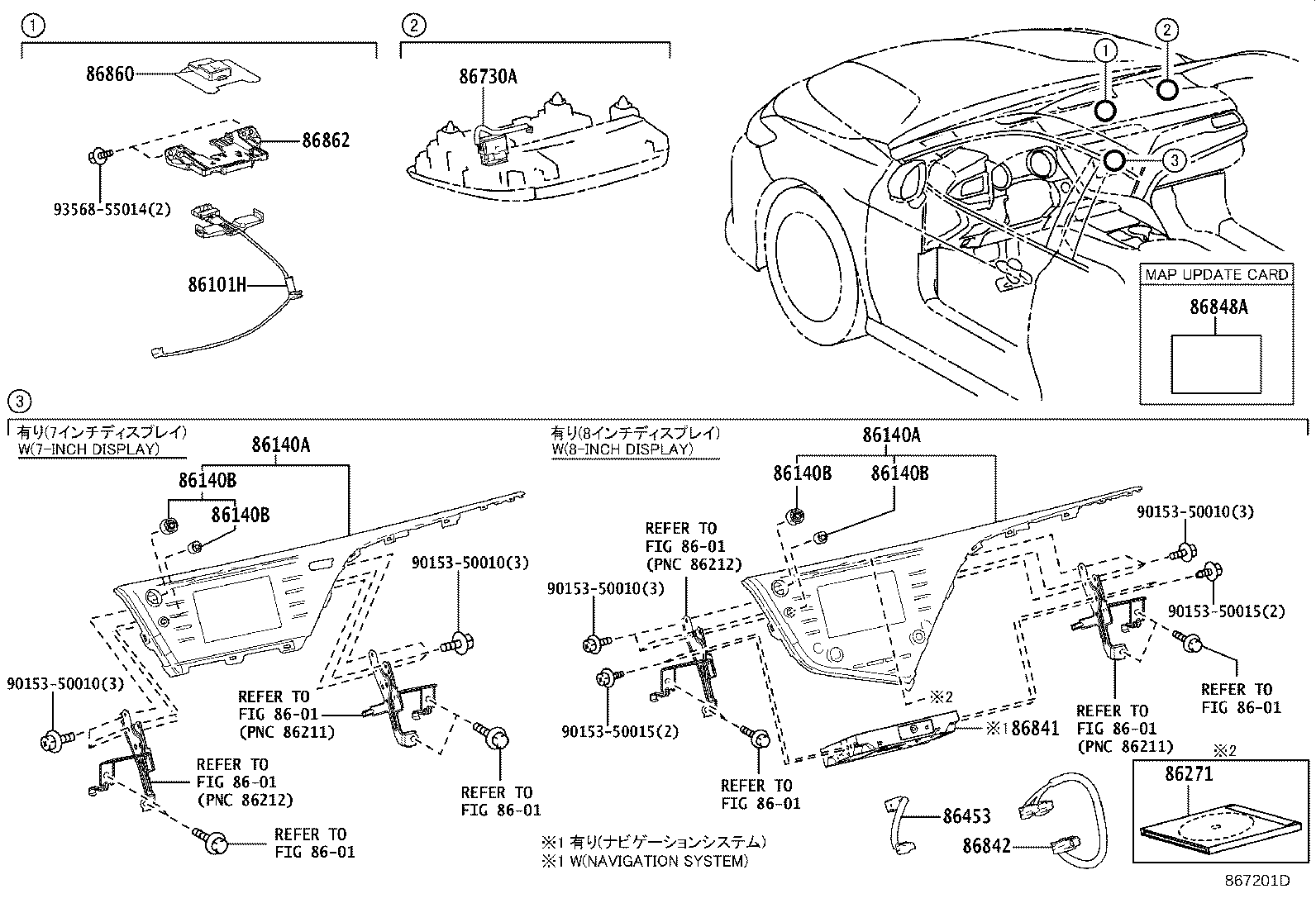

Toyota Camry/hybrid GSV70 NAVIGATION & FRONT MONITOR DISPLAY

Part #	Description	Period	Qty
86101H - CORD SUB-ASSY, ANTENNA
86101-33L50	AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE	12/2017 - 02/2021	1
86101-33L50	GSV70..SE EMV & NAVIGATION SYSTEM-WITHOUT	12/2017 - 02/2021	1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-33450	ASV70,GSV70..N,V PIONEER	09/2017 - 02/2021	1
86140-33360	ASV70,AXVA70,GSV70..GLE,LIMD,SE FUJITSU TEN	12/2017 - 02/2021	1
86140-33370	GSV70..GCC PIONEER,NAVI PACKAGE	12/2017 - 02/2021	1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-33450	ASV70,GSV70..N,V PIONEER	09/2017 - 02/2021	1
86140-33360	ASV70,AXVA70,GSV70..GLE,LIMD,SE FUJITSU TEN	12/2017 - 02/2021	1
86140-33370	GSV70..GCC PIONEER,NAVI PACKAGE	12/2017 - 02/2021	1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-22123	ASV70,GSV70..N,V PWR/VOL	09/2017 - 02/2021	1
90010-22123	GSV70..GCC NAVI PACKAGE,PWR/VOL	12/2017 - 02/2021	1
90010-22124	ASV70,GSV70..N,V TUNE/SCROLL	09/2017 - 02/2021	1
90010-22124	GSV70..GCC NAVI PACKAGE,TUNE/SCROLL	12/2017 - 02/2021	1
90010-23053	ASV70,AXVH7#..D..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE PWR/VOL	12/2017 - 02/2021	1
90010-23054	ASV70,AXVH7#..D..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE TUNE/SCROLL	12/2017 - 02/2021	1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-22123	ASV70,GSV70..N,V PWR/VOL	09/2017 - 02/2021	1
90010-22123	GSV70..GCC NAVI PACKAGE,PWR/VOL	12/2017 - 02/2021	1
90010-22124	ASV70,GSV70..N,V TUNE/SCROLL	09/2017 - 02/2021	1
90010-22124	GSV70..GCC NAVI PACKAGE,TUNE/SCROLL	12/2017 - 02/2021	1
90010-23053	ASV70,AXVH7#..D..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE PWR/VOL	12/2017 - 02/2021	1
90010-23054	ASV70,AXVH7#..D..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE TUNE/SCROLL	12/2017 - 02/2021	1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-22123	ASV70,GSV70..N,V PWR/VOL	09/2017 - 02/2021	1
90010-22123	GSV70..GCC NAVI PACKAGE,PWR/VOL	12/2017 - 02/2021	1
90010-22124	ASV70,GSV70..N,V TUNE/SCROLL	09/2017 - 02/2021	1
90010-22124	GSV70..GCC NAVI PACKAGE,TUNE/SCROLL	12/2017 - 02/2021	1
90010-23053	ASV70,AXVH7#..D..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE PWR/VOL	12/2017 - 02/2021	1
90010-23054	ASV70,AXVH7#..D..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE TUNE/SCROLL	12/2017 - 02/2021	1
86140B - KNOB, RADIO & DISPLAY RECEIVER SWITCH
90010-22123	ASV70,GSV70..N,V PWR/VOL	09/2017 - 02/2021	1
90010-22123	GSV70..GCC NAVI PACKAGE,PWR/VOL	12/2017 - 02/2021	1
90010-22124	ASV70,GSV70..N,V TUNE/SCROLL	09/2017 - 02/2021	1
90010-22124	GSV70..GCC NAVI PACKAGE,TUNE/SCROLL	12/2017 - 02/2021	1
90010-23053	ASV70,AXVH7#..D..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE PWR/VOL	12/2017 - 02/2021	1
90010-23054	ASV70,AXVH7#..D..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE TUNE/SCROLL	12/2017 - 02/2021	1
86271 - DISC, DISC PLAYER
86807-11040	ASV70,GSV70..N,V	09/2017 - 09/2018	1
86807-11032	GSV70..GCC NAVI PACKAGE	08/2018 - 07/2019	1
86807-11030	GSV70..GCC NAVI PACKAGE	12/2017 - 01/2018	1
86807-11031	GSV70..GCC NAVI PACKAGE	01/2018 - 07/2018	1
86807-11033	GSV70..GCC NAVI PACKAGE	08/2019 - 06/2020	1
86807-11041	ASV70,GSV70..N,V	10/2018 - 09/2019	1
86807-11034	GSV70..GCC NAVI PACKAGE	07/2020 - 02/2021	1
86807-11042	ASV70,GSV70..N,V	10/2019 - 09/2020	1
86807-11043	ASV70,GSV70..N,V	10/2020 - 02/2021	1
86453 - WIRE, MULTI-MEDIA MODULE
86203-33280	ASV70,GSV70..N,V	09/2017 - 02/2021	1
86203-33280	GSV70..GCC NAVI PACKAGE	12/2017 - 02/2021	1
86730A - MICROPHONE ASSY, TELEPHONE
86730-48040	AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE	12/2017 - 02/2021	1
86841 - COMPUTER, NAVIGATION
86840-33141	ASV70,GSV70..N,V	09/2017 - 09/2018	1
86840-33150	GSV70..GCC NAVI PACKAGE	12/2017 - 07/2018	1
86840-33142	ASV70,GSV70..N,V	10/2018 - 09/2019	1
86840-33152	GSV70..GCC NAVI PACKAGE	08/2019 - 06/2020	1
86840-33143	ASV70,GSV70..N,V	10/2019 - 09/2020	1
86840-33151	GSV70..GCC NAVI PACKAGE	08/2018 - 07/2019	1
86840-33144	ASV70,GSV70..N,V	10/2020 - 02/2021	1
86842 - WIRE, NAVIGATION, NO.1
86842-33150	GSV70..GCC NAVI PACKAGE	12/2017 - 02/2021	1
86842-33150	ASV70,GSV70..N,V	09/2017 - 02/2021	1
86848A - CARD, SERIAL NUMBER MAP UPDATE
86848-33040	ASV70,GSV70..N,V	09/2017 - 02/2021	1
86848-33060	GSV70..GCC NAVI PACKAGE	12/2017 - 02/2021	1
86860 - ANTENNA ASSY, NAVIGATION
86860-78010	GSV70..SE EMV & NAVIGATION SYSTEM-WITHOUT	12/2017 - 02/2021	1
86860-78010	GSV70;ASV70,AXVA70..GLE,SE;ASV70,AXVH7#..(D,N,V)..(ARL,TAKR)	09/2017 - 02/2021	1
86862 - BRACKET, NAVIGATION ANTENNA
86862-58020	GSV70;ASV70,AXVA70..GLE,SE;ASV70,AXVH71..ARL,TAKR	09/2017 - 01/2020	1
86862-58020	GSV70..SE EMV & NAVIGATION SYSTEM-WITHOUT	12/2017 - 01/2020	1
86862-42010	GSV70;ASV70,AXVA70..GLE,SE;ASV70,AXVH7#..(D,N,V)..(ARL,TAKR)	02/2020 - 02/2021	1
86862-42010	GSV70..SE EMV & NAVIGATION SYSTEM-WITHOUT	02/2020 - 02/2021	1
Common parts
90153-50010
90153-50015
93568-55014
Linked diagrams
8601

GSV70L-AEZSBV (2017)

(1712-2102)LHD
