GSV70L-AEZSBV (2017)
Toyota Camry/Hybrid

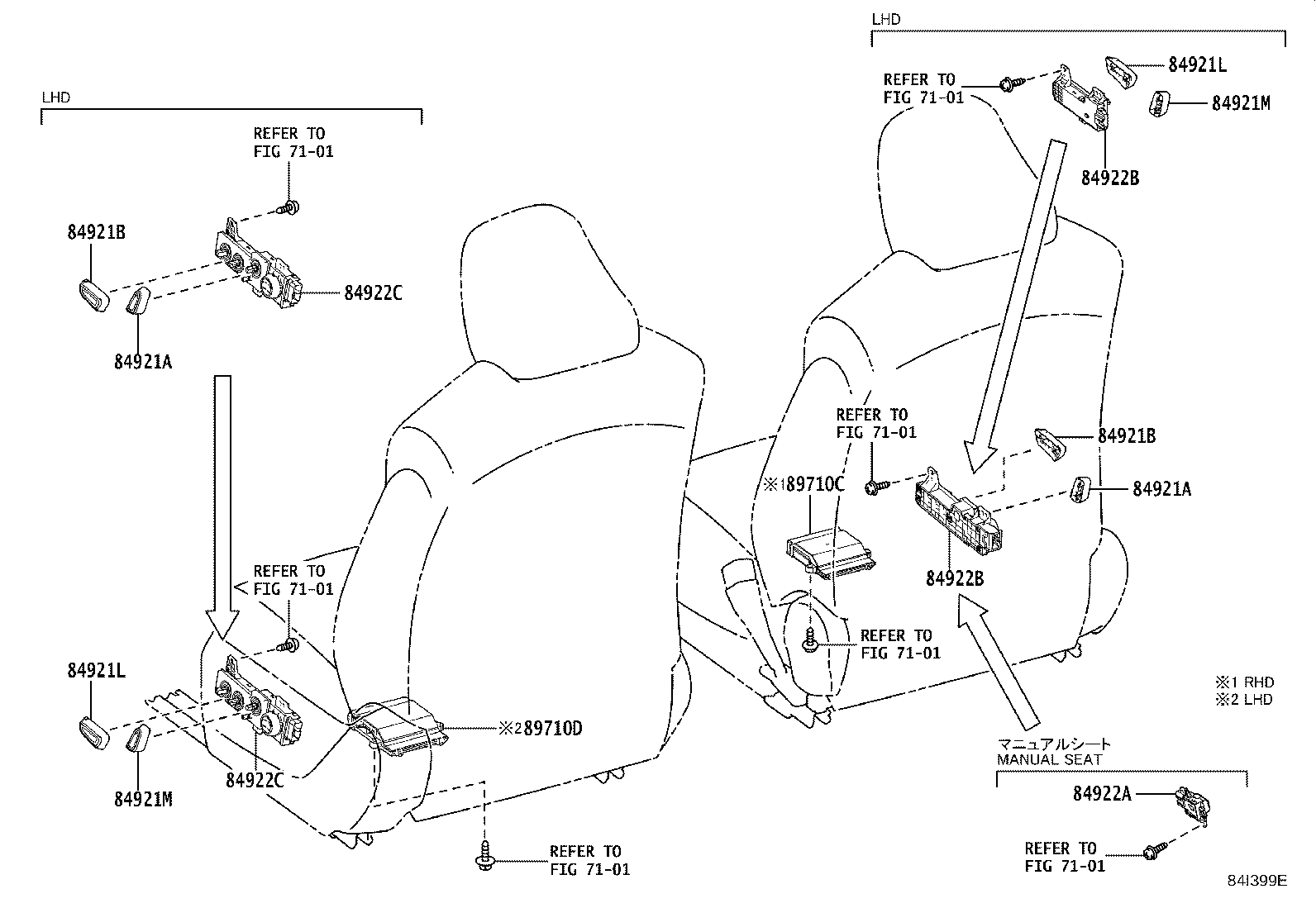

ILLUST NO. 6 OF 7(1709- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-33200C0 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 84921-33180B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 84921-33180C0 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-33200C0 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 84921-33180B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 84921-33180C0 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-33170C0 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 84921-33170B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 84921-33190C0 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-33170C0 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 84921-33170B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 84921-33190C0 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 84921L - KNOB, POWER SEAT SWITCH(FOR SLIDE & VERTICAL), NO.2 | ||||
| 84921-33190B0 |
GSV70..GCC NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 84921-33190C0 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 84921L - KNOB, POWER SEAT SWITCH(FOR SLIDE & VERTICAL), NO.2 | ||||
| 84921-33190B0 |
GSV70..GCC NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 84921-33190C0 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 84921M - KNOB, POWER SEAT SWITCH(FOR RECLINING), NO.2 | ||||
| 84921-33200B0 |
GSV70..GCC NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 84921-33200C0 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 84921M - KNOB, POWER SEAT SWITCH(FOR RECLINING), NO.2 | ||||
| 84921-33200B0 |
GSV70..GCC NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 84921-33200C0 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-33140 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 84922-33220C0 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-33140 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 84922-33220C0 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-33210B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 84922-33210C0 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-33210B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 84922-33210C0 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| Linked diagrams | ||||
| 7101 | ||||

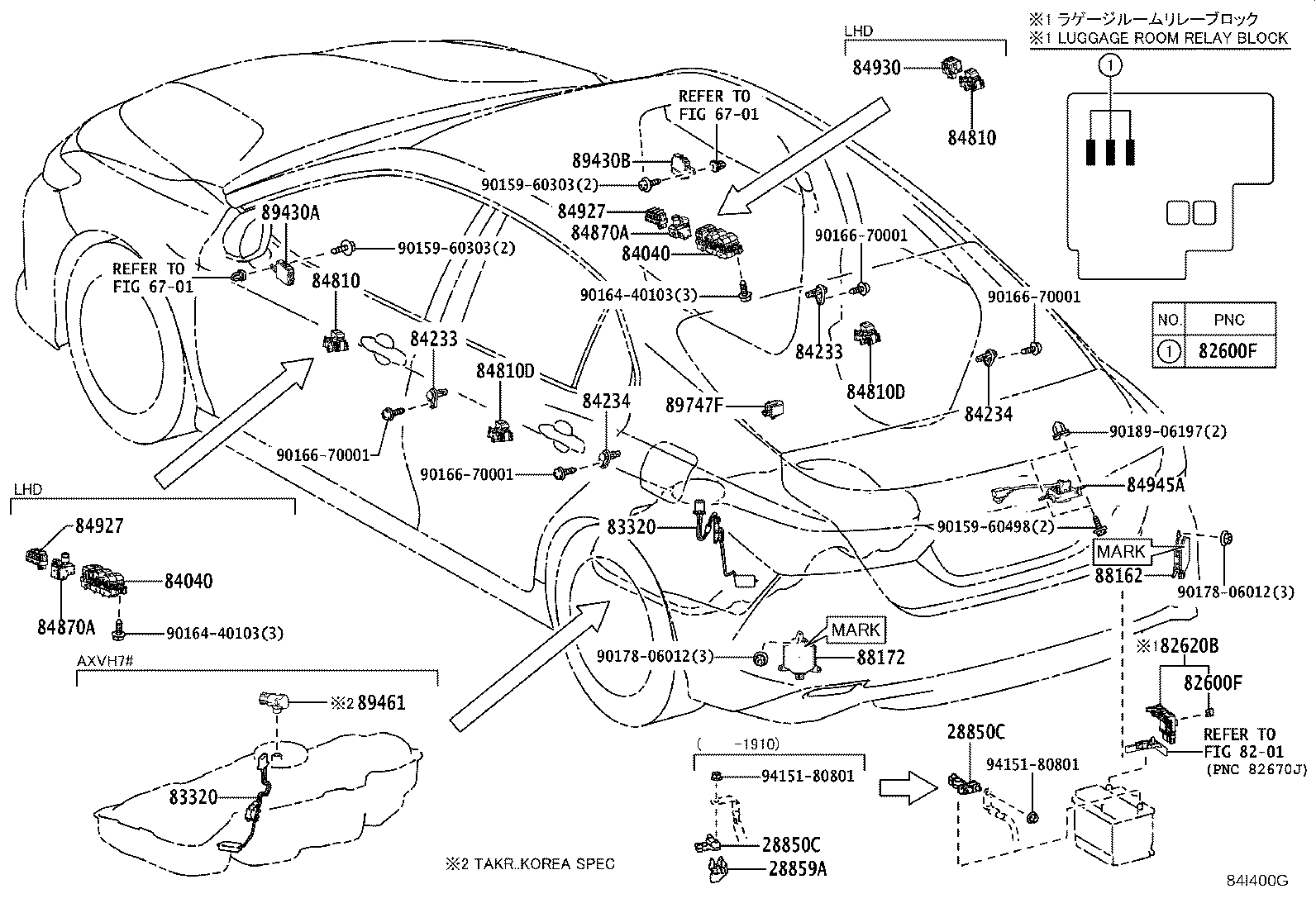

ILLUST NO. 7 OF 7(1709- )
DOOR, FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-33150 |
ASV70,AXVA70,GSV70 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-33150 |
ASV70,AXVA70,GSV70 |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33160 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-33160 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-48030 |
GSV70;ASV70..V;AXVH71..TAKR |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-48030 |
GSV70;ASV70..V;AXVH71..TAKR |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-48030 |
GSV70;ASV70..V;AXVH71..TAKR |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-48030 |
GSV70;ASV70..V;AXVH71..TAKR |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-33040 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 84872-33080 |
ASV70,GSV70..V |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-33040 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 84872-33080 |
ASV70,GSV70..V |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-33040 |
GSV70;AXVH7#..D;ASV70..N,V;ASV70,AXVA70..GLE,SE |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90159-60498 | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 90178-06012 | ||||
| 90189-06197 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 6701 | ||||
| 8201 | ||||

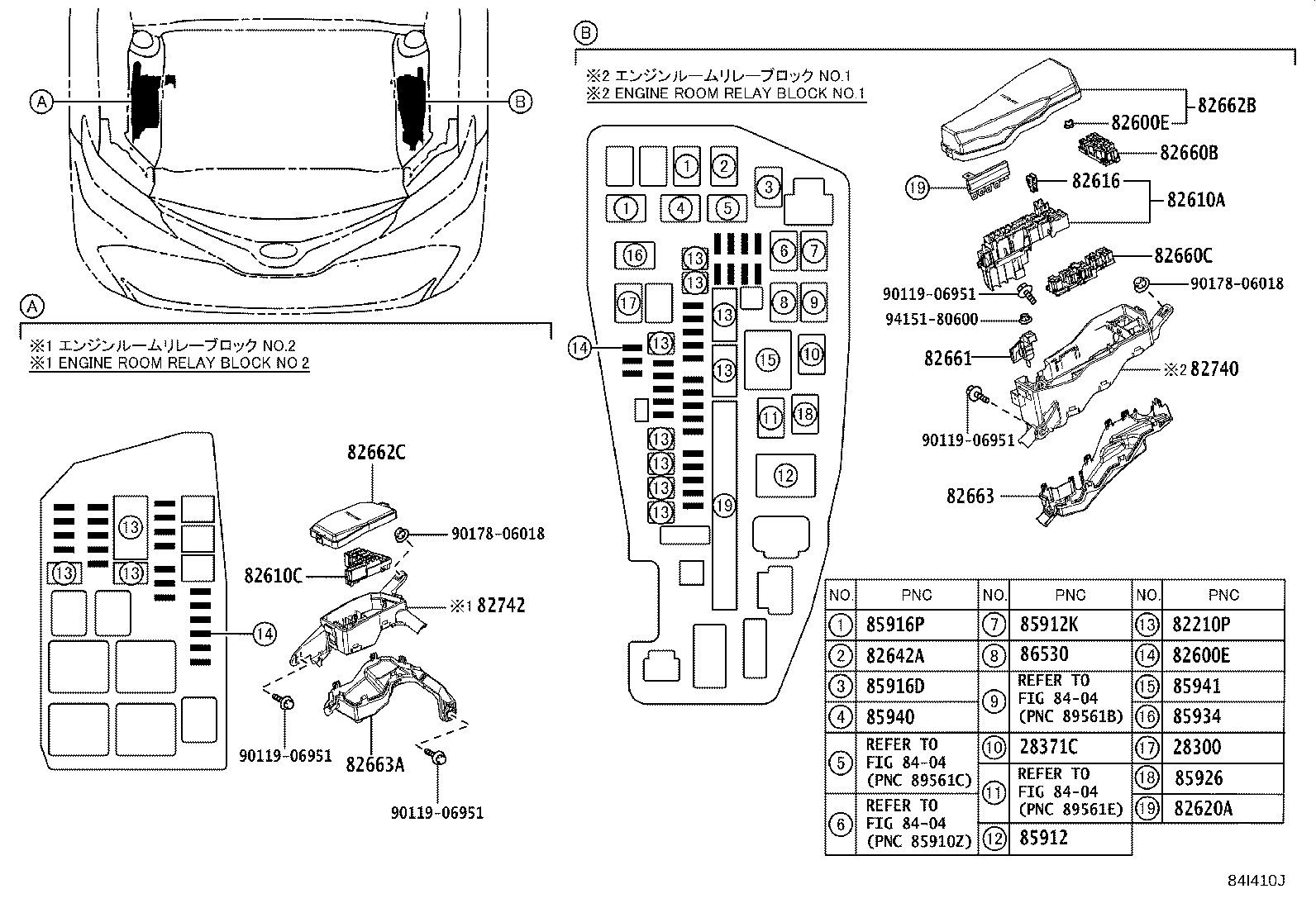

ILLUST NO. 2 OF 7(1709- )ASV70,AXVA70,GSV70,MXVA71
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-21020 |
A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
A25AFXS..AXVH71..D;A25#,2ARFE,2GRFKS..ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08296 |
ASV70,AXVA70,GSV70 50A,TERM.:FEMALE,RED |
4 | ||
| 90982-08303 |
ASV70,AXVA70,GSV70 50A-50A-50A,FEMALE |
2 | ||
| 90982-08300 |
ASV70,AXVA70,GSV70 50A-30A-30A,FEMALE |
1 | ||
| 90982-08298 |
ASV70,AXVA70,GSV70..ARL,GCC 30A,TERMINAL:FEMALE |
4 | ||
| 90982-08302 |
ASV70,AXVA70,GSV70 50A-30A-50A,FEMALE |
1 | ||
| 90982-08303 |
ASV70,AXVA70,GSV70 50A-50A-50A,FEMALE |
1 | ||
| 90982-08312 |
ASV70,AXVA70,GSV70 50A,TERM.:FEMALE,RED |
3 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
ASV70,AXVA70,GSV70 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ASV70,AXVA70,GSV70 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ASV70,AXVA70,AXVH71,GSV70 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ASV70,AXVA70,GSV70 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
ASV70,AXVA70,GSV70 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ASV70,AXVA70,AXVH7#,GSV70 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
ASV70,AXVA70,GSV70..ARL,GCC 7.5A,MINI FUSE,BROWN |
3 | ||
| 90982-09024 |
ASV70,AXVA70,GSV70..ARL,GCC 25A,MINI FUSE |
1 | ||
| 90982-09021 |
ASV70,AXVA70,GSV70..ARL,GCC 10A,MINI FUSE,RED |
12 | ||
| 90982-09022 |
ASV70,AXVA70,GSV70..ARL,GCC 15A,MINI FUSE,BLUE |
3 | ||
| 90982-09025 |
ASV70,AXVA70,AXVH7#,GSV70 30A,MINI FUSE,GRN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09020 |
ASV70,AXVA70,GSV70 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ASV70,AXVA70,GSV70 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09019 |
ASV70,AXVA70,AXVH71,GSV70 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ASV70,AXVA70,GSV70 10A,MINI FUSE,RED |
1 | ||
| 90982-09024 |
ASV70,AXVA70,GSV70 25A,MINI FUSE |
1 | ||
| 90982-09023 |
ASV70,AXVA70,AXVH7#,GSV70 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
ASV70,AXVA70,GSV70..ARL,GCC 7.5A,MINI FUSE,BROWN |
3 | ||
| 90982-09024 |
ASV70,AXVA70,GSV70..ARL,GCC 25A,MINI FUSE |
1 | ||
| 90982-09021 |
ASV70,AXVA70,GSV70..ARL,GCC 10A,MINI FUSE,RED |
12 | ||
| 90982-09022 |
ASV70,AXVA70,GSV70..ARL,GCC 15A,MINI FUSE,BLUE |
3 | ||
| 90982-09025 |
ASV70,AXVA70,AXVH7#,GSV70 30A,MINI FUSE,GRN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-33130 |
ASV70,AXVA70,GSV70 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33140 |
GSV70;AXVH7#..D |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-33100 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-33110 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-33050 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-33C30 |
GSV70 |
1 | ||
| 82662-33C31 |
GSV70 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-33210 |
ASV70,AXVA70,GSV70 |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-33080 |
ASV70,AXVA70,GSV70 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02027 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
GSV70 |
1 | ||
| 90987-02027 |
GSV70 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 90987-02027 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 85941 - RELAY, WINDSHIELD WASHER | ||||
| 90987-02025 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90178-06018 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 5 OF 7(1709- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-33490C4 |
GSV70..SE BLACK / SATIN CHROM,TRIM1#,2#,3# |
1 | ||
| 84250-33500C4 |
ASV70,GSV70..V BLACK / SATIN CHROM,TRIM2#,3# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-33090 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-11010 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-11010 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-33060 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-33060 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 84523 - WIRE, SWITCH NO.1 | ||||
| 84523-11010 |
ASV70..V;GSV70..ARL;ASV70,AXVA70,GSV70..SE |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-33011 |
ASV70..V;GSV70..ARL;ASV70,AXVA70,GSV70..SE LH |
1 | ||
| 84610-33020 |
ASV70..V;GSV70..ARL;ASV70,AXVA70,GSV70..SE RH |
1 | ||
| 84610-33010 |
ASV70..V;GSV70..ARL;ASV70,AXVA70,GSV70..SE LH |
1 | ||
| 84610-33021 |
ASV70..V;GSV70..ARL;ASV70,AXVA70,GSV70..SE RH |
1 | ||
| 84610F - SWITCH ASSY, TRANSMISSION SHIFT | ||||
| 84610-33011 |
ASV70..V;GSV70..ARL;ASV70,AXVA70,GSV70..SE LH |
1 | ||
| 84610-33020 |
ASV70..V;GSV70..ARL;ASV70,AXVA70,GSV70..SE RH |
1 | ||
| 84610-33010 |
ASV70..V;GSV70..ARL;ASV70,AXVA70,GSV70..SE LH |
1 | ||
| 84610-33021 |
ASV70..V;GSV70..ARL;ASV70,AXVA70,GSV70..SE RH |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-33610 |
ASV70,AXVA70,AXVH71,GSV70..GCC |
1 | ||
| 84652-33590 |
GSV70..V;ASV70,AXVH70..ARL |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-33610 |
ASV70,AXVA70,AXVH71,GSV70..GCC |
1 | ||
| 84652-33590 |
GSV70..V;ASV70,AXVH70..ARL |
1 | ||
| 89245C - SENSOR, STEERING | ||||
| 8924B-50050 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 8924B-33040 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||

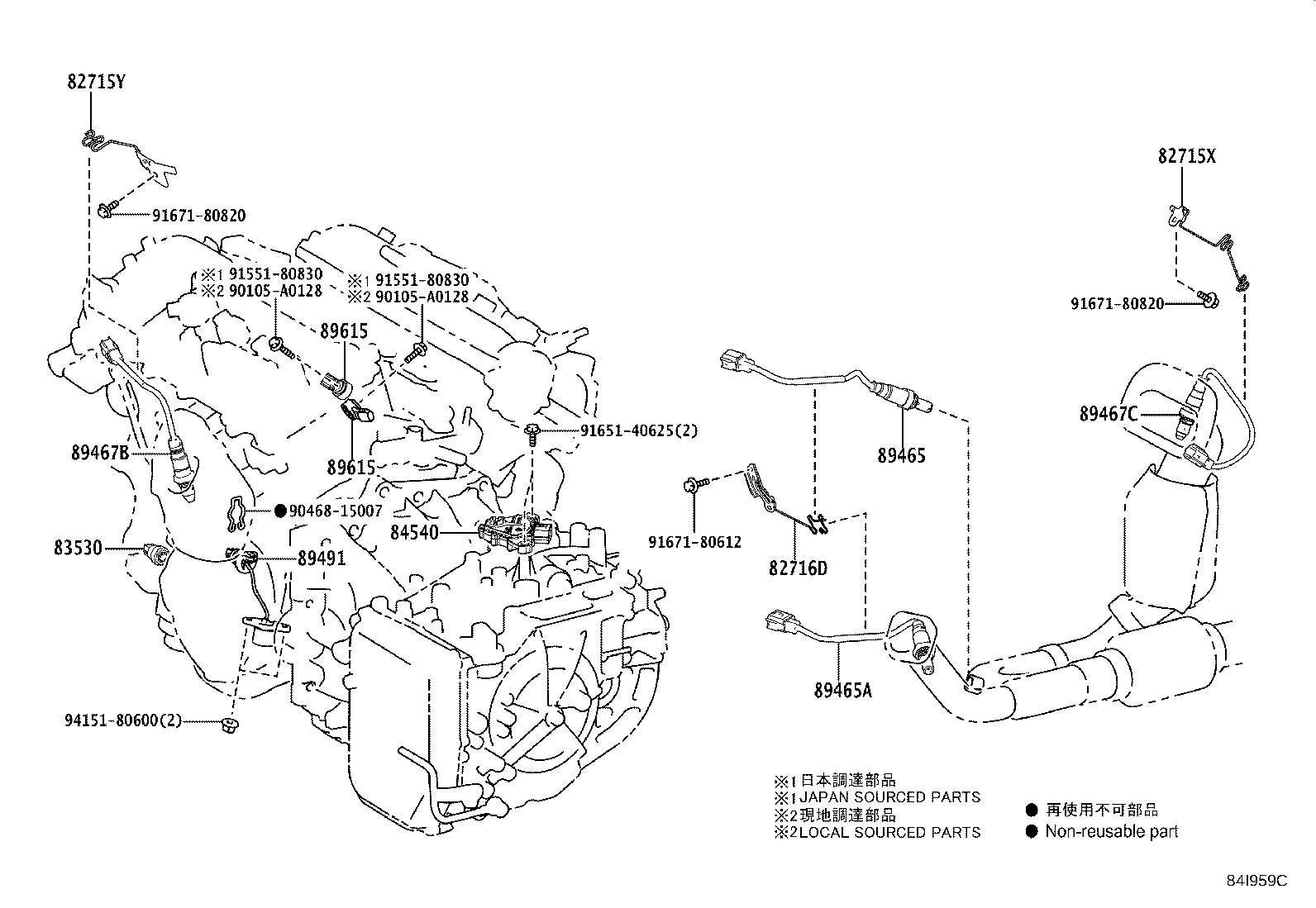

ILLUST NO. 1 OF 7(1709- )GSV70
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715X - BRACKET, WIRING HARNESS CLAMP, NO.2 | ||||
| 82715-33T50 |
GSV70 |
1 | ||
| 82715Y - BRACKET, WIRING HARNESS CLAMP, NO.3 | ||||
| 82715-33J90 |
GSV70 |
1 | ||
| 82716D - BRACKET, WIRING HARNESS CLAMP, NO.2 | ||||
| 82715-33K00 |
GSV70 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ASV70,GSV70 DENSO |
1 | ||
| 83530-60020 |
ASV70,GSV70 YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-33020 |
AXVA70,GSV70 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-33620 |
GSV70 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-33630 |
GSV70 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-33270 |
GSV70 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-48320 |
GSV70 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-48020 |
GSV70 |
1 | ||
| 89491-48021 |
GSV70 |
1 | ||
| 89491-48040 |
GSV70 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-06010 |
GSV70 (L) |
2 | ||
| 89615-20090 |
GSV70 (J) |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-06010 |
GSV70 (L) |
2 | ||
| 89615-20090 |
GSV70 (J) |
2 | ||
| Common parts | ||||
| 90105-A0128 | ||||
| 90468-15007 | ||||
| 91551-80830 | ||||
| 91651-40625 | ||||
| 91671-80612 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
