GSV70L-AEZSBV (2017)
Toyota Camry/Hybrid
ILLUST NO. 4 OF10(1709- )
DOOR & TRUNK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-33K30 |
GSV70..V;ASV70..N,V |
1 | ||
| 82151-33J60 |
ASV70,AXVA70,GSV70..GLE,SE |
1 | ||
| 82151-33K31 |
GSV70..V;ASV70..N,V |
1 | ||
| 82151-33J61 |
ASV70,AXVA70,GSV70..GLE,SE |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-33K70 |
GSV70..V;ASV70..N,V |
1 | ||
| 82152-33K10 |
ASV70,AXVA70,GSV70..GLE,SE |
1 | ||
| 82152-33K11 |
ASV70,AXVA70,GSV70..GLE,SE |
1 | ||
| 82152-33K71 |
GSV70..V;ASV70..N,V |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-33420 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 82153-33421 |
ASV70,AXVA70,AXVH7#,GSV70..ARL,GCC,TAIW |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82154-33351 |
ASV70,AXVA70,AXVH7#,GSV70..ARL,GCC,TAIW |
1 | ||
| 82154-33350 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-33F40 |
GSV70..GCC |
1 | ||
| 82181-33F70 |
ASV70,GSV70..V |
1 | ||
| 82181-33F70 |
GSV70..GCC AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 82181-33F41 |
GSV70..GCC |
1 | ||
| 82181-33F71 |
ASV70,GSV70..V |
1 | ||
| 82181-33F71 |
GSV70..GCC AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-33200 |
GSV70;ASV70..N,V;AXVH71..TAKR |
1 | ||
| 89348Y - CLIP, ULTRASONIC SENSOR, REAR | ||||
| 89348-50050 |
GSV70;ASV70..N,V;AXVH71..TAKR |
2 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8417 | ||||

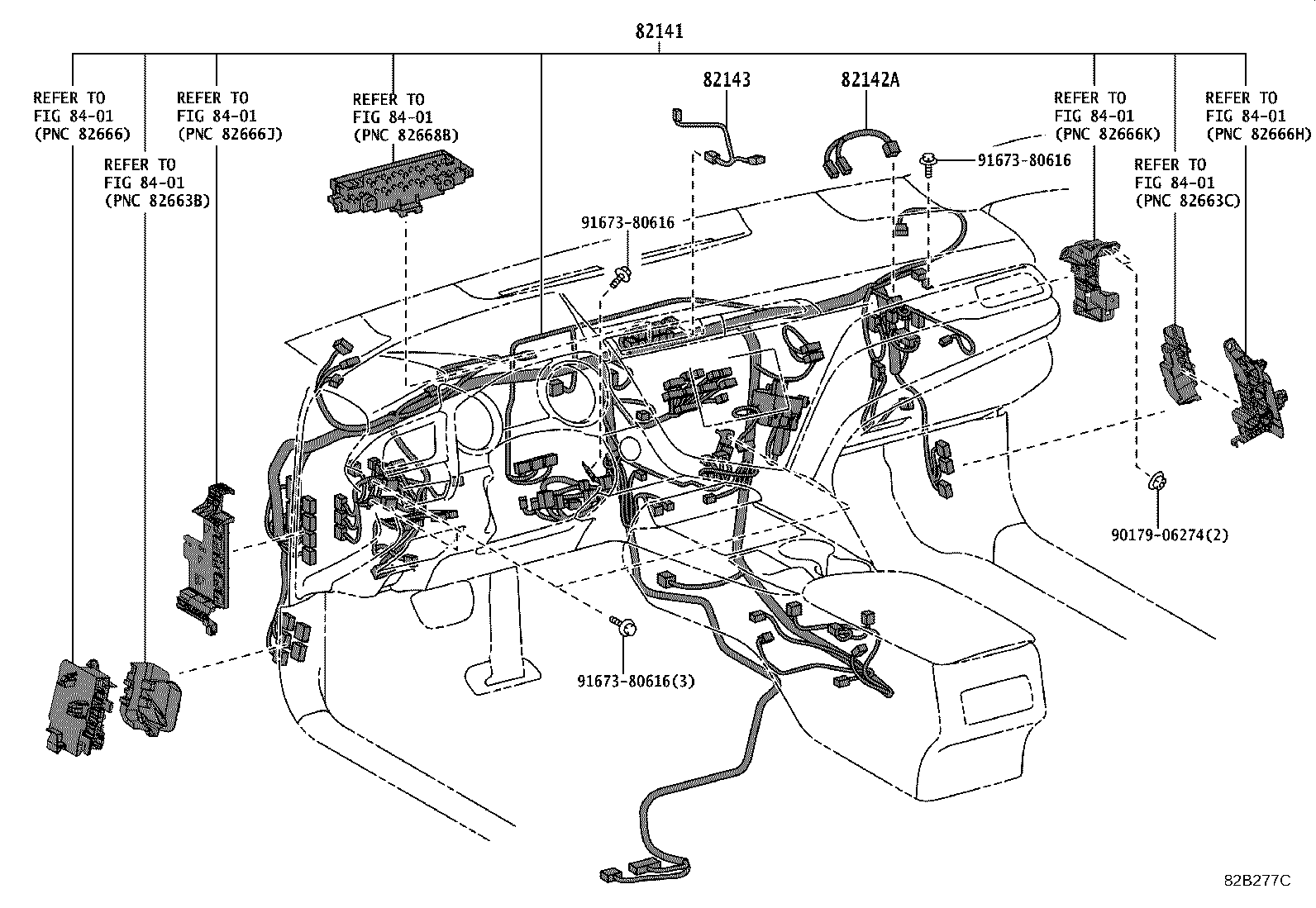

ILLUST NO. 3 OF10(1712- )ASV70,AXVA70,GSV70,MXVA71..LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-3YG80 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 82141-3YJ00 |
GSV70..GCC NAVI PACKAGE&AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 82141-3YP40 |
GSV70..V;ASV70..N,V |
1 | ||
| 82141-3YG81 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 82141-3YP41 |
GSV70..V;ASV70..N,V |
1 | ||
| 82141-3YJ01 |
GSV70..GCC NAVI PACKAGE&AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 82141-3YG82 |
GSV70..GCC |
1 | ||
| 82141-3YP42 |
GSV70..V;ASV70..N,V |
1 | ||
| 82141-3YJ02 |
GSV70..GCC NAVI PACKAGE&AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-33090 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 82140-33092 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82140-33091 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-33090 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF10(1709- )GSV70
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3TF60 |
GSV70..GCC |
1 | ||
| 82111-3TF61 |
GSV70..GCC |
1 | ||
| 82111-3TF62 |
GSV70..GCC |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-33120 |
GSV70..SE;ASV70,GSV70..N,V |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-33E00 |
ASV70,AXVA70,GSV70 |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-33E10 |
ASV70,AXVA70,GSV70..LHD |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-33E20 |
ASV70,AXVA70,GSV70..LHD |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-33K50 |
AXVH70;ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-33N30 |
ASV70,AXVA70,GSV70 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-33N40 |
ASV70,AXVA70,GSV70..LHD |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-33N60 |
ASV70,AXVA70,GSV70..LHD |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-33Y20 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-33Y30 |
AXVH70;ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF10(1712- )GSV70
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-33G80 |
GSV70..GCC |
1 | ||
| 82121-33G81 |
GSV70..GCC |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-48060 |
GSV70 |
2 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-48060 |
GSV70 |
2 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-33060 |
GSV70 |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-33020 |
GSV70 |
1 | ||
| 8212A - WIRE, ENGINE, NO.9 | ||||
| 8212A-33010 |
GSV70 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-48020 |
GSV70 |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-48030 |
GSV70 |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-33140 |
ASV70,AXVA70,GSV70 |
1 | ||
| 82712A - SUPPORT, WIRING HARNESS | ||||
| 82712-33160 |
ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-33C70 |
GSV70 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-33A00 |
GSV70 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-33A10 |
GSV70 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-33A20 |
GSV70 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-33A30 |
GSV70 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-33N00 |
ASV70,AXVA70,GSV70 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-33A40 |
GSV70 |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-33A50 |
GSV70 |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-33B50 |
GSV70 |
1 | ||
| 82816B - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-33C10 |
GSV70 |
1 | ||
| 82816C - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-33E80 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 82816D - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-33L50 |
GSV70 |
1 | ||
| 82816G - COVER, WIRING HARNESS PROTECTOR, NO.5 | ||||
| 82815-33C20 |
GSV70 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-33Q10 |
GSV70 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-33Q20 |
GSV70 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-33Q30 |
GSV70 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-33Q40 |
GSV70 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-33Q50 |
GSV70 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-33Q60 |
GSV70 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-33V60 |
GSV70 |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-48A10 |
GSV70 |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-33W30 |
GSV70 |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-33W40 |
GSV70 |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-33Z50 |
GSV70 |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-33V70 |
GSV70 |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-33V80 |
GSV70 |
1 | ||
| 82818J - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-33X40 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 82818N - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-3T250 |
ASV70,AXVA70,GSV70 |
1 | ||
| 82818Y - PROTECTOR, WIRING HARNESS, NO.21 | ||||
| 82817-33X10 |
GSV70 |
1 | ||
| 82819G - PROTECTOR, WIRING HARNESS, NO.23 | ||||
| 82817-33Z10 |
ASV70,GSV70 |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-33460 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82821P - COVER, CONNECTOR | ||||
| 82821-33690 |
AXVA70,GSV70 |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-0E010 |
GSV70 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-0C010 |
ASV70,GSV70 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 91673-80620 | ||||

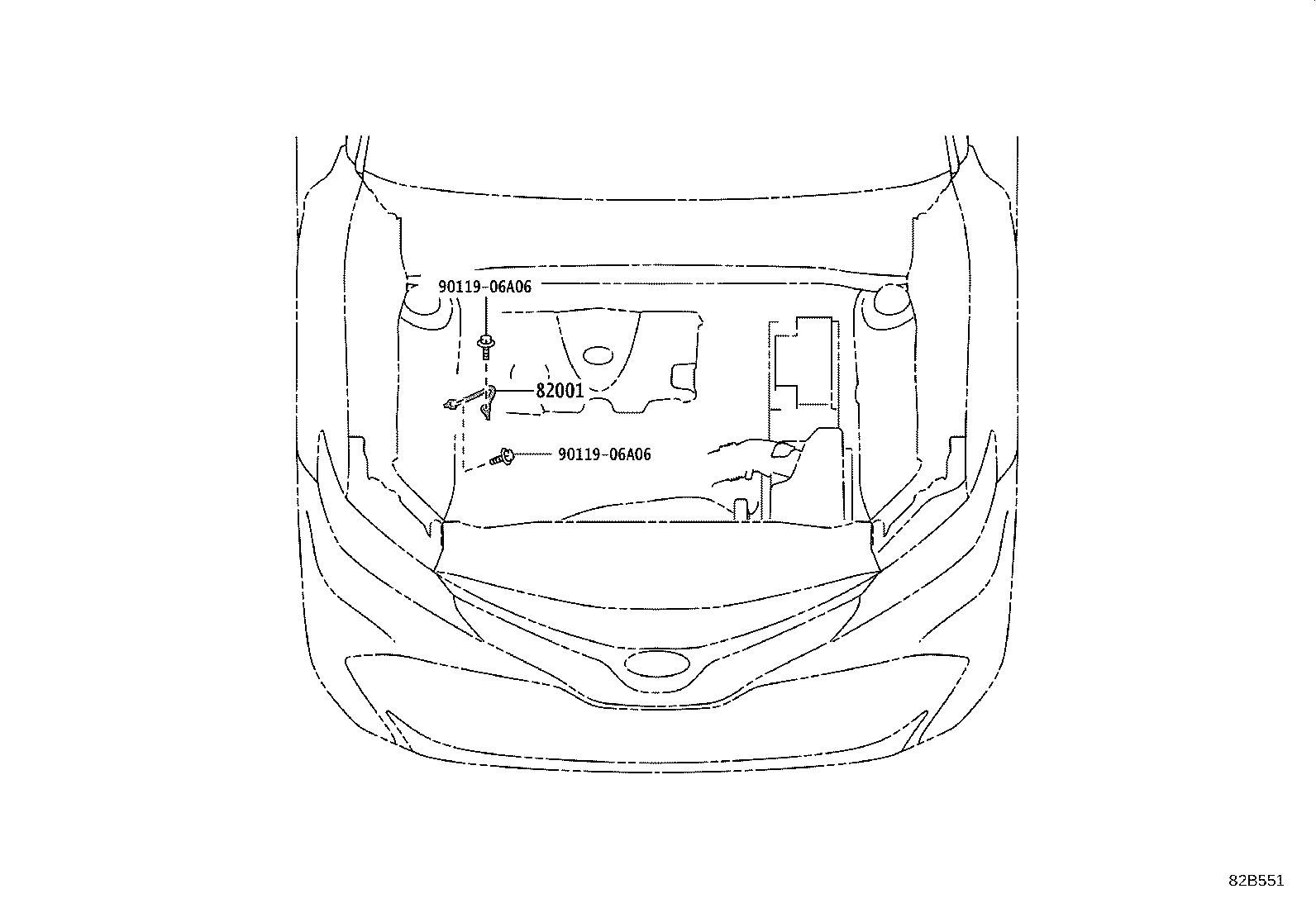

ILLUST NO. 9 OF10(1712- )ASV70,AXVA70,GSV70,MXVA71
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 82286-33030 |
GSV70 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||

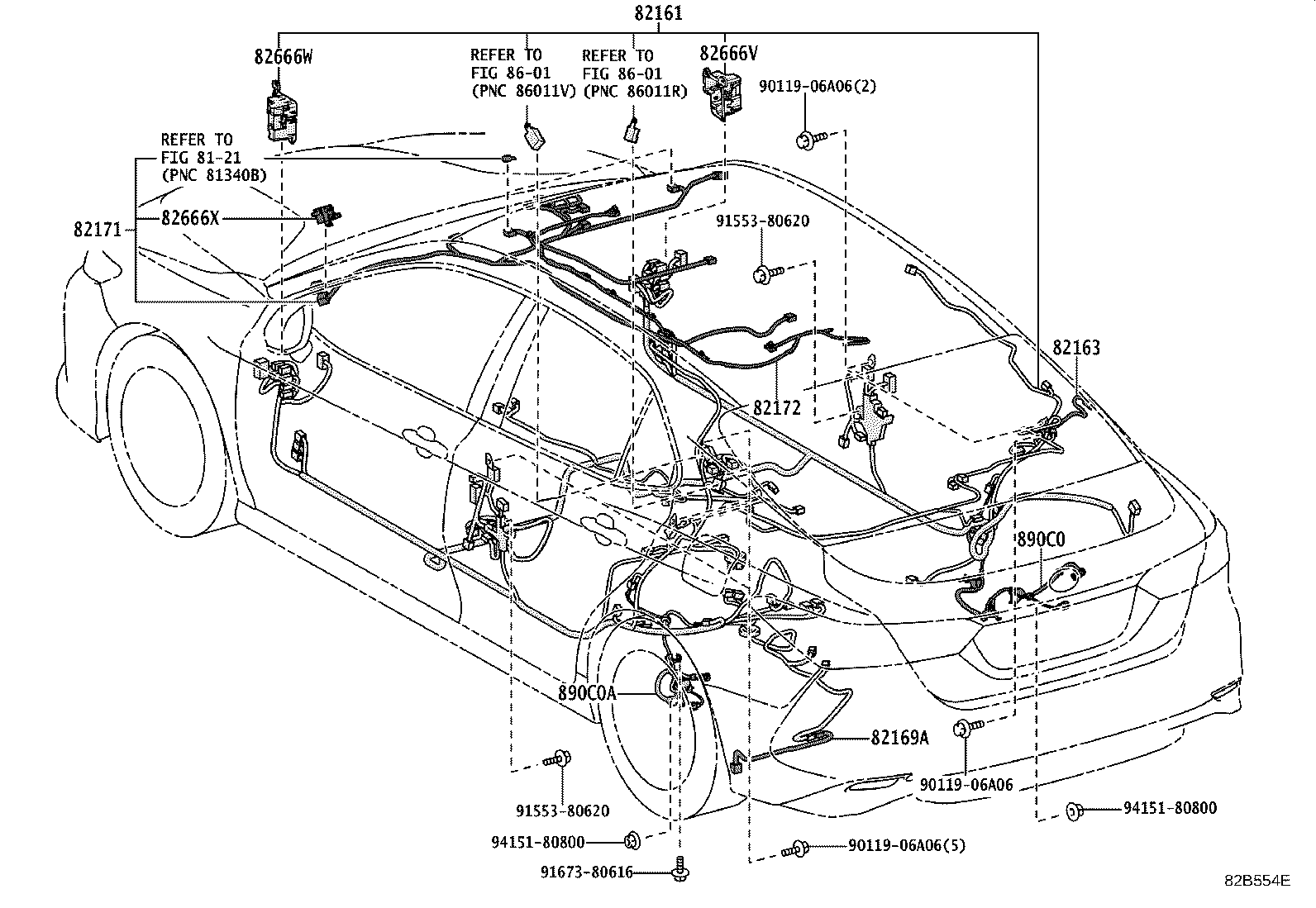

ILLUST NO. 5 OF10(1709- )ASV70,AXVA70,GSV70,MXVA71
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-3TK80 |
GSV70..V |
1 | ||
| 82161-3TX80 |
GSV70..GCC |
1 | ||
| 82161-3TJ70 |
GSV70..GCC NAVI PACKAGE&AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 82161-3TJ71 |
GSV70..GCC NAVI PACKAGE&AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 82161-3TK81 |
GSV70..V |
1 | ||
| 82161-3TJ71 |
GSV70..GCC AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 82161-3TX81 |
GSV70..GCC |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-33140 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82169A - WIRE, FLOOR, NO.6 | ||||
| 82169-33020 |
GSV70;ASV70,AXVH7#..(D,N,V)..(ARL,TAIW,TAKR) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-33N90 |
GSV70..V;ASV70,AXVH71..ARL |
1 | ||
| 82171-33Q00 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 82171-33Q50 |
ASV70,GSV70..V MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 82171-33Q01 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 82171-33N91 |
GSV70..V;ASV70,AXVH7#..ARL |
1 | ||
| 82171-33Q51 |
ASV70,GSV70..V MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 82171-33Q02 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-33020 |
ASV70,GSV70..V MOON ROOF-WITH(PANORAMA ROOF) |
1 | ||
| 82666V - HOLDER, CONNECTOR NO.15 | ||||
| 82666-33650 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-33660 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-33500 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-33011 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-33021 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 91553-80620 | ||||
| 91673-80616 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8601 | ||||

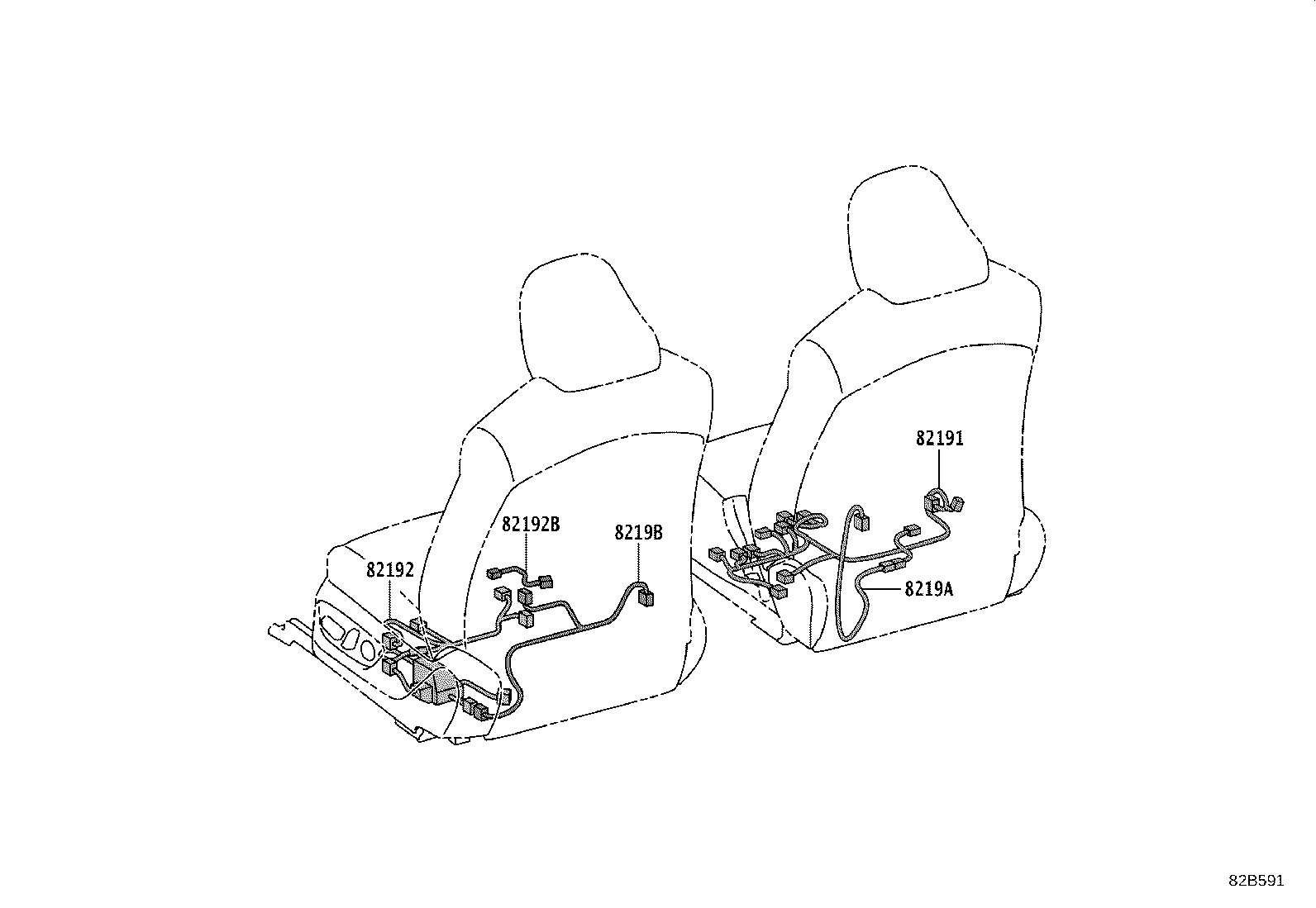

ILLUST NO. 7 OF10(1712- )LHD
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-33A80 |
ASV70,GSV70..V |
1 | ||
| 82191-33B50 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-33A80 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-33100 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 8219A-47040 |
ASV70,GSV70..V |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-47060 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
ILLUST NO.10 OF10(1709- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 82824-78020 | ||||
| 90980-10794 | ||||
| 90980-10860 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11194 | ||||
| 90980-11399 | ||||
| 90980-12380 | ||||
| 90980-12382 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12728 | ||||
| 90980-12790 | ||||
| 90980-12A92 | ||||
| 90980-12C54 | ||||
| 90980-12C55 | ||||
| 90980-12C56 | ||||
| 90980-12D00 | ||||
ILLUST NO.10 OF10(1709- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-33470 | ||||
| 82824-78020 | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12158 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12C39 | ||||
ILLUST NO. 8 OF10(1709- )GSV70
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-33M50 | ||||
| 82715-33M60 | ||||
| 82715-33M80 | ||||
| 82715-33N80 | ||||
| 82715-33N90 | ||||
| 82715-33P00 | ||||
| 82715-33Q10 | ||||
| 82715-33Q50 | ||||
| 82715-33Q70 | ||||
| 82715-33Q80 | ||||
| 82715-33Q90 | ||||
| 82715-33T10 | ||||
| 82715-33T20 | ||||
| 82715-33V00 | ||||
| 82715-48770 | ||||
| 82715-48L90 | ||||
| 82716-48010 | ||||
| 82717-48010 | ||||
| 90119-06951 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
