GSV70L-AEZSBV (2017)
Toyota Camry/Hybrid

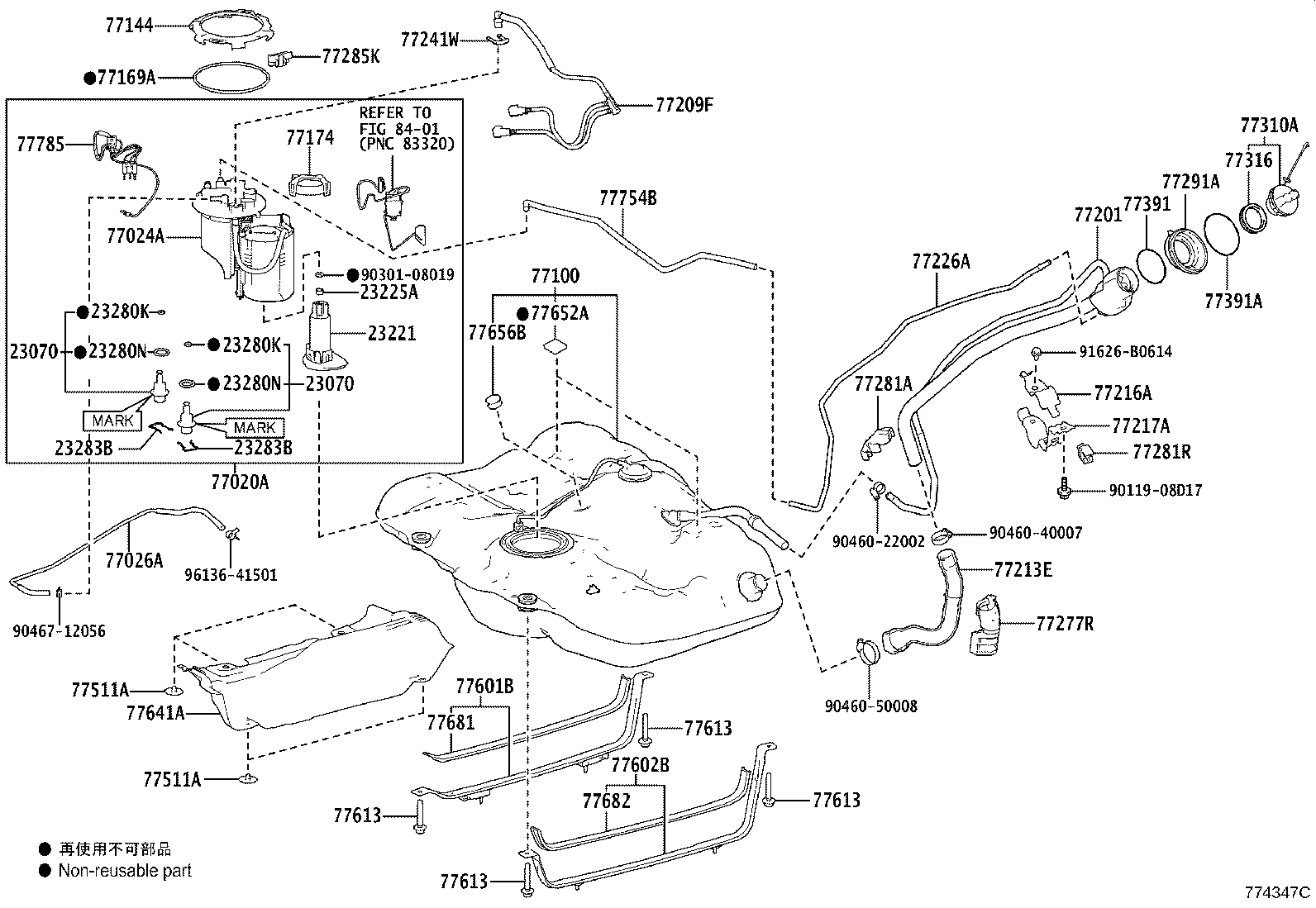

ILLUST NO. 1 OF 4(1712- )GSV70
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-31030 |
A25AFKS,2GRFKS..AXVA70,GSV70 MARK 23070-31030 |
1 | ||
| 23070-36010 |
2GRFKS..GSV70 MARK 23070-36010 |
1 | ||
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-31030 |
A25AFKS,2GRFKS..AXVA70,GSV70 MARK 23070-31030 |
1 | ||
| 23070-36010 |
2GRFKS..GSV70 MARK 23070-36010 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23220-31330 |
2GRFKS..GSV70 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-31010 |
2GRFKS..GSV70 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2GRFKS..GSV70 |
2 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2GRFKS..GSV70 |
2 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
2GRFKS..GSV70 |
2 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
2GRFKS..GSV70 |
2 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
A25AFKS,2GRFKS..AXVA70,GSV70 |
2 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
A25AFKS,2GRFKS..AXVA70,GSV70 |
2 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-33480 |
GSV70 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-33260 |
GSV70 |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-33030 |
ASV70,AXVA70,GSV70 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-33270 |
ASV70,AXVA70,GSV70 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
GSV70 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
GSV70 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-33070 |
GSV70 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-33400 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-33130 |
GSV70 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-33130 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-33150 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-33090 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-33130 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GSV70 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-33110 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-33050 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 77281R - CLAMP, FUEL FILLER PIPE, NO.2 | ||||
| 77281-30110 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 77285K - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30350 |
GSV70 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-33110 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-33060 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 77391-20040 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
ASV70,AXVA70,GSV70 |
4 | ||
| 77511A - BRACKET, FUEL TANK | ||||
| 77512-35140 |
ASV70,AXVA70,GSV70 |
4 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-33150 |
ASV70,AXVA70,GSV70 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-33160 |
ASV70,AXVA70,GSV70 |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
ASV70,AXVA70,AXVH7#,GSV70 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
ASV70,AXVA70,AXVH7#,GSV70 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
ASV70,AXVA70,AXVH7#,GSV70 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10995 |
ASV70,AXVA70,AXVH7#,GSV70 |
4 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-33030 |
ASV70,AXVA70,GSV70 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-33060 |
ASV70,AXVA70,GSV70 |
2 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-33010 |
ASV70,AXVA70,GSV70 |
1 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77682-47020 |
ASV70,AXVA70,GSV70 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-75010 |
ASV70,AXVA70,GSV70 |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-33070 |
ASV70,AXVA70,GSV70 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-33150 |
GSV70 |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90301-08019 | ||||
| 90460-22002 | ||||
| 90460-40007 | ||||
| 90460-50008 | ||||
| 90467-12056 | ||||
| 91626-B0614 | ||||
| 96136-41501 | ||||
| Linked diagrams | ||||
| 8401 | ||||

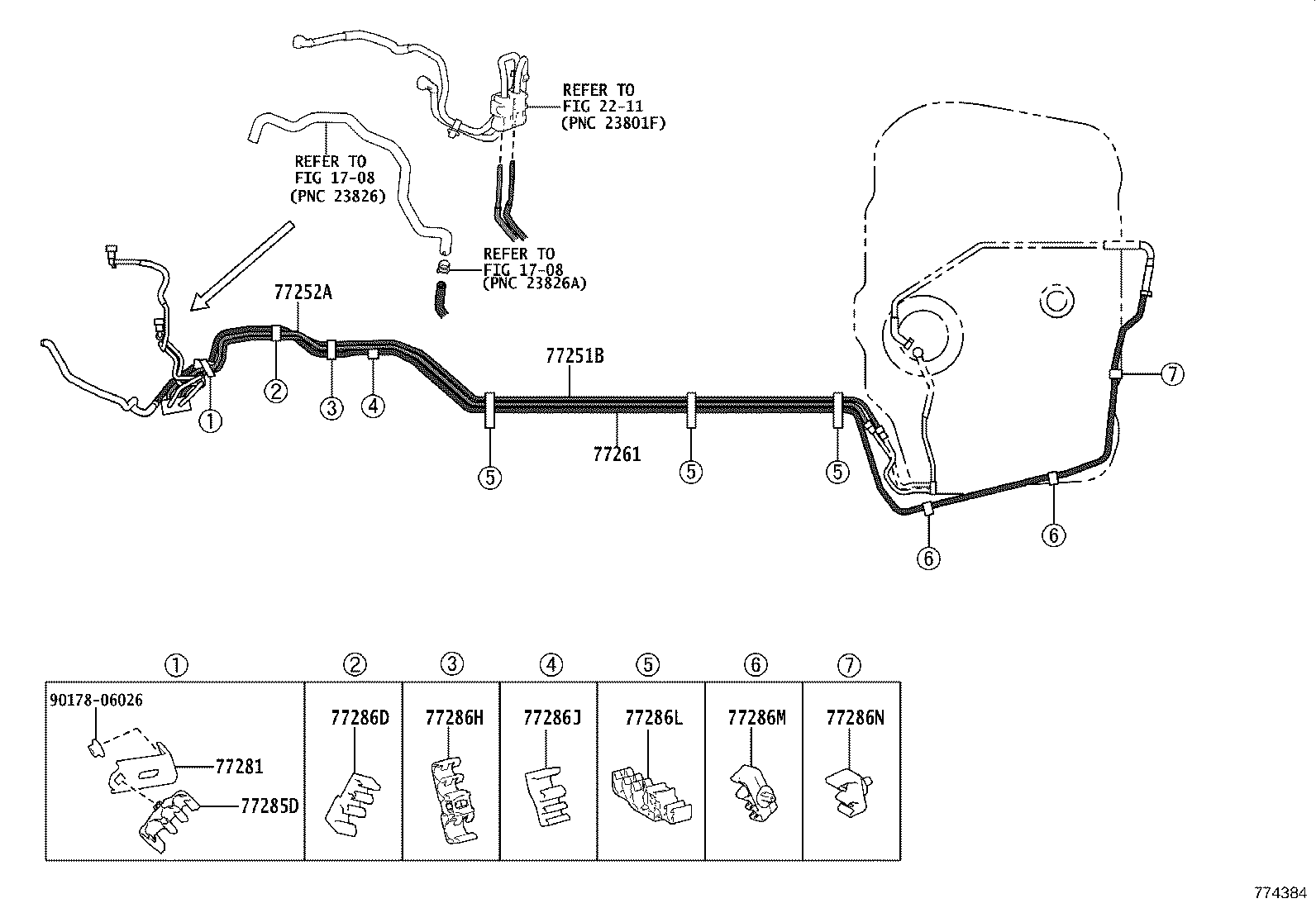

ILLUST NO. 3 OF 4(1712- )GSV70
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-33270 |
GSV70 |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-33040 |
GSV70 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-33260 |
ASV70,AXVA70,GSV70 |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-33080 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-33140 |
ASV70,AXVA70,GSV70 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-20170 |
ASV70,AXVA70,GSV70 |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77298-33120 |
ASV70,AXVA70,GSV70 |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77295-42030 |
ASV70,AXVA70,GSV70 |
1 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77298-33050 |
ASV70,AXVA70,GSV70 |
3 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77285-33180 |
ASV70,AXVA70,GSV70 |
2 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77286-33120 |
ASV70,AXVA70,GSV70 |
1 | ||
| Common parts | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 4 OF 4(1709- )
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-33100 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 77030-33080 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-33230 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-30080 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 77379 - SPACER, FUEL INLET BOX COVER, NO.2 | ||||
| 77379-33010 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| Common parts | ||||
| 90269-06021 | ||||
| 90541-06069 | ||||
