GSV70L-AEZSBV (2017)
Toyota Camry/Hybrid

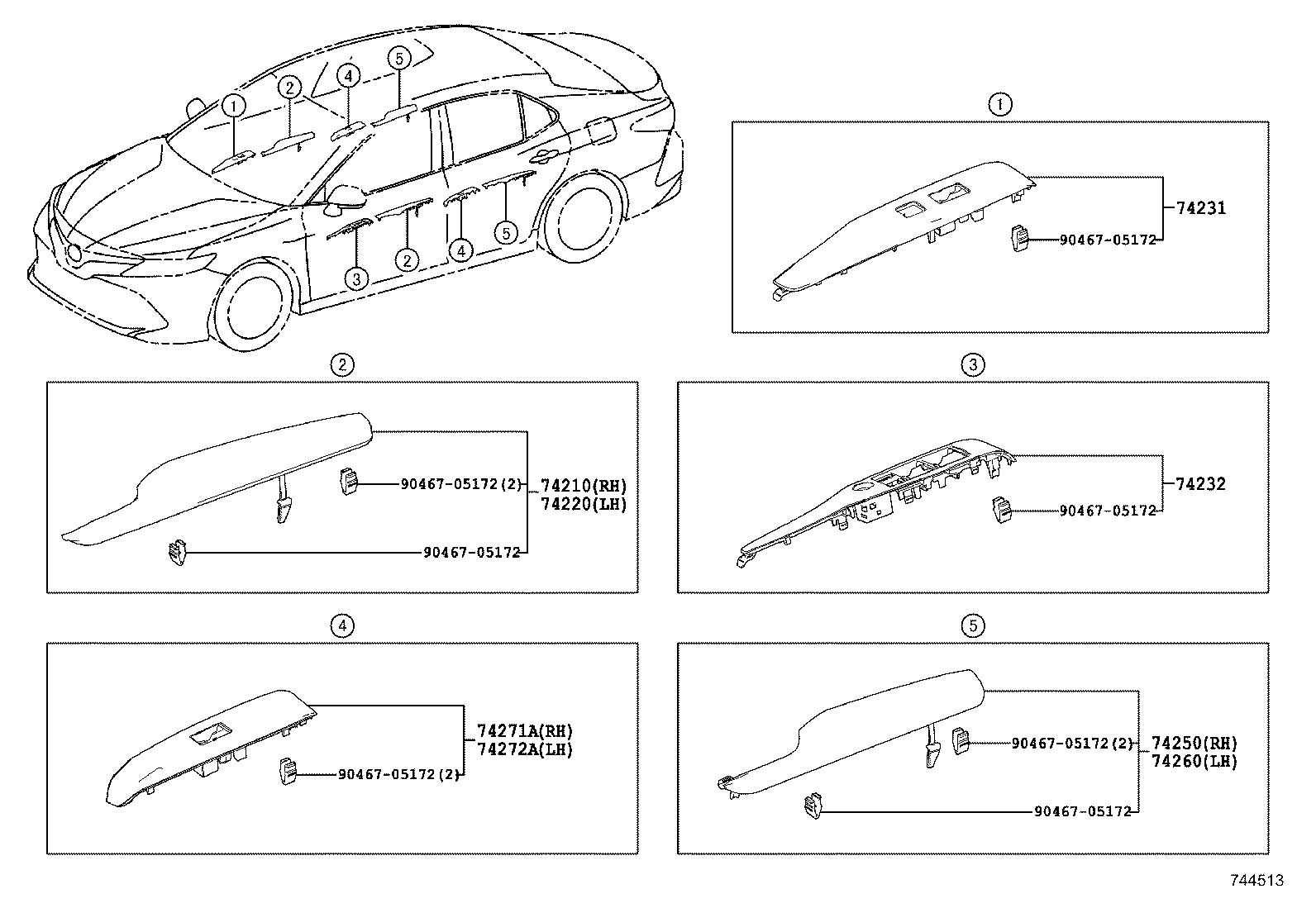

ILLUST NO. 1 OF 2(1712- )LHD
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-33160D1 |
GSV70..SE;ASV70,GSV70..V SENSUAL RED/GRAY,TRIM3# |
1 | ||
| 74210-33160B1 |
GSV70..GCC GRAY/GRAY,TRIM1# |
1 | ||
| 74210-33160C1 |
GSV70..SE;ASV70,GSV70..V BLACK/GRAY,TRIM2# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-33160C1 |
GSV70..SE;ASV70,GSV70..V BLACK/GRAY,TRIM2# |
1 | ||
| 74220-33160D1 |
GSV70..SE;ASV70,GSV70..V SENSUAL RED/GRAY,TRIM3# |
1 | ||
| 74220-33160B1 |
GSV70..GCC GRAY/GRAY,TRIM1# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-33640 |
GSV70..V;ASV70,AXVH70..ARL |
1 | ||
| 74231-33540 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-33440 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 74250 - ARMREST ASSY, REAR RH | ||||
| 74250-33180B1 |
GSV70..GCC GRAY/GRAY,TRIM1# |
1 | ||
| 74250-33180D1 |
GSV70..SE;ASV70,GSV70..V SENSUAL RED/GRAY,TRIM3# |
1 | ||
| 74250-33180C1 |
GSV70..SE;ASV70,GSV70..V BLACK/GRAY,TRIM2# |
1 | ||
| 74260 - ARMREST ASSY, REAR LH | ||||
| 74260-33190C1 |
GSV70..SE;ASV70,GSV70..V BLACK/GRAY,TRIM2# |
1 | ||
| 74260-33190D1 |
GSV70..SE;ASV70,GSV70..V SENSUAL RED/GRAY,TRIM3# |
1 | ||
| 74260-33190B1 |
GSV70..GCC GRAY/GRAY,TRIM1# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-33380 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-33380 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| Common parts | ||||
| 90467-05172 | ||||
ILLUST NO. 2 OF 2(1709- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-33G90B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
1 | ||
| 74310-33G90B0 |
AXVH70,GSV70..D,N GRAY,TRIM2# |
1 | ||
| 74310-33J40B0 |
GSV70..SE SAUDI ARABIA SPEC,GRAY,TRIM1#,2#,3# |
1 | ||
| 74310-33J40B0 |
ASV70,GSV70..SE QATAR SPEC,GRAY,TRIM1#,2#,3# |
1 | ||
| 74310-33J20B0 |
GSV70..SE GRAY,TRIM1#,2#,3# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-60020B2 |
AXVH70,GSV70..D,N;ASV70,AXVH71..TAIW,TAKR GRAY,TRIM2# |
1 | ||
| 74317-60020B2 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
1 | ||
| 74317-60020B2 |
AXVA70,GSV70..SE GRAY,TRIM1#,2#,3# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-60020B2 |
AXVA70,GSV70..SE GRAY,TRIM1#,2#,3# |
1 | ||
| 74317-60020B2 |
AXVH70,GSV70..D,N;ASV70,AXVH71..TAIW,TAKR GRAY,TRIM2# |
1 | ||
| 74317-60020B2 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-33D60B0 |
AXVH70,GSV70..D,N GRAY,TRIM2# |
1 | ||
| 74320-33D60B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
1 | ||
| 74320-33G50B0 |
AXVA70,GSV70..SE GRAY,TRIM1#,2#,3# |
1 | ||
| 74348B - HOLDER, VISOR, RH | ||||
| 74348-47010B1 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
1 | ||
| 74348-47010B1 |
GSV70..SE GRAY,TRIM1#,2#,3# |
1 | ||
| 74348C - HOLDER, VISOR, LH | ||||
| 74348-47010B1 |
GSV70..SE GRAY,TRIM1#,2#,3# |
1 | ||
| 74348-47010B1 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-33120B0 |
GSV70..SE GRAY,TRIM1#,2#,3# |
2 | ||
| 74610-33120B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-33120B0 |
GSV70..SE GRAY,TRIM1#,2#,3# |
2 | ||
| 74610-33120B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
2 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-33020B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
4 | ||
| 74611-33020B0 |
GSV70..SE GRAY,TRIM1#,2#,3# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-33020B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
4 | ||
| 74611-33020B0 |
GSV70..SE GRAY,TRIM1#,2#,3# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-33020B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
4 | ||
| 74611-33020B0 |
GSV70..SE GRAY,TRIM1#,2#,3# |
4 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74611-33020B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
4 | ||
| 74611-33020B0 |
GSV70..SE GRAY,TRIM1#,2#,3# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74612-33030B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
4 | ||
| 74612-33030B0 |
GSV70..SE GRAY,TRIM1#,2#,3# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74612-33030B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
4 | ||
| 74612-33030B0 |
GSV70..SE GRAY,TRIM1#,2#,3# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74612-33030B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
4 | ||
| 74612-33030B0 |
GSV70..SE GRAY,TRIM1#,2#,3# |
4 | ||
| 74612D - COVER, ASSIST GRIP | ||||
| 74612-33030B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
4 | ||
| 74612-33030B0 |
GSV70..SE GRAY,TRIM1#,2#,3# |
4 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74610-33130B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
1 | ||
| 74610-33130B0 |
GSV70..SE GRAY,TRIM1#,2#,3# |
1 | ||
| 74630E - GRIP ASSY, ASSIST, REAR LH | ||||
| 74610-33140B0 |
ASV70,GSV70..V GRAY,TRIM2#,3# |
1 | ||
| 74610-33140B0 |
GSV70..SE GRAY,TRIM1#,2#,3# |
1 | ||
| Common parts | ||||
| 93229-15020 | ||||
