GSV70L-AEZSBV (2017)

Toyota Camry/Hybrid

Production Dec 2017 - Feb 2021
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1712-1804)GCC

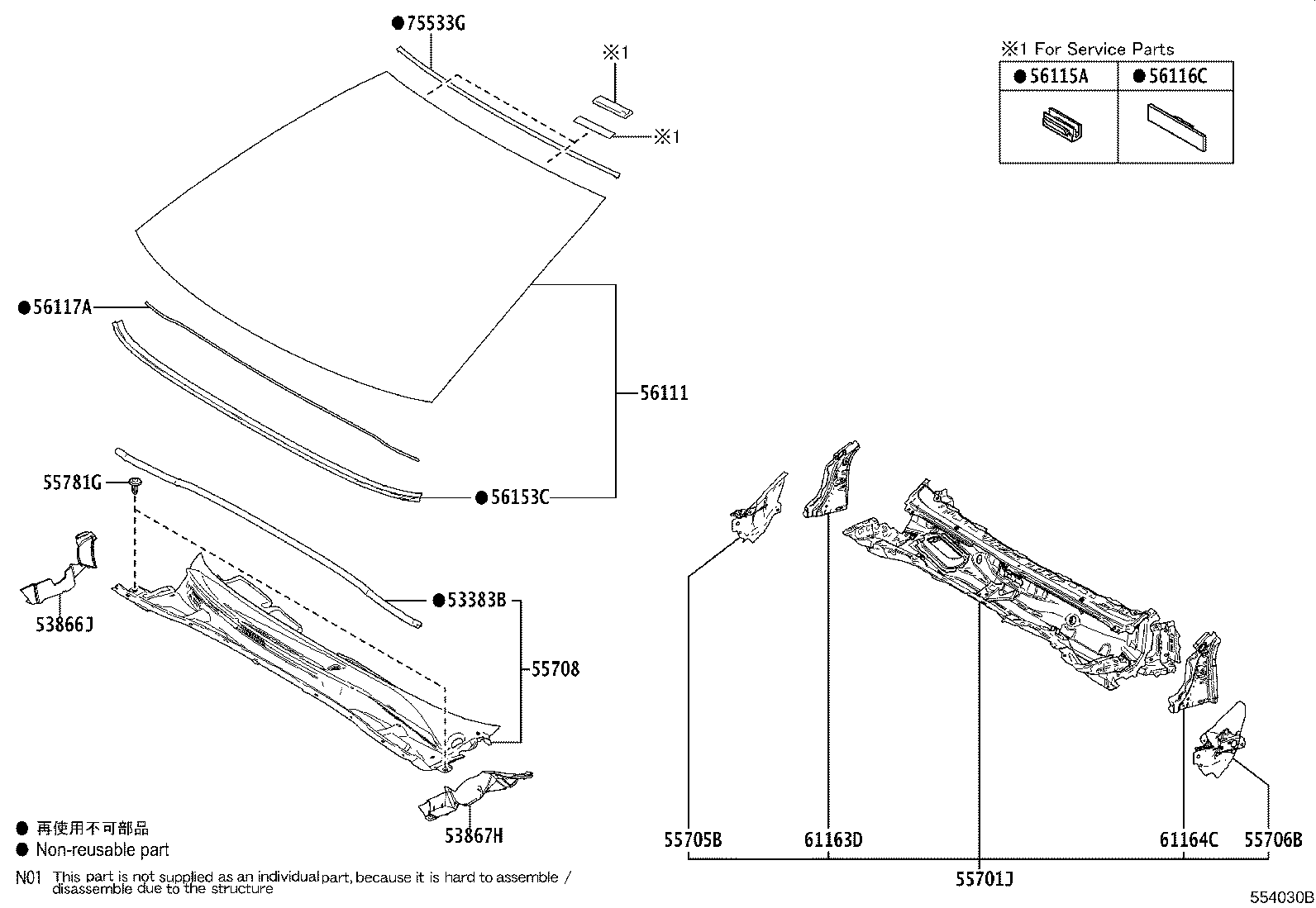

Click highlighted areas on diagram

diagram 53383B 53866J 53867H 55701J 55705B 55706B 55708 55781G 56111 56115A 56116C 56117A 56153C 61163D 61164C 75533G
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-33140

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
53866J - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-33090

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
53867H - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-33090

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
55701J - PANEL SUB-ASSY, COWL TOP, OUTER
55701-33270

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-33040

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-33040

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
55708 - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-33300

ASV70,AXVA70,AXVH71,GSV70..GCC

 1
55708-33301

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-09242

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 2
56111 - GLASS, WINDSHIELD
56101-3T913

GSV70..V;ASV70,AXVH70..ARL

 1
56101-3T902

ASV70,AXVA70,GSV70..GLE,LIMD,SE

 1
56101-3Y934

ASV70,AXVA70,GSV70..GLE,LIMD,SE

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30120

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
56117A - DAM, WINDOW GLASS ADHESIVE
56117-64010

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

L=3500

 1
56153C - MOULDING, FRONT WINDOW, INNER CENTER
56153-33010

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
61163D - PILLAR, FRONT BODY, LOWER INNER RH
61163-33030

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
61164C - PILLAR, FRONT BODY, LOWER INNER LH
61164-33030

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75531-33150

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1

(1804- )GCC

Click highlighted areas on diagram

diagram 53383B 53866J 53867H 55701J 55705B 55706B 55708 55781G 56111 56115A 56116C 56117A 56153C 61163D 61164C 75533G 8617
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-33140

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
53866J - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-33090

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
53867H - SEAL, FRONT FENDER TO COWL SIDE, LH
53867-33090

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
55701J - PANEL SUB-ASSY, COWL TOP, OUTER
55701-33270

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
55705B - PANEL SUB-ASSY, COWL TOP SIDE, RH
55705-33040

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
55706B - PANEL SUB-ASSY, COWL TOP SIDE, LH
55706-33040

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
55708 - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-33300

ASV70,AXVA70,AXVH71,GSV70..GCC

 1
55708-33301

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90467-09242

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 2
56111 - GLASS, WINDSHIELD
56101-3T913

GSV70..V;ASV70,AXVH70..ARL

 1
56101-3T902

ASV70,AXVA70,GSV70..GLE,LIMD,SE

 1
56101-3Y934

ASV70,AXVA70,GSV70..GLE,LIMD,SE

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-30120

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-22050

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
56117A - DAM, WINDOW GLASS ADHESIVE
56117-64010

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

L=3500

 1
56153C - MOULDING, FRONT WINDOW, INNER CENTER
56153-33010

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
61163D - PILLAR, FRONT BODY, LOWER INNER RH
61163-33030

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
61164C - PILLAR, FRONT BODY, LOWER INNER LH
61164-33030

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75531-33150

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
Linked diagrams
8617
