GSV70L-AEZSBV (2017)

Toyota Camry/Hybrid

Production Dec 2017 - Feb 2021
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1712-2102)LHD..D ; (1712-2102)GLE,LIMD

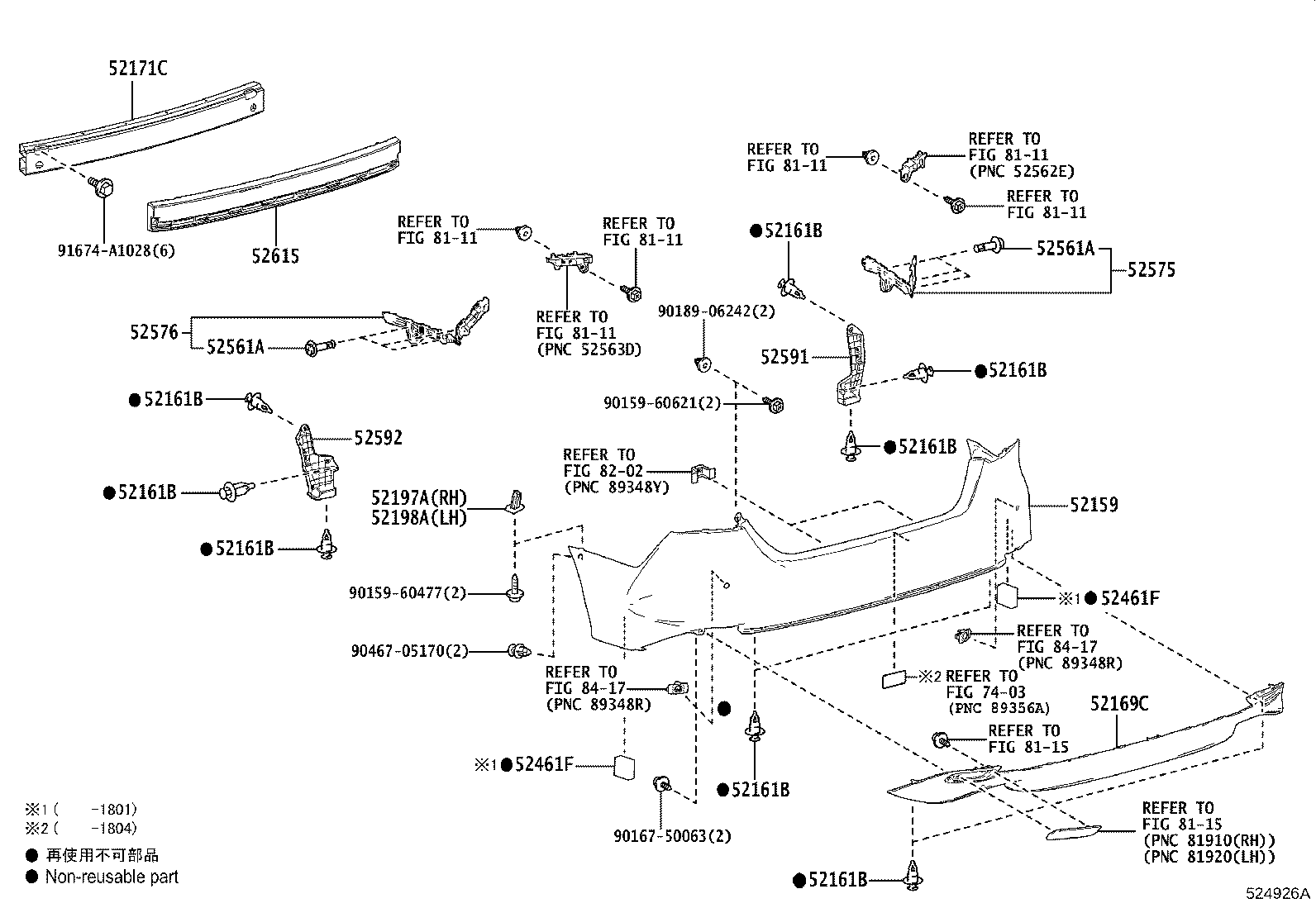

Click highlighted areas on diagram

W(CLEARANCE SONAR)

diagram 52159 52161B 52161B 52161B 52161B 52161B 52161B 52161B 52161B 52169C 52171C 52197A 52198A 52461F 52461F 52561A 52561A 52575 52576 52591 52592 52615 7403 8111 8111 8111 8111 8111 8111 8115 8115 8202 8417 8417 9015960477 9015960621 9016750063 9018906242 9046705170 91674A1028
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-33961

GSV70..SE;ASV70,GSV70..N,V

PAINT REQ.

 1
52161B - PIECE, REAR BUMPER
52161-16010

ASV70,GSV70..N,V;ASV70,AXVA70,GSV70..SE

 8
52161B - PIECE, REAR BUMPER
52161-16010

ASV70,GSV70..N,V;ASV70,AXVA70,GSV70..SE

 8
52161B - PIECE, REAR BUMPER
52161-16010

ASV70,GSV70..N,V;ASV70,AXVA70,GSV70..SE

 8
52161B - PIECE, REAR BUMPER
52161-16010

ASV70,GSV70..N,V;ASV70,AXVA70,GSV70..SE

 8
52161B - PIECE, REAR BUMPER
52161-16010

ASV70,GSV70..N,V;ASV70,AXVA70,GSV70..SE

 8
52161B - PIECE, REAR BUMPER
52161-16010

ASV70,GSV70..N,V;ASV70,AXVA70,GSV70..SE

 8
52161B - PIECE, REAR BUMPER
52161-16010

ASV70,GSV70..N,V;ASV70,AXVA70,GSV70..SE

 8
52161B - PIECE, REAR BUMPER
52161-16010

ASV70,GSV70..N,V;ASV70,AXVA70,GSV70..SE

 8
52171C - REINFORCEMENT, REAR BUMPER
52171-33180

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-53040

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
52198A - BRACKET, REAR BUMPER SEAL, LH
52198-53020

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-09237

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 6
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-09237

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 6
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-33130

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-33130

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-33040

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-33040

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-33190

ASV70,AXVA70,GSV70..SE

 1
Common parts
90159-60477
90159-60621
90167-50063
90189-06242
90467-05170
91674-A1028
Linked diagrams
7403
8111
8115
8202
8417
