GSV70L-AEZSBV (2017)
Toyota Camry/Hybrid

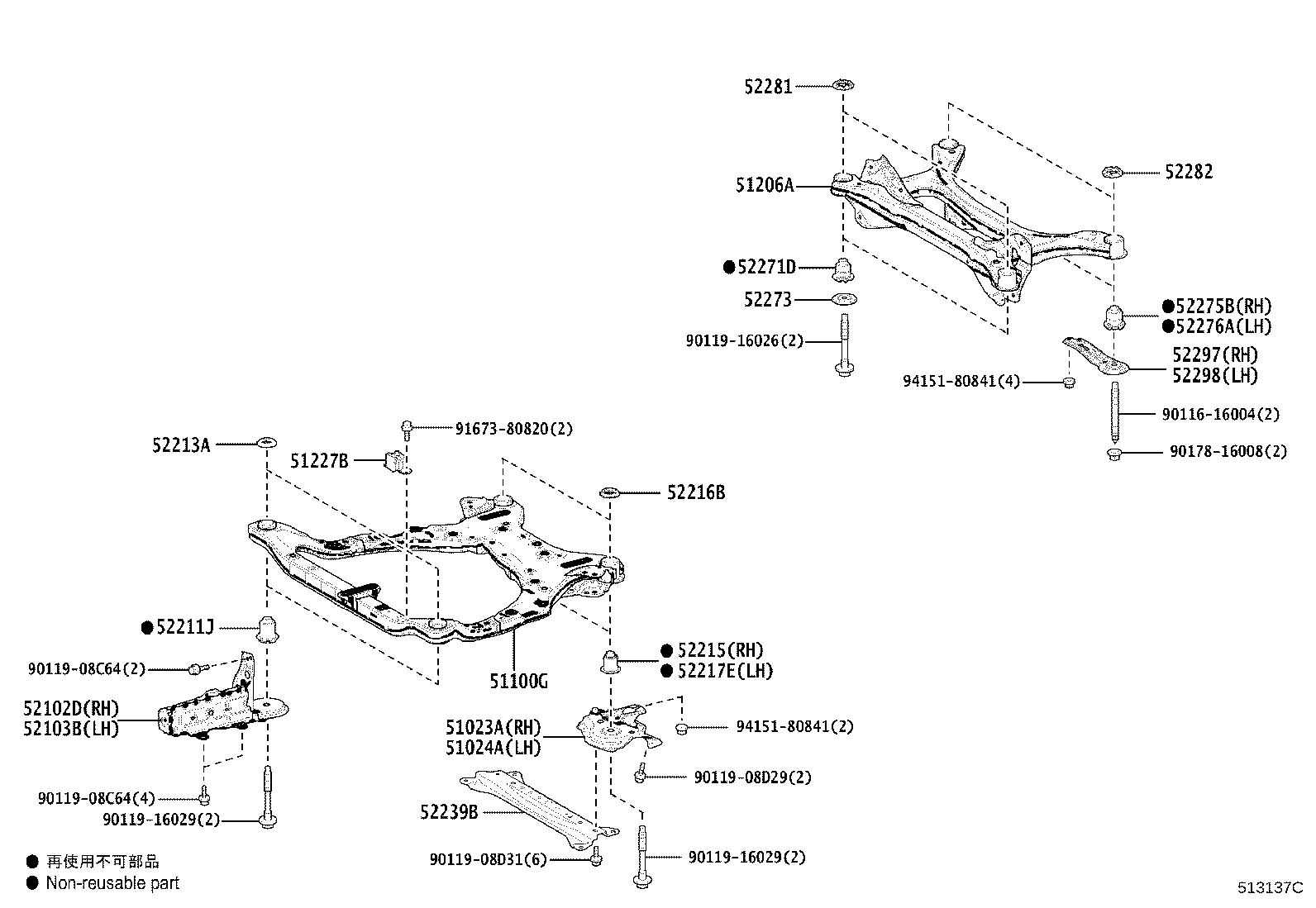

ILLUST NO. 1 OF 2(1712- )AXVA70,GSV70,MXVA71
SUSPENSION CROSSMEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51023A - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH | ||||
| 51023-33070 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 51024A - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH | ||||
| 51024-33080 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 51100G - FRAME ASSY, FRONT | ||||
| 51100-33170 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-33120 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC | ||||
| 51227-33120 |
AXVA70,GSV70 |
1 | ||
| 52102D - EXTENSION SUB-ASSY, FRONT BUMPER, RH | ||||
| 52102-33010 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 52103B - EXTENSION SUB-ASSY, FRONT BUMPER, LH | ||||
| 52103-33010 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-33100 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-33100 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-33110 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-33090 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 52217E - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH | ||||
| 52217-33040 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 52239B - PLATE, BODY MOUNTING | ||||
| 52239-33020 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-33080 |
ASV70,GSV70..V;ASV70,AXVA70,GSV70..SE |
2 | ||
| 52271-33070 |
ASV70,AXVH7#,GSV70..D,N;ASV70,AXVA70,GSV70..GLE,LE,LIMD |
2 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-33030 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 52275B - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH | ||||
| 52275-33090 |
ASV70,GSV70..V;ASV70,AXVA70,GSV70..SE |
1 | ||
| 52275-33080 |
ASV70,AXVH7#,GSV70..D,N;ASV70,AXVA70,GSV70..GLE,LE,LIMD |
1 | ||
| 52276A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH | ||||
| 52276-33010 |
ASV70,AXVH7#,GSV70..D,N;ASV70,AXVA70,GSV70..GLE,LE,LIMD |
1 | ||
| 52276-33020 |
ASV70,GSV70..V;ASV70,AXVA70,GSV70..SE |
1 | ||
| 52281 - CUSHION, DIFFERENTIAL SUPPORT MEMBER | ||||
| 52281-33020 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52281-33020 |
ASV70,GSV70..V;ASV70,AXVA70,GSV70..SE |
2 | ||
| 52282-33060 |
ASV70,AXVH7#,GSV70..D,N;ASV70,AXVA70,GSV70..GLE,LE,LIMD |
2 | ||
| 52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH | ||||
| 52297-33020 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 52298 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH | ||||
| 52298-33020 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| Common parts | ||||
| 90116-16004 | ||||
| 90119-08C64 | ||||
| 90119-08D29 | ||||
| 90119-08D31 | ||||
| 90119-16026 | ||||
| 90119-16029 | ||||
| 90178-16008 | ||||
| 91673-80820 | ||||
| 94151-80841 | ||||

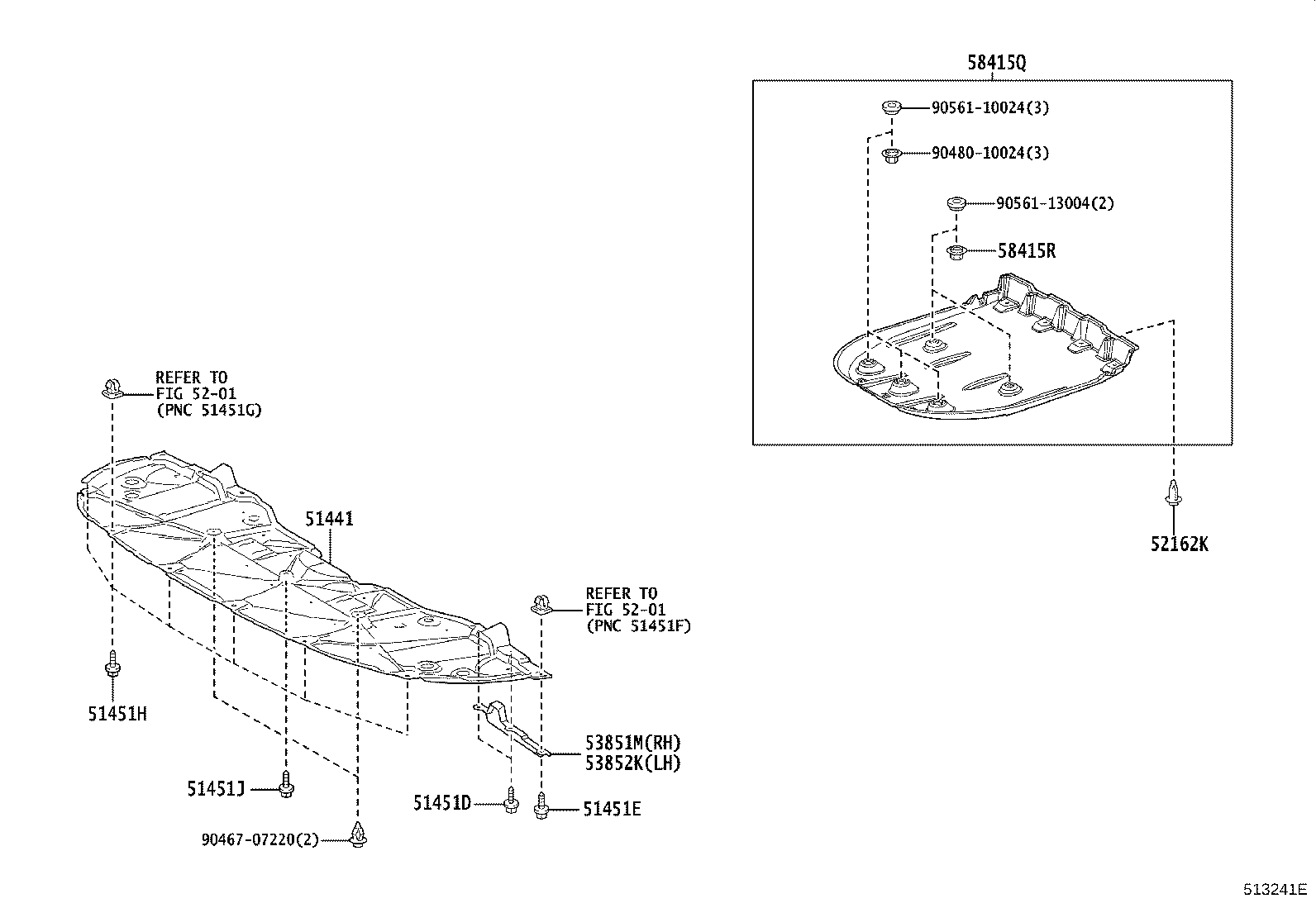

ILLUST NO. 2 OF 2(1712- )GSV70
UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-33220 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 51441-33221 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 51451D - SCREW, NO.1 | ||||
| 90159-60477 |
ASV70,AXVA70,AXVH7#,GSV70 |
4 | ||
| 51451E - SCREW, NO.2 | ||||
| 90159-60477 |
ASV70,AXVA70,AXVH7#,GSV70 |
2 | ||
| 51451H - SCREW, NO.3 | ||||
| 90159-60477 |
ASV70,AXVA70,AXVH7#,GSV70 |
6 | ||
| 51451J - BOLT, NO.1 | ||||
| 90119-06A13 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 52162K - PIECE, REAR BUMPER | ||||
| 52161-16010 |
GSV70;ASV70..N,V |
4 | ||
| 53851M - PAD, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53851-33080 |
GSV70 |
1 | ||
| 53852K - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-33080 |
GSV70 |
1 | ||
| 58415Q - BOARD, REAR FLOOR, NO.1 | ||||
| 58415-33070 |
GSV70;ASV70..N,V |
1 | ||
| 58415R - CLIP, REAR FLOOR BOARD, NO.1 | ||||
| 90467-14053 |
GSV70;ASV70..N,V |
2 | ||
| Common parts | ||||
| 90467-07220 | ||||
| 90480-10024 | ||||
| 90561-10024 | ||||
| 90561-13004 | ||||
| Linked diagrams | ||||
| 5201 | ||||
