GSV70L-AEZSBV (2017)

Toyota Camry/Hybrid

Production Dec 2017 - Feb 2021
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1712-2102)ASV70,AXVA70,GSV70..LHD

Click highlighted areas on diagram

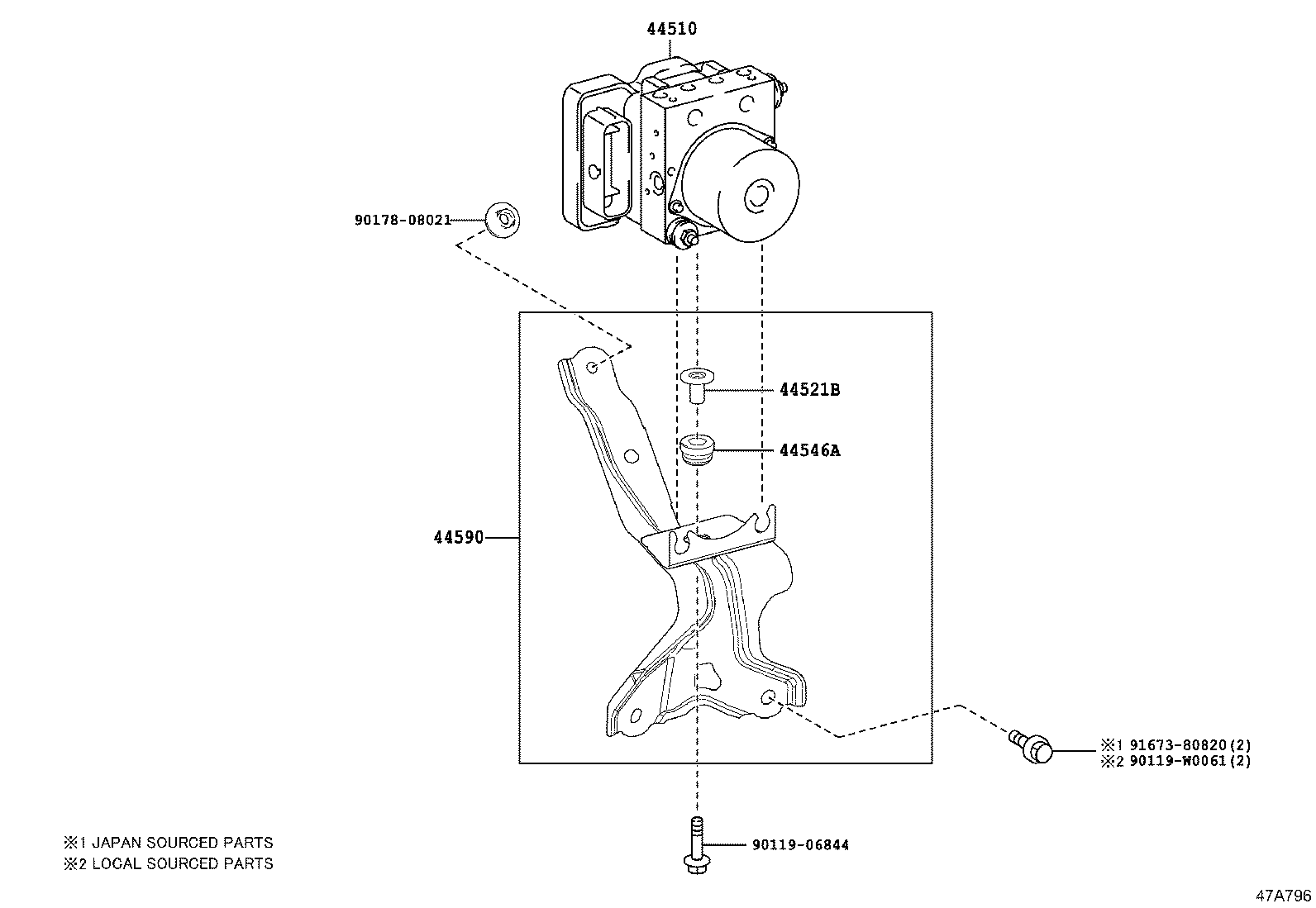

BRAKE ACTUATOR

diagram 44510 44521B 44546A 44590 9011906844 90119W0061 9017808021 9167380820
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-33730

GSV70..GCC

 1
44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2
44521-12060

ASV70,AXVA70,GSV70

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44547-10080

ASV70,AXVA70,GSV70

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-33170

ASV70,AXVA70,GSV70..LHD

 1
Common parts
90119-06844
90119-W0061
90178-08021
91673-80820

ILLUST NO. 1 OF 2(1712- )ASV70,AXVA70,GSV70,MXVA71..LHD

Click highlighted areas on diagram

BRAKE TUBE

diagram 4702 47311 47311B 47312 47312E 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47315 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47351B 47352B 47353B 47354B 47371A 47372 47373B 47381 47381J 47381L 47381L 9011908868 9011908868 9011908868 9011908868 90119W0171 90119W0171 9046808040 9046808040 9046808040 9046808040 9048025037 9167180616 9167180816 9167180816 9167380614 9167380614 9167380816 9167380820 9167380820
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-33400

ASV70,AXVA70,GSV70..LHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10272

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-33290

ASV70,AXVA70,GSV70..LHD

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90412-10285

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-33320

ASV70,AXVA70,AXVH71,GSV70..GCC

 1
47313-33321

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H65

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02H66

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-33320

ASV70,AXVA70,AXVH71,GSV70..GCC

 1
47314-33321

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-33390

ASV70,AXVA70,AXVH71,GSV70..GCC

 1
47315-33391

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-33421

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
47317-33420

ASV70,AXVA70,AXVH71,GSV70..GCC

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-33121

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
47318-33120

ASV70,AXVA70,AXVH71,GSV70..GCC

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02H69

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02H70

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-33221

ASV70,AXVA70,GSV70

 1
47321-33220

ASV70,AXVA70,GSV70

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-33191

ASV70,AXVA70,GSV70

 1
47322-33190

ASV70,AXVA70,GSV70

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-47030

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
47352B - BRACKET, FLEXIBLE HOSE, NO.2
47352-47030

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47351-10110

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47352-10060

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90949-01E31

ASV70,AXVA70,GSV70..LHD

 2
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01E40

ASV70,AXVA70,GSV70

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90464-00904

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47371-33340

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
47381J - BRACKET, BRAKE TUBE CLAMP, NO.2
47371-33350

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
47381L - BRACKET, BRAKE TUBE CLAMP, NO.3
90949-01D56

ASV70,AXVA70,AXVH71,GSV70..LHD

 2
47381L - BRACKET, BRAKE TUBE CLAMP, NO.3
90949-01D56

ASV70,AXVA70,AXVH71,GSV70..LHD

 2
Common parts
90119-08868
90119-W0171
90468-08040
90480-25037
91671-80616
91671-80816
91673-80614
91673-80816
91673-80820
Linked diagrams
4702
