GSV70L-AEZSBV (2017)
Toyota Camry/Hybrid
Production
Dec 2017
-
Feb 2021
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1712- )AXVA70,GSV70..GCC

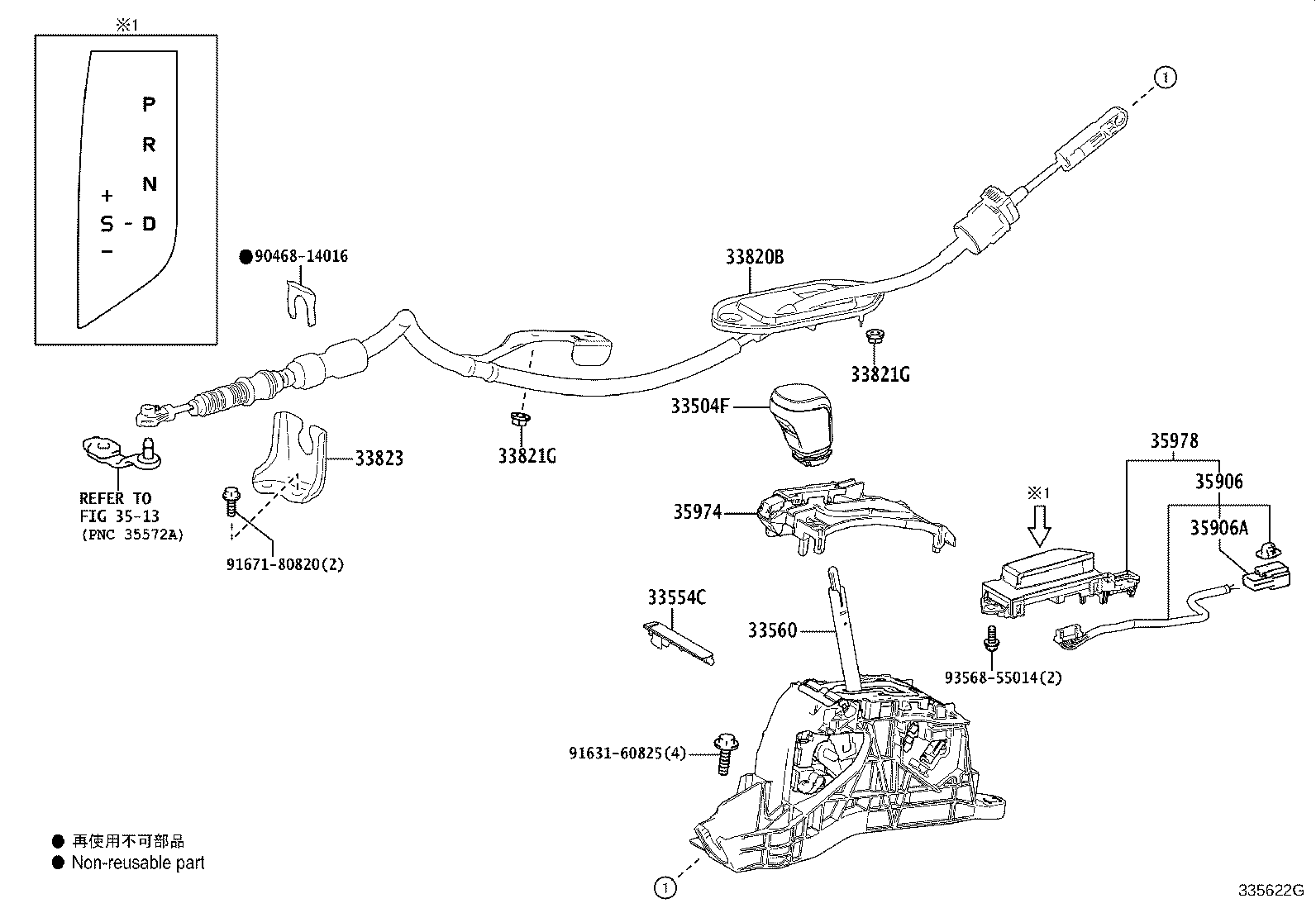

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-33180C0 |
GSV70..SE BLACK,TRIM1#,2#,3# |
1 | ||
| 33504-33180C0 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 33504-12770C0 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 33504-12770C0 |
GSV70..SE BLACK,TRIM1#,2#,3# |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-33130 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-33380 |
AXVH71,GSV70..LHD;ASV70,AXVA70..GLE,SE |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-33400 |
AXVA70,GSV70..GCC |
1 | ||
| 33820-33470 |
AXVA70,GSV70..GCC |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-06274 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
4 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-06274 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
4 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-33070 |
AXVA70,GSV70 |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-33180 |
ASV70,AXVA70,GSV70..LHD |
1 | ||
| 35906A - HOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE) | ||||
| 90980-12367 |
ASV70,AXVA70,GSV70 |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-33240 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 35978 - INDICATOR, SHIFT POSITION | ||||
| 35978-33180 |
ASV70,AXVA70,GSV70..LHD |
1 | ||
| Common parts | ||||
| 90468-14016 | ||||
| 91631-60825 | ||||
| 91671-80820 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 3513 | ||||
