GSV70L-AEZSBV (2017)
Toyota Camry/Hybrid
Production
Dec 2017
-
Feb 2021
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1709- )2ARFE,2GRFKS

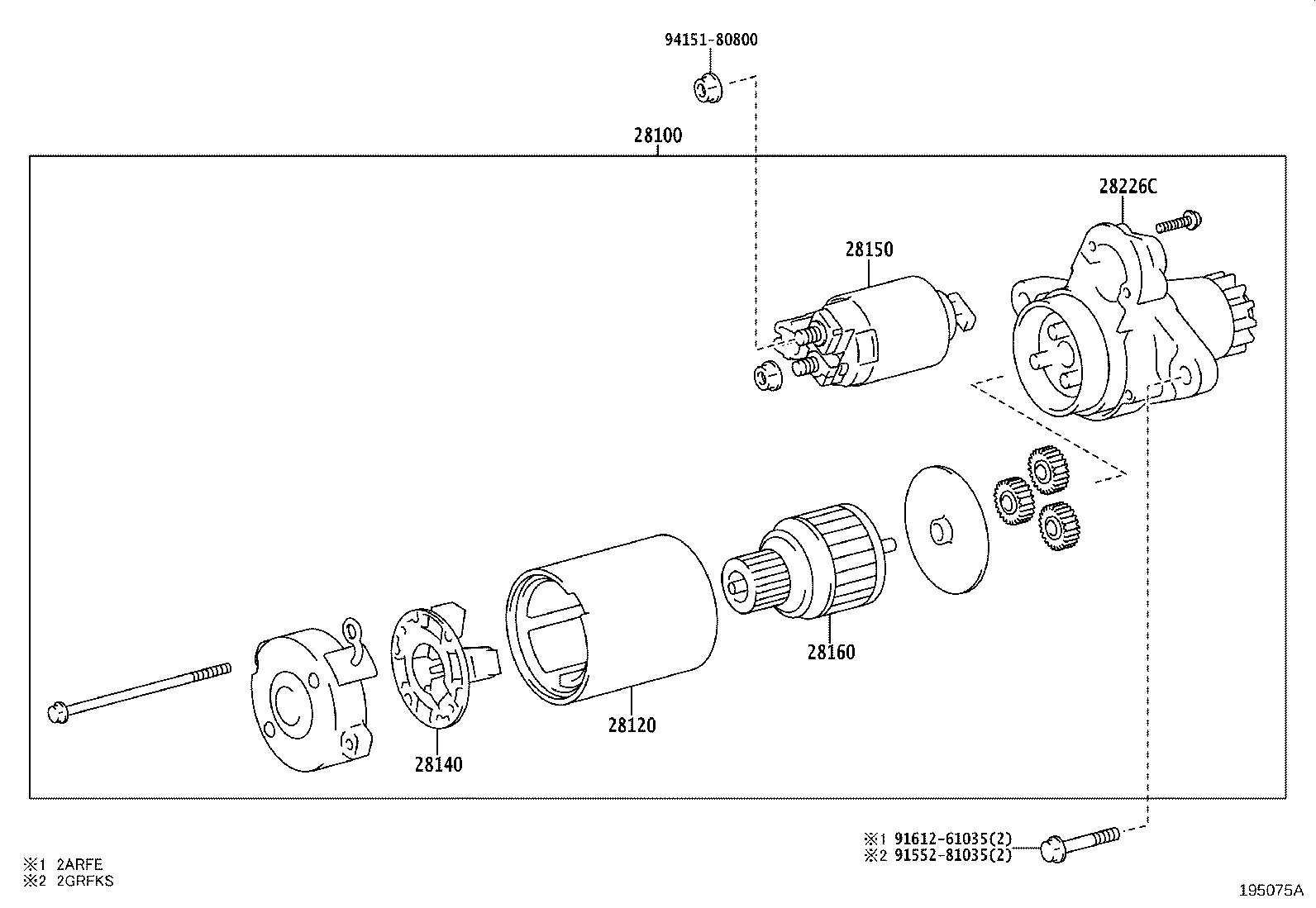

Click highlighted areas on diagram
12V 1.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28100 - STARTER ASSY | ||||
| 28100-31240 |
2GRFKS..GSV70 12V 1.8KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-31090 |
2ARFE,2GRFKS..ASV70,GSV70 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-31240 |
2ARFE,2GRFKS..ASV70,GSV70 |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-40090 |
2ARFE,2GRFKS..ASV70,GSV70 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-36210 |
2ARFE,2GRFKS..ASV70,GSV70 |
1 | ||
| 28160-31240 |
2GRFKS..GSV70 |
1 | ||
| 28226C - STARTER KIT, REPAIR SERVICE, NO.2 | ||||
| 28226-31240 |
2GRFKS..GSV70 |
1 | ||
| Common parts | ||||
| 91552-81035 | ||||
| 91612-61035 | ||||
| 94151-80800 | ||||
