GSV70L-AEZSBV (2017)

Toyota Camry/Hybrid

Production Dec 2017 - Feb 2021
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

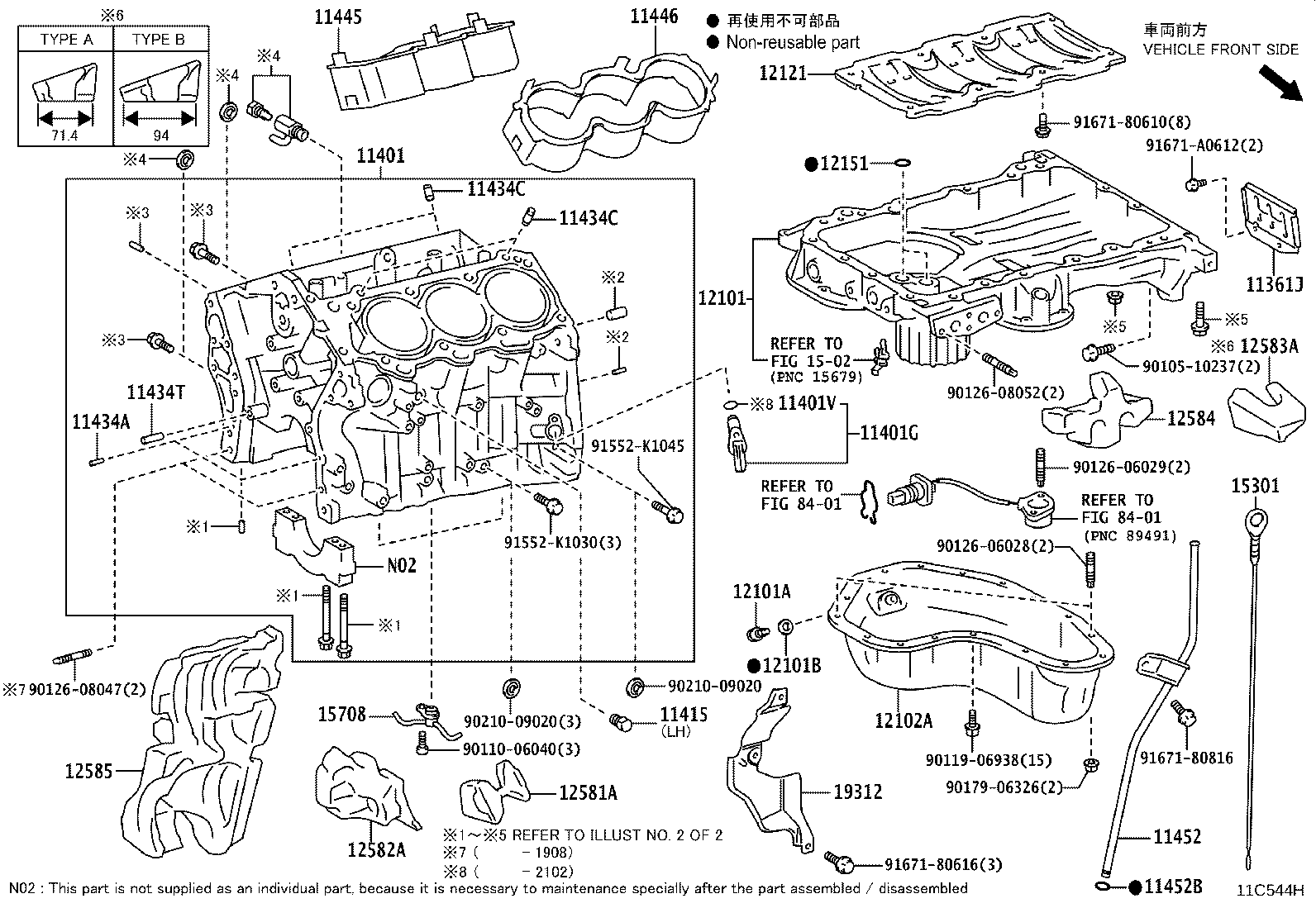

ILLUST NO. 1 OF 2(1712- )2GRFKS

Click highlighted areas on diagram

diagram 11361J 11401 11401G 11401V 11415 11434A 11434C 11434C 11434T 11445 11446 11452 11452B 12101 12101A 12101B 12102A 12121 12151 12581A 12582A 12583A 12584 12585 1502 15301 15708 19312 8401 8401 9010510237 9011006040 9011906938 9012606028 9012606029 9012608047 9012608052 9017906326 9021009020 9021009020 91552K1030 91552K1045 9167180610 9167180616 9167180816 91671A0612
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-31060

2GRFKS..GSV70

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11401-80037

2GRFKS..GSV70

 1
11401G - SENSOR, CRANK POSITION
90919-05090

2GRFKS..GSV70

 1
11401V - O-RING, CRANK POSITION SENSOR
90301-14016

2GRFKS..GSV70

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90345-52001

2GRFKS..GSV70

LH

 1
90910-09129

2GRFKS..GSV70

RH

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097

2GRFKS..GSV70

L=12,OD=4.0

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

2GRFKS..GSV70

L=18,OD=8

 4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

2GRFKS..GSV70

L=18,OD=8

 4
11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET)
90250-10030

2GRFKS..GSV70

 1
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-31050

2GRFKS..GSV70

 1
11446 - SPACER, CYLINDER BLOCK WATER JACKET, LH
11446-31050

2GRFKS..GSV70

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-31210

2GRFKS..GSV70

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

2GRFKS..GSV70

 1
12101 - PAN SUB-ASSY, OIL
12100-31040

2GRFKS..GSV70

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

2GRFKS..GSV70

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

2GRFKS..GSV70

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-31101

2GRFKS..GSV70

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-31120

2GRFKS..GSV70

 1
12151 - GASKET, OIL PAN
12151-31010

2GRFKS..GSV70

 2
12581A - INSULATOR, CYLINDER BLOCK, NO.1
12581-31010

2GRFKS..GSV70

 1
12582A - INSULATOR, CYLINDER BLOCK, NO.2
12582-31010

2GRFKS..GSV70

 1
12583A - INSULATOR, CYLINDER BLOCK, NO.3
12583-31011

2GRFKS..GSV70

TYPE B:REFER ILLUST.

 1
12583-31010

2GRFKS..GSV70

TYPE A:REFER ILLUST.

 1
12584 - INSULATOR, CYLINDER BROCK, NO.4
12584-31010

2GRFKS..GSV70

 1
12585 - INSULATOR, CYLINDER BROCK, NO.5
12585-31010

2GRFKS..GSV70

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-31150

2GRFKS..GSV70

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-31050

2GRFKS..GSV70

 3
19312 - PROTECTOR, CRANK POSITION SENSOR
19312-31010

2GRFKS..GSV70

 1
Common parts
90105-10237
90110-06040
90119-06938
90126-06028
90126-06029
90126-08047
90126-08052
90179-06326
90210-09020
91552-K1030
91552-K1045
91671-80610
91671-80616
91671-80816
91671-A0612
Linked diagrams
1502
8401

ILLUST NO. 2 OF 2(1712- )2GRFKS

Click highlighted areas on diagram

diagram 11415 11415A 11416 11434D 11434G 11434L 11434Y 9012608052 9021009020 9091002154 9155180616 9155180825 9155180845 9155180870 91552K1030 91552K1045 9415180800
Part # Description Qty Price
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90345-52001

2GRFKS..GSV70

LH

 1
90910-09129

2GRFKS..GSV70

RH

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

2GRFKS..GSV70

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02153

2GRFKS..GSV70

 8
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-04097

2GRFKS..GSV70

L=12,OD=4.0

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10113

2GRFKS..GSV70

 2
11434L - PIN, STRAIGHT(FOR ENGINE MOUNTING)
90250-04097

2GRFKS..GSV70

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-04097

2GRFKS..GSV70

 2
Common parts
90126-08052
90210-09020
90910-02154
91551-80616
91551-80825
91551-80845
91551-80870
91552-K1030
91552-K1045
94151-80800
