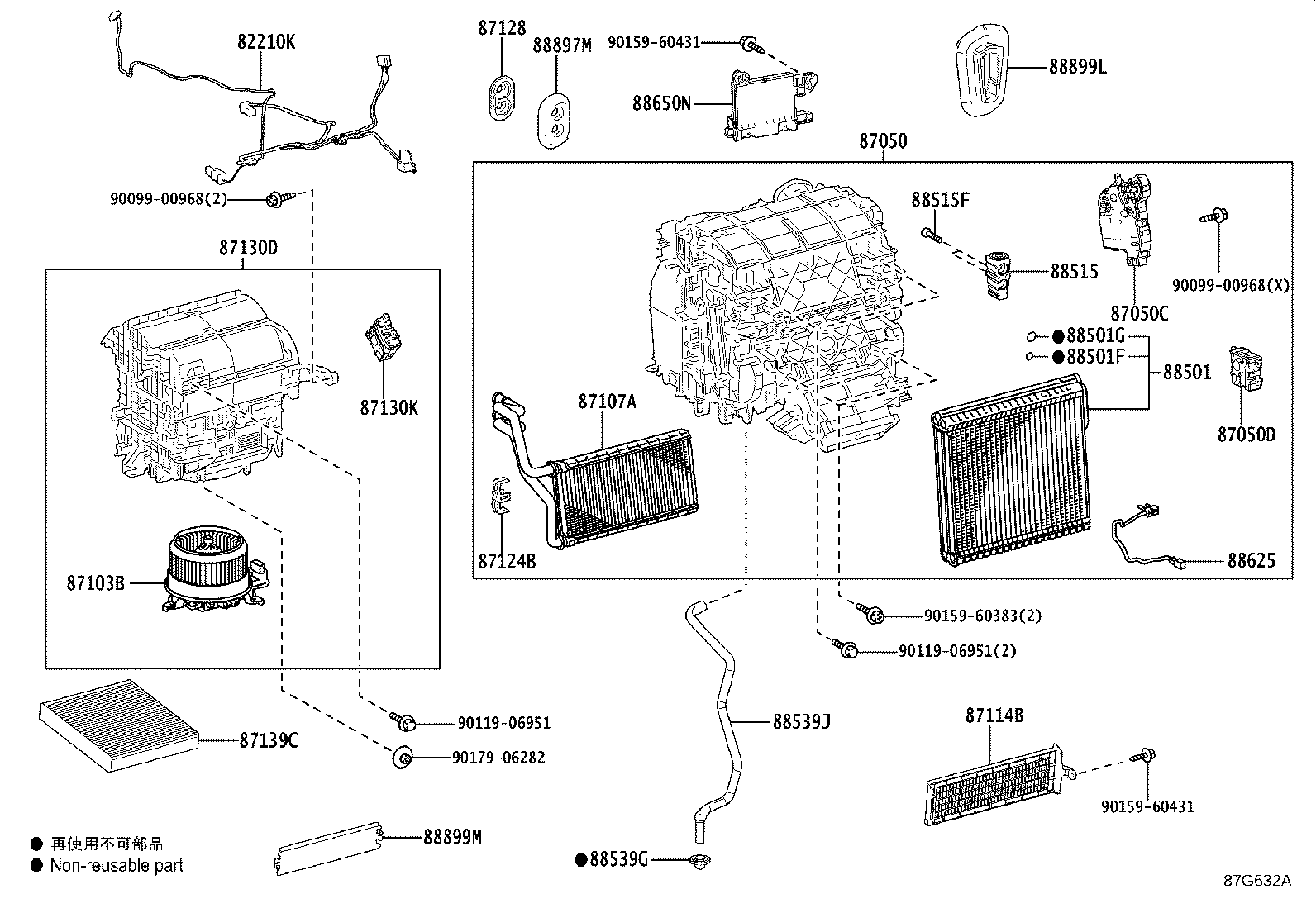

GSV70L-AEZGBV (2017)
Toyota Camry/Hybrid
(1709-2102)N,V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-33120 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-33C90 |
ASV70,GSV70..N,V |
1 | ||
| 87050-33C61 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 87050-33C91 |
ASV70,GSV70..N,V |
1 | ||
| 87050-33C60 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-48170 |
GSV70;ASV70..N,V;ASV70,AXVA70..GLE,SE |
1 | ||
| 87106-42240 |
GSV70;ASV70..N,V;ASV70,AXVA70..GLE,SE |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-48200 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-33160 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-33130 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-33050 |
AXVH71..TAKR;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-33070 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28010 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-33280 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-33320 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-58010 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 DEODORANT FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-33340 |
ASV70,AXVA70,GSV70 |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-48110 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-47010 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-33130 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-28050 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-33D20 |
GSV70 |
1 | ||
| 88650-33D22 |
GSV70 |
1 | ||
| 88650-33D21 |
GSV70 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-33020 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-33080 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-47120 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 TYPE B |
1 | ||
| Common parts | ||||
| 90099-00968 | ||||
| 90119-06951 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||

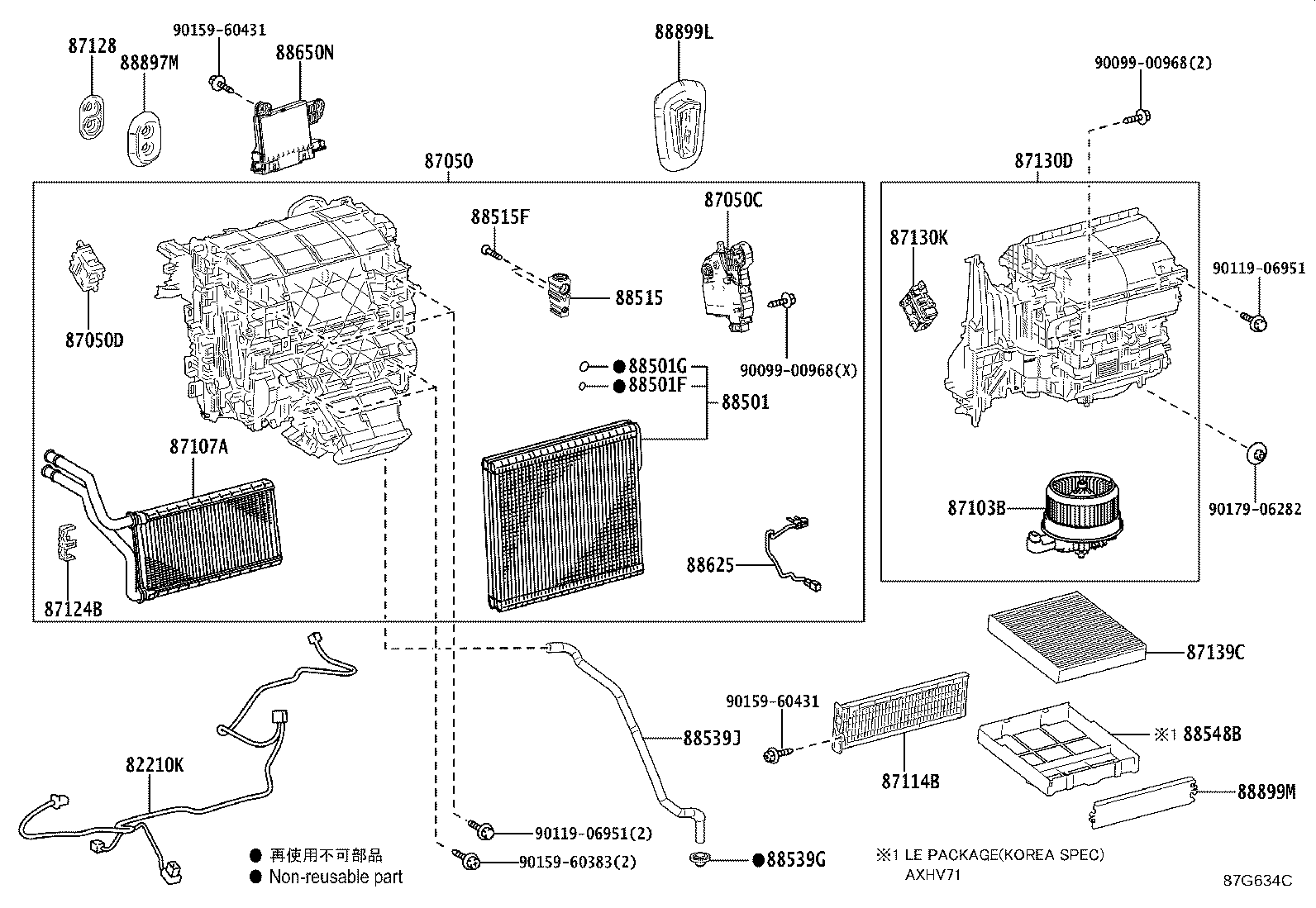

(1712-2102)TAIW,TAKR ; (1712-2102)GLE,LIMD,SE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-33120 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-33C90 |
ASV70,GSV70..N,V |
1 | ||
| 87050-33C61 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 87050-33C91 |
ASV70,GSV70..N,V |
1 | ||
| 87050-33C60 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-48170 |
GSV70;ASV70..N,V;ASV70,AXVA70..GLE,SE |
1 | ||
| 87106-42240 |
GSV70;ASV70..N,V;ASV70,AXVA70..GLE,SE |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-48200 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-33160 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-33130 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-33050 |
AXVH71..TAKR;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-33070 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-28010 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-33280 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-33320 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-58010 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 DEODORANT FILTER |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-33340 |
ASV70,AXVA70,GSV70 |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-48110 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 88515F - BOLT(FOR COOLER EXPANSION VALVE) | ||||
| 90099-04542 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE) | ||||
| 88888-47010 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-33130 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-28050 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-33D20 |
GSV70 |
1 | ||
| 88650-33D22 |
GSV70 |
1 | ||
| 88650-33D21 |
GSV70 |
1 | ||
| 88897M - GROMMET (FOR HEATER PIPE) | ||||
| 87128-33020 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 88899L - PARTS, COOLING UNIT | ||||
| 88899-33080 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-47120 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 TYPE B |
1 | ||
| Common parts | ||||
| 90099-00968 | ||||
| 90119-06951 | ||||
| 90159-60383 | ||||
| 90159-60431 | ||||
| 90179-06282 | ||||
