GSV70L-AEZGBV (2017)

Toyota Camry/Hybrid

Production Dec 2017 - Feb 2021
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1709-2102)ARL,GCC ; (2102- )ARL,GCC

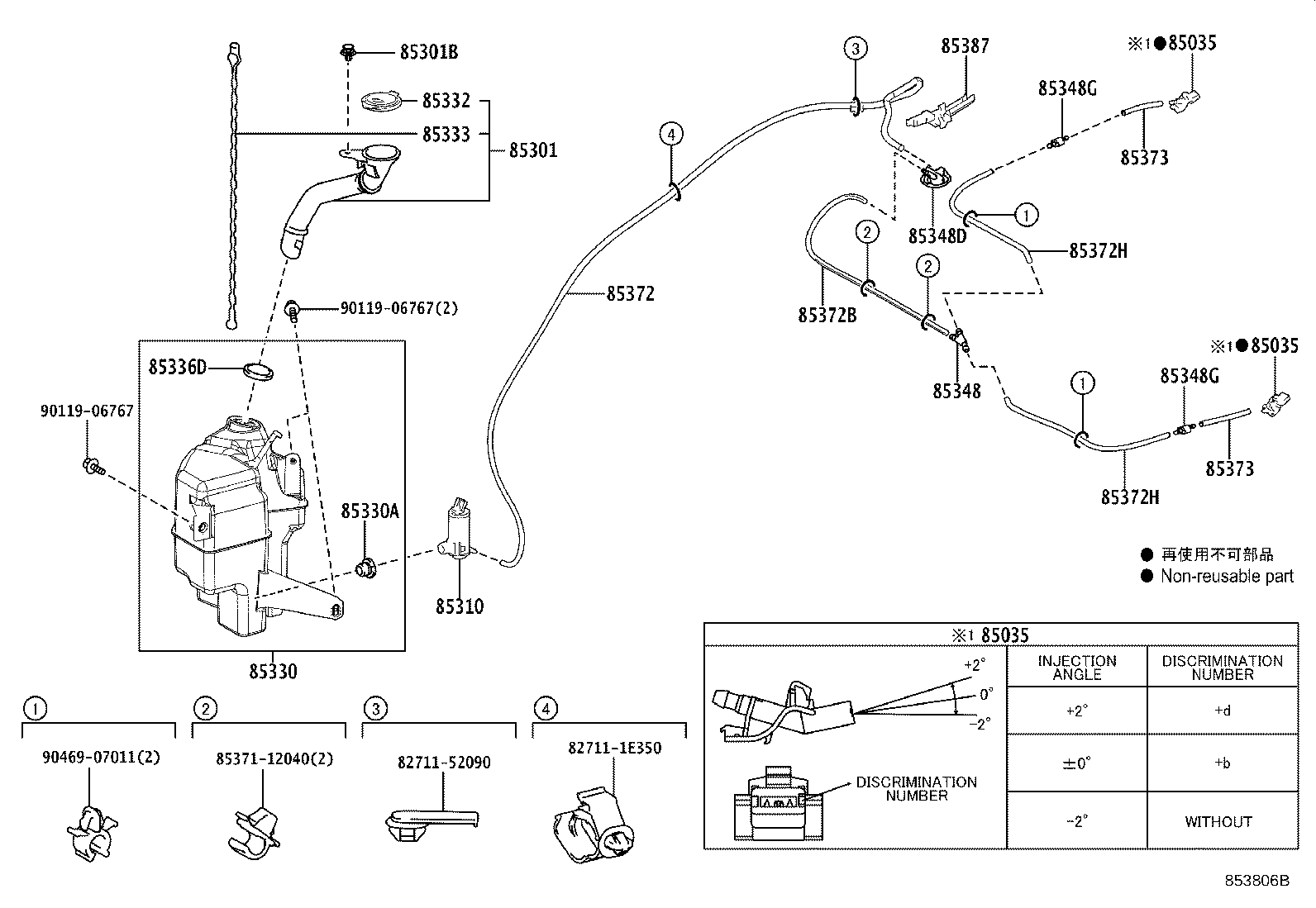

Click highlighted areas on diagram

diagram 827111E350 8271152090 85035 85035 85035 85301 85301B 85310 85330 85330A 85332 85333 85336D 85348 85348D 85348G 85348G 8537112040 85372 85372B 85372H 85372H 85373 85373 85387 9011906767 9011906767 9046907011
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

ANGLE -2

 2
85381-30240

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

ANGLE +2

 2
85381-30220

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

ANGLE 0

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

ANGLE -2

 2
85381-30240

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

ANGLE +2

 2
85381-30220

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

ANGLE 0

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

ANGLE -2

 2
85381-30240

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

ANGLE +2

 2
85381-30220

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

ANGLE 0

 2
85301 - INLET SUB-ASSY, WASHER
85329-33530

ASV70,AXVA70,AXVH71,GSV70..GCC

 1
85301B - CLIP, WASHER
90467-07214

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-33070

ASV70,AXVA70,AXVH71,GSV70..LHD

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-33530

ASV70,AXVA70,AXVH7#,GSV70..ARL,GCC

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

ASV70,AXVA70,AXVH7#,GSV70

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-24130

ASV70,AXVA70,AXVH7#,GSV70..ARL,GCC

 1
85333 - FILTER, WINDSHIELD WASHER JAR
85312-47020

AXVH71..GCC;ASV70,AXVA70,AXVH70,GSV70..ARL,GCC

 1
85336D - PACKING, WINDSHIELD WASHER JAR
85336-30160

ASV70,AXVA70,AXVH7#,GSV70

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85378-33410

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85373-33030

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85321-26020

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 2
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85321-26020

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 2
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33803

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

*H,L=1530

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

*H,L=330

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33299

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

*H,L=370

 2
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33299

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

*H,L=370

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

*H,L=60

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

*H,L=60

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
85371-33040

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
Common parts
82711-1E350
82711-52090
85371-12040
90119-06767
90469-07011
