GSV70L-AEZGBV (2017)
Toyota Camry/Hybrid
(1712- )AXVH71..D ; (1712- )GSV70..SE

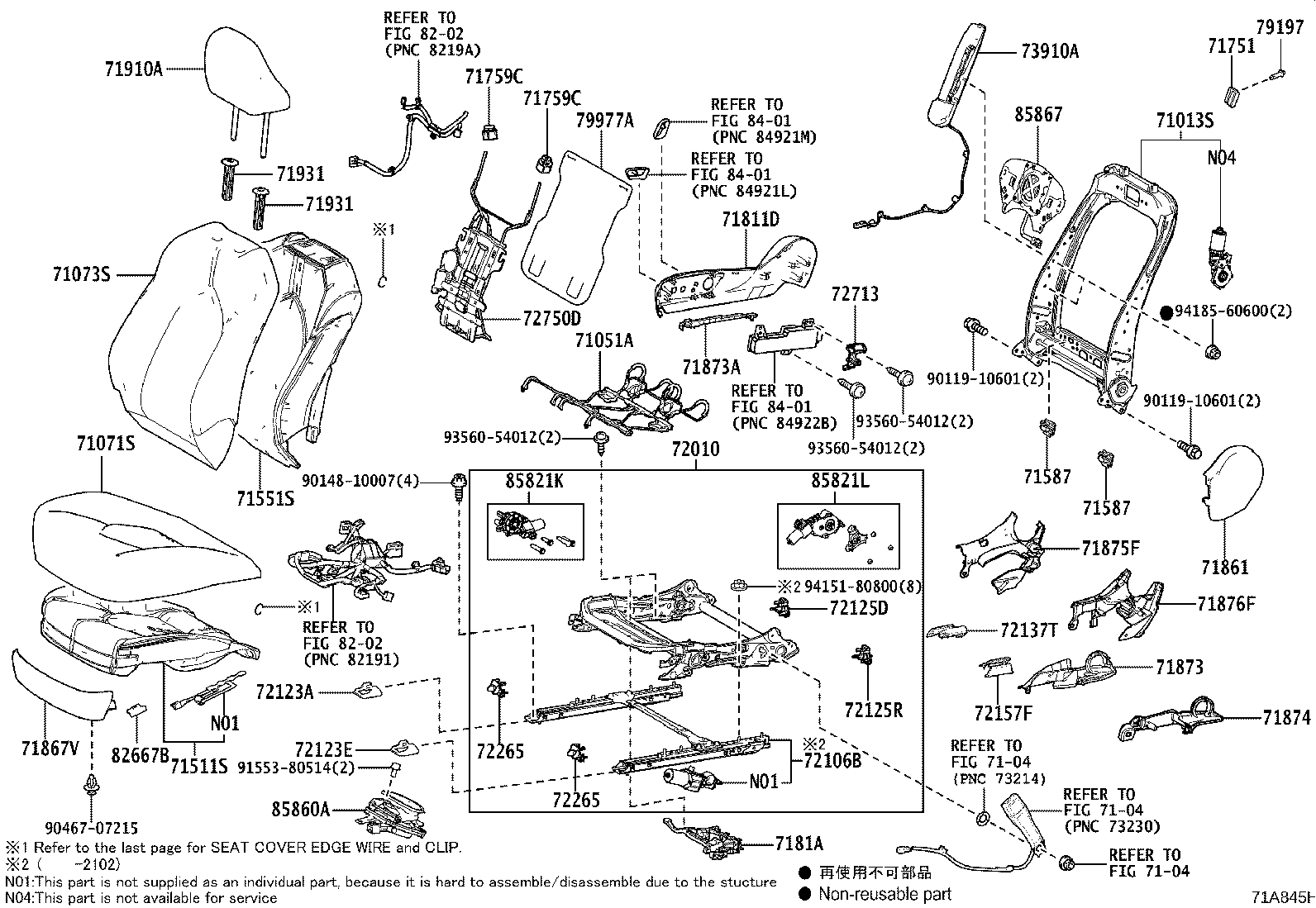

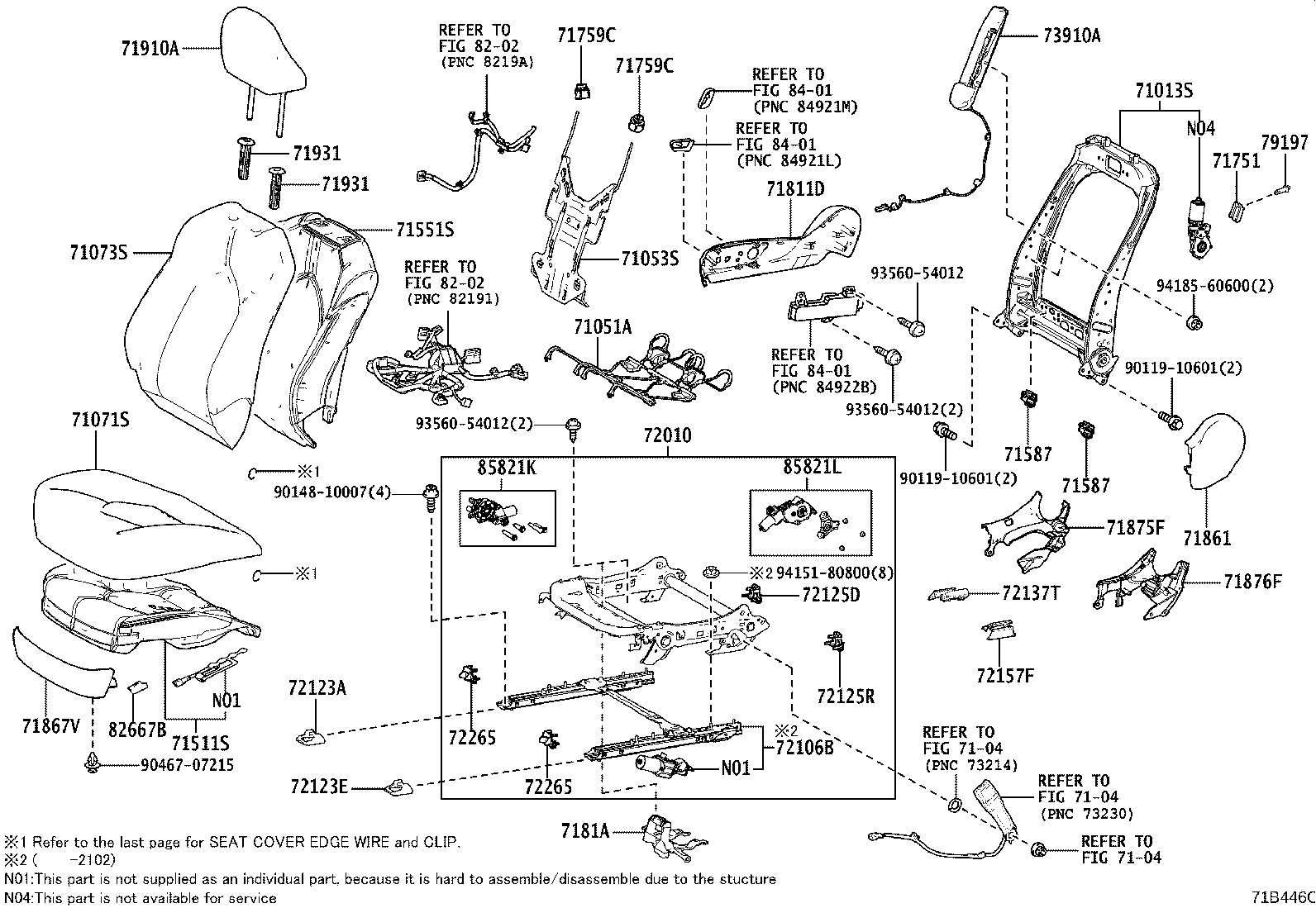

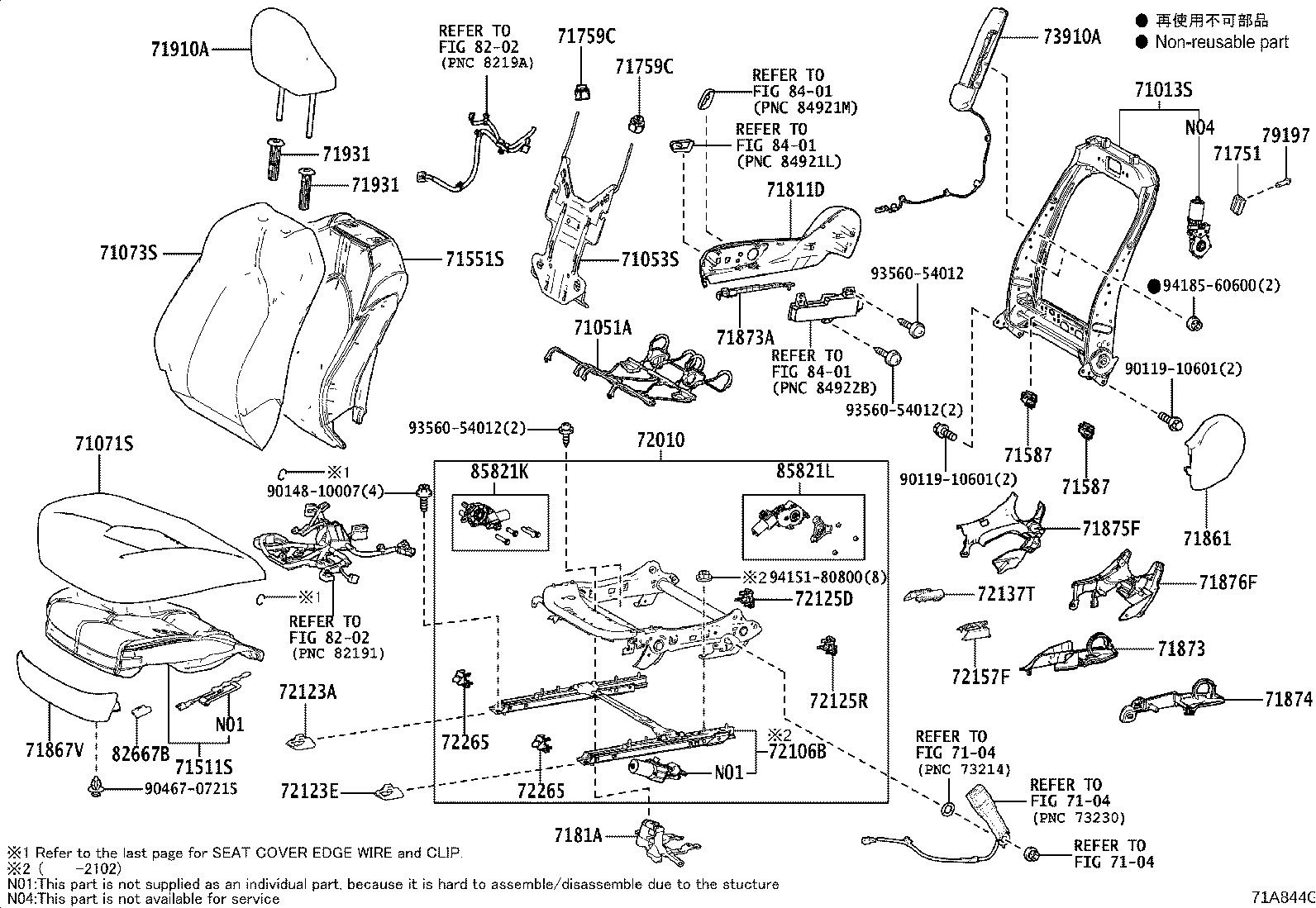

RH SEAT:POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-33350 |
GSV70..V;ASV70..N,V |
1 | ||
| 71013-33570 |
ASV70,GSV70..V |
1 | ||
| 71013-33380 |
GSV70..GCC |
1 | ||
| 71013-33530 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 71013-33571 |
ASV70,GSV70..V |
1 | ||
| 71013-33531 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-47050 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-33Q70C3 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71071-33Q80C3 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71071-33Q50C4 |
GSV70..LIMD BLACK,TRIM2# |
1 | ||
| 71071-33Q80B5 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71071-33Q70D3 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71071-33Q50A4 |
GSV70..LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-33Q50B4 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71071-33Q80D3 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71071-33Q51B5 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71071-33Q81B6 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71071-33Q81D4 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71071-33Q51A5 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-33Q81C4 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71071-33Q71C4 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71071-33Q51C5 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 71071-33Q71D4 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71071-33Q52C6 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 71071-33Q52B6 |
GSV70..LIMD GRAY,TRIM1# |
1 | ||
| 71071-33Q72D5 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71071-33Q82C5 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71071-33Q82D5 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71071-33Q82B7 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71071-33Q72C5 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71071-33Q52A6 |
GSV70..LIMD;AXVH71..TAKR FROMAGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-33S10B5 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71073-33T60B4 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71073-33S10C4 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71073-33T60A3 |
GSV70..LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-33S10D3 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71073-33T20D3 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71073-33T20C4 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71073-33T60C3 |
GSV70..LIMD BLACK,TRIM2# |
1 | ||
| 71073-33S11D4 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71073-33T21C5 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71073-33S11B6 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71073-33S11C5 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71073-33T61C5 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 71073-33T61E1 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-33T21D4 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71073-33T61B6 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-33290 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71511-33560 |
ASV70,GSV70..V |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-33400 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71551-33410 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-47050 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-52050 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-52050 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-33370C0 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71811-33370B0 |
GSV70..GCC NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71811-33370E0 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-33420C0 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71811-33370C0 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-47010 |
ASV70..TAIW;AXVH7#..D..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47070C1 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71861-47080C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71861-47080C1 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 71861-47080E0 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47080B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71861-47070C1 |
AXVH70,GSV70..D,N BLACK,TRIM2# |
1 | ||
| 71867V - SHIELD, FRONT SEAT CUSHION, FRONT RH | ||||
| 71867-47010C1 |
GSV70..SE;ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71867-47010B0 |
GSV70..GCC NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71867-47010E0 |
GSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867-47010C1 |
GSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) BLACK,TRIM2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-47040C1 |
AXVH70,GSV70..D,N BLACK,TRIM2# |
1 | ||
| 71875-47040C1 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71875-47060C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71875-47060B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71875-47060E0 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-47060C1 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-47070C1 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71875-47080C1 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 71875-47080C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71875-47080E0 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-47070C1 |
AXVH70,GSV70..D,N BLACK,TRIM2# |
1 | ||
| 71875-47080B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33B60C9 |
GSV70..SE;ASV70,GSV70..V BLACK,TRIM2# |
2 | ||
| 71910-33B6020 |
GSV70..N;GSV70..LIMD BLACK,TRIM2# |
2 | ||
| 71910-33B60P1 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71910-33B60D4 |
GSV70..SE;ASV70,GSV70..V SENSUAL RED,TRIM3# |
2 | ||
| 71910-33B60P0 |
ASV70,AXVA70,GSV70..SE GRAY,TRIM1# |
2 | ||
| 71910-33B60E3 |
GSV70..N;GSV70..LIMD NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6122 |
GSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) BLACK,TRIM2# |
2 | ||
| 71910-33B6121 |
GSV70..SE;ASV70,GSV70..V BLACK,TRIM2# |
2 | ||
| 71910-33B61E4 |
GSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B61P3 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71910-33B61D5 |
GSV70..SE;ASV70,GSV70..V SENSUAL RED,TRIM3# |
2 | ||
| 71910-33B61P2 |
ASV70,AXVA70,GSV70..SE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050B2 |
ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71930-47050E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
GSV70..SE;ASV70,GSV70..V W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-47030C4 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
GSV70..SE;ASV70,GSV70..V W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050B3 |
ASV70,AXVA70,GSV70..SE W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47030E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030B3 |
ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71931-47030B4 |
ASV70,AXVA70,GSV70..SE W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050B2 |
ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71930-47050E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
GSV70..SE;ASV70,GSV70..V W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-47030C4 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
GSV70..SE;ASV70,GSV70..V W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050B3 |
ASV70,AXVA70,GSV70..SE W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47030E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030B3 |
ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71931-47030B4 |
ASV70,AXVA70,GSV70..SE W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-33500 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 72010-33640 |
ASV70,GSV70..V |
1 | ||
| 72106B - RAIL SUB-ASSY, SEAT TRACK, UPPER RH | ||||
| 72106-33060 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 72106-33070 |
GSV70..V;ASV70..N,V |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-47060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72123E - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-47060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-47020 |
GSV70;ASV70..V;AXVH71..TAKR |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-47020 |
GSV70;ASV70..V;AXVH71..TAKR |
1 | ||
| 72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-47060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-47080 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47020 |
GSV70;ASV70..V;AXVH71..TAKR |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47020 |
GSV70;ASV70..V;AXVH71..TAKR |
2 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-33070 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-47010 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
2 | ||
| 82667B - HOLDER, CONNECTOR | ||||
| 82666-47630 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
1 | ||
| 85821K - MOTOR ASSY, POWER SEAT TILT, RH | ||||
| 85801-47020 |
GSV70..V;ASV70..N,V |
1 | ||
| 85821L - MOTOR ASSY, POWER SEAT LIFTER, RH | ||||
| 85801-47010 |
GSV70..V;ASV70..N,V |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90467-07215 | ||||
| 93560-54012 | ||||
| 94151-80800 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
(1712- )LIMD ; (1712- )AXVH71..D
RH SEAT:MEMORY POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-33350 |
GSV70..V;ASV70..N,V |
1 | ||
| 71013-33570 |
ASV70,GSV70..V |
1 | ||
| 71013-33380 |
GSV70..GCC |
1 | ||
| 71013-33530 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 71013-33571 |
ASV70,GSV70..V |
1 | ||
| 71013-33531 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-33Q70C3 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71071-33Q80C3 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71071-33Q50C4 |
GSV70..LIMD BLACK,TRIM2# |
1 | ||
| 71071-33Q80B5 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71071-33Q70D3 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71071-33Q50A4 |
GSV70..LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-33Q50B4 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71071-33Q80D3 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71071-33Q51B5 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71071-33Q81B6 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71071-33Q81D4 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71071-33Q51A5 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-33Q81C4 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71071-33Q71C4 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71071-33Q51C5 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 71071-33Q71D4 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71071-33Q52C6 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 71071-33Q52B6 |
GSV70..LIMD GRAY,TRIM1# |
1 | ||
| 71071-33Q72D5 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71071-33Q82C5 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71071-33Q82D5 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71071-33Q82B7 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71071-33Q72C5 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71071-33Q52A6 |
GSV70..LIMD;AXVH71..TAKR FROMAGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-33S10B5 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71073-33T60B4 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71073-33S10C4 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71073-33T60A3 |
GSV70..LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-33S10D3 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71073-33T20D3 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71073-33T20C4 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71073-33T60C3 |
GSV70..LIMD BLACK,TRIM2# |
1 | ||
| 71073-33S11D4 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71073-33T21C5 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71073-33S11B6 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71073-33S11C5 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71073-33T61C5 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 71073-33T61E1 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-33T21D4 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71073-33T61B6 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-33290 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71511-33560 |
ASV70,GSV70..V |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-33400 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71551-33410 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-47050 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-52050 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-52050 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-33370C0 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71811-33370B0 |
GSV70..GCC NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71811-33370E0 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-33420C0 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71811-33370C0 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-47010 |
ASV70..TAIW;AXVH7#..D..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47070C1 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71861-47080C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71861-47080C1 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 71861-47080E0 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47080B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71861-47070C1 |
AXVH70,GSV70..D,N BLACK,TRIM2# |
1 | ||
| 71867V - SHIELD, FRONT SEAT CUSHION, FRONT RH | ||||
| 71867-47010C1 |
GSV70..SE;ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71867-47010B0 |
GSV70..GCC NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71867-47010E0 |
GSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867-47010C1 |
GSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) BLACK,TRIM2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-47040C1 |
AXVH70,GSV70..D,N BLACK,TRIM2# |
1 | ||
| 71875-47040C1 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71875-47060C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71875-47060B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71875-47060E0 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-47060C1 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-47070C1 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71875-47080C1 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 71875-47080C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71875-47080E0 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-47070C1 |
AXVH70,GSV70..D,N BLACK,TRIM2# |
1 | ||
| 71875-47080B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33B60C9 |
GSV70..SE;ASV70,GSV70..V BLACK,TRIM2# |
2 | ||
| 71910-33B6020 |
GSV70..N;GSV70..LIMD BLACK,TRIM2# |
2 | ||
| 71910-33B60P1 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71910-33B60D4 |
GSV70..SE;ASV70,GSV70..V SENSUAL RED,TRIM3# |
2 | ||
| 71910-33B60P0 |
ASV70,AXVA70,GSV70..SE GRAY,TRIM1# |
2 | ||
| 71910-33B60E3 |
GSV70..N;GSV70..LIMD NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6122 |
GSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) BLACK,TRIM2# |
2 | ||
| 71910-33B6121 |
GSV70..SE;ASV70,GSV70..V BLACK,TRIM2# |
2 | ||
| 71910-33B61E4 |
GSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B61P3 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71910-33B61D5 |
GSV70..SE;ASV70,GSV70..V SENSUAL RED,TRIM3# |
2 | ||
| 71910-33B61P2 |
ASV70,AXVA70,GSV70..SE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050B2 |
ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71930-47050E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
GSV70..SE;ASV70,GSV70..V W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-47030C4 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
GSV70..SE;ASV70,GSV70..V W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050B3 |
ASV70,AXVA70,GSV70..SE W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47030E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030B3 |
ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71931-47030B4 |
ASV70,AXVA70,GSV70..SE W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050B2 |
ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71930-47050E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
GSV70..SE;ASV70,GSV70..V W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-47030C4 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
GSV70..SE;ASV70,GSV70..V W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050B3 |
ASV70,AXVA70,GSV70..SE W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47030E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030B3 |
ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71931-47030B4 |
ASV70,AXVA70,GSV70..SE W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-33500 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 72010-33640 |
ASV70,GSV70..V |
1 | ||
| 72106B - RAIL SUB-ASSY, SEAT TRACK, UPPER RH | ||||
| 72106-33060 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 72106-33070 |
GSV70..V;ASV70..N,V |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-47060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72123E - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-47060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-47020 |
GSV70;ASV70..V;AXVH71..TAKR |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-47020 |
GSV70;ASV70..V;AXVH71..TAKR |
1 | ||
| 72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-47060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-47080 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47020 |
GSV70;ASV70..V;AXVH71..TAKR |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47020 |
GSV70;ASV70..V;AXVH71..TAKR |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-11020 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-33070 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-47010 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
2 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-33030 |
ASV70..V;AXVH7#,GSV70..(D,V)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 82667B - HOLDER, CONNECTOR | ||||
| 82666-47630 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
1 | ||
| 85821K - MOTOR ASSY, POWER SEAT TILT, RH | ||||
| 85801-47020 |
GSV70..V;ASV70..N,V |
1 | ||
| 85821L - MOTOR ASSY, POWER SEAT LIFTER, RH | ||||
| 85801-47010 |
GSV70..V;ASV70..N,V |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90467-07215 | ||||
| 91553-80514 | ||||
| 93560-54012 | ||||
| 94151-80800 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
(1712- )ASV70..TAIW ; (1712- )ASV70,AXVA70..GLE,SE ; (1712- )AXVH71,GSV70,
LH SEAT:POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-33200 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71014-33170 |
GSV70..V;ASV70..N,V;AXVH71..ARL |
1 | ||
| 71014-33370 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71014-33420 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47090 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-33Q70B5 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71072-33Q80C3 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71072-33L60C2 |
GSV70..LIMD BLACK,TRIM2# |
1 | ||
| 71072-33L60A2 |
GSV70..LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-33Q70C3 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71072-33Q80D3 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71072-33L60B2 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71072-33Q70D3 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71072-33L61C3 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 71072-33L61B3 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71072-33L61A3 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-33Q71C4 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71072-33Q81C4 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71072-33Q81D4 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71072-33Q71D4 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71072-33L62B4 |
GSV70..LIMD GRAY,TRIM1# |
1 | ||
| 71072-33L62C4 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 71072-33L62A4 |
GSV70..LIMD;AXVH71..TAKR FROMAGE,TRIM4# |
1 | ||
| 71072-33Q71B6 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71072-33Q72D5 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71072-33Q72C5 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71072-33Q72B7 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71072-33Q82C5 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71072-33Q82D5 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-33R20B5 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71074-33R20C4 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71074-33S20C4 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71074-33S70C2 |
GSV70..LIMD BLACK,TRIM2# |
1 | ||
| 71074-33S20D3 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71074-33S70A2 |
GSV70..LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-33S70B3 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71074-33R20D3 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71074-33R21C5 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71074-33S21C5 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71074-33R21D4 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71074-33R21B6 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71074-33S71B5 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71074-33S71E1 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-33S21D4 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71074-33S71C4 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-33260 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 71512-33470 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-33290 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71552-33300 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-47050 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-52050 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-52050 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33400C0 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71812-33400B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71812-33400C0 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) BLACK,TRIM2# |
1 | ||
| 71812-33430C0 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71812-33400E0 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-47010 |
ASV70..V;ASV70..TAIW;AXVH70,GSV70..D,V |
1 | ||
| 7181B-33010 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47090B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71862-47090C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71862-47090E0 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71862-47100C1 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71862-47090C1 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 71868N - SHIELD, FRONT SEAT CUSHION, FRONT LH | ||||
| 71868-47010C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71868-47010C1 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) BLACK,TRIM2# |
1 | ||
| 71868-47010B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71868-47010E0 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71873U - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-47080 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47070 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71874C - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-47090 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-47080B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71876-47080C1 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 71876-47080C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71876-47080E0 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71876-47090C1 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-47040B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71876-47040C1 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 71876-47070C1 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71876-47040E0 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71876-47040C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33B60C9 |
GSV70..SE;ASV70,GSV70..V BLACK,TRIM2# |
2 | ||
| 71910-33B6020 |
GSV70..N;GSV70..LIMD BLACK,TRIM2# |
2 | ||
| 71910-33B60P1 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71910-33B60D4 |
GSV70..SE;ASV70,GSV70..V SENSUAL RED,TRIM3# |
2 | ||
| 71910-33B60P0 |
ASV70,AXVA70,GSV70..SE GRAY,TRIM1# |
2 | ||
| 71910-33B60E3 |
GSV70..N;GSV70..LIMD NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6122 |
GSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) BLACK,TRIM2# |
2 | ||
| 71910-33B6121 |
GSV70..SE;ASV70,GSV70..V BLACK,TRIM2# |
2 | ||
| 71910-33B61E4 |
GSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B61P3 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71910-33B61D5 |
GSV70..SE;ASV70,GSV70..V SENSUAL RED,TRIM3# |
2 | ||
| 71910-33B61P2 |
ASV70,AXVA70,GSV70..SE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050B2 |
ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71930-47050E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
GSV70..SE;ASV70,GSV70..V W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-47030C4 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
GSV70..SE;ASV70,GSV70..V W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050B3 |
ASV70,AXVA70,GSV70..SE W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47030E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030B3 |
ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71931-47030B4 |
ASV70,AXVA70,GSV70..SE W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050B2 |
ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71930-47050E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
GSV70..SE;ASV70,GSV70..V W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-47030C4 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
GSV70..SE;ASV70,GSV70..V W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050B3 |
ASV70,AXVA70,GSV70..SE W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47030E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030B3 |
ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71931-47030B4 |
ASV70,AXVA70,GSV70..SE W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-33570 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 72020-47381 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 72108 - RAIL SUB-ASSY, SEAT TRACK, UPPER LH | ||||
| 72108-33040 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-47060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72124A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-47060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72125P - COVER, SEAT TRACK, UPPER REAR NO.3 | ||||
| 72125-47010 |
ASV70..V;ASV70..TAIW;AXVH70,GSV70..D,V |
1 | ||
| 72125-47020 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 72125Q - COVER, SEAT TRACK, UPPER REAR NO.4 | ||||
| 72125-47010 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 72125-47020 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 72138N - COVER, SEAT TRACK BRACKET, OUTER REAR LH | ||||
| 72137-47060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72158E - COVER, SEAT TRACK BRACKET, INNER REAR LH | ||||
| 72158-47080 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-47010 |
ASV70..V;ASV70..TAIW;AXVH70,GSV70..D,V |
2 | ||
| 72265-47020 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
2 | ||
| 72714 - BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH | ||||
| 72714-47010 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-11020 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-33070 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-47010 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
2 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-33030 |
ASV70..V;AXVH7#,GSV70..(D,V)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 85822B - MOTOR ASSY, POWER SEAT TILT, LH | ||||
| 85801-47040 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 85822C - MOTOR ASSY, POWER SEAT LIFTER, LH | ||||
| 85801-47030 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90467-07215 | ||||
| 93560-54012 | ||||
| 94151-80800 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
(1712- )LE ; (1712- )D..GCC,TAIW
LH SEAT:MANUAL SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-33200 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71014-33170 |
GSV70..V;ASV70..N,V;AXVH71..ARL |
1 | ||
| 71014-33370 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71014-33420 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47090 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-47050 |
ASV70..V;ASV70..TAIW;AXVH70,GSV70..D,V |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-33Q70B5 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71072-33Q80C3 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71072-33L60C2 |
GSV70..LIMD BLACK,TRIM2# |
1 | ||
| 71072-33L60A2 |
GSV70..LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-33Q70C3 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71072-33Q80D3 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71072-33L60B2 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71072-33Q70D3 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71072-33L61C3 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 71072-33L61B3 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71072-33L61A3 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-33Q71C4 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71072-33Q81C4 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71072-33Q81D4 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71072-33Q71D4 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71072-33L62B4 |
GSV70..LIMD GRAY,TRIM1# |
1 | ||
| 71072-33L62C4 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 71072-33L62A4 |
GSV70..LIMD;AXVH71..TAKR FROMAGE,TRIM4# |
1 | ||
| 71072-33Q71B6 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71072-33Q72D5 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71072-33Q72C5 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71072-33Q72B7 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71072-33Q82C5 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71072-33Q82D5 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-33R20B5 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71074-33R20C4 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71074-33S20C4 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71074-33S70C2 |
GSV70..LIMD BLACK,TRIM2# |
1 | ||
| 71074-33S20D3 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71074-33S70A2 |
GSV70..LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-33S70B3 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71074-33R20D3 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71074-33R21C5 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71074-33S21C5 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71074-33R21D4 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71074-33R21B6 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71074-33S71B5 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71074-33S71E1 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-33S21D4 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71074-33S71C4 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-33260 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 71512-33470 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-33290 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71552-33300 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-47050 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-52050 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-52050 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33400C0 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71812-33400B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71812-33400C0 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) BLACK,TRIM2# |
1 | ||
| 71812-33430C0 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71812-33400E0 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-47010 |
ASV70..V;ASV70..TAIW;AXVH70,GSV70..D,V |
1 | ||
| 7181B-33010 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47090B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71862-47090C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71862-47090E0 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71862-47100C1 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71862-47090C1 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 71873U - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-47080 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47070 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-47080B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71876-47080C1 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 71876-47080C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71876-47080E0 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71876-47090C1 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-47040B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71876-47040C1 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 71876-47070C1 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71876-47040E0 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71876-47040C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33B60C9 |
GSV70..SE;ASV70,GSV70..V BLACK,TRIM2# |
2 | ||
| 71910-33B6020 |
GSV70..N;GSV70..LIMD BLACK,TRIM2# |
2 | ||
| 71910-33B60P1 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71910-33B60D4 |
GSV70..SE;ASV70,GSV70..V SENSUAL RED,TRIM3# |
2 | ||
| 71910-33B60P0 |
ASV70,AXVA70,GSV70..SE GRAY,TRIM1# |
2 | ||
| 71910-33B60E3 |
GSV70..N;GSV70..LIMD NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6122 |
GSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) BLACK,TRIM2# |
2 | ||
| 71910-33B6121 |
GSV70..SE;ASV70,GSV70..V BLACK,TRIM2# |
2 | ||
| 71910-33B61E4 |
GSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B61P3 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71910-33B61D5 |
GSV70..SE;ASV70,GSV70..V SENSUAL RED,TRIM3# |
2 | ||
| 71910-33B61P2 |
ASV70,AXVA70,GSV70..SE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050B2 |
ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71930-47050E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
GSV70..SE;ASV70,GSV70..V W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-47030C4 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
GSV70..SE;ASV70,GSV70..V W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050B3 |
ASV70,AXVA70,GSV70..SE W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47030E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030B3 |
ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71931-47030B4 |
ASV70,AXVA70,GSV70..SE W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050B2 |
ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71930-47050E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
GSV70..SE;ASV70,GSV70..V W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-47030C4 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
GSV70..SE;ASV70,GSV70..V W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050B3 |
ASV70,AXVA70,GSV70..SE W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47030E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030B3 |
ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71931-47030B4 |
ASV70,AXVA70,GSV70..SE W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-33570 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 72020-47381 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-47060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72124A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-47060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72125P - COVER, SEAT TRACK, UPPER REAR NO.3 | ||||
| 72125-47010 |
ASV70..V;ASV70..TAIW;AXVH70,GSV70..D,V |
1 | ||
| 72125-47020 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 72125Q - COVER, SEAT TRACK, UPPER REAR NO.4 | ||||
| 72125-47010 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 72125-47020 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 72138N - COVER, SEAT TRACK BRACKET, OUTER REAR LH | ||||
| 72137-47060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72158E - COVER, SEAT TRACK BRACKET, INNER REAR LH | ||||
| 72158-47080 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47050 |
ASV70..V;ASV70..TAIW;AXVH70,GSV70..D,V |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-47010 |
ASV70..V;ASV70..TAIW;AXVH70,GSV70..D,V |
2 | ||
| 72265-47020 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
2 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-33050C0 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 72552B - COVER, RECLINING HINGE, LH | ||||
| 72551-33010C0 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-33070 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-47010 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
2 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1712- )LIMD ; (1712- )AXVH71..D
LH SEAT:MEMORY POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-33200 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71014-33170 |
GSV70..V;ASV70..N,V;AXVH71..ARL |
1 | ||
| 71014-33370 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71014-33420 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-47090 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-33Q70B5 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71072-33Q80C3 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71072-33L60C2 |
GSV70..LIMD BLACK,TRIM2# |
1 | ||
| 71072-33L60A2 |
GSV70..LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-33Q70C3 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71072-33Q80D3 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71072-33L60B2 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71072-33Q70D3 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71072-33L61C3 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 71072-33L61B3 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71072-33L61A3 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71072-33Q71C4 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71072-33Q81C4 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71072-33Q81D4 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71072-33Q71D4 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71072-33L62B4 |
GSV70..LIMD GRAY,TRIM1# |
1 | ||
| 71072-33L62C4 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 71072-33L62A4 |
GSV70..LIMD;AXVH71..TAKR FROMAGE,TRIM4# |
1 | ||
| 71072-33Q71B6 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71072-33Q72D5 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71072-33Q72C5 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71072-33Q72B7 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71072-33Q82C5 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71072-33Q82D5 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-33R20B5 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71074-33R20C4 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71074-33S20C4 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71074-33S70C2 |
GSV70..LIMD BLACK,TRIM2# |
1 | ||
| 71074-33S20D3 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71074-33S70A2 |
GSV70..LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-33S70B3 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71074-33R20D3 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71074-33R21C5 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71074-33S21C5 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71074-33R21D4 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71074-33R21B6 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71074-33S71B5 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71074-33S71E1 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71074-33S21D4 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71074-33S71C4 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-33260 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 71512-33470 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-33290 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71552-33300 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-47050 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-52050 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-52050 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-33400C0 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71812-33400B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71812-33400C0 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) BLACK,TRIM2# |
1 | ||
| 71812-33430C0 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71812-33400E0 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 7181B - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH | ||||
| 7181B-47010 |
ASV70..V;ASV70..TAIW;AXVH70,GSV70..D,V |
1 | ||
| 7181B-33010 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-47090B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71862-47090C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71862-47090E0 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71862-47100C1 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71862-47090C1 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 71868N - SHIELD, FRONT SEAT CUSHION, FRONT LH | ||||
| 71868-47010C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71868-47010C1 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) BLACK,TRIM2# |
1 | ||
| 71868-47010B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71868-47010E0 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71873U - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71874-47080 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47070 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71874C - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71874-47090 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71876-47080B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71876-47080C1 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 71876-47080C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71876-47080E0 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71876-47090C1 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-47040B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71876-47040C1 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 71876-47070C1 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71876-47040E0 |
ASV70,AXVA70,GSV70..GLE,LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71876-47040C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33B60C9 |
GSV70..SE;ASV70,GSV70..V BLACK,TRIM2# |
2 | ||
| 71910-33B6020 |
GSV70..N;GSV70..LIMD BLACK,TRIM2# |
2 | ||
| 71910-33B60P1 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71910-33B60D4 |
GSV70..SE;ASV70,GSV70..V SENSUAL RED,TRIM3# |
2 | ||
| 71910-33B60P0 |
ASV70,AXVA70,GSV70..SE GRAY,TRIM1# |
2 | ||
| 71910-33B60E3 |
GSV70..N;GSV70..LIMD NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6122 |
GSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) BLACK,TRIM2# |
2 | ||
| 71910-33B6121 |
GSV70..SE;ASV70,GSV70..V BLACK,TRIM2# |
2 | ||
| 71910-33B61E4 |
GSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B61P3 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71910-33B61D5 |
GSV70..SE;ASV70,GSV70..V SENSUAL RED,TRIM3# |
2 | ||
| 71910-33B61P2 |
ASV70,AXVA70,GSV70..SE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050B2 |
ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71930-47050E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
GSV70..SE;ASV70,GSV70..V W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-47030C4 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
GSV70..SE;ASV70,GSV70..V W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050B3 |
ASV70,AXVA70,GSV70..SE W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47030E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030B3 |
ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71931-47030B4 |
ASV70,AXVA70,GSV70..SE W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050B2 |
ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71930-47050E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
GSV70..SE;ASV70,GSV70..V W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-47030C4 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
GSV70..SE;ASV70,GSV70..V W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050B3 |
ASV70,AXVA70,GSV70..SE W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47030E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030B3 |
ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71931-47030B4 |
ASV70,AXVA70,GSV70..SE W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-33570 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 72020-47381 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 72108 - RAIL SUB-ASSY, SEAT TRACK, UPPER LH | ||||
| 72108-33040 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-47060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72124A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72123-47060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72125P - COVER, SEAT TRACK, UPPER REAR NO.3 | ||||
| 72125-47010 |
ASV70..V;ASV70..TAIW;AXVH70,GSV70..D,V |
1 | ||
| 72125-47020 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 72125Q - COVER, SEAT TRACK, UPPER REAR NO.4 | ||||
| 72125-47010 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 72125-47020 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 72138N - COVER, SEAT TRACK BRACKET, OUTER REAR LH | ||||
| 72137-47060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72158E - COVER, SEAT TRACK BRACKET, INNER REAR LH | ||||
| 72158-47080 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72266 - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72265-47010 |
ASV70..V;ASV70..TAIW;AXVH70,GSV70..D,V |
2 | ||
| 72265-47020 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
2 | ||
| 72714 - BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH | ||||
| 72714-47010 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-11020 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-33070 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-47010 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
2 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-33030 |
ASV70..V;AXVH7#,GSV70..(D,V)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 85822B - MOTOR ASSY, POWER SEAT TILT, LH | ||||
| 85801-47040 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 85822C - MOTOR ASSY, POWER SEAT LIFTER, LH | ||||
| 85801-47030 |
AXVH71,GSV70..(D,N)..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90467-07215 | ||||
| 91553-80514 | ||||
| 93560-54012 | ||||
| 94151-80800 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
(1712- )TAIW ; (1712- )AXVA70,GSV70..GLE,LIMD
RH SEAT:POWER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-33350 |
GSV70..V;ASV70..N,V |
1 | ||
| 71013-33570 |
ASV70,GSV70..V |
1 | ||
| 71013-33380 |
GSV70..GCC |
1 | ||
| 71013-33530 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 71013-33571 |
ASV70,GSV70..V |
1 | ||
| 71013-33531 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-47050 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-33Q70C3 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71071-33Q80C3 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71071-33Q50C4 |
GSV70..LIMD BLACK,TRIM2# |
1 | ||
| 71071-33Q80B5 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71071-33Q70D3 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71071-33Q50A4 |
GSV70..LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-33Q50B4 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71071-33Q80D3 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71071-33Q51B5 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71071-33Q81B6 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71071-33Q81D4 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71071-33Q51A5 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71071-33Q81C4 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71071-33Q71C4 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71071-33Q51C5 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 71071-33Q71D4 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71071-33Q52C6 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 71071-33Q52B6 |
GSV70..LIMD GRAY,TRIM1# |
1 | ||
| 71071-33Q72D5 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71071-33Q82C5 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71071-33Q82D5 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71071-33Q82B7 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71071-33Q72C5 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71071-33Q52A6 |
GSV70..LIMD;AXVH71..TAKR FROMAGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-33S10B5 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71073-33T60B4 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71073-33S10C4 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71073-33T60A3 |
GSV70..LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-33S10D3 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71073-33T20D3 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71073-33T20C4 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71073-33T60C3 |
GSV70..LIMD BLACK,TRIM2# |
1 | ||
| 71073-33S11D4 |
GSV70..SE SENSUAL RED,TRIM3# |
1 | ||
| 71073-33T21C5 |
ASV70,GSV70..V BLACK,TRIM2# |
1 | ||
| 71073-33S11B6 |
GSV70..SE GRAY,TRIM1# |
1 | ||
| 71073-33S11C5 |
GSV70..SE BLACK,TRIM2# |
1 | ||
| 71073-33T61C5 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 71073-33T61E1 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71073-33T21D4 |
ASV70,GSV70..V SENSUAL RED,TRIM3# |
1 | ||
| 71073-33T61B6 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-33290 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71511-33560 |
ASV70,GSV70..V |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-33400 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71551-33410 |
ASV70..V;AXVH70,GSV70..D,V |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71751 - HANGER, SEAT COVER | ||||
| 71751-47050 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-52050 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-52050 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-33370C0 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71811-33370B0 |
GSV70..GCC NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71811-33370E0 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71811-33420C0 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71811-33370C0 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-47010 |
ASV70..TAIW;AXVH7#..D..(ARL,TAKR);ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47070C1 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71861-47080C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71861-47080C1 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 71861-47080E0 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71861-47080B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71861-47070C1 |
AXVH70,GSV70..D,N BLACK,TRIM2# |
1 | ||
| 71867V - SHIELD, FRONT SEAT CUSHION, FRONT RH | ||||
| 71867-47010C1 |
GSV70..SE;ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71867-47010B0 |
GSV70..GCC NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71867-47010E0 |
GSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71867-47010C1 |
GSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) BLACK,TRIM2# |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-47040C1 |
AXVH70,GSV70..D,N BLACK,TRIM2# |
1 | ||
| 71875-47040C1 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71875-47060C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71875-47060B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71875-47060E0 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-47060C1 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-47070C1 |
ASV70,GSV70..V BLACK,TRIM2#,3# |
1 | ||
| 71875-47080C1 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 71875-47080C1 |
GSV70..SE BLACK,TRIM2#,3# |
1 | ||
| 71875-47080E0 |
AXVH71..TAKR;ASV70,AXVA70,GSV70..GLE,LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 71875-47070C1 |
AXVH70,GSV70..D,N BLACK,TRIM2# |
1 | ||
| 71875-47080B0 |
ASV70,AXVA70,GSV70..GLE,LIMD,SE NEUTRAL WARM GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-33B60C9 |
GSV70..SE;ASV70,GSV70..V BLACK,TRIM2# |
2 | ||
| 71910-33B6020 |
GSV70..N;GSV70..LIMD BLACK,TRIM2# |
2 | ||
| 71910-33B60P1 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71910-33B60D4 |
GSV70..SE;ASV70,GSV70..V SENSUAL RED,TRIM3# |
2 | ||
| 71910-33B60P0 |
ASV70,AXVA70,GSV70..SE GRAY,TRIM1# |
2 | ||
| 71910-33B60E3 |
GSV70..N;GSV70..LIMD NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B6122 |
GSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) BLACK,TRIM2# |
2 | ||
| 71910-33B6121 |
GSV70..SE;ASV70,GSV70..V BLACK,TRIM2# |
2 | ||
| 71910-33B61E4 |
GSV70..LIMD;AXVH71,GSV70..(D,N)..(ARL,TAKR) NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71910-33B61P3 |
GSV70..LIMD NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71910-33B61D5 |
GSV70..SE;ASV70,GSV70..V SENSUAL RED,TRIM3# |
2 | ||
| 71910-33B61P2 |
ASV70,AXVA70,GSV70..SE GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050B2 |
ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71930-47050E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
GSV70..SE;ASV70,GSV70..V W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-47030C4 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
GSV70..SE;ASV70,GSV70..V W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050B3 |
ASV70,AXVA70,GSV70..SE W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47030E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030B3 |
ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71931-47030B4 |
ASV70,AXVA70,GSV70..SE W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47050B2 |
ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71930-47050E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
GSV70..SE;ASV70,GSV70..V W(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71931-47030C4 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030C4 |
GSV70..SE;ASV70,GSV70..V W/O(LOCK),BLACK,TRIM2#,3# |
2 | ||
| 71930-47050B3 |
ASV70,AXVA70,GSV70..SE W(LOCK),GRAY,TRIM1# |
2 | ||
| 71931-47030E0 |
GSV70..N;ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL BEIGE,TRIM4# |
2 | ||
| 71930-47050C5 |
ASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD;AXVH7#,GSV70..(D,N)..(ARL,TAKR) W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47030B3 |
ASV70,AXVA70,GSV70..GLE,LIMD W/O(LOCK),NEUTRAL WARM GRAY,TRIM1# |
2 | ||
| 71931-47030B4 |
ASV70,AXVA70,GSV70..SE W/O(LOCK),GRAY,TRIM1# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-33500 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 72010-33640 |
ASV70,GSV70..V |
1 | ||
| 72106B - RAIL SUB-ASSY, SEAT TRACK, UPPER RH | ||||
| 72106-33060 |
GSV70..GCC;AXVH71..TAKR |
1 | ||
| 72106-33070 |
GSV70..V;ASV70..N,V |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-47060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72123E - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-47060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 | ||||
| 72125-47020 |
GSV70;ASV70..V;AXVH71..TAKR |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-47020 |
GSV70;ASV70..V;AXVH71..TAKR |
1 | ||
| 72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-47060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-47080 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47020 |
GSV70;ASV70..V;AXVH71..TAKR |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47020 |
GSV70;ASV70..V;AXVH71..TAKR |
2 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-33070 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 79197 - HOOK, SEAT BACK COVER | ||||
| 79197-47010 |
ASV70,AXVH71..TAIW,TAKR;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
2 | ||
| 82667B - HOLDER, CONNECTOR | ||||
| 82666-47630 |
GSV70;ASV70..V;ASV70..TAIW;ASV70,AXVA70..GLE,SE;AXVH7#..D..(ARL,TAKR) |
1 | ||
| 85821K - MOTOR ASSY, POWER SEAT TILT, RH | ||||
| 85801-47020 |
GSV70..V;ASV70..N,V |
1 | ||
| 85821L - MOTOR ASSY, POWER SEAT LIFTER, RH | ||||
| 85801-47010 |
GSV70..V;ASV70..N,V |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90467-07215 | ||||
| 93560-54012 | ||||
| 94151-80800 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
