AXVH71R-AEXDBQ (2017)

Toyota Camry/Hybrid

Production Dec 2017 - Jul 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709-2102)SE ; (1709-2102)ASV70..N,V ; (1709-2102)AXVH7#,GSV70..ARL

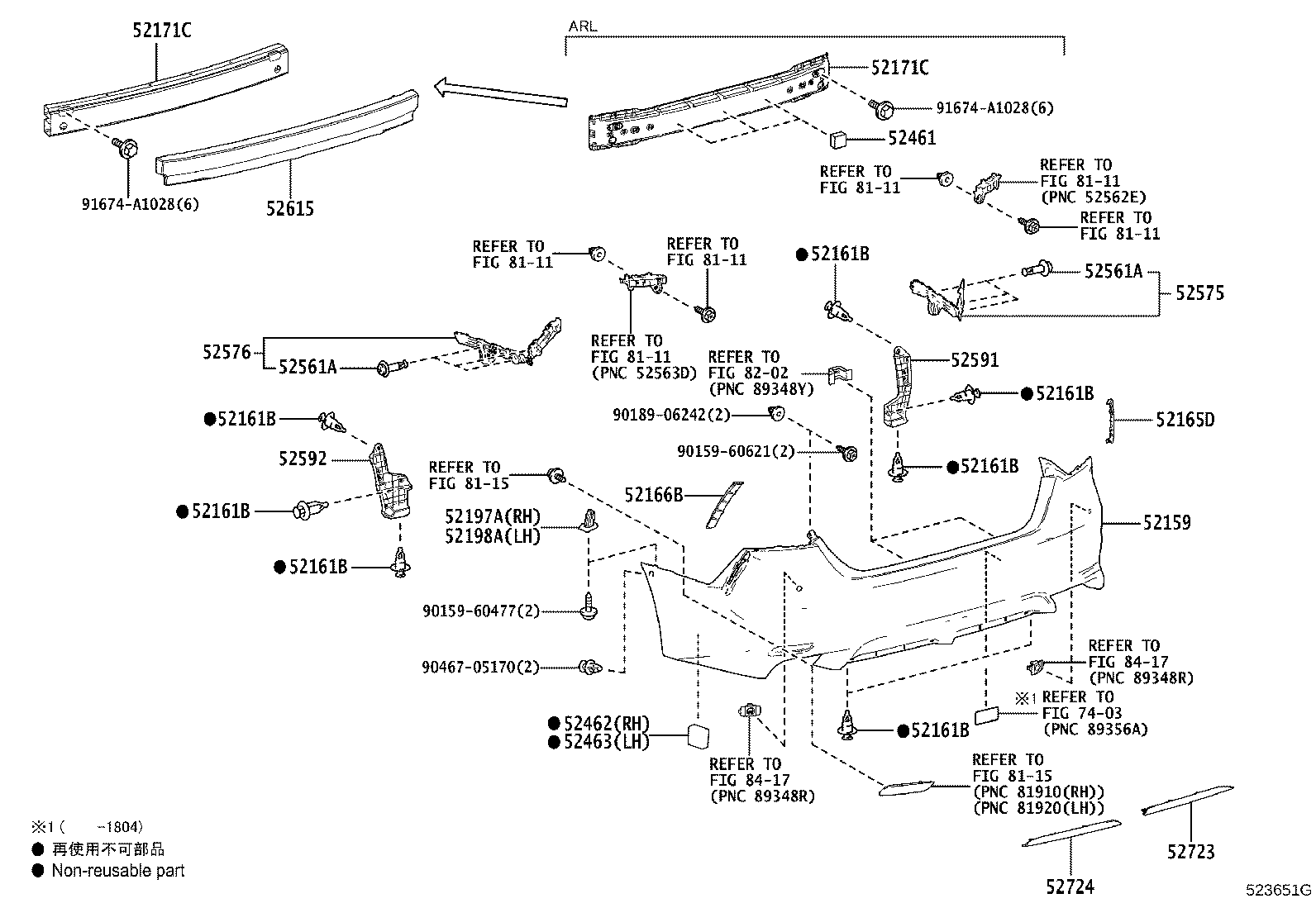

Click highlighted areas on diagram

W(CLEARANCE SONAR)

diagram 52159 52161B 52161B 52161B 52161B 52161B 52161B 52161B 52165D 52166B 52171C 52171C 52197A 52198A 52461 52462 52463 52561A 52561A 52575 52576 52591 52592 52615 52723 52724 7403 8111 8111 8111 8111 8111 8111 8115 8115 8202 8417 8417 9015960477 9015960621 9018906242 9046705170 91674A1028 91674A1028
Part # Description Qty Price
52161B - PIECE, REAR BUMPER
52161-16010

AXVH71..ARL

ATARA S

 8
52161-16010

AXVH71..ARL

 10
52161-16010

AXVH71..ARL

ATARA SL

 8
52161B - PIECE, REAR BUMPER
52161-16010

AXVH71..ARL

ATARA S

 8
52161-16010

AXVH71..ARL

 10
52161-16010

AXVH71..ARL

ATARA SL

 8
52161B - PIECE, REAR BUMPER
52161-16010

AXVH71..ARL

ATARA S

 8
52161-16010

AXVH71..ARL

 10
52161-16010

AXVH71..ARL

ATARA SL

 8
52161B - PIECE, REAR BUMPER
52161-16010

AXVH71..ARL

ATARA S

 8
52161-16010

AXVH71..ARL

 10
52161-16010

AXVH71..ARL

ATARA SL

 8
52161B - PIECE, REAR BUMPER
52161-16010

AXVH71..ARL

ATARA S

 8
52161-16010

AXVH71..ARL

 10
52161-16010

AXVH71..ARL

ATARA SL

 8
52161B - PIECE, REAR BUMPER
52161-16010

AXVH71..ARL

ATARA S

 8
52161-16010

AXVH71..ARL

 10
52161-16010

AXVH71..ARL

ATARA SL

 8
52161B - PIECE, REAR BUMPER
52161-16010

AXVH71..ARL

ATARA S

 8
52161-16010

AXVH71..ARL

 10
52161-16010

AXVH71..ARL

ATARA SL

 8
52165D - EXTENSION, REAR BUMPER CORNER, RH
52165-33010

AXVH71..ARL

ATARA S

 1
52165-33010

AXVH71..ARL

ATARA SL

 1
52166B - EXTENSION, REAR BUMPER CORNER, LH
52166-33010

AXVH71..ARL

ATARA S

 1
52166-33010

AXVH71..ARL

ATARA SL

 1
52171C - REINFORCEMENT, REAR BUMPER
52023-33060

AXVH71..ARL

 1
52171C - REINFORCEMENT, REAR BUMPER
52023-33060

AXVH71..ARL

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-53040

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
52197-53040

AXVH71..ARL

 1
52198A - BRACKET, REAR BUMPER SEAL, LH
52198-53020

AXVH71..ARL

 1
52198-53020

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
52461 - PAD, REAR BUMPER, CENTER
52462-30090

AXVH71..ARL

 3
52462-33060

AXVH71..ARL

ATARA S

 3
52462-33050

AXVH71..ARL

ATARA SL

 3
52462-33050

AXVH71..ARL

ATARA S

 3
52462-33060

AXVH71..ARL

ATARA SL

 3
52462 - PAD, REAR BUMPER, RH
52462-33060

AXVH71..ARL

ATARA S

 1
52462-33060

AXVH71..ARL

ATARA SL

 1
52463 - PAD, REAR BUMPER, LH
52463-33100

AXVH71..ARL

ATARA SL

 1
52463-33100

AXVH71..ARL

ATARA S

 1
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-09237

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 6
90467-09237

AXVH71..ARL

 6
52561A - CLIP(FOR REAR BUMPER RETAINER)
90467-09237

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 6
90467-09237

AXVH71..ARL

 6
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-33130

AXVH71..ARL

 1
52575-33130

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-33130

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
52576-33130

AXVH71..ARL

 1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-33040

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
52591-33040

AXVH71..ARL

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-33040

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
52592-33040

AXVH71..ARL

 1
52723 - MOULDING, REAR BUMPER EXTENSION, RH
52723-33010

AXVH71..ARL

ATARA S

 1
52723-33010

AXVH71..ARL

ATARA SL

 1
52724 - MOULDING, REAR BUMPER EXTENSION, LH
52724-33010

AXVH71..ARL

ATARA S

 1
52724-33010

AXVH71..ARL

ATARA SL

 1
Common parts
90159-60477
90159-60621
90189-06242
90467-05170
91674-A1028
Linked diagrams
7403
8111
8115
8202
8417
