AXVH71R-AEXDBQ (2017)
Toyota Camry/Hybrid
Production
Dec 2017
-
Jul 2020
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1712- )AXVH7#..ARL

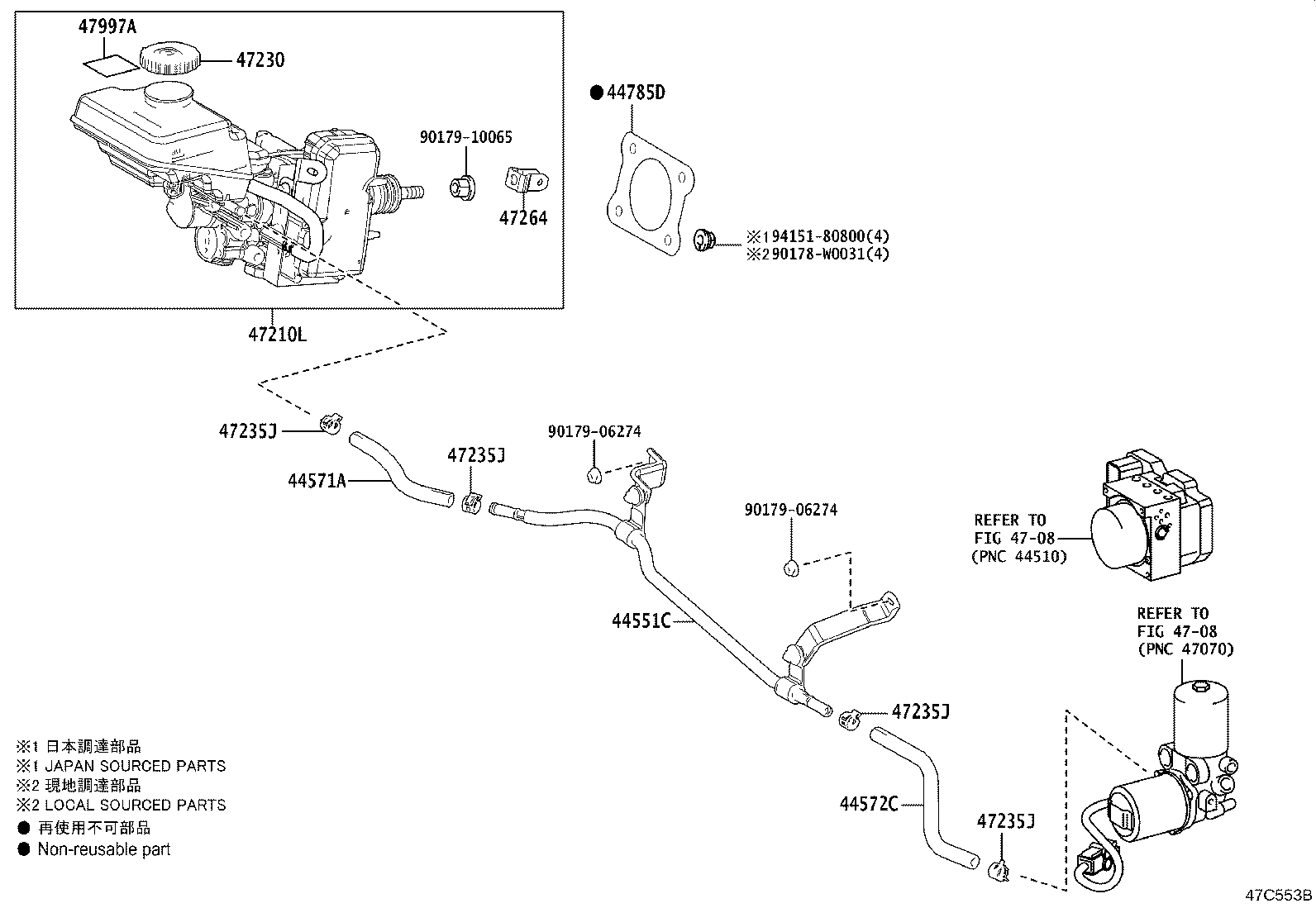

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-33090 |
AXVH71..ARL |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-33160 |
AXVH71..ARL |
1 | ||
| 44572C - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44572-33040 |
AXVH71..ARL |
1 | ||
| 44785D - GASKET, BRAKE MASTER CYLINDER | ||||
| 44785-12040 |
AXVH71..ARL #,(J) |
1 | ||
| 44785-05020 |
AXVH71..ARL #,(L) |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-33400 |
AXVH71..ARL |
1 | ||
| 47050-33520 |
AXVH71..ARL |
1 | ||
| 47050-33590 |
AXVH71..ARL |
1 | ||
| 47050-33320 |
AXVH71..D |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
AXVH71..ARL |
1 | ||
| 47230-47090 |
AXVH71..D |
1 | ||
| 47230-47090 |
AXVH71..D |
1 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
AXVH71..ARL |
4 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
AXVH71..ARL |
4 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
AXVH71..ARL |
4 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
AXVH71..ARL |
4 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12060 |
AXVH71..ARL |
1 | ||
| 47264-12060 |
AXVH71 |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-76010 |
AXVH71..ARL |
1 | ||
| Common parts | ||||
| 90178-W0031 | ||||
| 90179-06274 | ||||
| 90179-10065 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4708 | ||||
(1804- )AXVH71..D
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-33090 |
AXVH71..ARL |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-33160 |
AXVH71..ARL |
1 | ||
| 44572C - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44572-33040 |
AXVH71..ARL |
1 | ||
| 44785D - GASKET, BRAKE MASTER CYLINDER | ||||
| 44785-12040 |
AXVH71..ARL #,(J) |
1 | ||
| 44785-05020 |
AXVH71..ARL #,(L) |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-33400 |
AXVH71..ARL |
1 | ||
| 47050-33520 |
AXVH71..ARL |
1 | ||
| 47050-33590 |
AXVH71..ARL |
1 | ||
| 47050-33320 |
AXVH71..D |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
AXVH71..ARL |
1 | ||
| 47230-47090 |
AXVH71..D |
1 | ||
| 47230-47090 |
AXVH71..D |
1 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
AXVH71..ARL |
4 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
AXVH71..ARL |
4 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
AXVH71..ARL |
4 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
AXVH71..ARL |
4 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12060 |
AXVH71..ARL |
1 | ||
| 47264-12060 |
AXVH71 |
1 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-76010 |
AXVH71..ARL |
1 | ||
| Common parts | ||||
| 90178-W0031 | ||||
| 90179-06274 | ||||
| 90179-10065 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4708 | ||||
