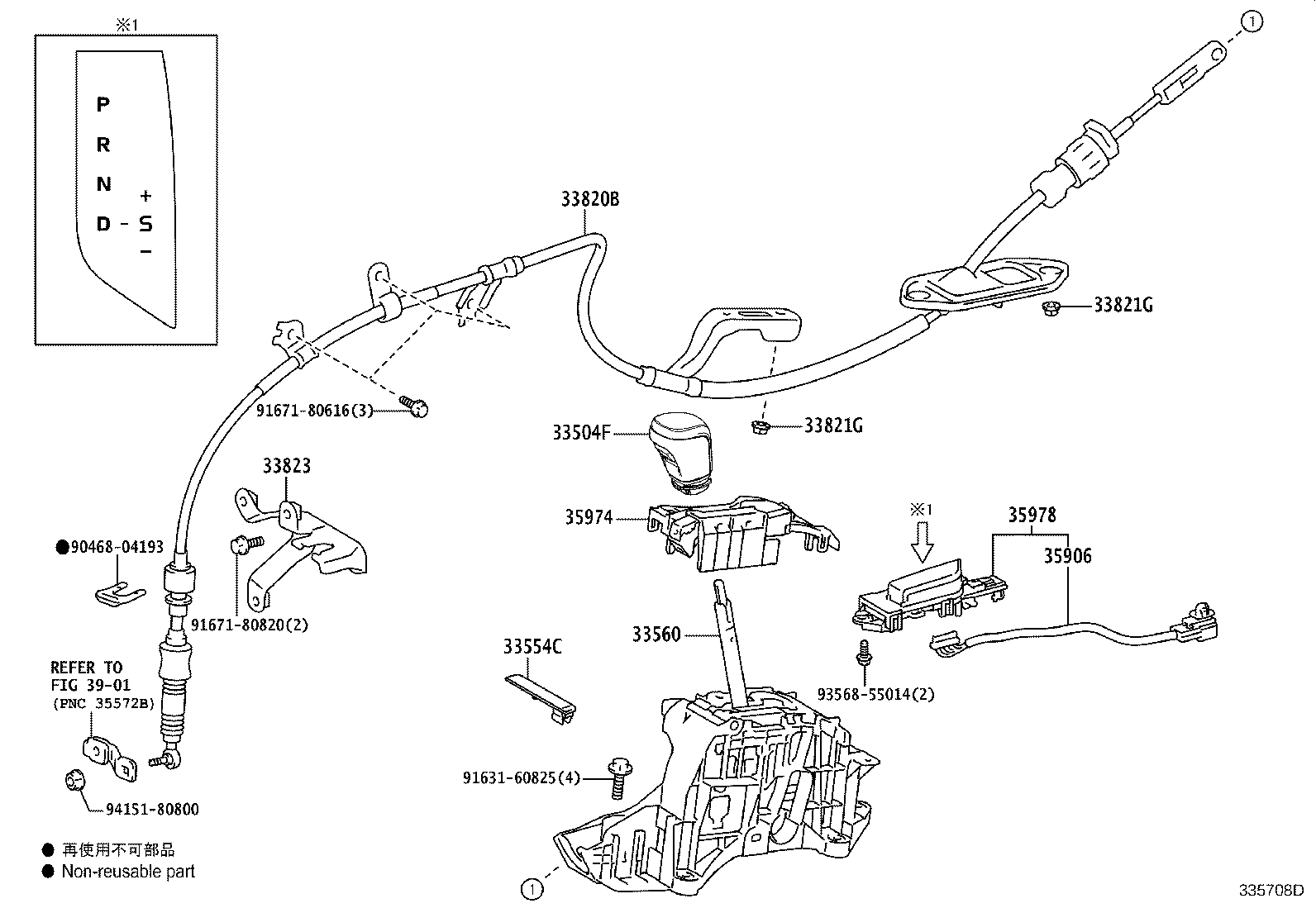

AXVH71R-AEXDBQ (2017)
Toyota Camry/Hybrid
(1804- )AXVH71..D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-33170C0 |
AXVH71..ARL BLACK,TRIM1#,2# |
1 | ||
| 33504-33180C0 |
AXVH71..ARL ATARA S,BLACK,TRIM2#,4# |
1 | ||
| 33504-33180C0 |
AXVH71..ARL ATARA SL,BLACK,TRIM2#,4# |
1 | ||
| 33504-12770C0 |
AXVH71..ARL ATARA S,BLACK,TRIM2# |
1 | ||
| 33504-12770C0 |
AXVH71..ARL ATARA SL,BLACK,TRIM2# |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-33180 |
AXVH71..ARL |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-33400 |
AXVH71..ARL |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-33510 |
AXVH71..ARL |
1 | ||
| 33820-33430 |
AXVH71..ARL |
1 | ||
| 33820-33410 |
AXVH71..D |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-06274 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
4 | ||
| 90179-06274 |
AXVH71..ARL |
4 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-06274 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
4 | ||
| 90179-06274 |
AXVH71..ARL |
4 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-33080 |
AXVH71..ARL |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-33210 |
AXVH71..ARL |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-33250 |
AXVH71..ARL |
1 | ||
| 35978 - INDICATOR, SHIFT POSITION | ||||
| 35978-33210 |
AXVH71..ARL |
1 | ||
| Common parts | ||||
| 90468-04193 | ||||
| 91631-60825 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 3901 | ||||
(1712- )AXVH7#..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-33170C0 |
AXVH71..ARL BLACK,TRIM1#,2# |
1 | ||
| 33504-33180C0 |
AXVH71..ARL ATARA S,BLACK,TRIM2#,4# |
1 | ||
| 33504-33180C0 |
AXVH71..ARL ATARA SL,BLACK,TRIM2#,4# |
1 | ||
| 33504-12770C0 |
AXVH71..ARL ATARA S,BLACK,TRIM2# |
1 | ||
| 33504-12770C0 |
AXVH71..ARL ATARA SL,BLACK,TRIM2# |
1 | ||
| 33554C - COVER, SHIFT LOCK RELEASE BUTTON | ||||
| 33554-33180 |
AXVH71..ARL |
1 | ||
| 33560 - UNIT ASSY, SHIFT LOCK CONTROL | ||||
| 33560-33400 |
AXVH71..ARL |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-33510 |
AXVH71..ARL |
1 | ||
| 33820-33430 |
AXVH71..ARL |
1 | ||
| 33820-33410 |
AXVH71..D |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-06274 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
4 | ||
| 90179-06274 |
AXVH71..ARL |
4 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-06274 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
4 | ||
| 90179-06274 |
AXVH71..ARL |
4 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-33080 |
AXVH71..ARL |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-33210 |
AXVH71..ARL |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-33250 |
AXVH71..ARL |
1 | ||
| 35978 - INDICATOR, SHIFT POSITION | ||||
| 35978-33210 |
AXVH71..ARL |
1 | ||
| Common parts | ||||
| 90468-04193 | ||||
| 91631-60825 | ||||
| 91671-80616 | ||||
| 91671-80820 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 3901 | ||||
