AXVH71R-AEXDBQ (2017)

Toyota Camry/Hybrid

Production Dec 2017 - Jul 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1712- )A25AFXS

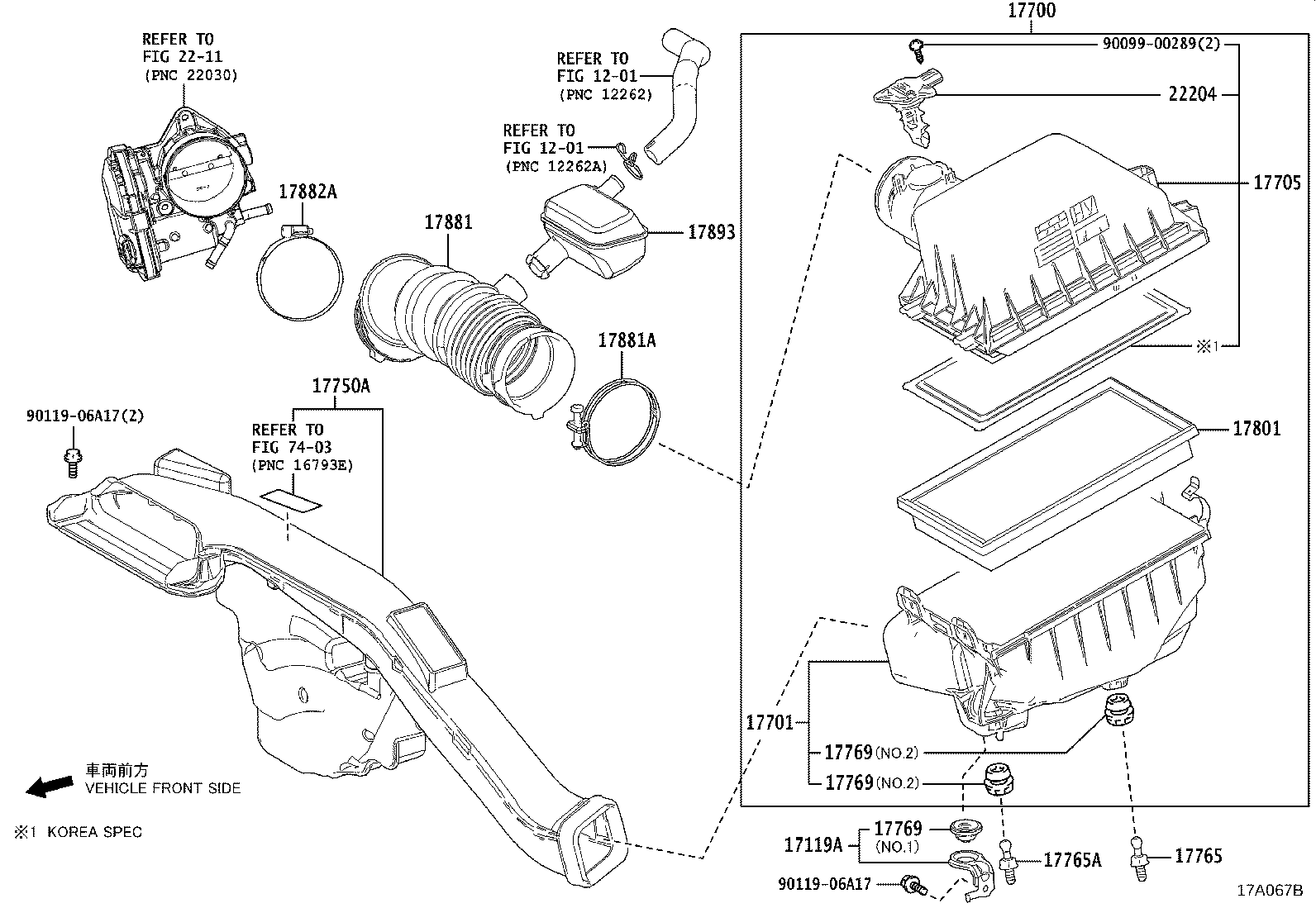

Click highlighted areas on diagram

diagram 1201 1201 17119A 17700 17701 17705 17750A 17765 17765A 17769 17769 17769 17801 17881 17881A 17882A 17893 2211 22204 7403 9009900289 9011906A17 9011906A17
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-25010

A25AFXS..AXVH71..ARL

 1
17119-25010

A25AFXS..AXVH71..D;A25#,2ARFE..ASV70,AXVA70,AXVH70

 1
17700 - CLEANER ASSY, AIR
17700-25100

A25AFXS..AXVH71

 1
17700-25101

A25AFXS..AXVH71..ARL

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-25080

A25AFXS..AXVH71

 1
17701-25081

A25AFXS..AXVH71..ARL

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-25070

A25AFXS..AXVH71..ARL

 1
17750A - INLET ASSY, AIR CLEANER
17750-25020

A25AFXS..AXVH71..ARL

 1
17765 - STAY, AIR CLEANER, NO.1
17765-25010

A25AFXS..AXVH71..ARL

 1
17765A - STAY, AIR CLEANER, NO.1
17765-25010

A25AFXS..AXVH71..ARL

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-77050

A25AFXS..AXVH71..ARL

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-25030

A25AFXS..AXVH71..ARL

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10850

A25AFXS..AXVH71..ARL

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
17891-31010

A25AFXS..AXVH71..ARL

 1
17893 - RESONATOR, INTAKE AIR
17893-25010

A25AFXS..AXVH71..ARL

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75040

A25AFXS..AXVH71..ARL

 1
Common parts
90099-00289
90119-06A17
Linked diagrams
1201
2211
7403
