AXVH71L-AEXDBV (2018)
Toyota Camry/Hybrid

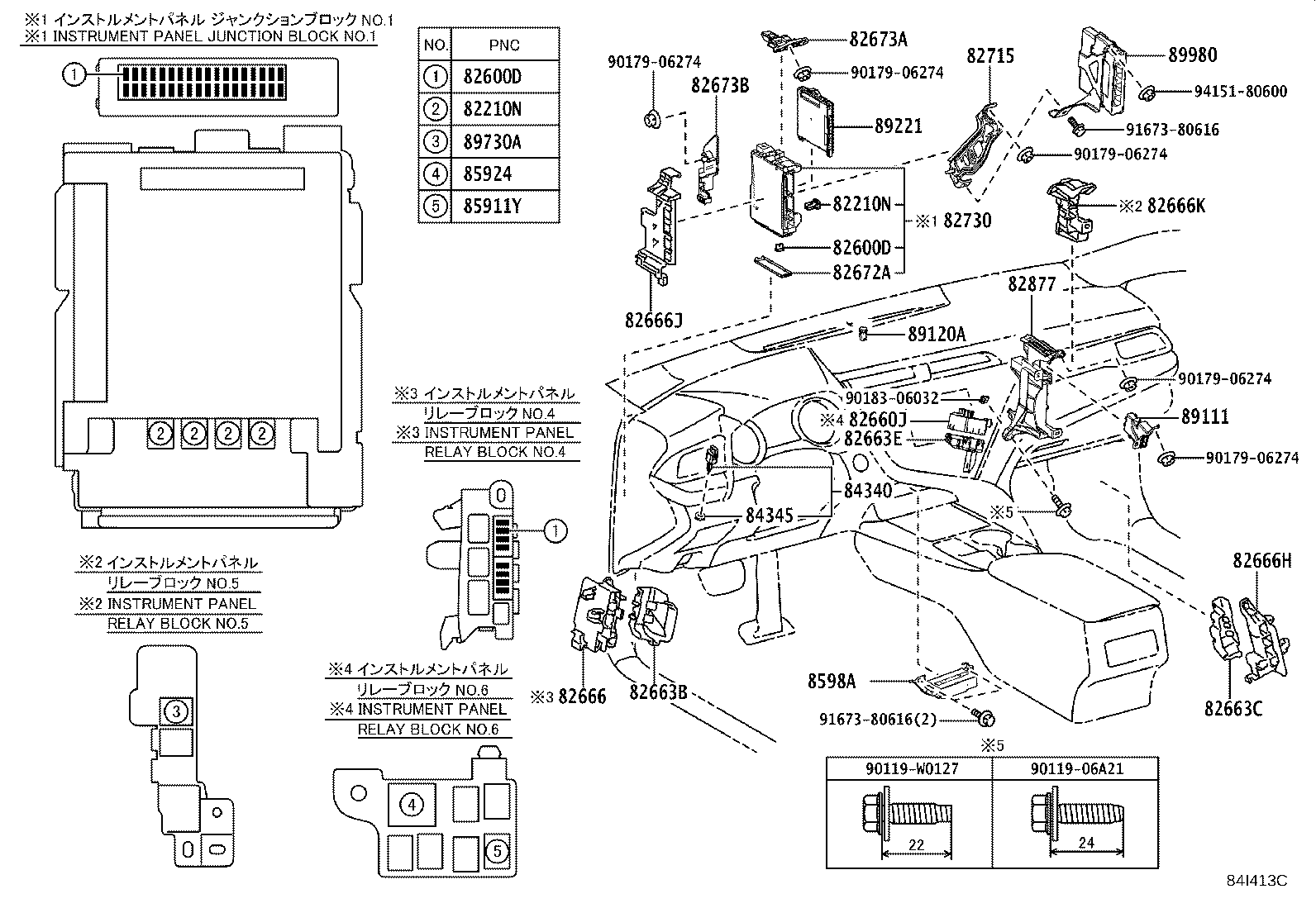

ILLUST NO. 3 OF 7(1709-2102)LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASV70,AXVA70,AXVH7#,GSV70 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ASV70,AXVA70,AXVH7#,GSV70 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
ASV70,AXVA70,AXVH7#,GSV70 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
AXVH71..GCC 15A,MINI FUSE,BLUE,AUDIO-7INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09021 |
ASV70,AXVA70,AXVH7#,GSV70 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
AXVH71..GCC 10A,MINI FUSE,RED,AUDIO-7INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09024 |
ASV70,AXVA70,AXVH71,GSV70 25A,MINI FUSE |
1 | ||
| 90982-09019 |
ASV70,AXVA70,AXVH7#,GSV70 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
ASV70,AXVA70,AXVH7#,GSV70 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
AXVH71..GCC 10A,MINI FUSE,RED,CONVENIENT PACKAGE&GLE&AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09021 |
AXVH71..GCC 10A,MINI FUSE,RED,GLE&AUDIO-7INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09021 |
AXVH71..GCC 10A,MINI FUSE,RED,EXCLUSIVE PACKAGE&LIMITED&MOON ROOF-WITH(TILT & SLIDE)&AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09022 |
AXVH71..GCC 15A,MINI FUSE,BLUE,EXCLUSIVE PACKAGE&LIMITED&MOON ROOF-WITH(TILT & SLIDE)&AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09022 |
AXVH71..GCC 15A,MINI FUSE,BLUE,CONVENIENT PACKAGE&GLE&MOON ROOF-WITH(TILT & SLIDE)&AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09023 |
ASV70,AXVA70,AXVH7#,GSV70 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
AXVH71..GCC 10A,MINI FUSE,RED,LIMITED&MOON ROOF-WITH(TILT & SLIDE)&AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09022 |
AXVH71..GCC 15A,MINI FUSE,BLUE,GLE&MOON ROOF-WITH(TILT & SLIDE)&AUDIO-7INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09021 |
AXVH71..GCC 10A,MINI FUSE,RED,CONVENIENT PACKAGE&GLE&MOON ROOF-WITH(TILT & SLIDE)&AUDIO-8INCHDISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09021 |
AXVH71..GCC 10A,MINI FUSE,RED,GLE&MOON ROOF-WITH(TILT & SLIDE)&AUDIO-7INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09022 |
AXVH71..GCC 15A,MINI FUSE,BLUE,LIMITED&MOON ROOF-WITH(TILT & SLIDE)&AUDIO-8INCH DISPLAY & DVD& 6SPEAKER |
1 | ||
| 90982-09022 |
AXVH71..GCC 15A,MINI FUSE,BLUE,CONVENIENT PACKAGE&GLE&AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09022 |
AXVH71..GCC 15A,MINI FUSE,BLUE,GLE&AUDIO-7INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
ASV70,AXVA70,AXVH7#,GSV70 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
AXVH71..GCC 15A,MINI FUSE,BLUE,AUDIO-7INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09021 |
ASV70,AXVA70,AXVH7#,GSV70 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
AXVH71..GCC 10A,MINI FUSE,RED,AUDIO-7INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09024 |
ASV70,AXVA70,AXVH71,GSV70 25A,MINI FUSE |
1 | ||
| 90982-09019 |
ASV70,AXVA70,AXVH7#,GSV70 5A,MINI FUSE,TAN |
1 | ||
| 90982-09022 |
ASV70,AXVA70,AXVH7#,GSV70 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
AXVH71..GCC 10A,MINI FUSE,RED,CONVENIENT PACKAGE&GLE&AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09021 |
AXVH71..GCC 10A,MINI FUSE,RED,GLE&AUDIO-7INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09021 |
AXVH71..GCC 10A,MINI FUSE,RED,EXCLUSIVE PACKAGE&LIMITED&MOON ROOF-WITH(TILT & SLIDE)&AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09022 |
AXVH71..GCC 15A,MINI FUSE,BLUE,EXCLUSIVE PACKAGE&LIMITED&MOON ROOF-WITH(TILT & SLIDE)&AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09022 |
AXVH71..GCC 15A,MINI FUSE,BLUE,CONVENIENT PACKAGE&GLE&MOON ROOF-WITH(TILT & SLIDE)&AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09023 |
ASV70,AXVA70,AXVH7#,GSV70 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09021 |
AXVH71..GCC 10A,MINI FUSE,RED,LIMITED&MOON ROOF-WITH(TILT & SLIDE)&AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09022 |
AXVH71..GCC 15A,MINI FUSE,BLUE,GLE&MOON ROOF-WITH(TILT & SLIDE)&AUDIO-7INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09021 |
AXVH71..GCC 10A,MINI FUSE,RED,CONVENIENT PACKAGE&GLE&MOON ROOF-WITH(TILT & SLIDE)&AUDIO-8INCHDISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09021 |
AXVH71..GCC 10A,MINI FUSE,RED,GLE&MOON ROOF-WITH(TILT & SLIDE)&AUDIO-7INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09022 |
AXVH71..GCC 15A,MINI FUSE,BLUE,LIMITED&MOON ROOF-WITH(TILT & SLIDE)&AUDIO-8INCH DISPLAY & DVD& 6SPEAKER |
1 | ||
| 90982-09022 |
AXVH71..GCC 15A,MINI FUSE,BLUE,CONVENIENT PACKAGE&GLE&AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 90982-09022 |
AXVH71..GCC 15A,MINI FUSE,BLUE,GLE&AUDIO-7INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 82660J - BLOCK ASSY, RELAY | ||||
| 82660-33060 |
AXVH71..D |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-33240 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-33250 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-33570 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-33580 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82666J - HOLDER, CONNECTOR, NO.3 | ||||
| 82666-33630 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82666K - HOLDER, CONNECTOR, NO.4 | ||||
| 82666-33640 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-33391 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 82672-33390 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-33120 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-33150 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-33Q30 |
AXVH71;ASV70,GSV70..ARL |
1 | ||
| 82730-33Q31 |
AXVH71;ASV70,AXVH70,GSV70..ARL,TAIW |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49075 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 85911Y - RELAY, FRONT SEAT HEATER | ||||
| 90987-02027 |
AXVH71..GCC EXCLUSIVE PACKAGE |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-10060 |
AXVH7# |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-33S00 |
AXVH71..GCC WITHOUT(DESTINATION PACKAGE(EXCEPT ERP))&GLE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-33S00 |
AXVH71..GCC WITHOUT(DESTINATION PACKAGE(EXCEPT ERP))&LIMITED&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-33S00 |
AXVH71..GCC QATAR SPEC&GLE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-33S00 |
AXVH71..GCC QATAR SPEC&LIMITED&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-33R90 |
AXVH71..GCC WITHOUT(DESTINATION PACKAGE(EXCEPT ERP)) |
1 | ||
| 89220-33S20 |
AXVH71..GCC LIMITED&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-33S20 |
AXVH71..GCC GLE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-33R90 |
AXVH71..GCC QATAR SPEC |
1 | ||
| 89220-33Z60 |
AXVH71..GCC WITHOUT(DESTINATION PACKAGE(EXCEPT ERP)) |
1 | ||
| 89220-33Z70 |
AXVH71..GCC WITHOUT(DESTINATION PACKAGE(EXCEPT ERP))&LIMITED&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-33Z60 |
AXVH71..GCC QATAR SPEC |
1 | ||
| 89220-33Z70 |
AXVH71..GCC QATAR SPEC&GLE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-33Z70 |
AXVH71..GCC QATAR SPEC&LIMITED&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-33Z80 |
AXVA70..LE;AXVH71..GCC |
1 | ||
| 89220-3T140 |
AXVH71..GCC JORDAN SPEC |
1 | ||
| 89220-3T150 |
AXVH71..GCC JORDAN SPEC&GLE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-33Z90 |
AXVH71..GCC GLE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-33Z70 |
AXVH71..GCC WITHOUT(DESTINATION PACKAGE(EXCEPT ERP))&GLE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-3T180 |
AXVH71..GCC QATAR SPEC |
1 | ||
| 89220-3T150 |
AXVH71..GCC JORDAN SPEC&LIMITED&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-3T190 |
AXVH71..GCC WITHOUT(DESTINATION PACKAGE(EXCEPT ERP))&GLE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-33Z90 |
AXVH71..GCC LIMITED&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-3T190 |
AXVH71..GCC QATAR SPEC&LIMITED&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-3T190 |
AXVH71..GCC QATAR SPEC&GLE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-3T180 |
AXVH71..GCC WITHOUT(DESTINATION PACKAGE(EXCEPT ERP)) |
1 | ||
| 89220-3T360 |
AXVH71..GCC JORDAN SPEC |
1 | ||
| 89220-3T370 |
AXVH71..GCC JORDAN SPEC&GLE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-3T200 |
AXVA70..LE;AXVH71..GCC |
1 | ||
| 89220-3T210 |
AXVH71..GCC GLE&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-3T190 |
AXVH71..GCC WITHOUT(DESTINATION PACKAGE(EXCEPT ERP))&LIMITED&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-3T370 |
AXVH71..GCC JORDAN SPEC&LIMITED&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89220-3T210 |
AXVH71..GCC LIMITED&MOON ROOF-WITH(TILT & SLIDE) |
1 | ||
| 89980 - COMPUTER ASSY, HYBRID VEHICLE CONTROL | ||||
| 89980-33640 |
AXVH71 |
1 | ||
| 89980-33160 |
AXVH71..D |
1 | ||
| Common parts | ||||
| 90119-06A21 | ||||
| 90119-W0127 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||

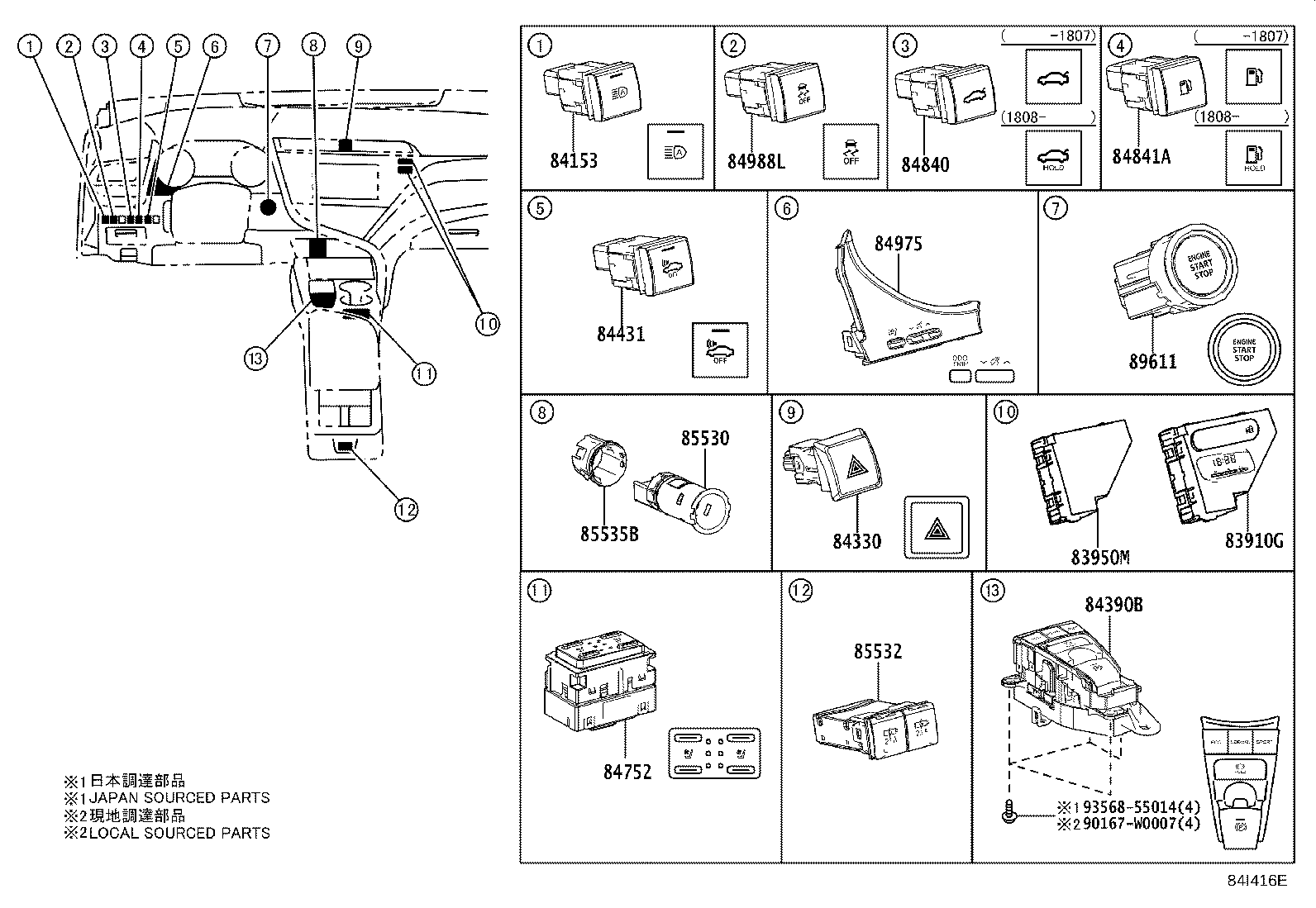

ILLUST NO. 4 OF 7(1709-2102)LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 83910-33260 |
AXVH71..GCC GLE |
1 | ||
| 83910-33260 |
AXVH71..GCC AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 83910-33260 |
AXVH71..GCC LIMITED |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-33070 |
AXVH71..GCC AUDIO-8INCH DISPLAY & DVD & 6SPEAKER |
1 | ||
| 83950-33070 |
AXVH71..GCC CONVENIENT PACKAGE&GLE |
1 | ||
| 83950-33070 |
AXVH71..GCC LIMITED |
1 | ||
| 83950-33110 |
AXVH71..GCC GLE |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-33040 |
AXVH71..GCC EXCLUSIVE PACKAGE |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-33010 |
AXVH71..D |
1 | ||
| 84390-33090 |
AXVH71..D |
1 | ||
| 84752 - SWITCH, REFRESHING SEAT | ||||
| 84752-33110 |
AXVH71..GCC EXCLUSIVE PACKAGE |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-33120 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 84840-33121 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-33041 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 84841-33040 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-33100 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-52010 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-33010 |
AXVH71..GCC LIMITED |
1 | ||
| 85532-33020 |
AXVH71..GCC LIMITED |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-33100 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| Common parts | ||||
| 90167-W0007 | ||||
| 93568-55014 | ||||
