AXVH71L-AEXDBV (2018)

Toyota Camry/Hybrid

Production Apr 2018 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

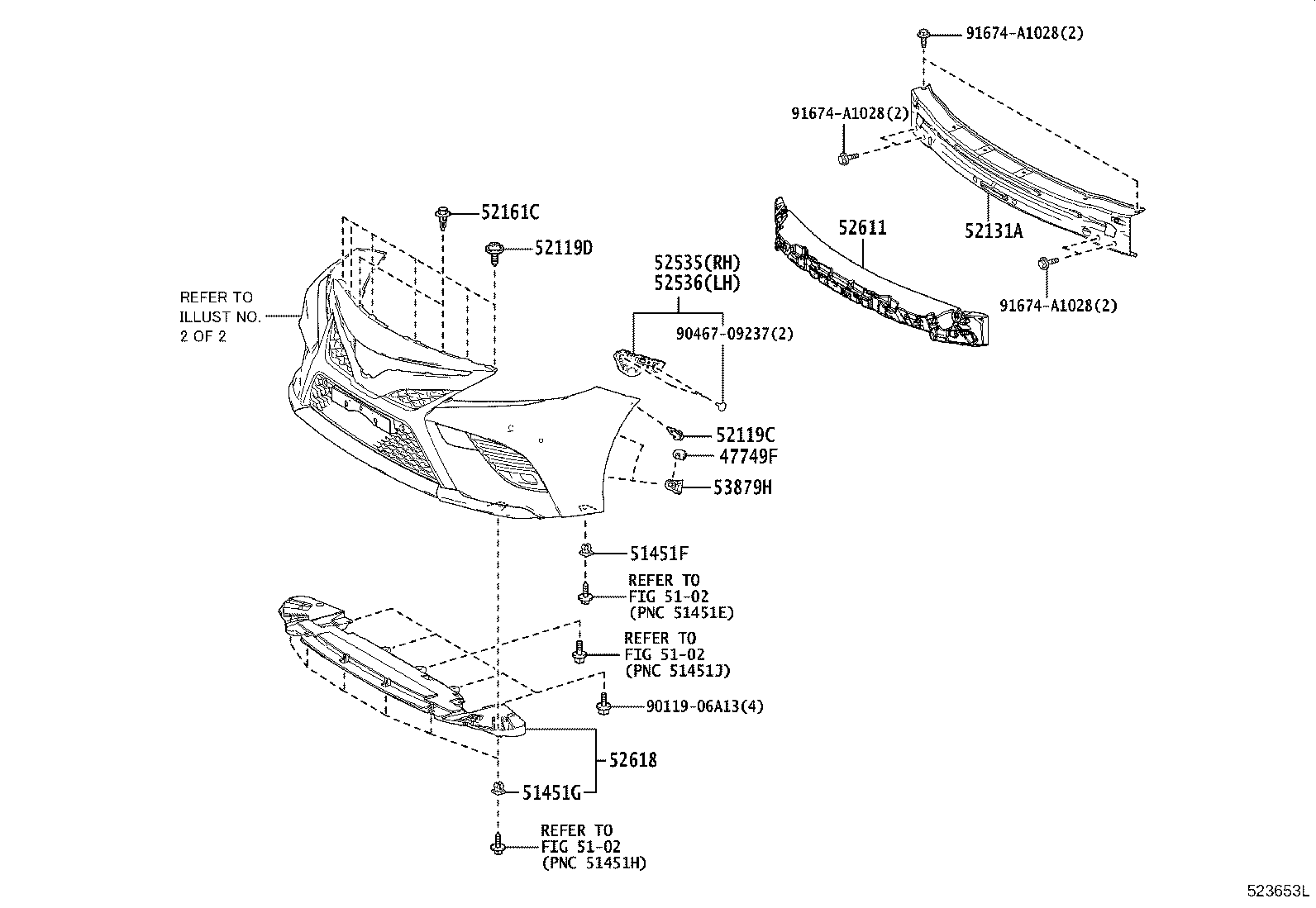

ILLUST NO. 1 OF 2(1709-2102)SE ; (1709-2102)N,V

Click highlighted areas on diagram

diagram 47749F 5102 5102 5102 51451F 51451G 52119C 52119D 52131A 52161C 52535 52536 52611 52618 53879H 9011906A13 9046709237 91674A1028 91674A1028 91674A1028
Part # Description Qty Price
47749F - CLIP, PIN HOLD
47749-33030

ASV70,AXVA70,AXVH7#,GSV70

 4
51451F - GROMMET, NO.1
90189-06237

ASV70,AXVA70,AXVH7#,GSV70

 2
51451G - GROMMET, NO.2
90189-06237

ASV70,AXVA70,AXVH7#,GSV70

 6
52119C - CLIP, FRONT BUMPER COVER
90467-05170

ASV70,AXVA70,AXVH7#,GSV70

 2
52131A - REINFORCEMENT, FRONT BUMPER
52131-33180

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
52161C - PIECE, FRONT BUMPER
52161-16010

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-33060

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-33060

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-33300

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-33060

AXVH71;ASV70..D;ASV70,AXVA70,GSV70..GLE,LE,LIMD

 1
52618-33110

ASV70,AXVH7#..D;ASV70,AXVA70,GSV70..GLE,LE,LIMD

 1
53879H - RETAINER, FRONT FENDER LINER
53879-33030

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 4
Common parts
90119-06A13
90467-09237
91674-A1028
Linked diagrams
5102

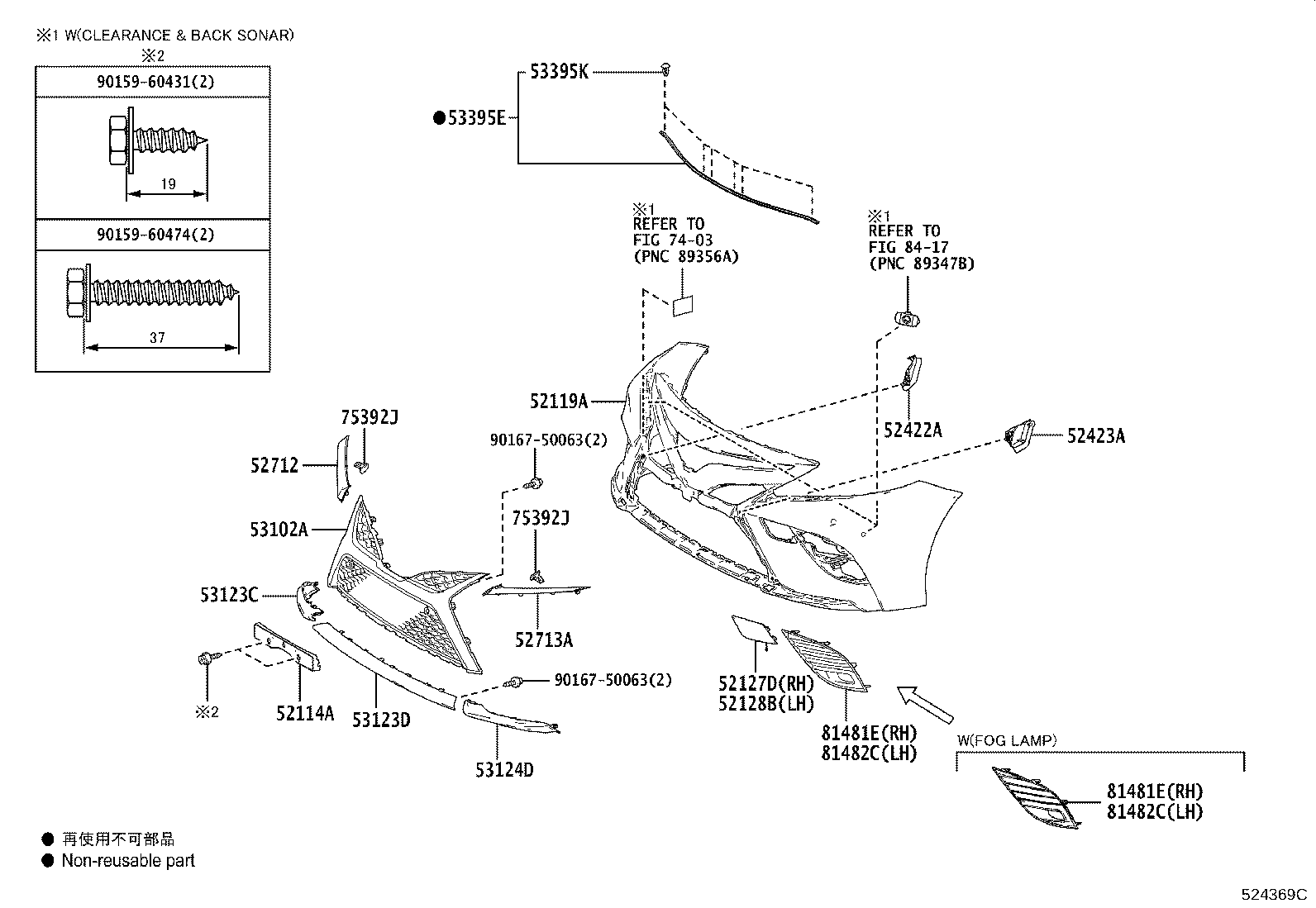

ILLUST NO. 2 OF 2(1709-2102)SE ; (1709-2102)N,V

Click highlighted areas on diagram

diagram 52114A 52119A 52127D 52128B 52422A 52423A 52712 52713A 53102A 53123C 53123D 53124D 53395E 53395K 7403 75392J 75392J 81481E 81481E 81482C 81482C 8417 9015960431 9015960474 9016750063 9016750063
Part # Description Qty Price
52119A - COVER, FRONT BUMPER
52119-3T933

AXVH71..GCC

PAINT REQ.,CONVENIENT PACKAGE&GLE

 1
52119-3T933

AXVH71..GCC

PAINT REQ.,LIMITED

 1
53102A - GRILLE SUB-ASSY, RADIATOR, LWR
53102-33220

AXVH71..GCC

LIMITED

 1
53102-33160

AXVH71..GCC

GLE

 1
53395K - CLIP(FOR HOOD TO FRONT END PANEL SEAL)
90467-04032

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 6
Common parts
90159-60431
90159-60474
90167-50063
Linked diagrams
7403
8417
