AXVH71L-AEXDBV (2018)
Toyota Camry/Hybrid
Production
Apr 2018
-
Feb 2021
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1804-2102)AXVH71..D ; (2102- )AXVH71

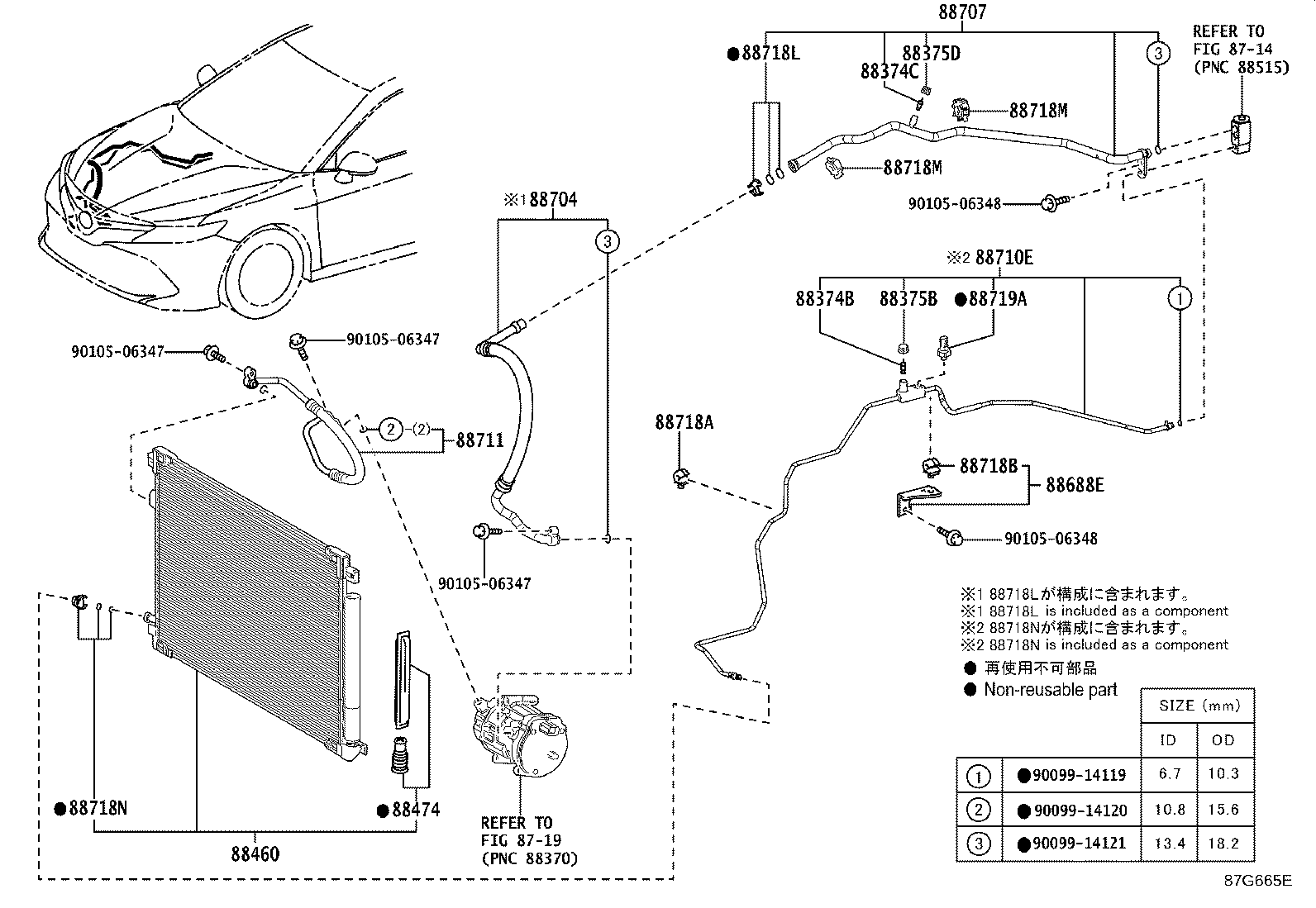

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12020 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-33190 |
AXVH71..D |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-33580 |
AXVH71..D |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-58050 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 88718N - CLAMP, PIPING | ||||
| 88718-1E150 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-06347 | ||||
| 90105-06348 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
