AXVH71L-AEXDBV (2018)
Toyota Camry/Hybrid
Production
Apr 2018
-
Feb 2021
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1709- )

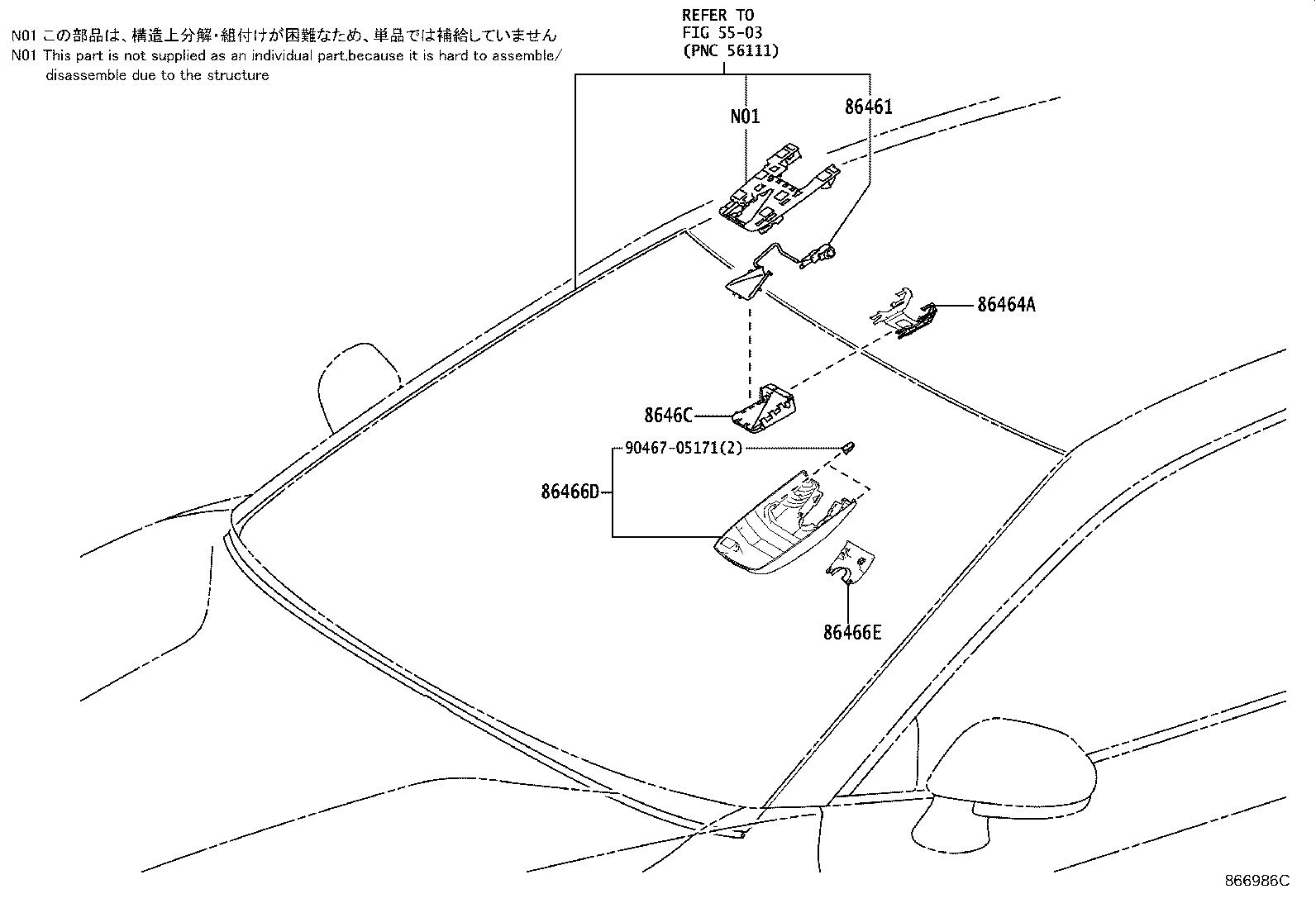

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86464A - LATCH, FORWARD RECOGNITION | ||||
| 86464-71010 |
AXVH71..GCC EXCLUSIVE PACKAGE |
1 | ||
| 86466D - COVER, FORWARD RECOGNITION, NO.1 | ||||
| 86466-33060 |
AXVH71..GCC EXCLUSIVE PACKAGE |
1 | ||
| 86466E - COVER, FORWARD RECOGNITION, NO.2 | ||||
| 86466-33070 |
AXVH71..GCC EXCLUSIVE PACKAGE |
1 | ||
| 8646C - CAMERA, FORWARD RECOGNITION | ||||
| 8646C-06070 |
AXVH71..GCC EXCLUSIVE PACKAGE |
1 | ||
| 8646C-06030 |
AXVH71..GCC EXCLUSIVE PACKAGE |
1 | ||
| 8646C-06050 |
AXVH71..GCC EXCLUSIVE PACKAGE |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| Linked diagrams | ||||
| 5503 | ||||
