AXVH71L-AEXDBV (2018)
Toyota Camry/Hybrid

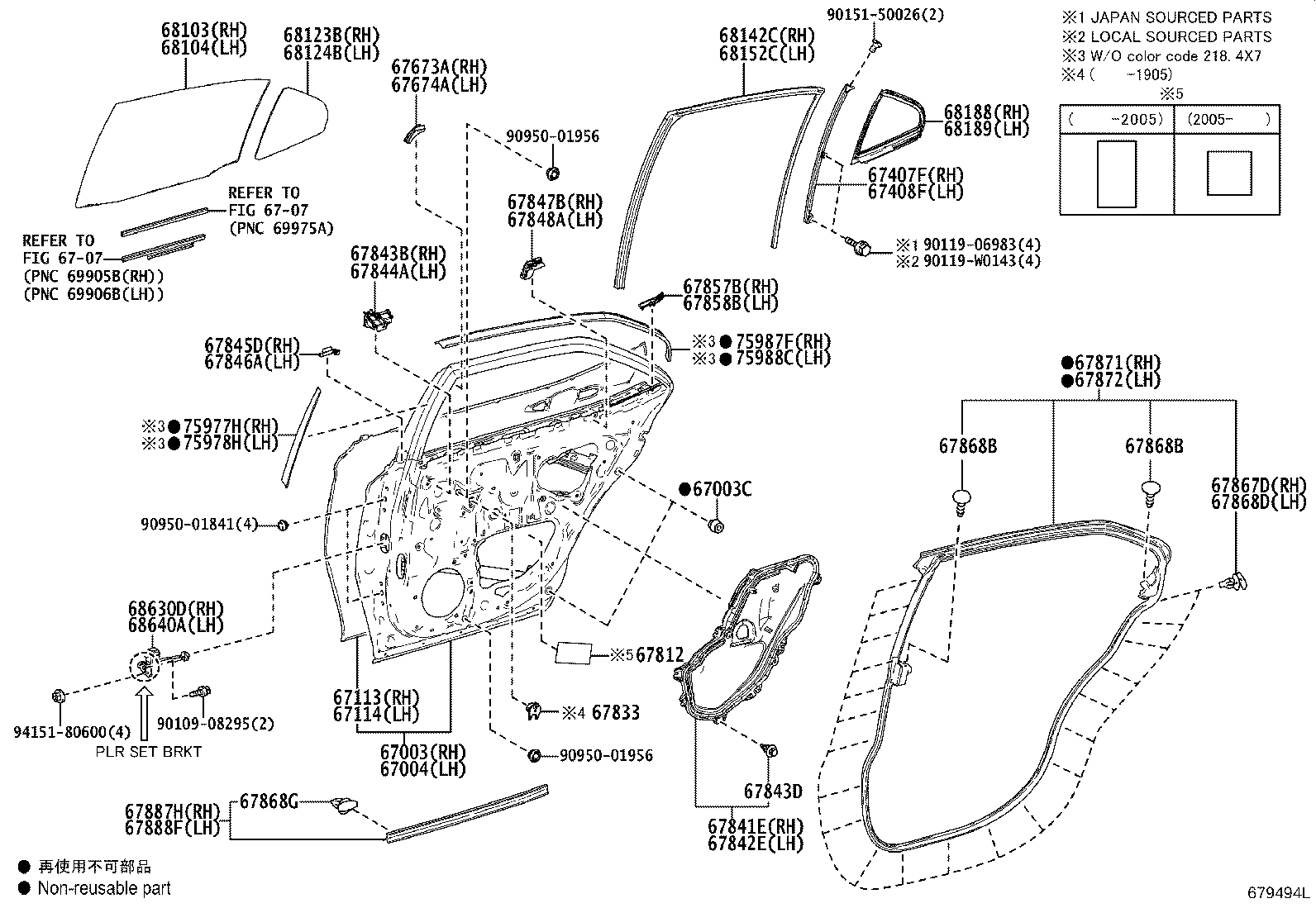

ILLUST NO. 1 OF 2(1709- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-33270 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09143 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
4 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-33260 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-33110 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-33110 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-33130 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-33130 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-33150 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-33150 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67811-33040 |
ASV70,AXVA70,AXVH71,GSV70 |
2 | ||
| 67811-12180 |
ASV70,AXVA70,AXVH7#,GSV70 |
2 | ||
| 67833 - COVER, REAR DOOR SERVICE HOLE | ||||
| 67833-47010 |
ASV70,AXVA70,AXVH71,GSV70 |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-33140 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-33140 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67843B - COVER, REAR DOOR SERVICE HOLE, NO.2 RH | ||||
| 67843-33050 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 67843-33051 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67843D - CLIP, REAR DOOR SERVICE HOLE | ||||
| 90467-09206 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
16 | ||
| 67844A - COVER, REAR DOOR SERVICE HOLE, NO.2 LH | ||||
| 67844-33050 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 67844-33051 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67845D - SEAL, REAR DOOR FRONT OUTSIDE, RH | ||||
| 67845-33020 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67846A - SEAL, REAR DOOR FRONT OUTSIDE, LH | ||||
| 67846-33030 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67847B - SEAL, REAR DOOR VENT, RH NO.1 | ||||
| 67847-33030 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67848A - SEAL, REAR DOOR VENT, LH NO.1 | ||||
| 67848-33020 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67857B - PROTECTOR, REAR DOOR PANEL, RH | ||||
| 67857-33070 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67858B - PROTECTOR, REAR DOOR PANEL, LH | ||||
| 67858-33070 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
21 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30030 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
4 | ||
| 67868B - CLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR) | ||||
| 67868-30030 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
4 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
21 | ||
| 67868G - RETAINER, DOOR WEATHERSTRIP | ||||
| 67867-52030 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
10 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-33120 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-33120 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67887H - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-33050 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 67888F - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67887-33050 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-33290 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-33290 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-33220 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-33220 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-33130 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-33130 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-33080 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-33080 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 75977H - STRIPE, REAR DOOR OUTSIDE, LOWER RH | ||||
| 75977-33040 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75978H - STRIPE, REAR DOOR OUTSIDE, LOWER LH | ||||
| 75978-33040 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75987F - STRIPE, REAR DOOR, OUTSIDE, RH | ||||
| 75987-33080 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75988C - STRIPE, REAR DOOR, OUTSIDE LH | ||||
| 75988-33080 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 0 OR 1PIECE,REF.ILL. |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90119-W0143 | ||||
| 90151-50026 | ||||
| 90950-01841 | ||||
| 90950-01956 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 6707 | ||||
ILLUST NO. 2 OF 2(1709- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-33D4023 |
AXVH71..GCC LIMITED&MOON ROOF-WITH(TILT & SLIDE),BLACK/BLACK/S.BLACK/C.BR,TRIM2# |
1 | ||
| 67630-33D40E2 |
AXVH71..GCC LIMITED&MOON ROOF-WITH(TILT & SLIDE),NEUTRAL BEIGE/FROMAGE,TRIM4# |
1 | ||
| 67630-33D40P0 |
AXVH71..GCC LIMITED&MOON ROOF-WITH(TILT & SLIDE),NW.GRAY/GRAY/S.BLACK,TRIM1# |
1 | ||
| 67630-33D20C1 |
ASV70,AXVA70..GLE,LE;ASV70,AXVH7#..(D,N)..(ARL,GCC) BLACK,TRIM2# |
1 | ||
| 67630-33D90C1 |
AXVH71..GCC LIMITED&MOON ROOF-WITH(TILT & SLIDE),BLACK/BLACK/S.BLACK,TRIM2# |
1 | ||
| 67630-33D90E0 |
AXVH71..GCC LIMITED&MOON ROOF-WITH(TILT & SLIDE),N.BEIGE/FROMAGE/NW.GRAY,TRIM4# |
1 | ||
| 67630-33D90B0 |
AXVH71..GCC LIMITED&MOON ROOF-WITH(TILT & SLIDE),NW.GRAY/GRAY/S.BLACK,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
16 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-33D40P0 |
AXVH71..GCC LIMITED&MOON ROOF-WITH(TILT & SLIDE),NW.GRAY/GRAY/S.BLACK,TRIM1# |
1 | ||
| 67640-33D4023 |
AXVH71..GCC LIMITED&MOON ROOF-WITH(TILT & SLIDE),BLACK/BLACK/S.BLACK/C.BR,TRIM2# |
1 | ||
| 67640-33D20C1 |
ASV70,AXVA70..GLE,LE;ASV70,AXVH7#..(D,N)..(ARL,GCC) BLACK,TRIM2# |
1 | ||
| 67640-33D40E2 |
AXVH71..GCC LIMITED&MOON ROOF-WITH(TILT & SLIDE),NEUTRAL BEIGE/FROMAGE,TRIM4# |
1 | ||
| 67640-33F00B0 |
AXVH71..GCC LIMITED&MOON ROOF-WITH(TILT & SLIDE),NW.GRAY/GRAY/S.BLACK,TRIM1# |
1 | ||
| 67640-33F00C1 |
AXVH71..GCC LIMITED&MOON ROOF-WITH(TILT & SLIDE),BLACK/BLACK/S.BLACK,TRIM2# |
1 | ||
| 67640-33F00E0 |
AXVH71..GCC LIMITED&MOON ROOF-WITH(TILT & SLIDE),N.BEIGE/FROMAGE/NW.GRAY,TRIM4# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-33101 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 68173-33100 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-33100 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 68174-33101 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| Common parts | ||||
| 67923-33050 | ||||
| 90159-60370 | ||||
| 90164-40105 | ||||
| 90333-25003 | ||||
| 90901-89021 | ||||
| Linked diagrams | ||||
| 8121 | ||||
