AXVH71L-AEXDBV (2018)
Toyota Camry/Hybrid
(1804- )AXVH71..D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55239F - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-33030 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 55239F - PLATE, DASH PANEL INSULATOR, NO.3 | ||||
| 55239-33030 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-33060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-33050 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 57405D - RAIL SUB-ASSY, FLOOR SIDE, CENTER RH | ||||
| 57405-33020 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 57406C - RAIL SUB-ASSY, FLOOR SIDE, CENTER LH | ||||
| 57406-33020 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 57419G - REINFORCEMENT, FRONT FLOOR UNDER, REAR RH | ||||
| 57419-33080 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 57429 - REINFORCEMENT, FRONT FLOOR UNDER, REAR LH | ||||
| 57419-33080 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 57465A - GUSSET, CENTER FLOOR CROSSMEMBER, RH | ||||
| 57465-33021 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 57465-33020 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 57466A - GUSSET, CENTER FLOOR CROSSMEMBER, LH | ||||
| 57466-33010 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH | ||||
| 57475-33020 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH | ||||
| 57476-33020 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 57523A - BRACE, CENTER FLOOR CROSSMEMBER | ||||
| 57523-33010 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 57533B - BRACE, FRONT FLOOR, CENTER | ||||
| 57533-33040 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 58088 - BRACKET SUB-ASSY, FLOOR SHIFT LINK | ||||
| 58088-33011 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 58109 - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58109-33010 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 58109-33011 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-33110 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 58111-33111 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-33011 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 58112-33010 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-33010 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 58113-33011 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-33010 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-33010 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 58136B - COVER, CENTER FLOOR HOLE | ||||
| 58136-33020 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 58177A - EXTENSION, FRONT FLOOR PANEL, RH | ||||
| 58177-33010 |
ASV70,AXVA70,AXVH71,GSV70 |
1 | ||
| 58177-33011 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 58189 - REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET | ||||
| 58189-33080 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH | ||||
| 58203-33040 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH | ||||
| 58204-33040 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-33902 |
AXVH7#..D |
1 | ||
| 58301G - PAN SUB-ASSY, REAR FLOOR | ||||
| 58301-33907 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 58303J - REINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, RH | ||||
| 58303-33040 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 58304J - REINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH | ||||
| 58304-33030 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-33180 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 58316C - EXTENSION, REAR FLOOR SIDE PANEL, LH | ||||
| 58316-33030 |
ASV70,AXVA70,AXVH7#,GSV70 |
1 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-33060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 58385D - BRACKET, REAR BUMPER COVER | ||||
| 58385-33060 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| Common parts | ||||
| 46422-33020 | ||||
| 90115-06166 | ||||
| 90119-08D20 | ||||
| 90179-08261 | ||||
| 91551-80828 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||

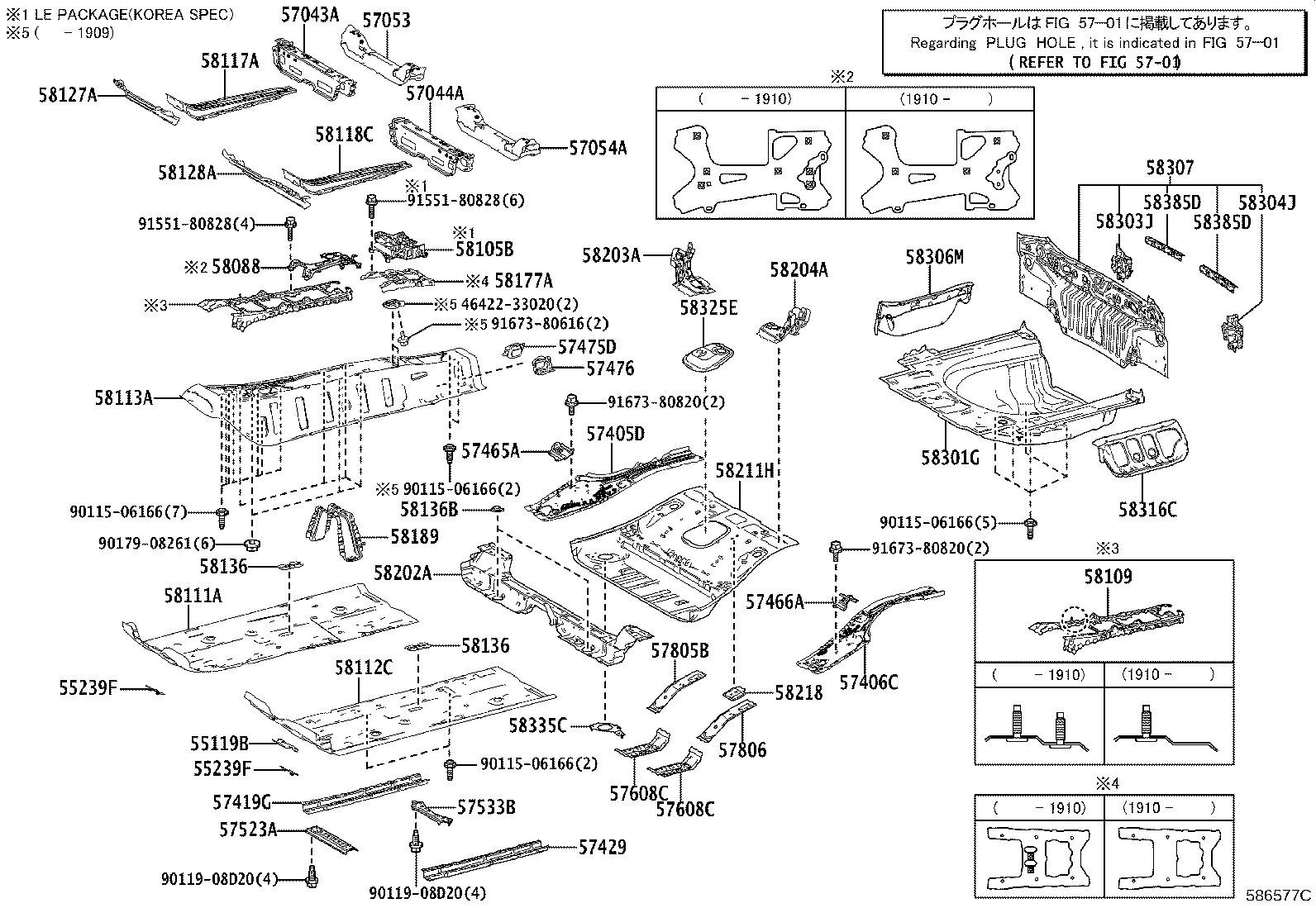

| Linked diagrams | ||||
| 5701 | ||||
