AXVH71L-AEXDBV (2018)
Toyota Camry/Hybrid
Production
Apr 2018
-
Feb 2021
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1804- )AXVH71..D

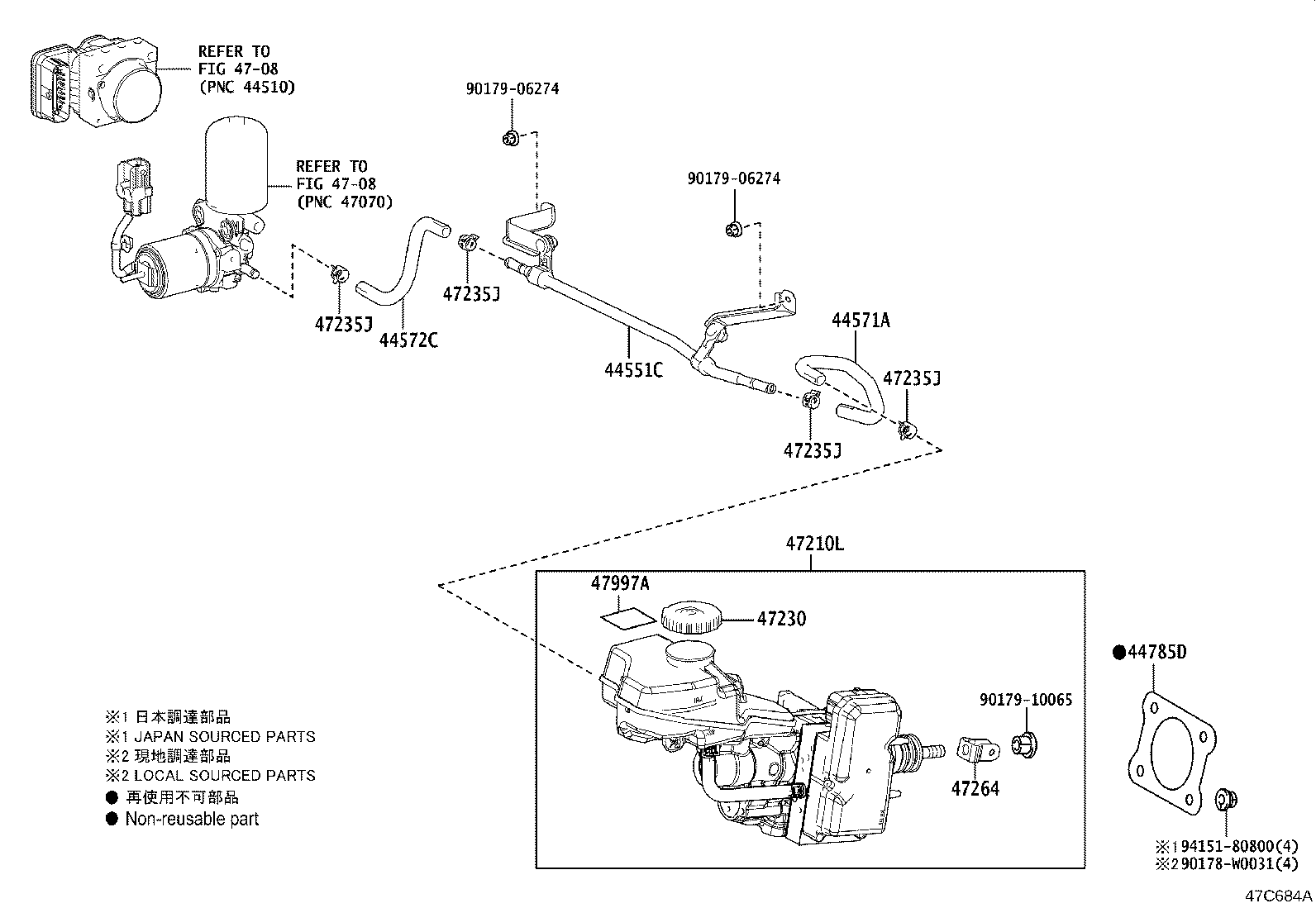

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44551C - TUBE, BRAKE ACTUATOR, NO.1 | ||||
| 44551-33080 |
AXVH71..D |
1 | ||
| 44571A - HOSE, BRAKE ACTUATOR, NO.1 | ||||
| 44571-33150 |
AXVH71..D |
1 | ||
| 44572C - HOSE, BRAKE ACTUATOR, NO.2 | ||||
| 44572-33010 |
AXVH71..D |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-33320 |
AXVH71..D |
1 | ||
| 47050-33340 |
AXVH71..GCC |
1 | ||
| 47050-33570 |
AXVH71..D |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-47090 |
AXVH71 |
1 | ||
| 47230-47090 |
AXVH71..D |
1 | ||
| 47230-33330 |
AXVH71..D |
1 | ||
| 47230-47090 |
AXVH71..D |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-12060 |
AXVH7#..D |
1 | ||
| Common parts | ||||
| 90178-W0031 | ||||
| 90179-06274 | ||||
| 90179-10065 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 4708 | ||||
