AXVH71L-AEXDBV (2018)
Toyota Camry/Hybrid
(1709- )LHD

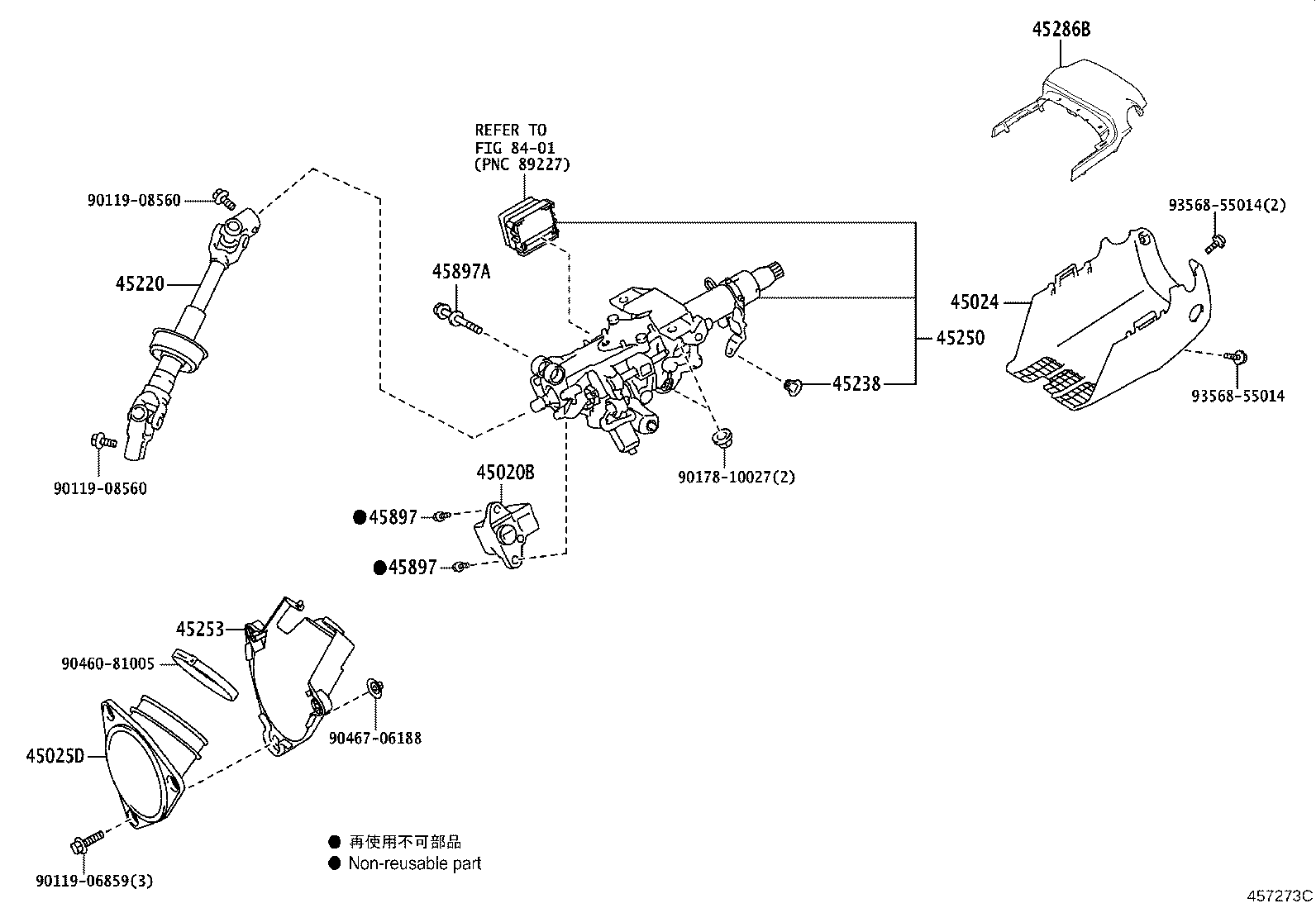

MANUAL TILT & TELESCOPIC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45020-33240 |
ASV70..N,V;AXVH7#,GSV70..D,V;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 45020-33260 |
AXVH71..GCC EXCLUSIVE PACKAGE |
1 | ||
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45020-33240 |
ASV70..N,V;AXVH7#,GSV70..D,V;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 45020-33260 |
AXVH71..GCC EXCLUSIVE PACKAGE |
1 | ||
| 45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER | ||||
| 45024-33240C0 |
AXVH71..GCC EXCLUSIVE PACKAGE,BLACK,TRIM1#,2#,4# |
1 | ||
| 45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER | ||||
| 45024-33240C0 |
AXVH71..GCC EXCLUSIVE PACKAGE,BLACK,TRIM1#,2#,4# |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-33150 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-33351 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 45220-33352 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45238-52010 |
GSV70..GCC;AXVH71,GSV70..D,V;ASV70,AXVA70,AXVH70 |
1 | ||
| 45238-11010 |
AXVH71..GCC EXCLUSIVE PACKAGE |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-33D60 |
AXVH71..GCC EXCLUSIVE PACKAGE |
1 | ||
| 45250-33D40 |
ASV70..N,V;AXVH7#,GSV70..D,V;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 45250-48430 |
AXVH71..GCC EXCLUSIVE PACKAGE |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-33100 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-52030 |
GSV70..GCC;AXVH71,GSV70..D,V;ASV70,AXVA70,AXVH70 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 90119-10980 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| Common parts | ||||
| 90119-06859 | ||||
| 90119-08560 | ||||
| 90178-10027 | ||||
| 90460-81005 | ||||
| 90467-06188 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1804- )AXVH71..D
ELECTRIC TILT & TELESCOPIC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45020-33240 |
ASV70..N,V;AXVH7#,GSV70..D,V;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 45020-33260 |
AXVH71..GCC EXCLUSIVE PACKAGE |
1 | ||
| 45024 - COVER SUB-ASSY, STEERING COLUMN, LOWER | ||||
| 45024-33240C0 |
AXVH71..GCC EXCLUSIVE PACKAGE,BLACK,TRIM1#,2#,4# |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-33150 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-33351 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 45220-33352 |
ASV70,AXVA70,AXVH71,GSV70..LHD |
1 | ||
| 45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45238-52010 |
GSV70..GCC;AXVH71,GSV70..D,V;ASV70,AXVA70,AXVH70 |
1 | ||
| 45238-11010 |
AXVH71..GCC EXCLUSIVE PACKAGE |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-33D60 |
AXVH71..GCC EXCLUSIVE PACKAGE |
1 | ||
| 45250-33D40 |
ASV70..N,V;AXVH7#,GSV70..D,V;ASV70,AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 45250-48430 |
AXVH71..GCC EXCLUSIVE PACKAGE |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-33100 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
2 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 90119-10980 |
AXVH71..D;ASV70,AXVA70,AXVH70,GSV70 |
1 | ||
| Common parts | ||||
| 90119-06859 | ||||
| 90119-08560 | ||||
| 90178-10027 | ||||
| 90460-81005 | ||||
| 90467-06188 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
