AXVH71L-AEXDBV (2018)

Toyota Camry/Hybrid

Production Apr 2018 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )

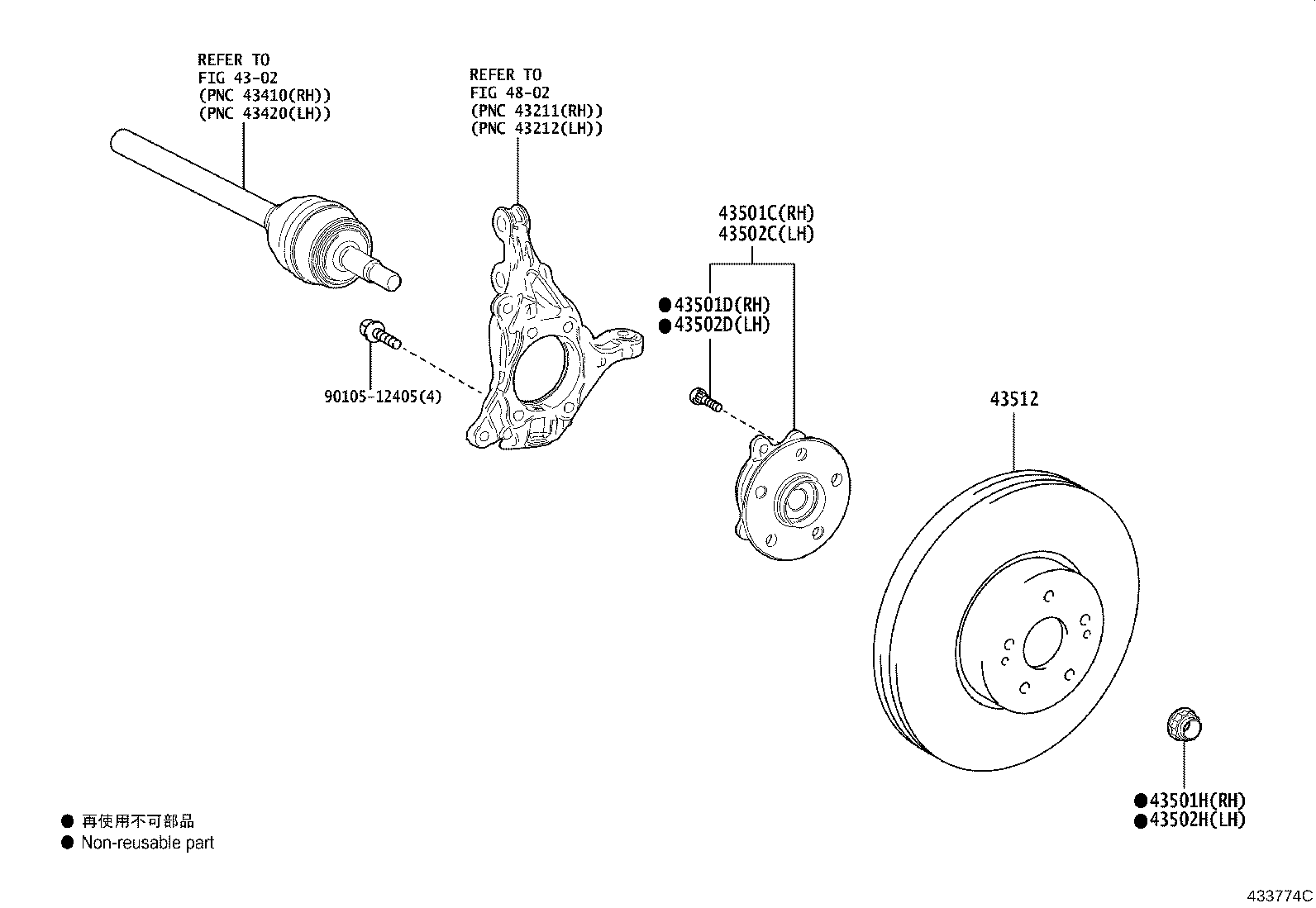

Click highlighted areas on diagram

diagram 4302 43501C 43501D 43501H 43502C 43502D 43502H 43512 4802 9010512405
Part # Description Qty Price
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 5
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90177-22001

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 5
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90177-22001

AXVH71..D;ASV70,AXVA70,AXVH70,GSV70

 1
43512 - DISC, FRONT
43512-33150

ASV70,AXVA70,AXVH70;AXVH71,GSV70..D,N,V

 2
Common parts
90105-12405
Linked diagrams
4302
4802
