AXVH71L-AEXDBV (2018)

Toyota Camry/Hybrid

Production Apr 2018 - Feb 2021
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1804- )A25AFXS..AXVH71..D ; (2102- )A25AFXS..D

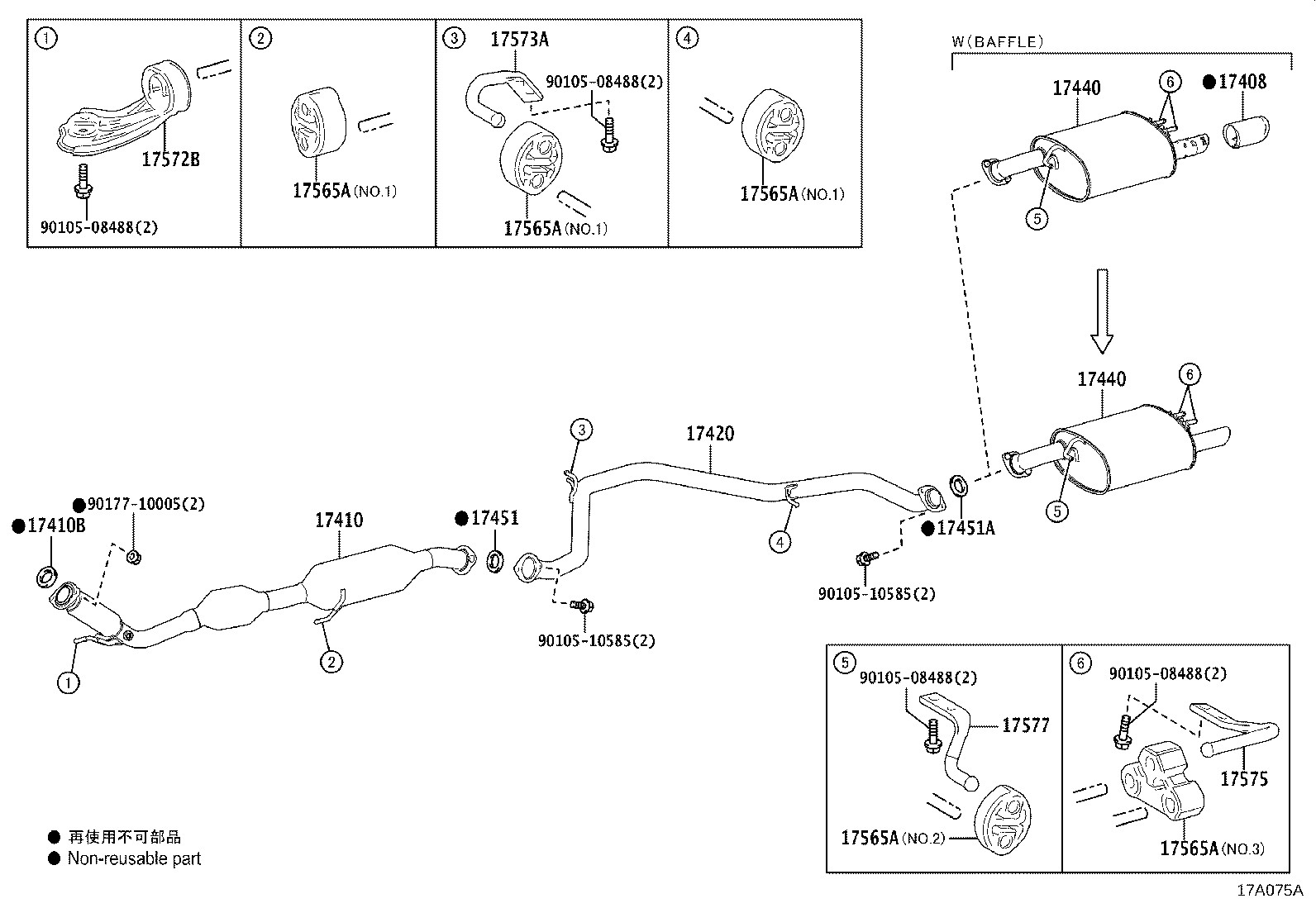

Click highlighted areas on diagram

diagram 17408 17410 17410B 17420 17440 17440 17451 17451A 17565A 17565A 17565A 17565A 17565A 17572B 17573A 17575 17577 9010508488 9010508488 9010508488 9010508488 9010510585 9010510585 9017710005
Part # Description Qty Price
17408 - BAFFLE SUB ASSY, EXHAUST TAIL PIPE
17408-31080

A25AFXS..AXVH71..GCC

LIMITED

 1
17440 - PIPE, EXHAUST TAIL, LH
17440-25020

A25AFXS..AXVH71..GCC

LIMITED

 1
17440 - PIPE, EXHAUST TAIL, LH
17440-25020

A25AFXS..AXVH71..GCC

LIMITED

 1
17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2
17572-31150

A25AFXS..AXVH71..D;A25#,2ARFE,2GRFKS..ASV70,AXVA70,AXVH70,GSV70

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-31160

2GRFKS..GSV70;2ARFE..ASV70..N,V;A25AFXS..AXVH7#..D

 1
17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7
17577-31040

2GRFKS..GSV70;2ARFE..ASV70..N,V;A25AFXS..AXVH7#..D

 1
Common parts
90105-08488
90105-10585
90177-10005
