AXVH71L-AEXDBR (2021)
Toyota Camry/Hybrid

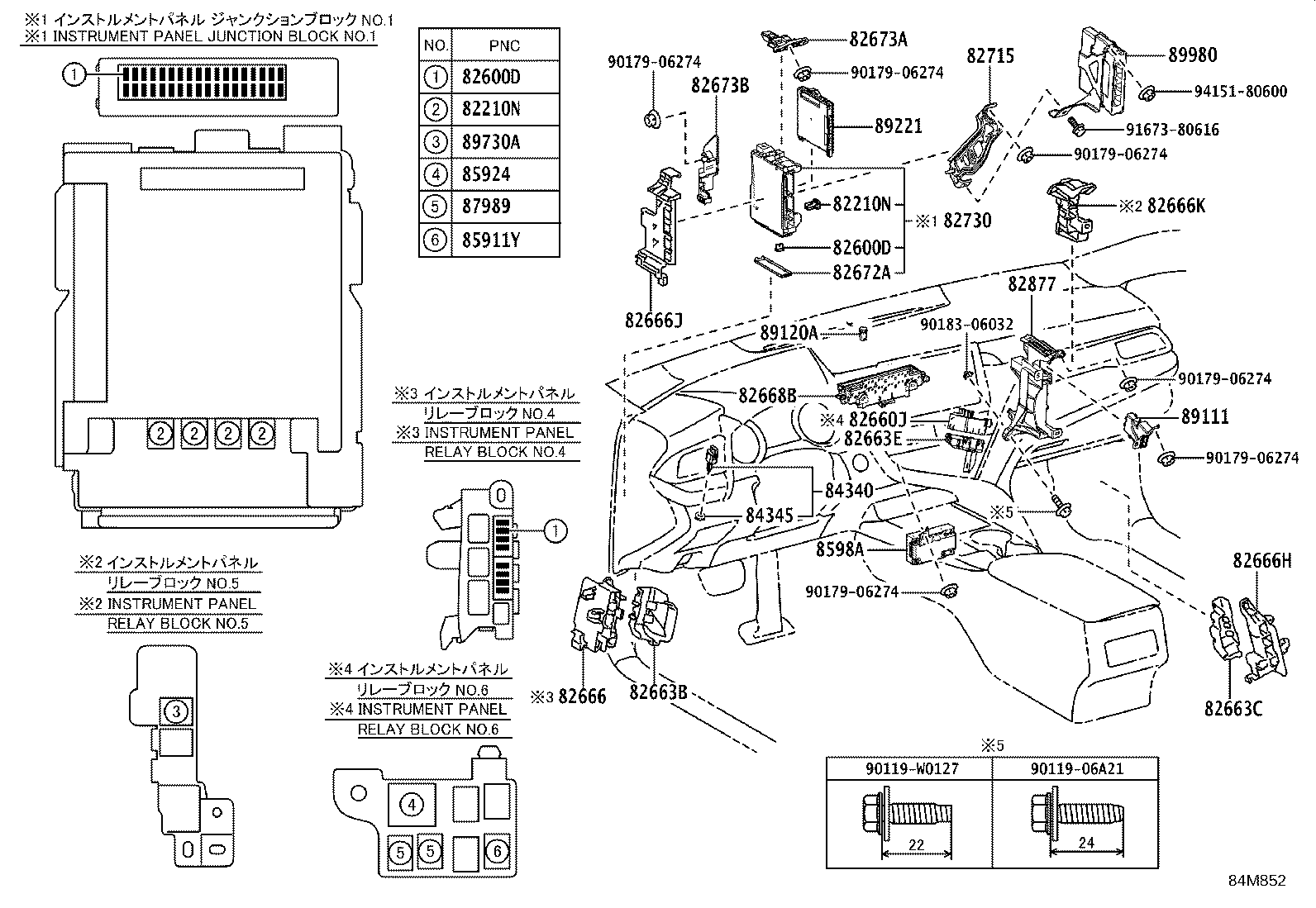

ILLUST NO. 3 OF 7(2102- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AXVA70,AXVH7#,GSV70,MXVA71 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AXVA70,AXVH7#,GSV70,MXVA71 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
AXVA70,AXVH7#,GSV70,MXVA71 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
AXVA70,AXVH7#,GSV70,MXVA71 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
AXVA70,AXVH7#,GSV70,MXVA71 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
AXVH71..TAKR 10A,MINI FUSE,RED,TW HV Q |
1 | ||
| 90982-09022 |
AXVA70,AXVH7#,GSV70,MXVA71 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09022 |
AXVH71..TAKR 15A,MINI FUSE,BLUE,TW HV Q |
1 | ||
| 90982-09023 |
AXVA70,AXVH7#,GSV70,MXVA71 20A,MINI FUSE,YELLOW |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
AXVA70,AXVH7#,GSV70,MXVA71 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
AXVA70,AXVH7#,GSV70,MXVA71 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
AXVA70,AXVH7#,GSV70,MXVA71 10A,MINI FUSE,RED |
1 | ||
| 90982-09021 |
AXVH71..TAKR 10A,MINI FUSE,RED,TW HV Q |
1 | ||
| 90982-09022 |
AXVA70,AXVH7#,GSV70,MXVA71 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09022 |
AXVH71..TAKR 15A,MINI FUSE,BLUE,TW HV Q |
1 | ||
| 90982-09023 |
AXVA70,AXVH7#,GSV70,MXVA71 20A,MINI FUSE,YELLOW |
1 | ||
| 82660J - BLOCK ASSY, RELAY | ||||
| 82660-33060 |
AXVH71,GSV70;AXVA70..GLE,SE |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-33240 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 82663C - COVER, RELAY BLOCK LOWER, NO.4 | ||||
| 82663-33250 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 82663E - COVER, RELAY BLOCK, LOWER, NO.7 | ||||
| 82663-33260 |
AXVH7#,GSV70;AXVA70..GLE,SE |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-33570 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-33580 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 82666J - HOLDER, CONNECTOR, NO.3 | ||||
| 82666-33630 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 82666K - HOLDER, CONNECTOR, NO.4 | ||||
| 82666-33640 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 82668B - HOLDER, CONNECTOR, NO.5 | ||||
| 82666-33590 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-33391 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-33120 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-33150 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-33T30 |
AXVH7# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-33Q31 |
AXVA70,AXVH7#,MXVA71..D,V |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-33030 |
AXVH71,GSV70;AXVA70..GLE,SE |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19095 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 85911Y - RELAY, FRONT SEAT HEATER | ||||
| 90987-02027 |
AXVH71..TAKR TW HV Q |
1 | ||
| 85924 - RELAY, IGNITION CONTROL | ||||
| 90987-02031 |
AXVH7# |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-76050 |
AXVH7# |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-3T890 |
AXVH71,MXVA71..TAIW,TAKR |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-02027 |
AXVA70,AXVH7#,MXVA71..ARL,TAIW,TAKR |
1 | ||
| 89980 - COMPUTER ASSY, HYBRID VEHICLE CONTROL | ||||
| 89980-33510 |
AXVH71 |
1 | ||
| Common parts | ||||
| 90119-06A21 | ||||
| 90119-W0127 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||

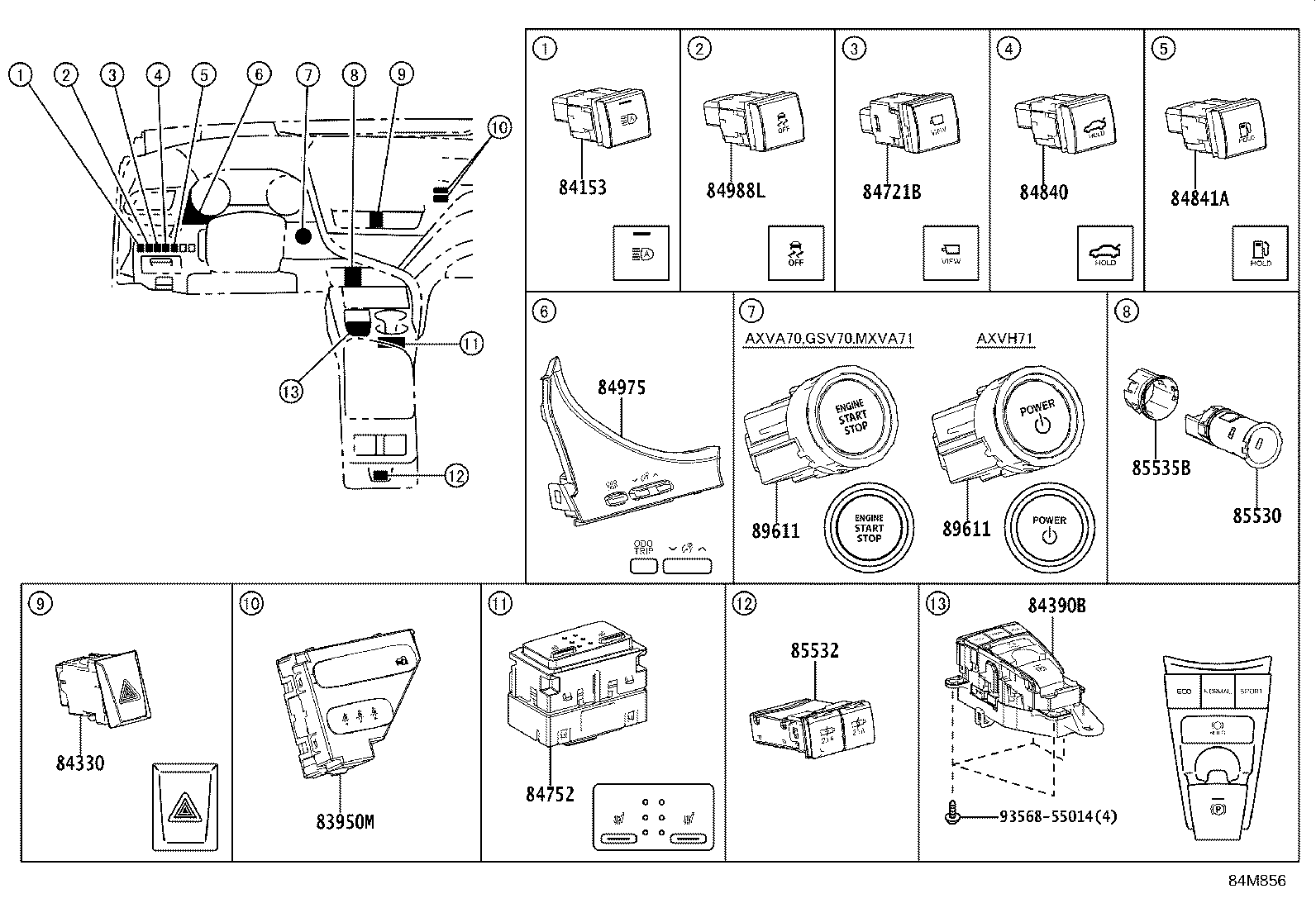

ILLUST NO. 4 OF 7(2102- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-33210 |
AXVA70,AXVH71,GSV70,MXVA71..LHD |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-33040 |
GSV70;AXVA70,AXVH7#,MXVA71..ARL,TAIW,TAKR |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-33140 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-33090 |
AXVH71 |
1 | ||
| 84752 - SWITCH, REFRESHING SEAT | ||||
| 84752-33400 |
AXVH71..TAKR TW HV Q |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-33121 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-33041 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-33040 |
AXVA70,AXVH71,GSV70,MXVA71..LHD |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-33100 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-52010 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-33020 |
GSV70;AXVH70..V;AXVH71,MXVA71..TAIW,TAKR |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-33100 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30142 |
AXVH7# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30142 |
AXVH7# |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
