AXVH71L-AEXDBR (2021)
Toyota Camry/Hybrid
ILLUST NO. 1 OF 7(1709- )AXVH7#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82715Z - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-33K11 |
AXVA70,AXVH7# |
1 | ||
| 82716A - BRACKET, WIRING HARNESS CLAMP | ||||
| 82715-33K30 |
AXVA70,AXVH7# |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-33040 |
AXVA70,AXVH7#,MXVA71 |
1 | ||
| 89451A - SENSOR, SHIFT LEVER POSITION | ||||
| 89451-10010 |
AXVH7# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-33290 |
AXVA70,AXVH7# |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-33210 |
AXVA70,AXVH7#,MXVA71 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-33051 |
AXVA70,AXVH7#,MXVA71 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
AXVA70,AXVH7#,MXVA71 |
1 | ||
| Common parts | ||||
| 90119-06A23 | ||||
| 90430-12031 | ||||
| 90468-14044 | ||||
| 90468-15007 | ||||
| 91551-80612 | ||||
| 91551-80825 | ||||
| 91551-80835 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1105 | ||||
ILLUST NO. 6 OF 7(1709- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-33180C0 |
AXVH71..TAKR;AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 84921-33180E0 |
AXVH71..TAKR;AXVA70,GSV70..GLE,LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-33180C0 |
AXVH71..TAKR;AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 84921-33180E0 |
AXVH71..TAKR;AXVA70,GSV70..GLE,LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-33170C0 |
AXVH71..TAKR;AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 84921-33170E0 |
AXVH71..TAKR;AXVA70,GSV70..GLE,LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-33170C0 |
AXVH71..TAKR;AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 84921-33170E0 |
AXVH71..TAKR;AXVA70,GSV70..GLE,LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921L - KNOB, POWER SEAT SWITCH(FOR SLIDE & VERTICAL), NO.2 | ||||
| 84921-33190E0 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33190C0 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 84921L - KNOB, POWER SEAT SWITCH(FOR SLIDE & VERTICAL), NO.2 | ||||
| 84921-33190E0 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-33190C0 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 84921M - KNOB, POWER SEAT SWITCH(FOR RECLINING), NO.2 | ||||
| 84921-33200C0 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 84921-33200E0 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921M - KNOB, POWER SEAT SWITCH(FOR RECLINING), NO.2 | ||||
| 84921-33200C0 |
GSV70..LIMD;AXVH71..TAKR BLACK,TRIM2# |
1 | ||
| 84921-33200E0 |
GSV70..LIMD;AXVH71..TAKR NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-33220E0 |
AXVH71..TAKR TW HV Q&FRONT SEAT ADJUSTER-*DRP:8WAY-POWER & *DRS:MEMORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922-33140 |
GSV70;AXVH71..TAKR |
1 | ||
| 84922-33220C0 |
AXVH71..TAKR TW HV Q&FRONT SEAT ADJUSTER-*DRP:8WAY-POWER & *DRS:MEMORY,BLACK,TRIM2# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-33220E0 |
AXVH71..TAKR TW HV Q&FRONT SEAT ADJUSTER-*DRP:8WAY-POWER & *DRS:MEMORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922-33140 |
GSV70;AXVH71..TAKR |
1 | ||
| 84922-33220C0 |
AXVH71..TAKR TW HV Q&FRONT SEAT ADJUSTER-*DRP:8WAY-POWER & *DRS:MEMORY,BLACK,TRIM2# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-33160C0 |
AXVH71..TAKR TW HV Q&FRONT SEAT ADJUSTER-*DRP:8WAY-POWER & *DRS:MEMORY,BLACK,TRIM2# |
1 | ||
| 84922-33160E0 |
AXVH71..TAKR TW HV Q&FRONT SEAT ADJUSTER-*DRP:8WAY-POWER & *DRS:MEMORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922-33210C0 |
AXVH71..TAKR;AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 84922-33210E0 |
AXVH71..TAKR;AXVA70,GSV70..GLE,LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-33160C0 |
AXVH71..TAKR TW HV Q&FRONT SEAT ADJUSTER-*DRP:8WAY-POWER & *DRS:MEMORY,BLACK,TRIM2# |
1 | ||
| 84922-33160E0 |
AXVH71..TAKR TW HV Q&FRONT SEAT ADJUSTER-*DRP:8WAY-POWER & *DRS:MEMORY,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922-33210C0 |
AXVH71..TAKR;AXVA70,GSV70..GLE,LIMD BLACK,TRIM2# |
1 | ||
| 84922-33210E0 |
AXVH71..TAKR;AXVA70,GSV70..GLE,LIMD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 89710D - COMPUTER ASSY, POSITION CONTROL, LH | ||||
| 89710-33061 |
AXVH71..TAKR TW HV Q |
1 | ||
| Linked diagrams | ||||
| 7101 | ||||
ILLUST NO. 7 OF 7(1709- )
DOOR, FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-70010 |
A25AFXS..AXVH7# |
1 | ||
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-70010 |
A25AFXS..AXVH7# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09022 |
AXVH7# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
AXVH7# 7.5A,MINI FUSE,BROWN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09022 |
AXVH7# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
AXVH7# 7.5A,MINI FUSE,BROWN |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33111 |
AXVH7# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-33160 |
AXVH7# |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-33160 |
AXVH7# |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-12240 |
GSV70;AXVH71,MXVA71..TAIW,TAKR |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-12240 |
GSV70;AXVH71,MXVA71..TAIW,TAKR |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
AXVA70,AXVH7#,GSV70,MXVA71 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
AXVA70,AXVH7#,GSV70,MXVA71 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
AXVA70,AXVH7#,GSV70,MXVA71 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
AXVA70,AXVH7#,GSV70,MXVA71 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12120 |
GSV70;AXVH70..V;AXVH71,MXVA71..TAIW,TAKR |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12120 |
GSV70;AXVH70..V;AXVH71,MXVA71..TAIW,TAKR |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12120 |
GSV70;AXVH70..V;AXVH71,MXVA71..TAIW,TAKR |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12120 |
GSV70;AXVH70..V;AXVH71,MXVA71..TAIW,TAKR |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-62050 |
AXVH71..TAKR TW HV Q |
1 | ||
| 84872-60160 |
AXVH71,MXVA71..TAIW,TAKR |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-62050 |
AXVH71..TAKR TW HV Q |
1 | ||
| 84872-60160 |
AXVH71,MXVA71..TAIW,TAKR |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-33120 |
AXVH71..TAKR TW HV Q |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-33120 |
AXVH71..TAKR TW HV Q |
1 | ||
| 84945A - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84945-33040 |
AXVH7#,GSV70;AXVA70..GLE,SE |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-33070 |
AXVH70..V;AXVH71..TAKR |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-33070 |
AXVH70..V;AXVH71..TAKR |
1 | ||
| 89430A - COMPUTER ASSY, OUTER MIRROR CONTROL, LH | ||||
| 89430-33251 |
AXVH71..TAKR TW HV Q |
1 | ||
| 89430-33250 |
AXVH71..TAKR TW HV Q |
1 | ||
| 89430B - COMPUTER ASSY, OUTER MIRROR CONTROL, RH | ||||
| 89430-33261 |
AXVH71..TAKR TW HV Q |
1 | ||
| 89430-33260 |
AXVH71..TAKR TW HV Q |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
AXVH70..V;AXVH71..TAKR |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90159-60498 | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 90178-06012 | ||||
| 90189-06197 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 6701 | ||||
| 8201 | ||||

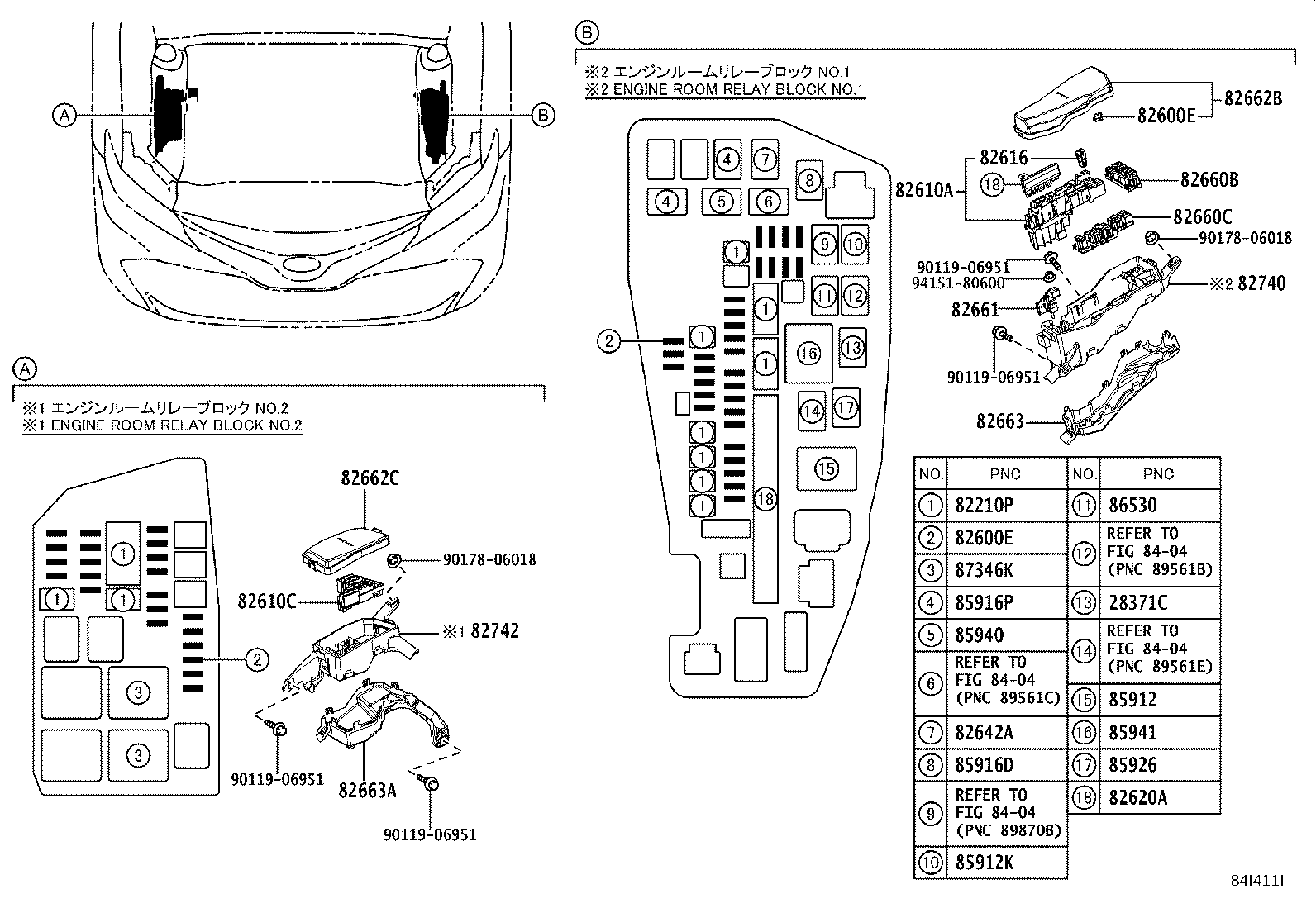

ILLUST NO. 2 OF 7(1709- )AXVH7#
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
A25#,M20AFKS,2GRFKS..AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08298 |
AXVA70,AXVH7#,GSV70,MXVA71 30A,TERMINAL:FEMALE |
1 | ||
| 90982-08303 |
AXVH7#,GSV70;AXVA70..GLE,SE 50A-50A-50A,FEMALE |
1 | ||
| 90982-08300 |
AXVH7# 50A-30A-30A,FEMALE |
1 | ||
| 90982-08312 |
AXVA70,AXVH7#,GSV70,MXVA71 50A,TERM.:FEMALE,RED |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
AXVA70,AXVH7#,GSV70,MXVA71 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
AXVA70,AXVH7#,GSV70,MXVA71 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
AXVH71..TAKR 5A,MINI FUSE,TAN,TW HV Q |
1 | ||
| 90982-09023 |
AXVA70,AXVH7#,GSV70,MXVA71 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
AXVA70,AXVH7#,GSV70,MXVA71 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
AXVH71..TAKR 20A,MINI FUSE,YELLOW,TW HV Q |
1 | ||
| 90982-09024 |
AXVA70,AXVH7#,GSV70,MXVA71 25A,MINI FUSE |
1 | ||
| 90982-09025 |
AXVH71..TAKR 30A,MINI FUSE,GRN,TW HV Q |
1 | ||
| 90982-09025 |
AXVA70,AXVH7#,GSV70,MXVA71 30A,MINI FUSE,GRN |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09021 |
AXVA70,AXVH7#,GSV70,MXVA71 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
AXVA70,AXVH7#,GSV70,MXVA71 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
AXVH71..TAKR 5A,MINI FUSE,TAN,TW HV Q |
1 | ||
| 90982-09023 |
AXVA70,AXVH7#,GSV70,MXVA71 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09022 |
AXVA70,AXVH7#,GSV70,MXVA71 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
AXVH71..TAKR 20A,MINI FUSE,YELLOW,TW HV Q |
1 | ||
| 90982-09024 |
AXVA70,AXVH7#,GSV70,MXVA71 25A,MINI FUSE |
1 | ||
| 90982-09025 |
AXVH71..TAKR 30A,MINI FUSE,GRN,TW HV Q |
1 | ||
| 90982-09025 |
AXVA70,AXVH7#,GSV70,MXVA71 30A,MINI FUSE,GRN |
1 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-33140 |
AXVH7# |
1 | ||
| 82610C - BLOCK ASSY, FUSE | ||||
| 82610-33150 |
AXVH71..TAKR TW HV Q |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-33140 |
AXVH7#,GSV70 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-33100 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-33110 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-33050 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-33810 |
AXVH7# |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-33B30 |
AXVH71..TAKR TW HV Q |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-33230 |
AXVH7# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-33220 |
AXVH71..TAKR TW HV Q |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-33090 |
AXVH7# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-33050 |
AXVH71..TAKR TW HV Q |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 85912K - RELAY, VVT | ||||
| 90987-02027 |
AXVA70,AXVH7#,MXVA71 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
AXVH71,MXVA71..TAIW,TAKR;AXVA70,GSV70..GLE,LIMD,SE |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02027 |
AXVA70,AXVH7#,GSV70,MXVA71 |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 90987-02027 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 85941 - RELAY, WINDSHIELD WASHER | ||||
| 90987-02025 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90178-06018 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 5 OF 7(1709- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-33500C4 |
AXVH71..TAKR BLACK / SATIN CHROM,TRIM2#,4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-33090 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-11010 |
AXVA70,AXVH71,GSV70,MXVA71..LHD |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-11010 |
AXVA70,AXVH71,GSV70,MXVA71..LHD |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-33090 |
AXVH71,MXVA71..TAIW,TAKR |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-33090 |
AXVH71,MXVA71..TAIW,TAKR |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-33600 |
AXVH71,MXVA71..TAIW,TAKR |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-33600 |
AXVH71,MXVA71..TAIW,TAKR |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-48070 |
AXVH71..TAKR TW HV Q |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-48070 |
AXVH71..TAKR TW HV Q |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-33010 |
AXVH71..TAKR TW HV Q |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-33010 |
AXVH71..TAKR TW HV Q |
1 | ||
| 89245C - SENSOR, STEERING | ||||
| 8924B-50050 |
AXVA70,AXVH7#,GSV70,MXVA71 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
